SV21-JEPMK (1986)
Toyota Camry/Vista
(8608- )CV20,SV2#..SED

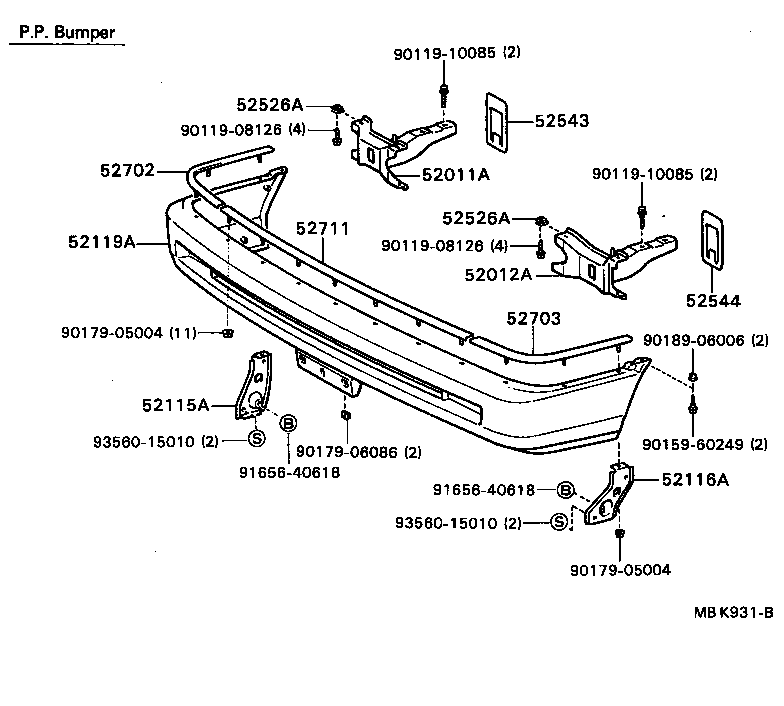

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-32030 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) |
1 | ||
| 52115-32030 |
CV20,SV21..SED |
1 | ||
| 52115-32030 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-32030 |
CV20,SV21..SED |
1 | ||
| 52116-32030 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) |
1 | ||
| 52116-32030 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-3222002 |
CV20,SV21..SED D-RED MAICA,DARK RED MICA,3H3 |
1 | ||
| 52119-3222003 |
CV20,SV21..SED GRAY-M,GRAY METALLIC,167 |
1 | ||
| 52119-3222004 |
CV20,SV21..SED BLUE MAICA,BLUE MICA,8E3 |
1 | ||
| 52119-3222006 |
CV20,SV21..SED BROWN-M,BROWN METALLIC,4H2 |
1 | ||
| 52119-3222005 |
CV20,SV21..SED L-BEIGE-M,BEIGE M,4G8 ,29C |
1 | ||
| 52119-3222008 |
CV20,SV21..SED SUPER WHITE,SUPER WHITE 2,040 |
1 | ||
| 52119-3222002 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) DARK RED MICA,3H3 |
1 | ||
| 52119-3222003 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) GRAY METALLIC,167 |
1 | ||
| 52119-3222008 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) SUPER WHITE 2,040 |
1 | ||
| 52119-3222004 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) BLUE MICA,8E3 |
1 | ||
| 52119-3222005 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) LIGHT BEIGE,4G8 ,29C |
1 | ||
| 52119-3222013 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) SILVER METALLIC,164 |
1 | ||
| 52526A - RETAINER, FRONT BUMPER, LOWER NO.1 | ||||
| 52526-32050 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) |
1 | ||
| 52526-32050 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) |
1 | ||
| 52526-32050 |
CV20,SV21..SED |
1 | ||
| 52526A - RETAINER, FRONT BUMPER, LOWER NO.1 | ||||
| 52526-32050 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) |
1 | ||
| 52526-32050 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) |
1 | ||
| 52526-32050 |
CV20,SV21..SED |
1 | ||
| 52543 - SEAL, FRONT BUMPER SIDE, RH | ||||
| 52543-32020 |
CV20,SV21..SED |
1 | ||
| 52544 - SEAL, FRONT BUMPER SIDE, LH | ||||
| 52543-32020 |
CV20,SV21..SED |
1 | ||
| 52702 - MOULDING SUB-ASSY, FRONT BUMPER SIDE, RH | ||||
| 52702-32030 |
CV20,SV21..SED |
1 | ||
| 52702-32030 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) |
1 | ||
| 52702-32030 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) |
1 | ||
| 52703 - MOULDING SUB-ASSY, FRONT BUMPER SIDE, LH | ||||
| 52703-32030 |
CV20,SV21..SED |
1 | ||
| 52703-32030 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) |
1 | ||
| 52703-32030 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-32030 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) |
1 | ||
| 52711-32030 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) |
1 | ||
| 52711-32030 |
CV20,SV21..SED |
1 | ||
| Common parts | ||||
| 90119-08126 | ||||
| 90119-10085 | ||||
| 90159-60249 | ||||
| 90179-05004 | ||||
| 90179-06086 | ||||
| 90189-06006 | ||||
| 91656-40618 | ||||
| 93560-15010 | ||||
(8608- )CV20,SV2#..SED

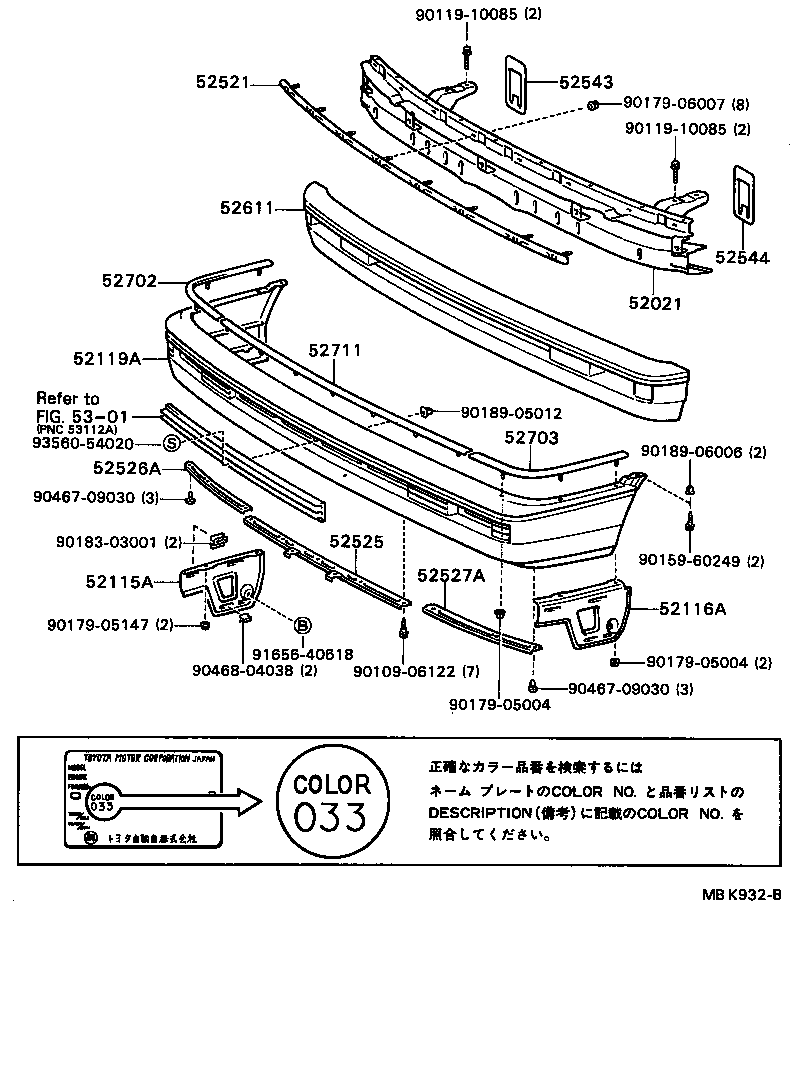

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-32050 |
CV20,SV21..SED |
1 | ||
| 52021-32050 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) |
1 | ||
| 52021-32050 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-32030 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) |
1 | ||
| 52115-32030 |
CV20,SV21..SED |
1 | ||
| 52115-32030 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-32030 |
CV20,SV21..SED |
1 | ||
| 52116-32030 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) |
1 | ||
| 52116-32030 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-3222002 |
CV20,SV21..SED D-RED MAICA,DARK RED MICA,3H3 |
1 | ||
| 52119-3222003 |
CV20,SV21..SED GRAY-M,GRAY METALLIC,167 |
1 | ||
| 52119-3222004 |
CV20,SV21..SED BLUE MAICA,BLUE MICA,8E3 |
1 | ||
| 52119-3222006 |
CV20,SV21..SED BROWN-M,BROWN METALLIC,4H2 |
1 | ||
| 52119-3222005 |
CV20,SV21..SED L-BEIGE-M,BEIGE M,4G8 ,29C |
1 | ||
| 52119-3222008 |
CV20,SV21..SED SUPER WHITE,SUPER WHITE 2,040 |
1 | ||
| 52119-3222002 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) DARK RED MICA,3H3 |
1 | ||
| 52119-3222003 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) GRAY METALLIC,167 |
1 | ||
| 52119-3222008 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) SUPER WHITE 2,040 |
1 | ||
| 52119-3222004 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) BLUE MICA,8E3 |
1 | ||
| 52119-3222005 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) LIGHT BEIGE,4G8 ,29C |
1 | ||
| 52119-3222013 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) SILVER METALLIC,164 |
1 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52521-32070 |
CV20,SV21..SED |
1 | ||
| 52521-32070 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) |
1 | ||
| 52521-32070 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) |
1 | ||
| 52525 - RETAINER, FRONT BUMPER, LOWER CENTER | ||||
| 52525-32030 |
CV20,SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT |
1 | ||
| 52525-32030 |
CV20,SV21..SED |
1 | ||
| 52525-32030 |
CV20,SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT |
1 | ||
| 52526A - RETAINER, FRONT BUMPER, LOWER NO.1 | ||||
| 52526-32050 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) |
1 | ||
| 52526-32050 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) |
1 | ||
| 52526-32050 |
CV20,SV21..SED |
1 | ||
| 52527A - RETAINER, FRONT BUMPER, LOWER CENTER NO.2 | ||||
| 52527-32020 |
CV20,SV21..SED |
1 | ||
| 52527-32020 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) |
1 | ||
| 52527-32020 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) |
1 | ||
| 52543 - SEAL, FRONT BUMPER SIDE, RH | ||||
| 52543-32020 |
CV20,SV21..SED |
1 | ||
| 52544 - SEAL, FRONT BUMPER SIDE, LH | ||||
| 52543-32020 |
CV20,SV21..SED |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-32080 |
CV20,SV21..SED |
1 | ||
| 52611-32080 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) |
1 | ||
| 52611-32080 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) |
1 | ||
| 52702 - MOULDING SUB-ASSY, FRONT BUMPER SIDE, RH | ||||
| 52702-32030 |
CV20,SV21..SED |
1 | ||
| 52702-32030 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) |
1 | ||
| 52702-32030 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) |
1 | ||
| 52703 - MOULDING SUB-ASSY, FRONT BUMPER SIDE, LH | ||||
| 52703-32030 |
CV20,SV21..SED |
1 | ||
| 52703-32030 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) |
1 | ||
| 52703-32030 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-32030 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) |
1 | ||
| 52711-32030 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) |
1 | ||
| 52711-32030 |
CV20,SV21..SED |
1 | ||
| Common parts | ||||
| 90109-06122 | ||||
| 90119-10085 | ||||
| 90159-60249 | ||||
| 90179-05004 | ||||
| 90179-05147 | ||||
| 90179-06007 | ||||
| 90183-03001 | ||||
| 90189-05012 | ||||
| 90189-06006 | ||||
| 90467-09030 | ||||
| 90468-04038 | ||||
| 91656-40618 | ||||
| 93560-54020 | ||||
| Linked diagrams | ||||
| 5301 | ||||
