SV21-JEPMK (1986)

Toyota Camry/Vista

Production Aug 1986 - Aug 1988
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )3SFE

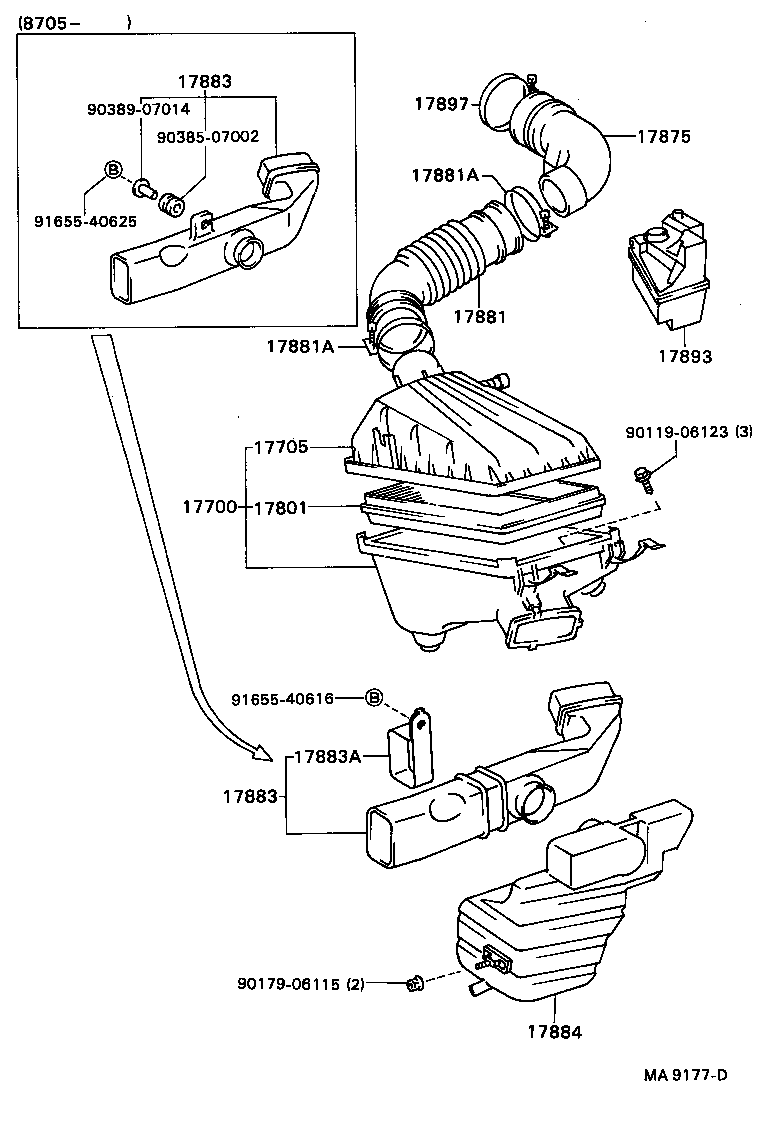

Click highlighted areas on diagram

diagram 17700 17705 17801 17875 17881 17881A 17881A 17883 17883 17883A 17884 17893 17897 9011906123 9017906115 9038507002 9038907014 9165540616 9165540625
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-74090

3SFE..SV21

 1
17700-74090

3SFE..SV21,25

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-74090

3SFE..SV21,25

 1
17705-74090

3SFE..SV21

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-74010

1SI,3S#..SV2#

 1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-74030

3SFE..SV21

 1
17875-74030

3SFE..SV21,25

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-74100

3SFE..SV21

 1
17881-74100

3SFE..SV21,25

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10830

3SFE..SV21,25

PIPE SIDE

 1
96111-10830

3SFE..SV21

PIPE SIDE

 1
96111-10710

3SFE..SV21

AIR CLEANER SIDE

 1
96111-10710

3SFE..SV21,25

AIR CLEANER SIDE

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10830

3SFE..SV21,25

PIPE SIDE

 1
96111-10830

3SFE..SV21

PIPE SIDE

 1
96111-10710

3SFE..SV21

AIR CLEANER SIDE

 1
96111-10710

3SFE..SV21,25

AIR CLEANER SIDE

 1
17883 - HOSE, AIR CLEANER, NO.3
17882-63110

1SI,3S#..SV2#

 1
17883 - HOSE, AIR CLEANER, NO.3
17882-63110

1SI,3S#..SV2#

 1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
90460-01046

1SI,3S#..SV2#

 1
17884 - HOSE, AIR CLEANER, NO.4
17883-63030

1SI,3S#..SV2#

 1
17893 - RESONATOR, INTAKE AIR
17893-74010

3SFE..SV21

 1
17893-74010

3SFE..SV21,25

 1
17897 - CLAMP, HOSE(FOR AIR CLEANER)
96111-10800

3SFE..SV21

 1
96111-10800

3SFE..SV21,25

 1
Common parts
90119-06123
90179-06115
90385-07002
90389-07014
91655-40616
91655-40625
