SV21-JEPGK (1988)

Toyota Camry/Vista

Production Aug 1988 - Jul 1990
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )3SFE

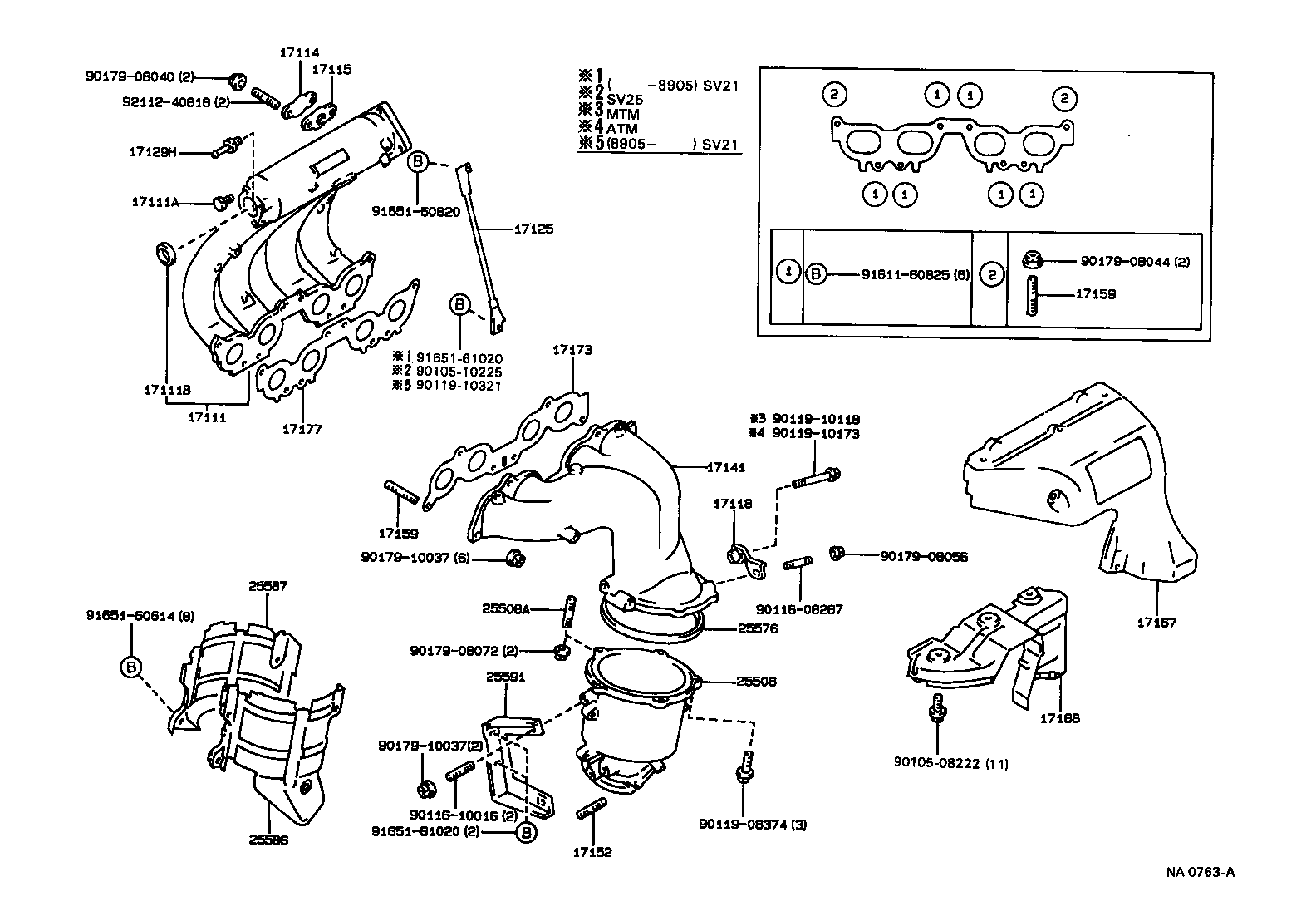

Click highlighted areas on diagram

diagram 17111 17111A 17111B 17114 17115 17118 17125 17129H 17141 17152 17159 17159 17167 17168 17173 17177 25508 25508A 25576 25586 25587 25591 9010508222 9010510225 9011608267 9011610016 9011908374 9011910118 9011910173 9011910321 9017908040 9017908044 9017908056 9017908072 9017910037 9017910037 9161160825 9165160614 9165160820 9165161020 9165161020 9211240818
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-74071

3SFE..SV21,25

 1
17111A - PLUG, NO.1
90345-51006

3S#..SV21,25

 1
17111B - PLUG, NO.2
96411-44000

3SFE..SV21,25

 1
17114 - PLATE, INTAKE MANIFOLD HOLE COVER
25617-74020

3SFE..SV21,25

 1
17115 - GASKET, INTAKE MANIFOLD HOLE COVER
25627-74010

3SFE..SV21,25

 1
25627-74011

3SFE..SV21,25

 1
17125 - STAY, SURGE TANK, NO.1
17125-88361

3S#..SV21

 1
17125-74050

3SFE..SV21

 1
17129H - UNION, NO.4
90404-51026

3S#..SV21,25

 1
17141 - MANIFOLD, EXHAUST
17141-74031

3SFE..SV21,25

 1
17141-74030

3SFE..SV21,25

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

3S#..SV21,25

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-60825

3SFE..SV21,25

INTAKE MANIFOLD

 2
90116-10063

3S#,4SFI..SV2#

EXHAUST MANIFOLD,*53

 6
92122-60822

3SFE,4SFI..SV2#

INTAKE MANIFOLD

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-60825

3SFE..SV21,25

INTAKE MANIFOLD

 2
90116-10063

3S#,4SFI..SV2#

EXHAUST MANIFOLD,*53

 6
92122-60822

3SFE,4SFI..SV2#

INTAKE MANIFOLD

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-74040

3SFE,4SFI..SV2#

 1
17167-74140

3SFE..SV21,25

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-74020

3SFE,4SFI..SV2#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-88360

3S#,4SFI..SV2#

*53

 1
17173-74040

3S#..SV21,25

*53

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-74041

3SFE,4SFI..SV2#

 1
17177-74040

3SFE,4SFI..SV2#

 1
25508 - CONVERTER SUB-ASSY, MANIFOLD
25508-74010

3SFE..SV21,25

 1
25508A - BOLT, STUD(FOR MANIFOLD CONVERTER)
90116-08171

3SFE,4SFI..SV2#

 2
25576 - GASKET, MANIFOLD CONVERTER
25576-74010

3SFE..SV21,25

 1
25576-74020

3SFE..SV21,25

 1
25586 - INSULATOR, MANIFOLD CONVERTER, NO.1
25586-74011

3SFE..SV21,25

 1
25587 - INSULATOR, MANIFOLD CONVERTER, NO.2
25587-74011

3SFE..SV21,25

 1
25591 - BRACKET, MANIFOLD SUPPORT
25591-74010

3SFE..SV21,25

 1
25591-74011

3SFE..SV21,25

 1
Common parts
90105-08222
90105-10225
90116-08267
90116-10016
90119-08374
90119-10118
90119-10173
90119-10321
90179-08040
90179-08044
90179-08056
90179-08072
90179-10037
91611-60825
91651-60614
91651-60820
91651-61020
92112-40818
