SV21-JEPGK (1986)

Toyota Camry/Vista

Production Aug 1986 - Aug 1988
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )3SFE

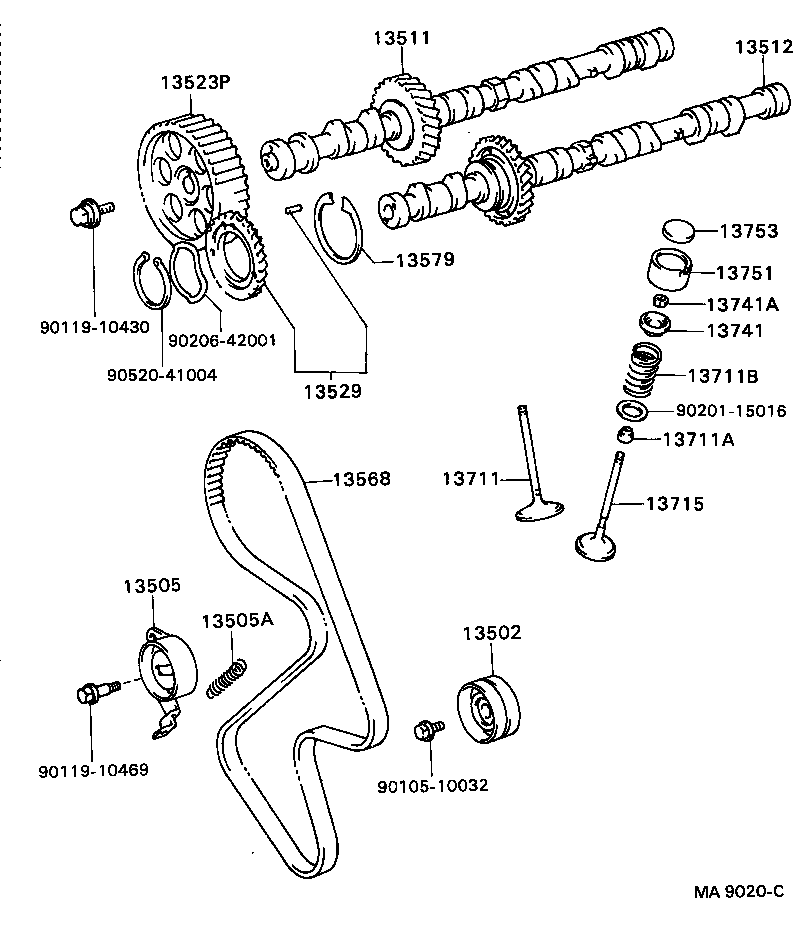

Click highlighted areas on diagram

diagram 13502 13505 13505A 13511 13512 13523P 13529 13568 13579 13711 13711A 13711B 13715 13741 13741A 13751 13753 9010510032 9011910430 9011910469 9020115016 9020642001 9052041004
Part # Description Qty Price
13502 - IDLER SUB-ASSY, TIMING BELT, NO.2
13503-63010

1SI,3SFE..SV2#

 1
13505 - IDLER SUB-ASSY, TIMING BELT, NO.1
13505-74010

3SFE..SV21

 1
13505-74010

3SFE..SV21,25

 1
13505A - SPRING, TENSION(FOR IDLER)
90506-20052

3SFE..SV21

 1
90506-20052

3SFE..SV21,25

 1
13511 - CAMSHAFT
13501-74020

3SFE..SV21,25

 1
13501-74020

3SFE..SV21

 1
13512 - CAMSHAFT, NO.2
13502-74010

3SFE..SV21

 1
13523P - PULLEY, CAMSHAFT TIMING
13523-74020

3SFE..SV21

 1
13523-74020

3SFE..SV21,25

 1
13529 - GEAR, CAMSHAFT SUB
13529-74900

3SFE..SV21

 1
13529-74900

3SFE..SV21,25

 1
13568 - BELT, TIMING
13568-74010

3SFE..SV21

 1
13568-74011

3SFE..SV21,25

 1
13568-74010

3SFE..SV21,25

 1
13579 - WASHER, CAMSHAFT TIMING GEAR BOLT
13579-74010

3SFE..SV21

 1
13579-74010

3SFE..SV21,25

 1
13711 - VALVE, INTAKE
13711-74020

3SFE..SV21

 8
13711-74020

3SFE..SV21,25

 8
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02062

3S#..SV21

INTAKE SIDE

 8
90913-02062

3S#..SV21,25

INTAKE SIDE

 8
90913-02066

3S#..SV21

EXHAUST SIDE

 8
90913-02066

3S#..SV21,25

EXHAUST SIDE

 8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-31003

3SFE..SV21,25

 16
90501-31003

3SFE..SV21

 16
13715 - VALVE, EXHAUST
13715-74020

3SFE..SV21,25

 8
13715-74020

3SFE..SV21

 8
13741 - RETAINER, VALVE SPRING
13741-16010

3SFE..SV21

 16
13741-16010

3SFE..SV21,25

 16
13741A - LOCK, VALVE SPRING RETAINER
90913-03021

3S#..SV21,25

 32
90913-03021

3S#..SV21

 32
13751 - LIFTER, VALVE
13751-74010

3SFE..SV21

 16
13751-16010

3SFE..SV21

 16
13751-16010

3S#..SV21,25

 16
13753 - SHIM, VALVE ADJUSTING
13753-16020

3SFE..SV21

厚さ=2.50,T=2.50

 16
13753-16120

3SFE..SV21

厚さ=2.75,T=2.75

 16
13753-16140

3SFE..SV21

厚さ=2.80,T=2.80

 16
13753-16180

3SFE..SV21

厚さ=2.90,T=2.90

 16
13753-16080

3SFE..SV21

厚さ=2.65,T=2.65

 16
13753-16040

3SFE..SV21

厚さ=2.55,T=2.55

 16
13753-16100

3SFE..SV21

厚さ=2.70,T=2.70

 16
13753-16220

3SFE..SV21

厚さ=3.00,T=3.00

 16
13753-16160

3SFE..SV21

厚さ=2.85,T=2.85

 16
13753-16200

3SFE..SV21

厚さ=2.95,T=2.95

 16
13753-16300

3SFE..SV21

厚さ=3.20,T=3.20

 16
13753-16340

3SFE..SV21

厚さ=3.30,T=3.30

 16
13753-16060

3SFE..SV21

厚さ=2.60,T=2.60

 16
13753-16280

3SFE..SV21

厚さ=3.15,T=3.15

 16
13753-16260

3SFE..SV21

厚さ=3.10,T=3.10

 16
13753-16320

3SFE..SV21

厚さ=3.25,T=3.25

 16
13753-16240

3SFE..SV21

厚さ=3.05,T=3.05

 16
Common parts
90105-10032
90119-10430
90119-10469
90201-15016
90206-42001
90520-41004
