SV21-JEMVF (1986)

Toyota Camry/Vista

Production Aug 1986 - Aug 1988
Engine 3SGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )SED

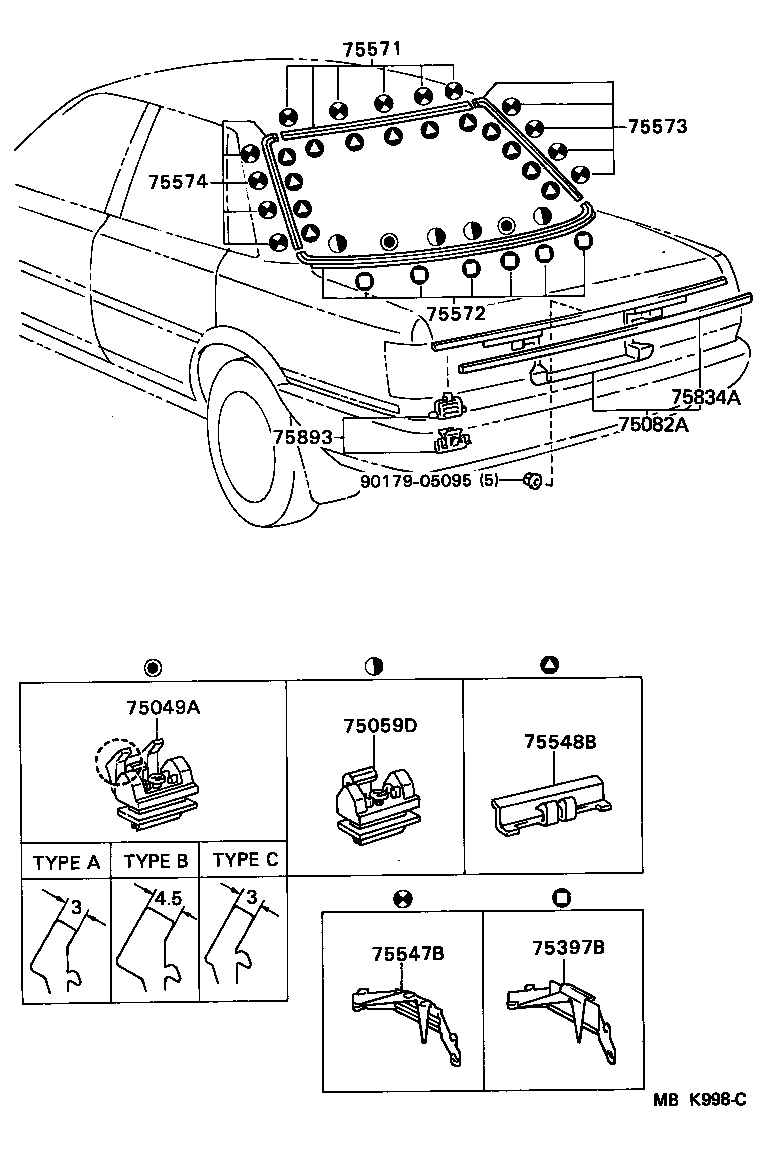

Click highlighted areas on diagram

diagram 75049A 75059D 75082A 75397B 75547B 75548B 75571 75572 75573 75574 75834A 75893 9017905095
Part # Description Qty Price
75049A - CLIP SUB-ASSY, OUTSIDE MOULDING, NO.2
75049-32010

CV20,SV2#,VZV20..SED

TYPE A

 2
75049-32010

CV20,SV2#,VZV20..SED

ﾀｲﾌﾟ A

 2
75049-32050

CV20,SV2#,VZV20..SED

TYPE B

 2
75049-32060

CV20,SV2#,VZV20..SED

ﾀｲﾌﾟ C

 2
75049-32060

CV20,SV2#,VZV20..SED

TYPE C

 2
75049-32050

CV20,SV2#,VZV20..SED

ﾀｲﾌﾟ B

 2
75059D - CLIP SUB-ASSY, OUTSIDE MOULDING, NO.3
75059-32010

CV20,SV2#,VZV20..SED

 4
75082A - PANEL SUB-ASSY, LUGGAGE DOOR FINISH
75082-32100

CV20,SV2#..SED

 1
75397B - CLIP, BACK WINDOW MOULDING, NO.3
75397-32010

CV20,SV2#,VZV20..SED

 6
75547B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75547-32010

CV20,SV2#,VZV20..SED

 8
75547-32010

CV20,SV2#,VZV20..SED

 13
75548B - FASTENER, BACK WINDOW OUTSIDE MOULDING
75548-20060

CV20,SV2#,VZV20..SED

TYPE A

 13
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-32030

CV20,SV2#,VZV20..SED

 1
75572 - MOULDING, BACK WINDOW, LOWER
75507-32010

CV20,SV2#,VZV20..SED

 1
75573 - MOULDING, BACK WINDOW SIDE, RH
75501-32010

CV20,SV2#,VZV20..SED

 1
75574 - MOULDING, BACK WINDOW SIDE, LH
75502-32010

CV20,SV2#,VZV20..SED

 1
75834A - MOULDING, LOWER BACK FINISH PANEL
75834-32020

CV20,SV2#,VZV20..SED

 1
75893 - RETAINER, LUGGAGE DOOR MOULDING
75893-32010

CV20,SV2#,VZV20..SED

 4
Common parts
90179-05095
