SV21-JEMVF (1988)
Toyota Camry/Vista
(8808- )CV20,SV21,22,VZV20..SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58387 - PLATE, REAR FLOOR FINISH | ||||
| 58387-3202003 |
CV20,SV21,25,VZV20..SED;SV22..SED..(LUM,VE,VR,ZE) LIGHT GRAY,TRIM1#,3#,8# |
1 | ||
| 58387A - PLUG, HOLE(FOR REAR FLOOR FINISH PLATE) | ||||
| 90950-0150313 |
CV20,SV21,25,VZV20..SED;SV22..SED..(LUM,VE,VR,ZE) MEDIUM GRAY,TRIM1# |
4 | ||
| 90950-0150314 |
CV20,SV21,25,VZV20..SED;SV22..SED..(LUM,VE,VR,ZE) DARK BLUE,TRIM8# |
4 | ||
| 90950-01503B0 |
CV20,SV21,25,VZV20..SED;SV22..SED..(LUM,VE,VR,ZE) LIGHT GRAY,TRIM1#,3#,8# |
4 | ||
| 90950-0150312 |
CV20,SV21,25,VZV20..SED;SV22..SED..(LUM,VE,VR,ZE) MAROON,TRIM3# |
4 | ||
| 58703A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH | ||||
| 58703-32010 |
CV20,SV21,22,VZV20 |
1 | ||
| 58704A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH | ||||
| 58704-32010 |
SV21,22,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX) |
1 | ||
| 64033B - GRILLE SUB-ASSY, REAR SPEAKER, RH | ||||
| 64033-2204002 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX MAROON,TRIM3# |
1 | ||
| 64033-2204003 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 64033-2204004 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX DARK BLUE,TRIM8# |
1 | ||
| 86269-32010 |
SV21..SED..(GT,VX,ZX) ｱﾘ(ｶｾﾂﾄ ｲﾂﾀｲｼｷ ﾗｼﾞｵ) |
1 | ||
| 64033B - GRILLE SUB-ASSY, REAR SPEAKER, RH | ||||
| 64033-2204002 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX MAROON,TRIM3# |
1 | ||
| 64033-2204003 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 64033-2204004 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX DARK BLUE,TRIM8# |
1 | ||
| 86269-32010 |
SV21..SED..(GT,VX,ZX) ｱﾘ(ｶｾﾂﾄ ｲﾂﾀｲｼｷ ﾗｼﾞｵ) |
1 | ||
| 64034B - GRILLE SUB-ASSY, REAR SPEAKER, LH | ||||
| 64033-2204002 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX MAROON,TRIM3# |
1 | ||
| 64033-2204004 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX DARK BLUE,TRIM8# |
1 | ||
| 64033-2204003 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 86269-32010 |
SV21..SED..(GT,VX,ZX) ｱﾘ(ｶｾﾂﾄ ｲﾂﾀｲｼｷ ﾗｼﾞｵ) |
1 | ||
| 64034B - GRILLE SUB-ASSY, REAR SPEAKER, LH | ||||
| 64033-2204002 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX MAROON,TRIM3# |
1 | ||
| 64033-2204004 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX DARK BLUE,TRIM8# |
1 | ||
| 64033-2204003 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 86269-32010 |
SV21..SED..(GT,VX,ZX) ｱﾘ(ｶｾﾂﾄ ｲﾂﾀｲｼｷ ﾗｼﾞｵ) |
1 | ||
| 64261 - GARNISH, ROOM PARTITION | ||||
| 64261-3201003 |
SV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX) MEDIUM GRAY,TRIM1# |
1 | ||
| 64261-3201004 |
SV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX) DARK BLUE,TRIM8# |
1 | ||
| 64261-3201002 |
SV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX) MAROON,TRIM3# |
1 | ||
| 64261-3201003 |
SV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX) MEDIUM GRAY,TRIM1# |
1 | ||
| 64279 - PROTECTOR, ROOM PARTITION | ||||
| 64279-3202002 |
SV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX) MAROON,TRIM3# |
1 | ||
| 64279-3202004 |
SV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX) DARK BLUE,TRIM8# |
1 | ||
| 64279-3202003 |
SV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX) MEDIUM GRAY,TRIM1# |
1 | ||
| 64279-3202003 |
SV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX) MEDIUM GRAY,TRIM1# |
1 | ||
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-3222104 |
SV21,VZV20..SED..(GT,PRO,VX,ZX) DARK BLUE,TRIM8# |
1 | ||
| 64330-3222102 |
SV21,VZV20..SED..(GT,PRO,VX,ZX) MAROON,TRIM3# |
1 | ||
| 64330-3222103 |
SV21,VZV20..SED..(GT,PRO,VX,ZX) MEDIUM GRAY,TRIM1# |
1 | ||
| 64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL) | ||||
| 90467-08046J0 |
CV20,SV2#,VZV20 LIGHT BLUE,TRIM8# |
4 | ||
| 90467-08046D0 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
4 | ||
| 90467-08046B0 |
CV20,SV2#,VZV20 MEDIUM GRAY,TRIM1# |
4 | ||
| 64347B - BRACKET, PACKAGE TRAY REINFORCEMENT, RH | ||||
| 64347-32020 |
CV20,SV2#,VZV20..SED |
1 | ||
| 64348B - BRACKET, PACKAGE TRAY REINFORCEMENT, LH | ||||
| 64348-32020 |
SV21..SED..(GT,VX,ZX) ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ｱﾝﾃﾅ OR ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 64348-32020 |
SV21,VZV20..SED..(GT,PRO,VX,ZX) ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ｱﾝﾃﾅ OR ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ ｼｽﾃﾑ) |
1 | ||
| 64348-32010 |
CV20,SV2#,VZV20..SED |
1 | ||
| 64711 - MAT, LUGGAGE COMPARTMENT FLOOR | ||||
| 64711-3204003 |
SV21,22,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX) LIGHT GRAY,TRIM1#,3#,8# |
1 | ||
| 64711-03010B1 |
SV21,22,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX) LIGHT GRAY,TRIM1#,3#,8# |
1 | ||
| 64714D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH | ||||
| 64714-3204003 |
SV21,22,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX) LIGHT GRAY,TRIM1#,3#,8# |
1 | ||
| 64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) | ||||
| 90467-0500433 |
CV20,SV21,25,VZV20..SED;SV22..SED..(LUM,VE,VR,ZE) GRAY,TRIM1#,3#,8# |
12 | ||
| 64716G - COVER, LUGGAGE COMPARTMENT TRIM, REAR | ||||
| 64716-3205003 |
SV21,22,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX) LIGHT GRAY,TRIM1#,3#,8# |
1 | ||
| 64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH | ||||
| 64721-3211003 |
SV21,VZV20..SED..(GT,PRO,VX,ZX) LIGHT GRAY,TRIM1#,3#,8# |
1 | ||
| 64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) | ||||
| 90467-07042B0 |
SV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX) LIGHT GRAY,TRIM1#,3#,8# |
6 | ||
| 90467-0611403 |
SV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX) LIGHT GRAY,TRIM1#,3#,8# |
6 | ||
| 64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) | ||||
| 90467-07042B0 |
SV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX) LIGHT GRAY,TRIM1#,3#,8# |
6 | ||
| 90467-0611403 |
SV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX) LIGHT GRAY,TRIM1#,3#,8# |
6 | ||
| 64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH | ||||
| 64722-3211003 |
SV21,VZV20..SED..(GT,PRO,VX,ZX) LIGHT GRAY,TRIM1#,3#,8# |
1 | ||
| 64770 - COVER ASSY, SPARE WHEEL | ||||
| 64771-32040 |
CV20,SV21,22,VZV20 |
1 | ||
| 64777 - CLAMP, SPARE WHEEL COVER | ||||
| 64777-32030 |
CV20,SV2#,VZV20 |
1 | ||
| 64778B - PROTECTOR, SPARE WHEEL | ||||
| 64778-14020 |
CV20,SV22..5F;SV21,25,VZV20 |
3 | ||
| 64791 - COVER, BACK DOOR TRIM | ||||
| 64791-3202003 |
CV20,SV2#,VZV20..SED GRAY,TRIM1#,3#,8# |
1 | ||
| 64791A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-0805623 |
CV20,SV2#,VZV20..SED GRAY,TRIM1#,3#,8# |
13 | ||
| Common parts | ||||
| 90159-60057 | ||||
| 90467-09066 | ||||
| 90468-05017 | ||||
| 90541-09010 | ||||
| 93560-14016 | ||||

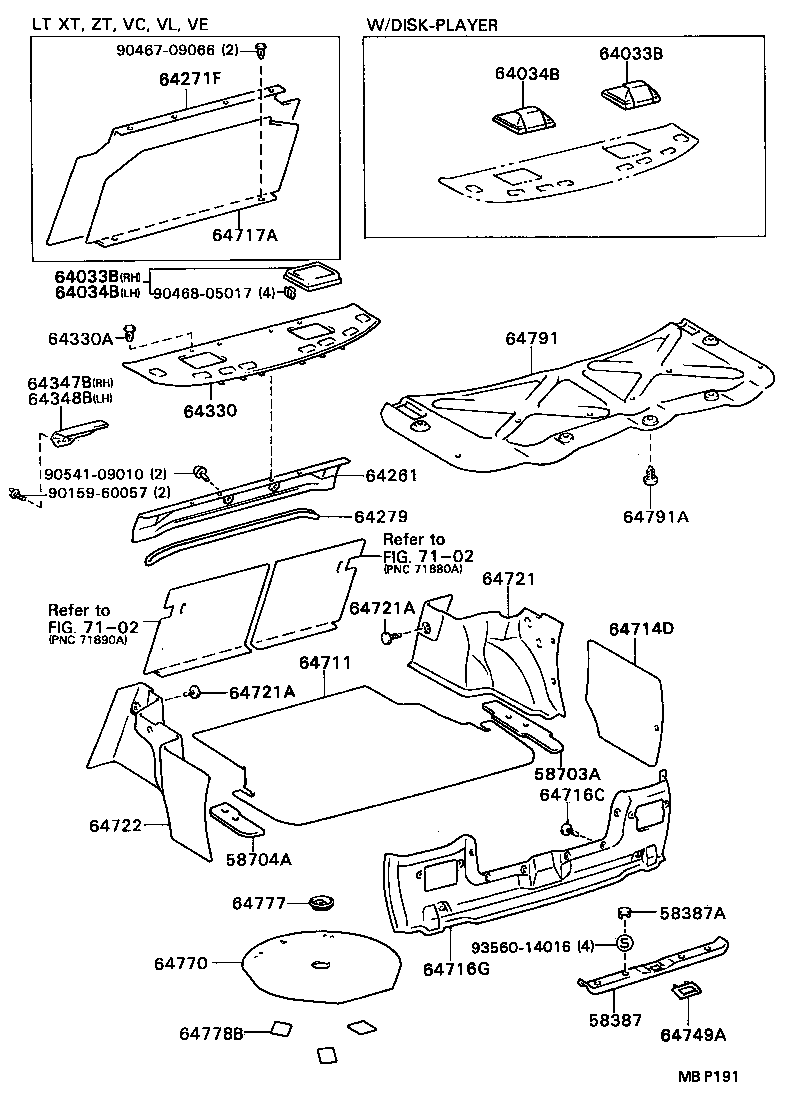

| Linked diagrams | ||||
| 7102 | ||||
