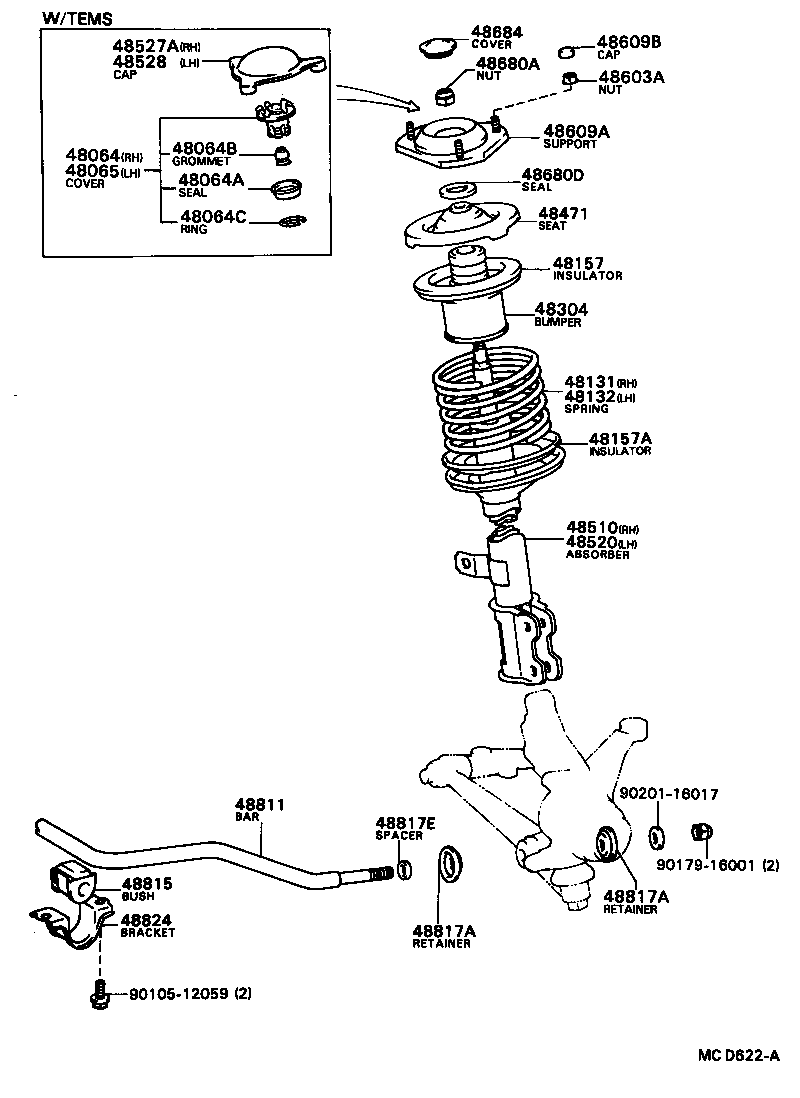

SV21-JEMVF (1988)
Toyota Camry/Vista
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48064 - COVER SUB-ASSY, FRONT SUSPENSION SUPPORT, RH | ||||
| 48064-16010 |
SV21,VZV20..GT,PRO |
1 | ||
| 48064A - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT COVER) | ||||
| 90304-26001 |
SV21,VZV20..GT,PRO |
2 | ||
| 48064B - GROMMET(FOR FRONT SUSPENSION SUPPORT COVER) | ||||
| 90480-13019 |
SV21,VZV20..GT,PRO |
2 | ||
| 48064C - RING, SET(FOR FRONT SUSPENSION SUPPORT COVER) | ||||
| 90522-24001 |
SV21,VZV20..GT,PRO |
2 | ||
| 48065 - COVER SUB-ASSY, FRONT SUSPENSION SUPPORT, LH | ||||
| 48065-16010 |
SV21,VZV20..GT,PRO |
1 | ||
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-32440 |
SV21..SED..5F..GT |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-32440 |
SV21..SED..5F..GT |
1 | ||
| 48157 - INSULATOR, FRONT COIL SPRING, UPPER | ||||
| 48157-32020 |
CV20,SV2#,VZV20 |
2 | ||
| 48157A - INSULATOR, FRONT COIL SPRING, LOWER | ||||
| 48158-32020 |
CV20,SV2#,VZV20 |
2 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-32030 |
CV20,SV2#,VZV20 |
2 | ||
| 48471 - SEAT, FRONT SPRING, UPPER | ||||
| 48044-32020 |
CV20,SV2#,VZV20 |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-32091 |
SV21..GT |
1 | ||
| 48510-32101 |
SV21,VZV20..GT,PRO ｱﾘ(TEMS) |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-32091 |
SV21..GT |
1 | ||
| 48520-32101 |
SV21,VZV20..GT,PRO ｱﾘ(TEMS) |
1 | ||
| 48527A - CAP, FRONT SHOCK ABSORBER, RH | ||||
| 48527-32010 |
SV21,VZV20..GT,PRO |
1 | ||
| 48528 - CAP, FRONT SHOCK ABSORBER, LH | ||||
| 48528-32010 |
SV21,VZV20..GT,PRO |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90179-10095 |
CV20,SV2#,VZV20 |
6 | ||
| 90179-10095 |
CV20,SV2#,VZV20 |
6 | ||
| 90179-10143 |
CV20,SV2#,VZV20 |
6 | ||
| 48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION | ||||
| 48609-32050 |
SV21..GT |
2 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94182-11400 |
CV20,SV2#,VZV20 |
2 | ||
| 90179-14029 |
SV21,VZV20..GT,PRO ｱﾘ(TEMS) |
2 | ||
| 48680D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90303-22049 |
CV20,SV2#,VZV20 |
2 | ||
| 48684 - COVER, BEARING DUST | ||||
| 48684-32010 |
CV20,SV2#,VZV20 |
2 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-32120 |
CV20,SV2# |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-32060 |
CV20,SV2# |
2 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02118 |
SV21,25,VZV20 右側 |
2 | ||
| 90948-02117 |
SV21,25,VZV20 左側 |
2 | ||
| 90948-02115 |
SV21,25,VZV20 左側 |
2 | ||
| 48667-32010 |
CV20,SV2#,VZV20 |
4 | ||
| 90948-02124 |
SV21,25,VZV20 右側 |
2 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02118 |
SV21,25,VZV20 右側 |
2 | ||
| 90948-02117 |
SV21,25,VZV20 左側 |
2 | ||
| 90948-02115 |
SV21,25,VZV20 左側 |
2 | ||
| 48667-32010 |
CV20,SV2#,VZV20 |
4 | ||
| 90948-02124 |
SV21,25,VZV20 右側 |
2 | ||
| 48817E - SPACER(FOR STABILIZER BAR) | ||||
| 90560-16005 |
CV20,SV2#,VZV20 |
2 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-32030 |
CV20,SV2#,VZV20 |
2 | ||
| 48824-32040 |
CV20,SV2#,VZV20 |
2 | ||
| Common parts | ||||
| 90105-12059 | ||||
| 90179-16001 | ||||
| 90201-16017 | ||||
