SV21-JEMGK (1986)
Toyota Camry/Vista

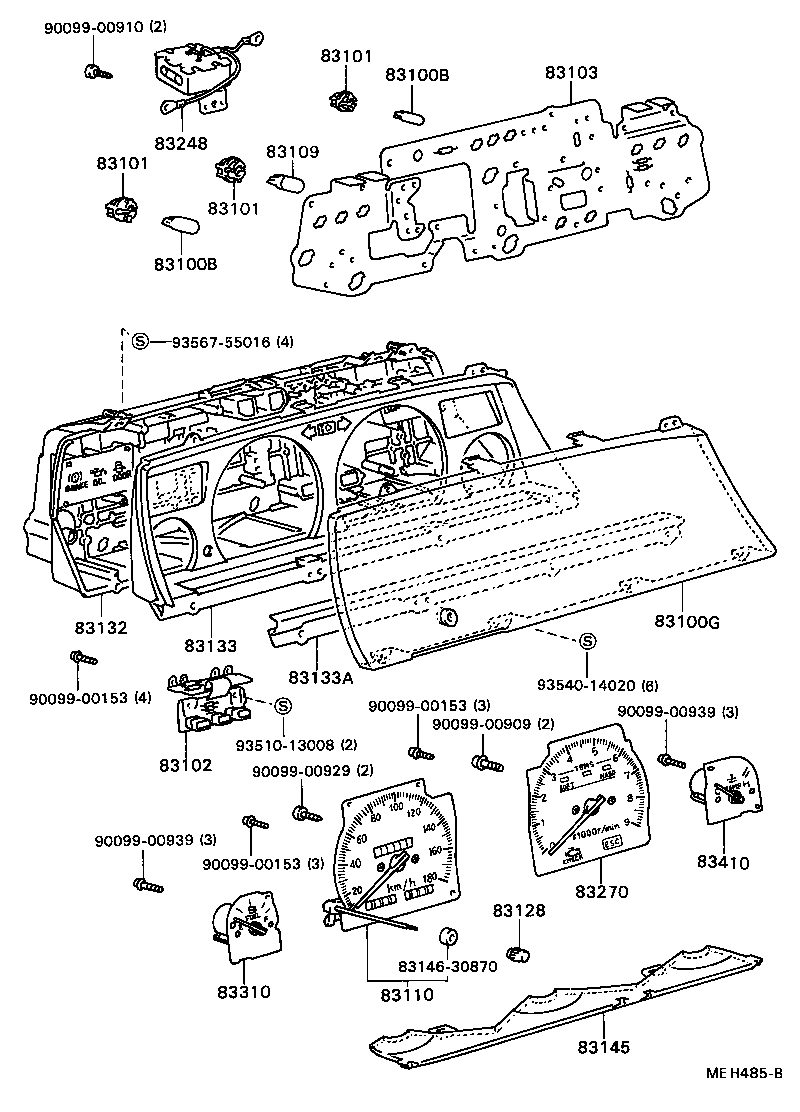

ILLUST NO. 1 OF 3(8608- )GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX
W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

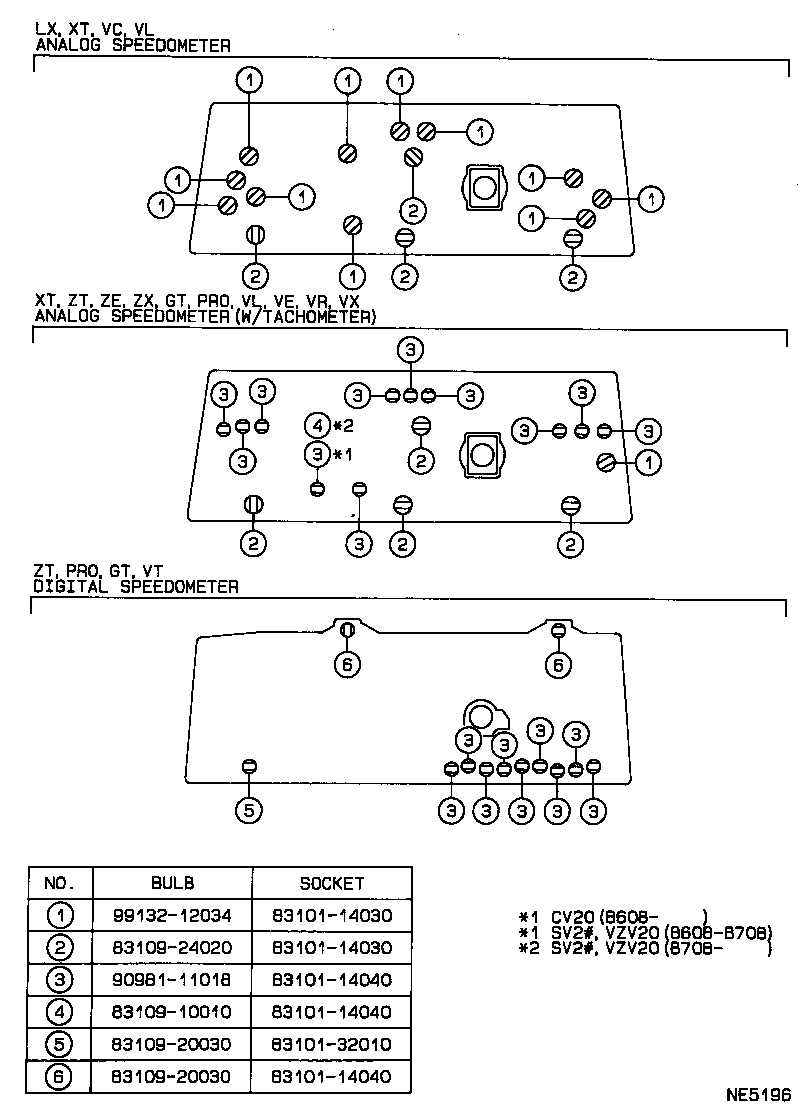

| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
CV20,SV2#,VZV20 12V 3.4W,12V 3.4W |
15 | ||
| 90981-11018 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
11 | ||
| 83109-10010 |
SV2#,VZV20 12V 1.4W,ｵﾚﾝｼﾞ ｷｬｯﾌﾟ,12V 1.4W ORENGE CAP |
1 | ||
| 83109-10010 |
SV20..HT..VL;SV21,25,VZV20;SV20..VE,VR,ZE,ZT 12V 1.4W,ｵﾚﾝｼﾞ ｷｬｯﾌﾟ,12V 1.4W ORANGE CAP |
1 | ||
| 90981-11018 |
SV20..HT..VL;SV20..VE,VR,ZE,ZT;CV20,SV21,25,VZV20 12V 1.2W ｿｹｯﾄ無し |
11 | ||
| 90981-11018 |
SV21,25..VR,VX,ZE,ZX 12V 1.2W ｿｹｯﾄ無し,ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
9 | ||
| 99132-12034 |
SV20..HT..VL;SV20..VE,VR,ZE,ZT;SV21,25..VE,VL,VR,VX,XT,ZE,ZT,ZX 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
CV20,SV2#,VZV20 12V 3.4W,12V 3.4W |
15 | ||
| 90981-11018 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
11 | ||
| 83109-10010 |
SV2#,VZV20 12V 1.4W,ｵﾚﾝｼﾞ ｷｬｯﾌﾟ,12V 1.4W ORENGE CAP |
1 | ||
| 83109-10010 |
SV20..HT..VL;SV21,25,VZV20;SV20..VE,VR,ZE,ZT 12V 1.4W,ｵﾚﾝｼﾞ ｷｬｯﾌﾟ,12V 1.4W ORANGE CAP |
1 | ||
| 90981-11018 |
SV20..HT..VL;SV20..VE,VR,ZE,ZT;CV20,SV21,25,VZV20 12V 1.2W ｿｹｯﾄ無し |
11 | ||
| 90981-11018 |
SV21,25..VR,VX,ZE,ZX 12V 1.2W ｿｹｯﾄ無し,ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
9 | ||
| 99132-12034 |
SV20..HT..VL;SV20..VE,VR,ZE,ZT;SV21,25..VE,VL,VR,VX,XT,ZE,ZT,ZX 12V 3.4W |
1 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83133-32350 |
SV21,VZV20..GT,PRO,VX,ZX W/*DS |
1 | ||
| 83138-32010 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 83138-32010 |
SV20..HT..VL;SV20..VE,VR,ZE,ZT;CV20,SV21,25,VZV20 |
1 | ||
| 83133-32350 |
SV21,25..VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
SV20..HT..VL;SV20..VE,VR,ZE,ZT;SV21,25..VE,VL,VR,VX,XT,ZE,ZT,ZX 12V 3.4W BULB |
5 | ||
| 83101-14040 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX 12V 1.4W BULB |
11 | ||
| 83101-32010 |
SV21,VZV20..GT,PRO,VX,ZX W/*DS |
1 | ||
| 83101-14040 |
SV20..HT..VL;SV20..VE,VR,ZE,ZT;CV20,SV21,25,VZV20 12V 1.4W BULB |
11 | ||
| 83101-32010 |
SV21,25..VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ),12V 1.4W BULB |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
SV20..HT..VL;SV20..VE,VR,ZE,ZT;SV21,25..VE,VL,VR,VX,XT,ZE,ZT,ZX 12V 3.4W BULB |
5 | ||
| 83101-14040 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX 12V 1.4W BULB |
11 | ||
| 83101-32010 |
SV21,VZV20..GT,PRO,VX,ZX W/*DS |
1 | ||
| 83101-14040 |
SV20..HT..VL;SV20..VE,VR,ZE,ZT;CV20,SV21,25,VZV20 12V 1.4W BULB |
11 | ||
| 83101-32010 |
SV21,25..VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ),12V 1.4W BULB |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
SV20..HT..VL;SV20..VE,VR,ZE,ZT;SV21,25..VE,VL,VR,VX,XT,ZE,ZT,ZX 12V 3.4W BULB |
5 | ||
| 83101-14040 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX 12V 1.4W BULB |
11 | ||
| 83101-32010 |
SV21,VZV20..GT,PRO,VX,ZX W/*DS |
1 | ||
| 83101-14040 |
SV20..HT..VL;SV20..VE,VR,ZE,ZT;CV20,SV21,25,VZV20 12V 1.4W BULB |
11 | ||
| 83101-32010 |
SV21,25..VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ),12V 1.4W BULB |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-32280 |
SV21,VZV20..GT,PRO,VX,ZX W/*DS |
1 | ||
| 83247-32280 |
SV21,25..VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-32800 |
SV2#..VE,VL,VR,VX,XT,ZE,ZT,ZX W/TACHOMETER |
1 | ||
| 83247-32540 |
SV2#..VE,VL,VR,VX,XT,ZE,ZT,ZX W/TACHOMETER |
1 | ||
| 83247-32800 |
SV20..HT..VL;SV20..VE,VR,ZE,ZT;SV21,25..VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24020 |
CV20,SV2#,VZV20 12V 3.4W ｷｬｯﾌﾟ付き |
4 | ||
| 83109-20030 |
SV21,25..VR,VX,ZE,ZX 12V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
3 | ||
| 83109-20030 |
SV21,VZV20..GT,PRO,VX,ZX 12V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ,W/*DS |
3 | ||
| 83109-24020 |
CV20,SV2#,VZV20 12V 3.4W ｷｬｯﾌﾟ付き |
4 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-32390 |
SV20..HT..VL;SV20..VE,VR,ZE,ZT;CV20,SV21,25,VZV20 |
1 | ||
| 83110-32390 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX W/TACHOMETER |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-14510 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 83128-32130 |
SV21,VZV20..GT,PRO,VX,ZX W/*DS |
1 | ||
| 83128-32130 |
SV21,25..VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83128-14510 |
SV20..HT..VL;SV20..VE,VR,ZE,ZT;CV20,SV21,25,VZV20 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-32890 |
SV21,VZV20..GT,PRO,VX,ZX W/*DS |
1 | ||
| 83132-32200 |
SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX W/TACHOMETER |
1 | ||
| 83132-32220 |
SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX W/TACHOMETER |
1 | ||
| 83132-32890 |
SV21,25..VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83132-32200 |
SV20..HT..VL;SV21,25,VZV20;SV20..VE,VR,ZE,ZT |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-32330 |
SV21,VZV20..GT,PRO,VX,ZX W/*DS |
1 | ||
| 83133-32490 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX W/TACHOMETER |
1 | ||
| 83133-32490 |
SV20..HT..VL;SV20..VE,VR,ZE,ZT;CV20,SV21,25,VZV20 |
1 | ||
| 83133-32330 |
SV21,25..VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83133-32430 |
SV21,25..VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83133-32590 |
CV20,SV2#,VZV20 |
1 | ||
| 83133-32430 |
SV21,VZV20..GT,PRO,VX,ZX W/*DS |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-32350 |
SV20..HT..VL;SV20..VE,VR,ZE,ZT;CV20,SV21,25,VZV20 |
1 | ||
| 83145-32330 |
SV21,VZV20..GT,PRO,VX,ZX W/*DS |
1 | ||
| 83145-32330 |
SV21,25..VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83145-32350 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86640-32030 |
SV21,VZV20..GT,PRO,VX,ZX W/*DS |
1 | ||
| 86640-32030 |
SV21,25..VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 86640-32020 |
CV20,SV2#,VZV20 |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-32650 |
SV2#..VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 83242-32390 |
SV2#..VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 83242-32650 |
SV20..HT..VL;SV20..VE,VR,ZE,ZT;SV21,25..VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-32410 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX W/TACHOMETER |
1 | ||
| 83243-32550 |
SV20..HT..VL;SV20..VE,VR,ZE,ZT;SV21,25..VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-32430 |
SV20..HT..VL;SV20..VE,VR,ZE,ZT;CV20,SV21,25,VZV20 |
1 | ||
| 83244-32430 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| Common parts | ||||
| 83146-30870 | ||||
| 90099-00153 | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 93510-13008 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||

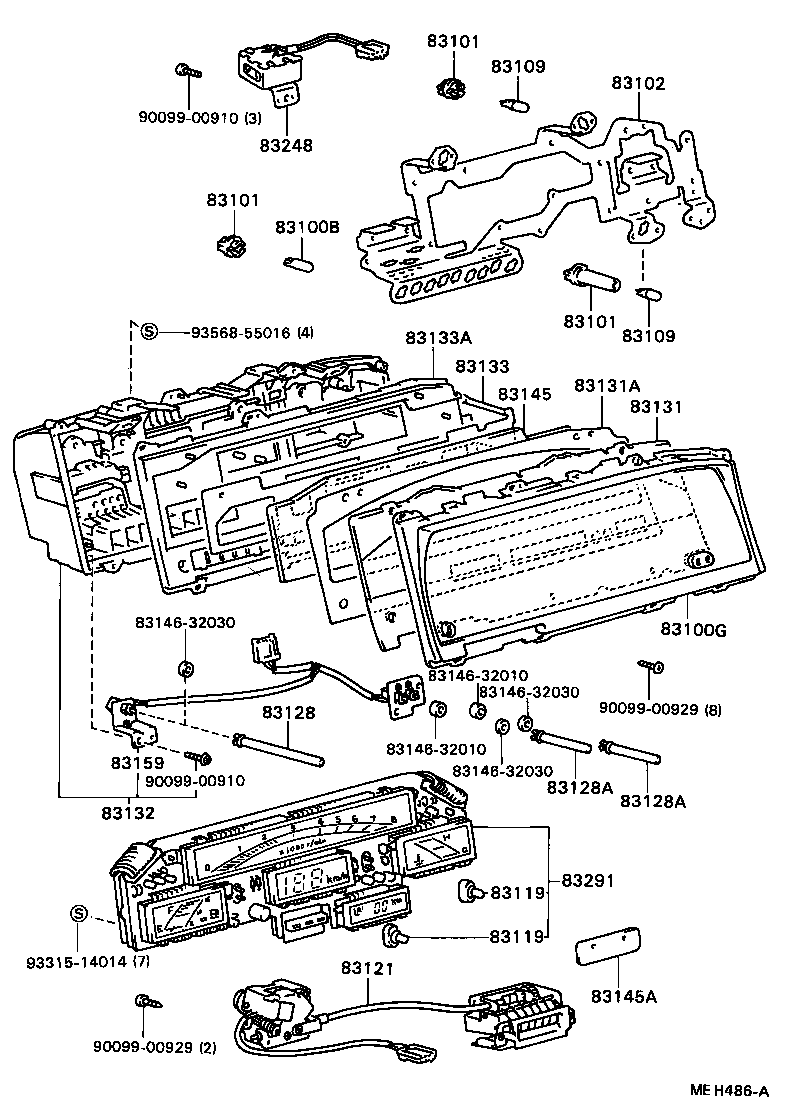

ILLUST NO. 1 OF 3(8608- )GT,PRO,VX,ZX
W(DIGITAL SPEEDOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
CV20,SV2#,VZV20 12V 3.4W,12V 3.4W |
15 | ||
| 90981-11018 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
11 | ||
| 83109-10010 |
SV2#,VZV20 12V 1.4W,ｵﾚﾝｼﾞ ｷｬｯﾌﾟ,12V 1.4W ORENGE CAP |
1 | ||
| 83109-10010 |
SV20..HT..VL;SV21,25,VZV20;SV20..VE,VR,ZE,ZT 12V 1.4W,ｵﾚﾝｼﾞ ｷｬｯﾌﾟ,12V 1.4W ORANGE CAP |
1 | ||
| 90981-11018 |
SV20..HT..VL;SV20..VE,VR,ZE,ZT;CV20,SV21,25,VZV20 12V 1.2W ｿｹｯﾄ無し |
11 | ||
| 90981-11018 |
SV21,25..VR,VX,ZE,ZX 12V 1.2W ｿｹｯﾄ無し,ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
9 | ||
| 99132-12034 |
SV20..HT..VL;SV20..VE,VR,ZE,ZT;SV21,25..VE,VL,VR,VX,XT,ZE,ZT,ZX 12V 3.4W |
1 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83133-32350 |
SV21,VZV20..GT,PRO,VX,ZX W/*DS |
1 | ||
| 83138-32010 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 83138-32010 |
SV20..HT..VL;SV20..VE,VR,ZE,ZT;CV20,SV21,25,VZV20 |
1 | ||
| 83133-32350 |
SV21,25..VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
SV20..HT..VL;SV20..VE,VR,ZE,ZT;SV21,25..VE,VL,VR,VX,XT,ZE,ZT,ZX 12V 3.4W BULB |
5 | ||
| 83101-14040 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX 12V 1.4W BULB |
11 | ||
| 83101-32010 |
SV21,VZV20..GT,PRO,VX,ZX W/*DS |
1 | ||
| 83101-14040 |
SV20..HT..VL;SV20..VE,VR,ZE,ZT;CV20,SV21,25,VZV20 12V 1.4W BULB |
11 | ||
| 83101-32010 |
SV21,25..VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ),12V 1.4W BULB |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
SV20..HT..VL;SV20..VE,VR,ZE,ZT;SV21,25..VE,VL,VR,VX,XT,ZE,ZT,ZX 12V 3.4W BULB |
5 | ||
| 83101-14040 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX 12V 1.4W BULB |
11 | ||
| 83101-32010 |
SV21,VZV20..GT,PRO,VX,ZX W/*DS |
1 | ||
| 83101-14040 |
SV20..HT..VL;SV20..VE,VR,ZE,ZT;CV20,SV21,25,VZV20 12V 1.4W BULB |
11 | ||
| 83101-32010 |
SV21,25..VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ),12V 1.4W BULB |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
SV20..HT..VL;SV20..VE,VR,ZE,ZT;SV21,25..VE,VL,VR,VX,XT,ZE,ZT,ZX 12V 3.4W BULB |
5 | ||
| 83101-14040 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX 12V 1.4W BULB |
11 | ||
| 83101-32010 |
SV21,VZV20..GT,PRO,VX,ZX W/*DS |
1 | ||
| 83101-14040 |
SV20..HT..VL;SV20..VE,VR,ZE,ZT;CV20,SV21,25,VZV20 12V 1.4W BULB |
11 | ||
| 83101-32010 |
SV21,25..VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ),12V 1.4W BULB |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-32280 |
SV21,VZV20..GT,PRO,VX,ZX W/*DS |
1 | ||
| 83247-32280 |
SV21,25..VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24020 |
CV20,SV2#,VZV20 12V 3.4W ｷｬｯﾌﾟ付き |
4 | ||
| 83109-20030 |
SV21,25..VR,VX,ZE,ZX 12V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
3 | ||
| 83109-20030 |
SV21,VZV20..GT,PRO,VX,ZX 12V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ,W/*DS |
3 | ||
| 83109-24020 |
CV20,SV2#,VZV20 12V 3.4W ｷｬｯﾌﾟ付き |
4 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24020 |
CV20,SV2#,VZV20 12V 3.4W ｷｬｯﾌﾟ付き |
4 | ||
| 83109-20030 |
SV21,25..VR,VX,ZE,ZX 12V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ |
3 | ||
| 83109-20030 |
SV21,VZV20..GT,PRO,VX,ZX 12V 1.4W,ﾌﾞﾙｰ ｷｬｯﾌﾟ,W/*DS |
3 | ||
| 83109-24020 |
CV20,SV2#,VZV20 12V 3.4W ｷｬｯﾌﾟ付き |
4 | ||
| 83119 - BULB, COMBINATION METER, NO.3 | ||||
| 83119-24030 |
SV21,25..VR,VX,ZE,ZX 12V 1.2W ｿｹｯﾄ付き |
2 | ||
| 83119-24030 |
SV21,VZV20..GT,PRO,VX,ZX 12V 1.2W ｿｹｯﾄ付き |
2 | ||
| 83119 - BULB, COMBINATION METER, NO.3 | ||||
| 83119-24030 |
SV21,25..VR,VX,ZE,ZX 12V 1.2W ｿｹｯﾄ付き |
2 | ||
| 83119-24030 |
SV21,VZV20..GT,PRO,VX,ZX 12V 1.2W ｿｹｯﾄ付き |
2 | ||
| 83121 - COUNTER, TOTAL | ||||
| 83121-32110 |
SV21,25..VR,VX,ZE,ZX |
1 | ||
| 83121-32110 |
SV21,VZV20..GT,PRO,VX,ZX |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-14510 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 83128-32130 |
SV21,VZV20..GT,PRO,VX,ZX W/*DS |
1 | ||
| 83128-32130 |
SV21,25..VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83128-14510 |
SV20..HT..VL;SV20..VE,VR,ZE,ZT;CV20,SV21,25,VZV20 |
1 | ||
| 83128A - KNOB, METER | ||||
| 83128-32110 |
SV21,VZV20..GT,PRO,VX,ZX |
2 | ||
| 83128-32110 |
SV21,25..VR,VX,ZE,ZX |
2 | ||
| 83128A - KNOB, METER | ||||
| 83128-32110 |
SV21,VZV20..GT,PRO,VX,ZX |
2 | ||
| 83128-32110 |
SV21,25..VR,VX,ZE,ZX |
2 | ||
| 83131 - DIAL, METER, NO.1 | ||||
| 83131-32350 |
SV21,VZV20..GT,PRO,VX,ZX |
1 | ||
| 83131-32350 |
SV21,25,VZV20..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 83131A - DIAL, METER, NO.2 | ||||
| 83131-32230 |
SV21,25..GT,VR,VX,ZE,ZX |
1 | ||
| 83131-32230 |
SV21,VZV20..GT,PRO,VX,ZX |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-32890 |
SV21,VZV20..GT,PRO,VX,ZX W/*DS |
1 | ||
| 83132-32200 |
SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX W/TACHOMETER |
1 | ||
| 83132-32220 |
SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX W/TACHOMETER |
1 | ||
| 83132-32890 |
SV21,25..VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83132-32200 |
SV20..HT..VL;SV21,25,VZV20;SV20..VE,VR,ZE,ZT |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-32330 |
SV21,VZV20..GT,PRO,VX,ZX W/*DS |
1 | ||
| 83133-32490 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX W/TACHOMETER |
1 | ||
| 83133-32490 |
SV20..HT..VL;SV20..VE,VR,ZE,ZT;CV20,SV21,25,VZV20 |
1 | ||
| 83133-32330 |
SV21,25..VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83133-32430 |
SV21,25..VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83133-32590 |
CV20,SV2#,VZV20 |
1 | ||
| 83133-32430 |
SV21,VZV20..GT,PRO,VX,ZX W/*DS |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-32350 |
SV20..HT..VL;SV20..VE,VR,ZE,ZT;CV20,SV21,25,VZV20 |
1 | ||
| 83145-32330 |
SV21,VZV20..GT,PRO,VX,ZX W/*DS |
1 | ||
| 83145-32330 |
SV21,25..VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83145-32350 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-32390 |
SV21,25..VR,VX,ZE,ZX |
1 | ||
| 83145-32390 |
SV21,VZV20..GT,PRO,VX,ZX |
1 | ||
| 83159 - SWITCH, METER, NO.1 | ||||
| 83159-32110 |
SV21,VZV20..GT,PRO,VX,ZX |
1 | ||
| 83159-32110 |
SV21,25..VR,VX,ZE,ZX |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86640-32030 |
SV21,VZV20..GT,PRO,VX,ZX W/*DS |
1 | ||
| 86640-32030 |
SV21,25..VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 86640-32020 |
CV20,SV2#,VZV20 |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-32030 |
SV21..VX,ZX |
1 | ||
| 83291-32030 |
SV21,25..VR,VX,ZE,ZX |
1 | ||
| Common parts | ||||
| 83146-32010 | ||||
| 83146-32030 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 93315-14014 | ||||
| 93568-55016 | ||||

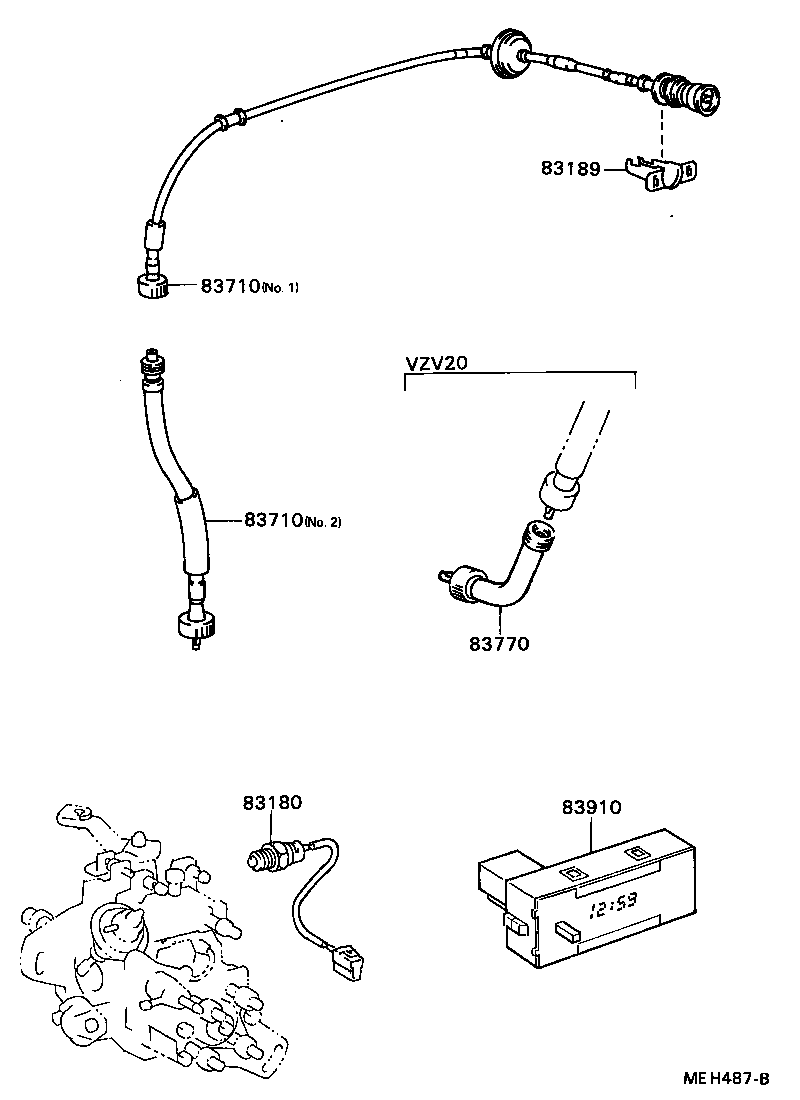

ILLUST NO. 3 OF 3(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
CV20,SV2#,VZV20 |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-32110 |
CV20,SV2# NO.1 |
1 | ||
| 83710-32130 |
CV20,SV20,21 NO.2 |
1 | ||
| 83710-32130 |
CV20,SV2# NO.2 |
1 | ||
| 83710-32110 |
VZV20..4FC;CV20,SV20,21 NO.1 |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-32110 |
CV20,SV2# NO.1 |
1 | ||
| 83710-32130 |
CV20,SV20,21 NO.2 |
1 | ||
| 83710-32130 |
CV20,SV2# NO.2 |
1 | ||
| 83710-32110 |
VZV20..4FC;CV20,SV20,21 NO.1 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-32060 |
CV20,SV2#,VZV20 |
1 | ||
ILLUST NO. 2 OF 3(8608- )
BULB & SOCKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 83101-14030 | ||||
| 83101-14040 | ||||
| 83101-32010 | ||||
| 83109-10010 | ||||
| 83109-20030 | ||||
| 83109-24020 | ||||
| 90981-11018 | ||||
| 99132-12034 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
