SV21-JEMGK (1986)
Toyota Camry/Vista

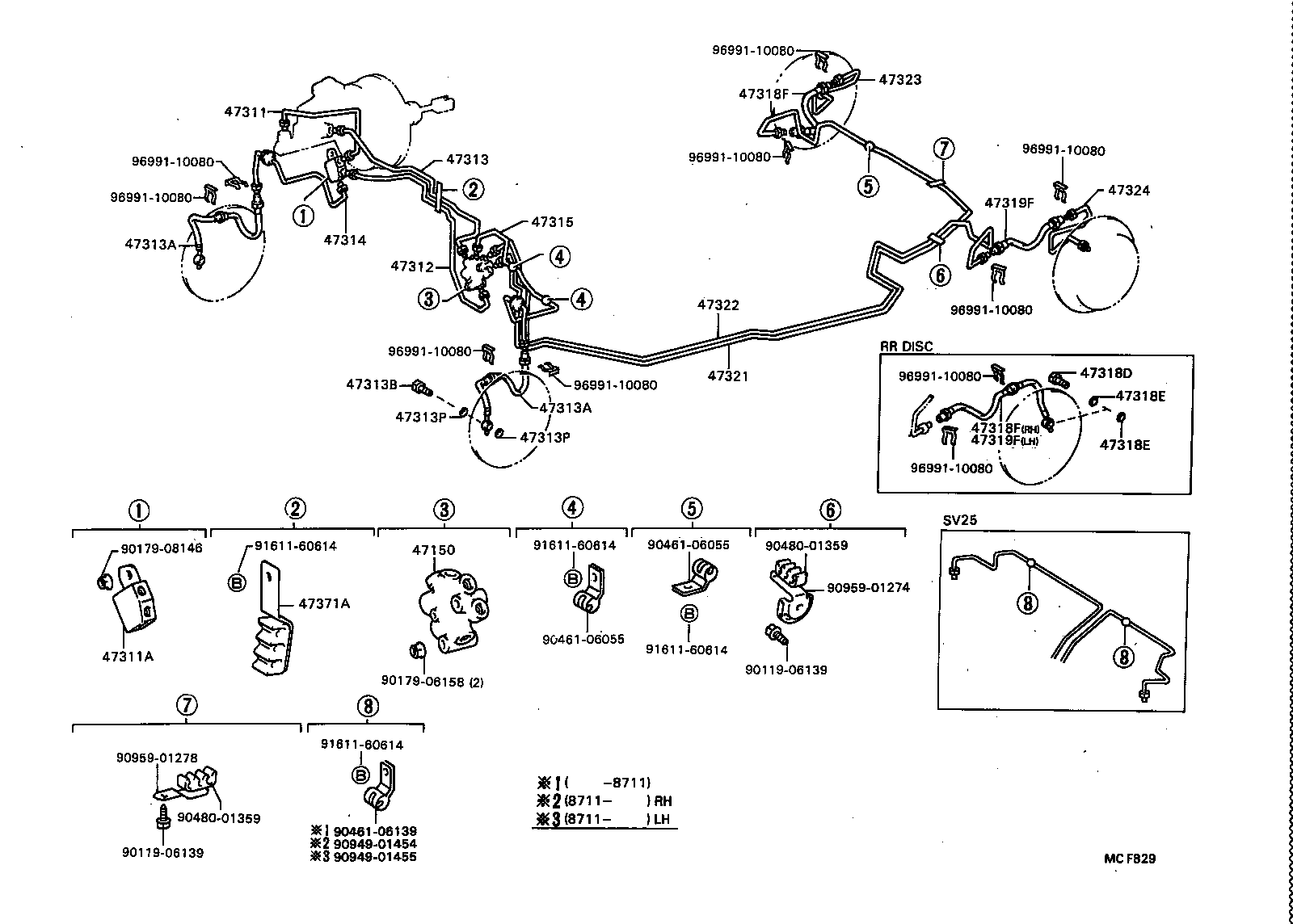

ILLUST NO. 1 OF 2(8704- )
W/ESC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02496 |
CV20,SV2#,VZV20 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02496 |
CV20,SV2#,VZV20 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
CV20,SV2#,VZV20 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
CV20,SV2#,VZV20 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
CV20,SV2#,VZV20 |
4 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-32060 |
CV20,SV2#,VZV20 |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02497 |
CV20,SV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 90947-02497 |
CV20,SV20,21..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02497 |
CV20,SV20,21..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 90947-02497 |
CV20,SV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-32050 |
CV20,SV2# |
1 | ||
| 47321-32110 |
CV20,SV2#,VZV20 |
1 | ||
| 47321-32110 |
SV2#,VZV20 |
1 | ||
| 47321-32110 |
CV20,SV20,21,VZV20 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-32040 |
CV20,SV2# |
1 | ||
| 47322-32100 |
SV2#,VZV20 |
1 | ||
| 47322-32100 |
CV20,SV2#,VZV20 |
1 | ||
| 47322-32100 |
CV20,SV20,21,VZV20 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-32040 |
CV20,SV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 47323-32040 |
CV20,SV20,21..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-32040 |
CV20,SV20,21..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 47324-32040 |
CV20,SV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-32010 |
CV20,SV2#,VZV20 |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 90461-06055 | ||||
| 90461-06139 | ||||
| 90480-01413 | ||||
| 90949-01454 | ||||
| 90949-01455 | ||||
| 91611-60614 | ||||
| 96991-10080 | ||||
ILLUST NO. 2 OF 2(8704- )
W/ESC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12060 |
CV20,SV20,21..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 47150-12060 |
CV20,SV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| Common parts | ||||
| 90099-04365 | ||||
| 90099-04400 | ||||
| 90119-08157 | ||||
| 91611-60814 | ||||
| 91651-60614 | ||||
| 91651-60616 | ||||
| 91666-60825 | ||||
| 93315-15025 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
| 94614-10600 | ||||
| Linked diagrams | ||||
| 8414 | ||||
(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12060 |
CV20,SV20,21..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 47150-12060 |
CV20,SV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-32080 |
SV21,VZV20 |
1 | ||
| 47311-32080 |
SV21..VE,VX,ZT,ZX |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90413-10193 |
CV20,SV20,21..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 90413-10193 |
CV20,SV2#,VZV20 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-32080 |
CV20,SV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 47312-32080 |
CV20,SV20,21..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-32070 |
CV20,SV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 47313-32070 |
CV20,SV20,21..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02496 |
CV20,SV2#,VZV20 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02496 |
CV20,SV2#,VZV20 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
CV20,SV2#,VZV20 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
CV20,SV2#,VZV20 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
CV20,SV2#,VZV20 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-32070 |
CV20,SV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 47314-32070 |
CV20,SV20,21..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-32060 |
CV20,SV2#,VZV20 |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02497 |
CV20,SV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 90947-02497 |
CV20,SV20,21..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02497 |
CV20,SV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 90947-02497 |
CV20,SV20,21..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02497 |
CV20,SV20,21..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 90947-02497 |
CV20,SV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02497 |
CV20,SV20,21..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 90947-02497 |
CV20,SV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-32050 |
CV20,SV2# |
1 | ||
| 47321-32110 |
CV20,SV2#,VZV20 |
1 | ||
| 47321-32110 |
SV2#,VZV20 |
1 | ||
| 47321-32110 |
CV20,SV20,21,VZV20 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-32040 |
CV20,SV2# |
1 | ||
| 47322-32100 |
SV2#,VZV20 |
1 | ||
| 47322-32100 |
CV20,SV2#,VZV20 |
1 | ||
| 47322-32100 |
CV20,SV20,21,VZV20 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-32040 |
CV20,SV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 47323-32040 |
CV20,SV20,21..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-32040 |
CV20,SV20,21..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 47324-32040 |
CV20,SV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-32010 |
CV20,SV2#,VZV20 |
1 | ||
| Common parts | ||||
| 90119-06139 | ||||
| 90179-06158 | ||||
| 90179-08146 | ||||
| 90461-06055 | ||||
| 90461-06139 | ||||
| 90480-01359 | ||||
| 90949-01454 | ||||
| 90949-01455 | ||||
| 90959-01274 | ||||
| 90959-01278 | ||||
| 91611-60614 | ||||
| 96991-10080 | ||||
