SV21-JEMGK (1988)
Toyota Camry/Vista

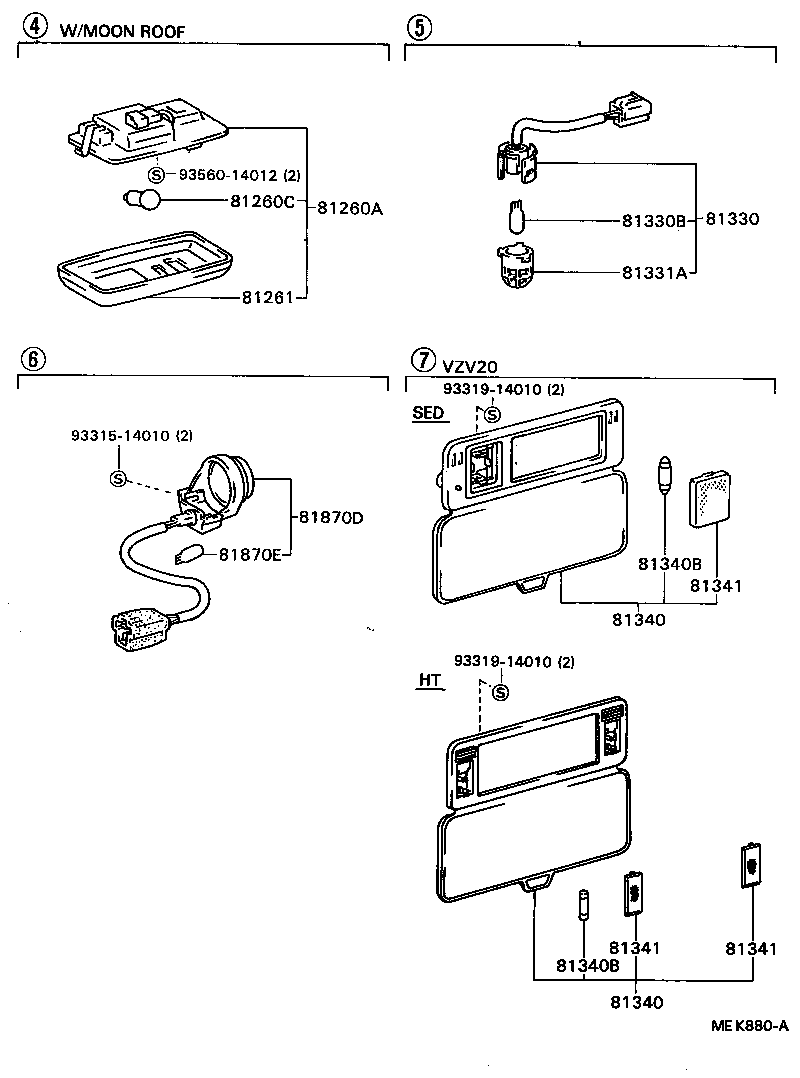

ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-24010 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX |
2 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 99132-13050 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX 12V 5W |
2 | ||
| 81231 - LENS, COURTESY LAMP | ||||
| 81231-30080 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX |
2 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-2402002 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX MAROON,TRIM3# |
1 | ||
| 81240-2402023 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX LIGHT GRAY,TRIM1#,8# |
1 | ||
| 81240-3202003 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX LIGHT GRAY,TRIM1# |
1 | ||
| 81240-3202002 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX MAROON,TRIM3# |
1 | ||
| 81240-3202004 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX LIGHT GRAY,TRIM8# |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 99132-12100 |
CV20,SV2#,VZV20 12V 10W |
1 | ||
| 81241 - LENS, ROOM LAMP, NO.1 | ||||
| 81241-24020 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 81241-24010 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81260-32060 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-3204002 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX MAROON,TRIM3# |
1 | ||
| 81260-3204003 |
CV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VR,VX,ZE,ZX) LIGHT GRAY,TRIM1#,8# |
1 | ||
| 81260-3205003 |
CV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VR,VX,ZE,ZX) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LIGHT GRAY,TRIM1#,8# |
1 | ||
| 81260-3205002 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),MAROON,TRIM3# |
1 | ||
| 81260B - BULB(FOR GLOVE BOX) | ||||
| 90981-11018 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12005 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX 12V 8W |
2 | ||
| 90981-12014 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX 12V 10W,ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 81261 - LENS AND COVER, MAP LAMP | ||||
| 81261-3204003 |
CV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VR,VX,ZE,ZX) LIGHT GRAY,TRIM1#,8# |
1 | ||
| 81261-3205002 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),MAROON,TRIM3# |
1 | ||
| 81261-3205003 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LIGHT GRAY,TRIM1#,8# |
1 | ||
| 81261-3204002 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX MAROON,TRIM3# |
1 | ||
| Common parts | ||||
| 90164-45006 | ||||
| 93510-24020 | ||||
ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81260A - LAMP ASSY, MAP | ||||
| 81260-3204002 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX MAROON,TRIM3# |
1 | ||
| 81260-3204003 |
CV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VR,VX,ZE,ZX) LIGHT GRAY,TRIM1#,8# |
1 | ||
| 81260-3205003 |
CV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VR,VX,ZE,ZX) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LIGHT GRAY,TRIM1#,8# |
1 | ||
| 81260-3205002 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),MAROON,TRIM3# |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12005 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX 12V 8W |
2 | ||
| 90981-12014 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX 12V 10W,ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 81261 - LENS AND COVER, MAP LAMP | ||||
| 81261-3204003 |
CV20,SV2#,VZV20..SED..(GT,LUM,PRO,VE,VR,VX,ZE,ZX) LIGHT GRAY,TRIM1#,8# |
1 | ||
| 81261-3205002 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),MAROON,TRIM3# |
1 | ||
| 81261-3205003 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LIGHT GRAY,TRIM1#,8# |
1 | ||
| 81261-3204002 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX MAROON,TRIM3# |
1 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81330-22031 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 90981-11020 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX 12V 3.8W |
1 | ||
| 81331A - COVER, LUGGAGE COMPARTMENT LAMP | ||||
| 81331-22030 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 81870D - LAMP ASSY, KEY CYLINDER | ||||
| 81870-14010 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 81870-32030 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 81870E - BULB, KEY CYLINDER LAMP | ||||
| 90981-11018 |
SV2#,VZV20..GT,PRO,VR,VX,ZE,ZX 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| Common parts | ||||
| 93315-14010 | ||||
| 93319-14010 | ||||
| 93560-14012 | ||||
