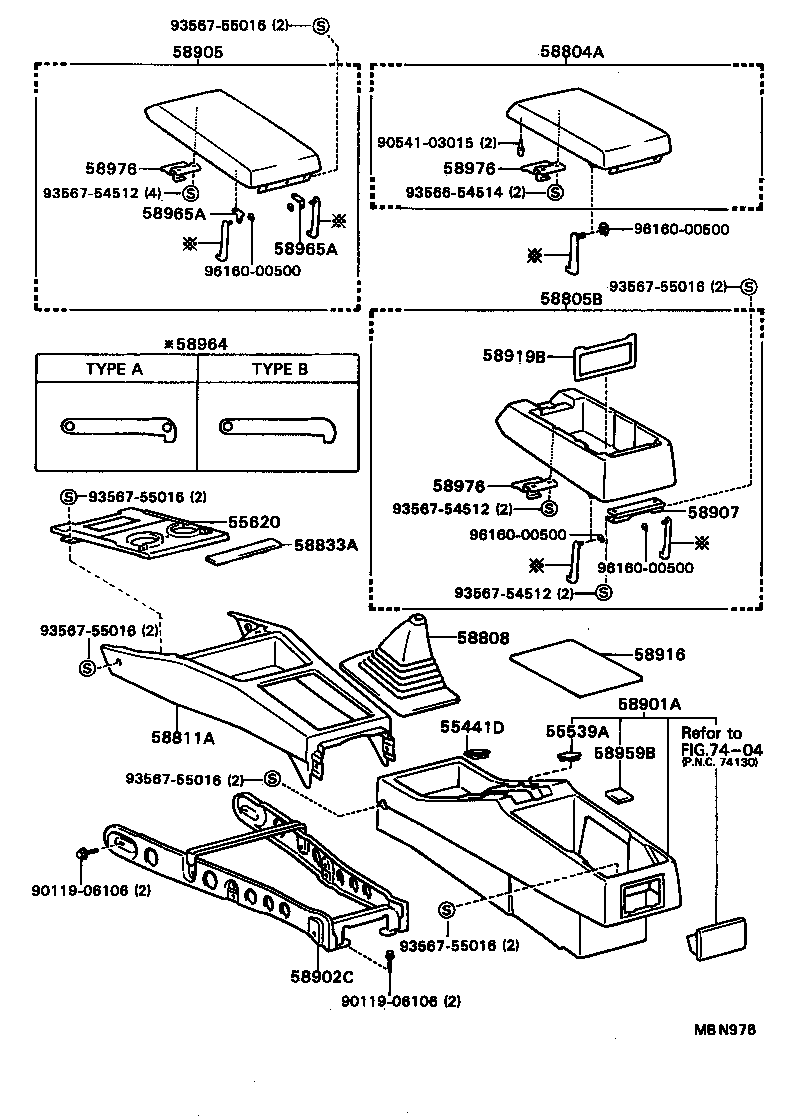

SV21-JEMGK (1988)
Toyota Camry/Vista
(8808- )SV25 ; (8808- )4FC..GT ; (8808-)CV20,SV21,22,VZV20..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55441D - BOX, INSTRUMENT PANEL COIN | ||||
| 55539-3203002 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 55539-20020J0 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 55539-20020D0 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 55539-20020B0 |
CV20,SV2#,VZV20 MEDIUM GRAY,TRIM1# |
1 | ||
| 55539-3203003 |
CV20,SV2#,VZV20 MEDIUM GARY,TRIM1# |
1 | ||
| 55539-3203004 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-2003013 |
SV25;SV21..4FC..GT;CV20,SV21,22,VZV20..5F MEDIUM GRAY,TRIM1# |
1 | ||
| 55539-2003014 |
SV25;SV21..4FC..GT;CV20,SV21,22,VZV20..5F DARK BLUE,TRIM8# |
1 | ||
| 55539-2003012 |
SV25;SV21..4FC..GT;CV20,SV21,22,VZV20..5F MAROON,TRIM3# |
1 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-32010 |
CV20,SV2#,VZV20..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-3203002 |
SV25..VR,ZE;SV21..4FC..GT;SV21,22,VZV20..5F..(GT,PRO,VR,VX,ZE,ZX) MAROON,TRIM3# |
1 | ||
| 58804-3203003 |
SV25..VR,ZE;SV21..4FC..GT;SV21,22,VZV20..5F..(GT,PRO,VR,VX,ZE,ZX) MEDIUM GRAY,TRIM1# |
1 | ||
| 58804-3203004 |
SV25..VR,ZE;SV21..4FC..GT;SV21,22,VZV20..5F..(GT,PRO,VR,VX,ZE,ZX) DARK BLUE,TRIM8# |
1 | ||
| 58805B - PANEL SUB-ASSY, CONSOLE, LOWER | ||||
| 58805-3202104 |
SV25..VR,ZE;SV21..4FC..GT;SV21,22,VZV20..5F..(GT,PRO,VR,VX,ZE,ZX) DARK BLUE,TRIM8# |
1 | ||
| 58805-3202103 |
SV25..VR,ZE;SV21..4FC..GT;SV21,22,VZV20..5F..(GT,PRO,VR,VX,ZE,ZX) MEDIUM GRAY,TRIM1# |
1 | ||
| 58805-3202102 |
SV25..VR,ZE;SV21..4FC..GT;SV21,22,VZV20..5F..(GT,PRO,VR,VX,ZE,ZX) MAROON,TRIM3# |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-3202003 |
CV20,SV2#,VZV20..5F MEDIUM GRAY,TRIM1# |
1 | ||
| 58808-3202004 |
CV20,SV2#,VZV20..5F DARK BLUE,TRIM8# |
1 | ||
| 58808-3202002 |
CV20,SV2#,VZV20..5F MAROON,TRIM3# |
1 | ||
| 58811A - BOX, CONSOLE, FRONT | ||||
| 58811-3205003 |
CV20,SV2#,VZV20 MEDIUM GRAY,TRIM1# |
1 | ||
| 58811-3205004 |
CV20,SV2#,VZV20 DARK BLUE,TRIM8# |
1 | ||
| 58811-3205002 |
CV20,SV2#,VZV20 MAROON,TRIM3# |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-3201203 |
SV21..4FC..GT;CV20,SV21,22,VZV20..5F MEDIUM GRAY,TRIM1# |
1 | ||
| 58901-3201204 |
SV21..4FC..GT;CV20,SV21,22,VZV20..5F DARK BLUE,TRIM8# |
1 | ||
| 58901-3201202 |
SV21..4FC..GT;CV20,SV21,22,VZV20..5F MAROON,TRIM3# |
1 | ||
| 58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING | ||||
| 58902-32011 |
CV20,SV2#,VZV20 |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-89101 |
SV25..VR,ZE;SV21..4FC..GT;SV21,22,VZV20..5F..(GT,PRO,VR,VX,ZE,ZX) |
1 | ||
| 58916 - MAT, BOX BOTTOM | ||||
| 58916-32040 |
CV20,SV21,22,VZV20 |
1 | ||
| 58919B - PLATE, CONSOLE BOX | ||||
| 58919-32010 |
SV25..VR,ZE;SV21..4FC..GT;SV21,22,VZV20..5F..(GT,PRO,VR,VX,ZE,ZX) |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-16010 |
SV25;SV21..4FC..GT;CV20,SV21,22,VZV20..5F |
2 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-30040 |
SV25..VR,ZE;SV21..4FC..GT;SV21,22,VZV20..5F..(GT,PRO,VR,VX,ZE,ZX) ﾀｲﾌﾟ A |
2 | ||
| 58964-32040 |
SV25;SV21..4FC..GT;CV20,SV21,22,VZV20..5F ﾀｲﾌﾟ B |
1 | ||
| 58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK | ||||
| 58976-22020 |
SV25..VR,ZE;SV21..4FC..GT;SV21,22,VZV20..5F..(GT,PRO,VR,VX,ZE,ZX) |
2 | ||
| 58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK | ||||
| 58976-22020 |
SV25..VR,ZE;SV21..4FC..GT;SV21,22,VZV20..5F..(GT,PRO,VR,VX,ZE,ZX) |
2 | ||
| 58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK | ||||
| 58976-22020 |
SV25..VR,ZE;SV21..4FC..GT;SV21,22,VZV20..5F..(GT,PRO,VR,VX,ZE,ZX) |
2 | ||
| Common parts | ||||
| 90119-06106 | ||||
| 90541-03015 | ||||
| 93566-54514 | ||||
| 93567-54512 | ||||
| 93567-55016 | ||||
| 96160-00500 | ||||
| Linked diagrams | ||||
| 7404 | ||||
