SV20-UTPNL (1986)
Toyota Camry/Vista
Production
Aug 1986
-
Aug 1988
Engine
1SI
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8608- )VIS

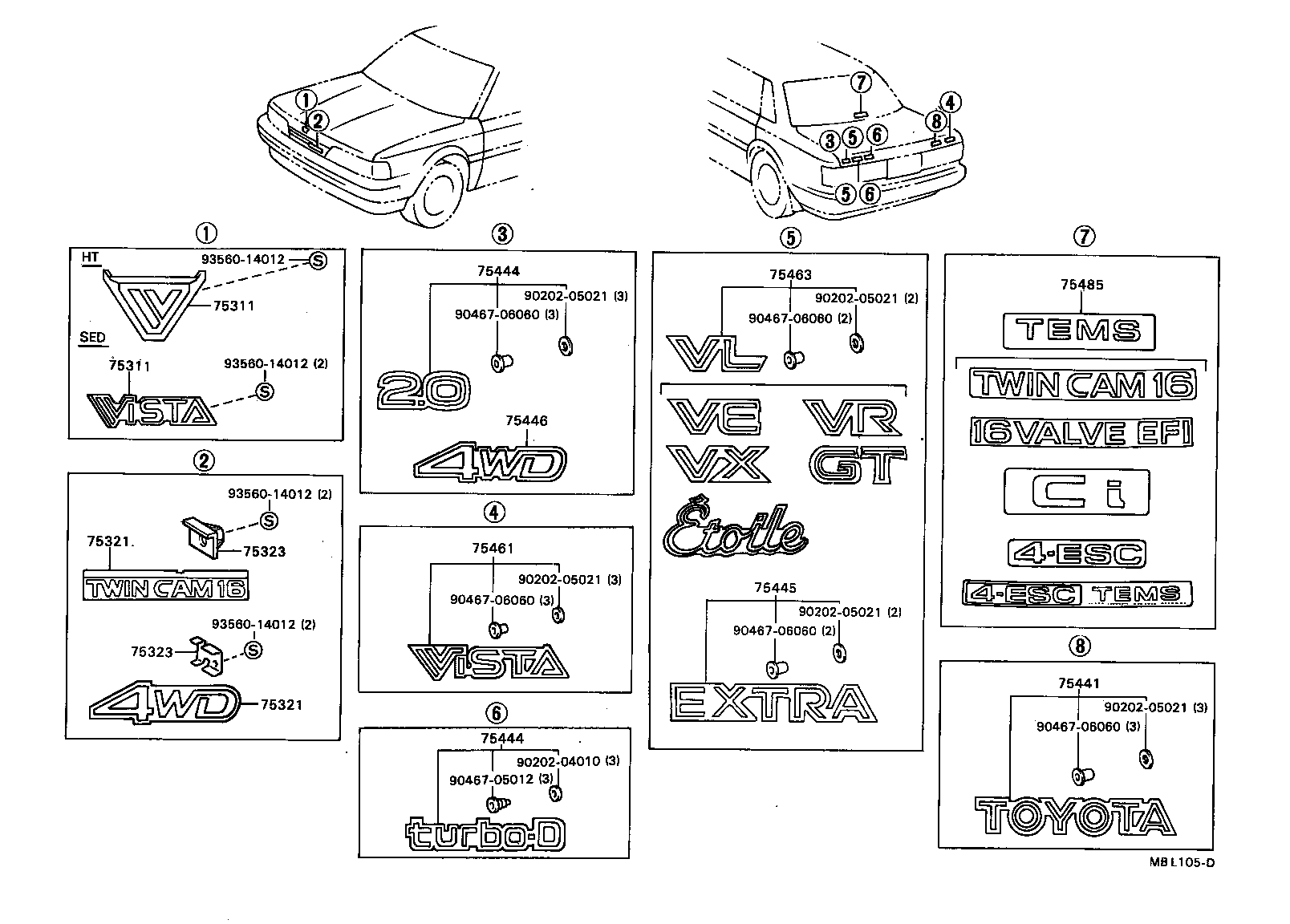

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL) | ||||
| 75301-32010 |
SV2#..HT |
1 | ||
| 75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL) | ||||
| 75301-32010 |
SV2#..HT |
1 | ||
| 75441 - PLATE, REAR NAME, NO.1 | ||||
| 75441-32020 |
CV20,SV2#,VZV20 TOYOTA |
1 | ||
| 75441-32020 |
CV20,SV2#,VZV20 TOYOTA,TOYOTA |
1 | ||
| 75445 - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.5 | ||||
| 75445-32030 |
SV20..HT..VL EXTRA,EXTRA |
1 | ||
| 75445-32030 |
SV20..HT..VL;CV20,SV25..VL EXTRA |
1 | ||
| 75461 - PLATE, REAR NAME, NO.2 (MODEL MARK) | ||||
| 75442-32060 |
CV20,SV2#..VIS VISTA,VISTA |
1 | ||
| 75442-32060 |
CV20,SV2#..VIS VISTA |
1 | ||
| 75463 - PLATE, REAR NAME, NO.4 (GRADE MARK) | ||||
| 75443-32240 |
CV20,SV20..VL VL,VL |
1 | ||
| 75443-32240 |
CV20,SV20,25..VL VL |
1 | ||
| 75443-32400 |
CV20,SV20..VL ETOILE |
1 | ||
| 75485 - PLATE, BACK WINDOW NAME | ||||
| 75485-32050 |
SV20 CI,CI |
1 | ||
| 75485-32050 |
SV20 CI |
1 | ||
| Common parts | ||||
| 90202-04010 | ||||
| 90202-05021 | ||||
| 90467-05012 | ||||
| 90467-06060 | ||||
| 93560-14012 | ||||
