SV20-UTPML (1986)
Toyota Camry/Vista

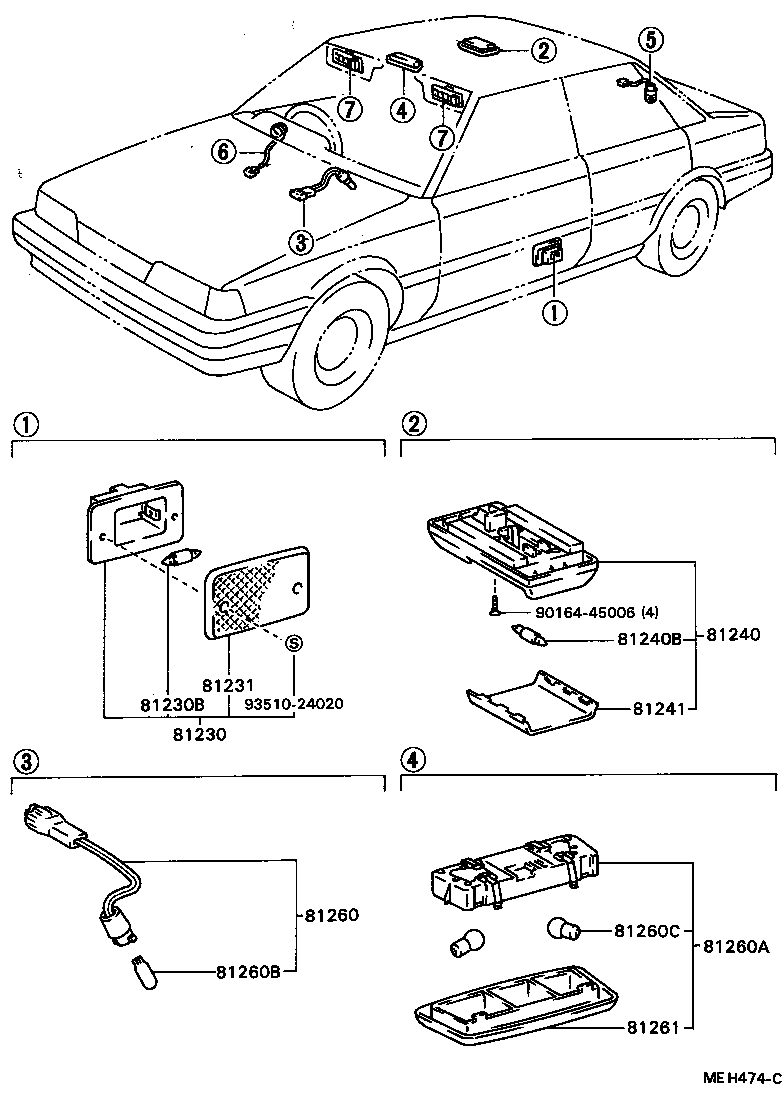

ILLUST NO. 1 OF 2(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-2208116 |
CV20,SV2#..LT,VC,VE,VL,XT,ZT BROWN,BROWN,TRIM3# |
1 | ||
| 81240-2208123 |
CV20,SV2#..LT,VC,VE,VL,XT,ZT GRAY,GRAY,TRIM8# |
1 | ||
| 81240-2208123 |
CV20,SV2#..LT,VC,VE,VL,XT,ZT GRAY,TRIM8# |
1 | ||
| 81240-2208135 |
CV20,SV2#..LT,VC,VE,VL,XT,ZT DARK BEIGE,TRIM3#,4# |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 99132-12100 |
CV20,SV2#,VZV20 12V 10W,12V 10W |
1 | ||
| 99132-12100 |
CV20,SV2#,VZV20 12V 10W |
1 | ||
| 81241 - LENS, ROOM LAMP, NO.1 | ||||
| 81241-20060 |
CV20,SV2#..LT,VC,VE,VL,XT,ZT |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-3204002 |
SV2#..HT..(GT,VE,VR,VX) MAROON,MAROON,TRIM3# |
1 | ||
| 81260-3204002 |
SV2#..HT..(GT,VE,VR,VX) MAROON,TRIM3# |
1 | ||
| 81260-3204005 |
SV2#..HT..(GT,VE,VR,VX) BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 81260-3204004 |
SV2#..HT..(GT,VE,VR,VX) DARK BLUE,TRIM8# |
1 | ||
| 81260-3204005 |
SV2#..HT..(GT,VE,VR,VX) DARK BEIGE,TRIM4# |
1 | ||
| 81260-3204004 |
SV2#..HT..(GT,VE,VR,VX) BLUE,DARK BLUE,TRIM8# |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12005 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX 12V 8W,12V 8W |
2 | ||
| 90981-12005 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX 12V 8W |
2 | ||
| 81261 - LENS AND COVER, MAP LAMP | ||||
| 81261-3204005 |
SV2#..HT..(GT,VE,VR,VX) BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 81261-3204004 |
SV2#..HT..(GT,VE,VR,VX) BLUE,DARK BLUE,TRIM8# |
1 | ||
| 81261-3204002 |
SV2#..HT..(GT,VE,VR,VX) MAROON,MAROON,TRIM3# |
1 | ||
| 81261-3204005 |
SV2#..HT..(GT,VE,VR,VX) DARK BEIGE,TRIM4# |
1 | ||
| 81261-3204002 |
SV2#..HT..(GT,VE,VR,VX) MAROON,TRIM3# |
1 | ||
| 81261-3204004 |
SV2#..HT..(GT,VE,VR,VX) DARK BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90164-45006 | ||||
| 93510-24020 | ||||

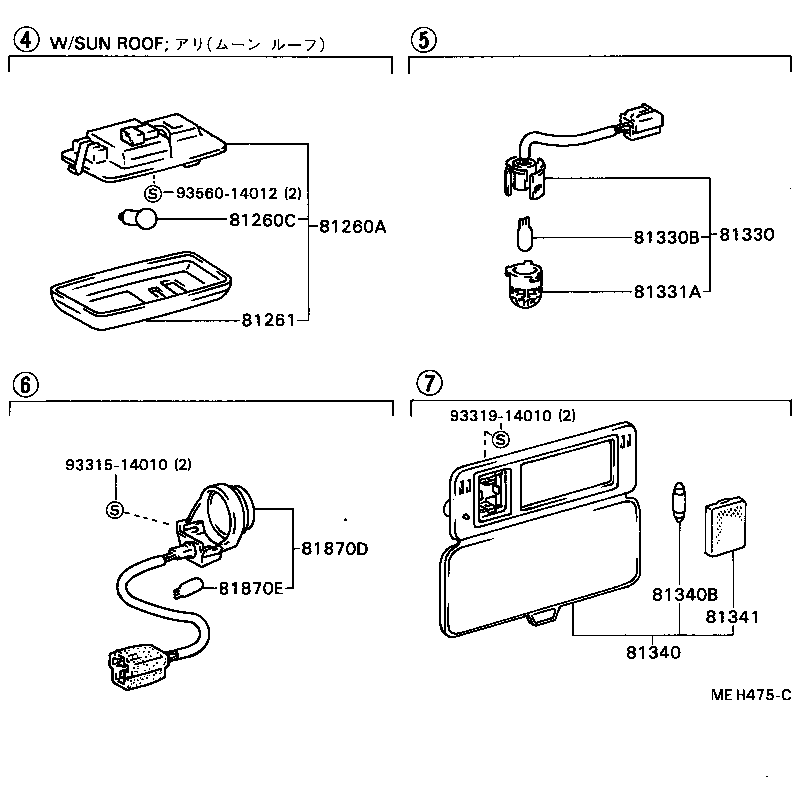

ILLUST NO. 2 OF 2(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81260A - LAMP ASSY, MAP | ||||
| 81260-3204002 |
SV2#..HT..(GT,VE,VR,VX) MAROON,MAROON,TRIM3# |
1 | ||
| 81260-3204002 |
SV2#..HT..(GT,VE,VR,VX) MAROON,TRIM3# |
1 | ||
| 81260-3204005 |
SV2#..HT..(GT,VE,VR,VX) BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 81260-3204004 |
SV2#..HT..(GT,VE,VR,VX) DARK BLUE,TRIM8# |
1 | ||
| 81260-3204005 |
SV2#..HT..(GT,VE,VR,VX) DARK BEIGE,TRIM4# |
1 | ||
| 81260-3204004 |
SV2#..HT..(GT,VE,VR,VX) BLUE,DARK BLUE,TRIM8# |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12005 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX 12V 8W,12V 8W |
2 | ||
| 90981-12005 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX 12V 8W |
2 | ||
| 81261 - LENS AND COVER, MAP LAMP | ||||
| 81261-3204005 |
SV2#..HT..(GT,VE,VR,VX) BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 81261-3204004 |
SV2#..HT..(GT,VE,VR,VX) BLUE,DARK BLUE,TRIM8# |
1 | ||
| 81261-3204002 |
SV2#..HT..(GT,VE,VR,VX) MAROON,MAROON,TRIM3# |
1 | ||
| 81261-3204005 |
SV2#..HT..(GT,VE,VR,VX) DARK BEIGE,TRIM4# |
1 | ||
| 81261-3204002 |
SV2#..HT..(GT,VE,VR,VX) MAROON,TRIM3# |
1 | ||
| 81261-3204004 |
SV2#..HT..(GT,VE,VR,VX) DARK BLUE,TRIM8# |
1 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81330-22031 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 81330-22031 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 81330-22030 |
CV20,SV2#..GT,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 99132-12050 |
CV20,SV2#..GT,VE,VL,VR,VX,XT,ZE,ZT,ZX 12V 5W,12V 5W |
1 | ||
| 90981-11020 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX 12V 3.8W |
1 | ||
| 90981-11020 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX 12V 3.8W,12V 3.8W |
1 | ||
| 81331A - COVER, LUGGAGE COMPARTMENT LAMP | ||||
| 81331-22030 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 81331-22030 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| Common parts | ||||
| 93315-14010 | ||||
| 93319-14010 | ||||
| 93560-14012 | ||||
