SV20-UTPML (1986)

Toyota Camry/Vista

Production Aug 1986 - Aug 1988
Engine 1SI
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )HT

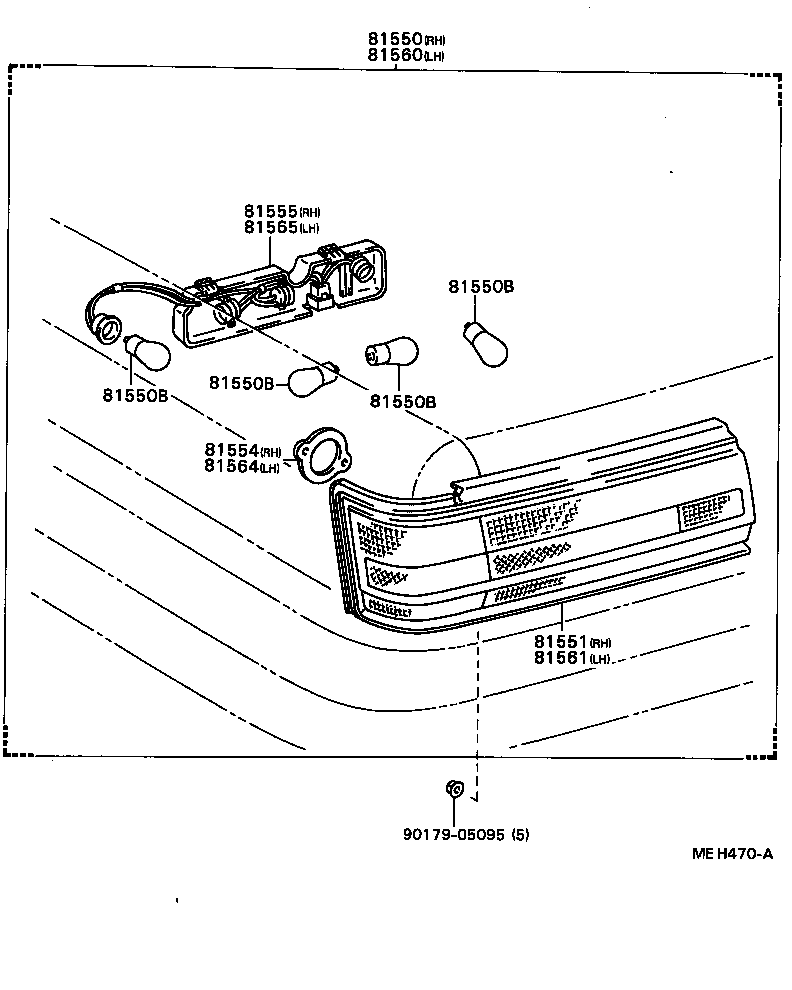

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81550B 81551 81554 81555 81560 81561 81564 81565 9017905095
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-32180

SV2#..HT

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

SV2#..HT

12V 23W

 4
99132-11230

SV2#..HT

12V 23W,FOR BACK & TURN

 4
99132-21210

CV20,SV2#,VZV20

12V 21/5W,ﾃｰﾙ,ｽﾄｯﾌﾟ & ﾊﾟｰｷﾝｸﾞ

 4
99132-21210

SV2#..HT

12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

SV2#..HT

12V 23W

 4
99132-11230

SV2#..HT

12V 23W,FOR BACK & TURN

 4
99132-21210

CV20,SV2#,VZV20

12V 21/5W,ﾃｰﾙ,ｽﾄｯﾌﾟ & ﾊﾟｰｷﾝｸﾞ

 4
99132-21210

SV2#..HT

12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

SV2#..HT

12V 23W

 4
99132-11230

SV2#..HT

12V 23W,FOR BACK & TURN

 4
99132-21210

CV20,SV2#,VZV20

12V 21/5W,ﾃｰﾙ,ｽﾄｯﾌﾟ & ﾊﾟｰｷﾝｸﾞ

 4
99132-21210

SV2#..HT

12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

SV2#..HT

12V 23W

 4
99132-11230

SV2#..HT

12V 23W,FOR BACK & TURN

 4
99132-21210

CV20,SV2#,VZV20

12V 21/5W,ﾃｰﾙ,ｽﾄｯﾌﾟ & ﾊﾟｰｷﾝｸﾞ

 4
99132-21210

SV2#..HT

12V 21/5W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-32180

SV2#..HT

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81552-30450

SV2#..HT

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-32180

SV2#..HT

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-32180

SV2#..HT

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-32180

SV2#..HT

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81552-30450

SV2#..HT

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-32180

SV2#..HT

 1
Common parts
90179-05095
