SV20-UTPML (1986)

Toyota Camry/Vista

Production Aug 1986 - Aug 1988
Engine 1SI
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

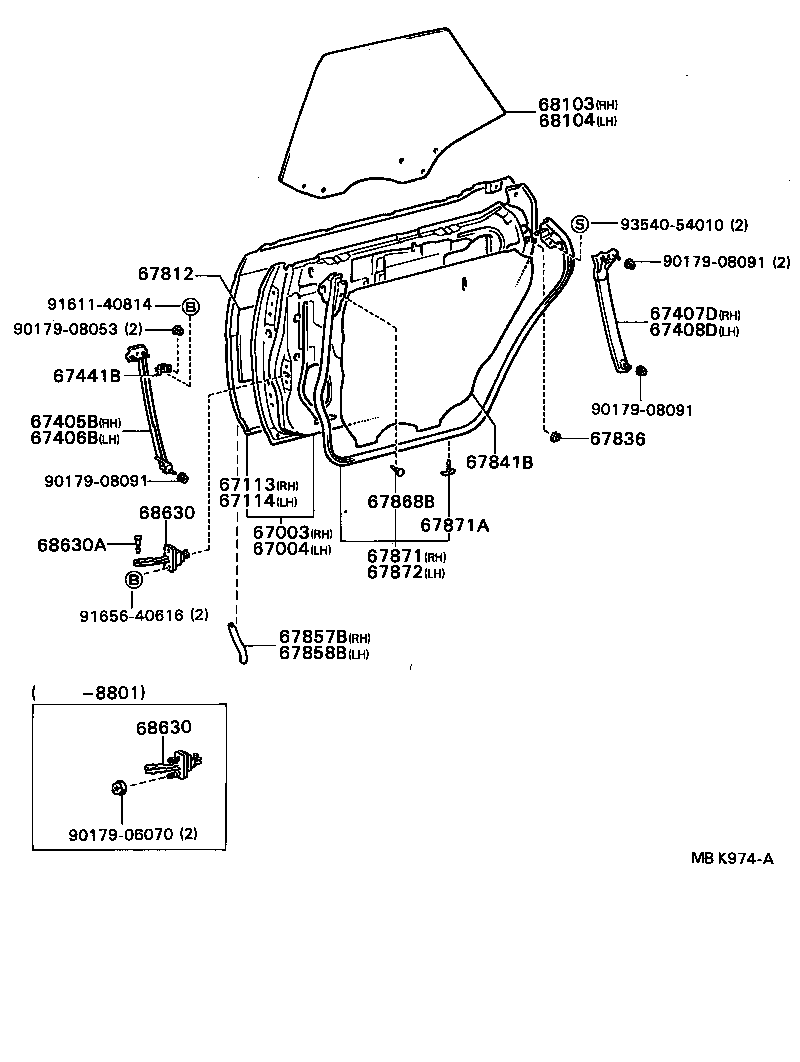

ILLUST NO. 1 OF 2(8608- )HT

Click highlighted areas on diagram

diagram 67003 67004 67113 67114 67405B 67406B 67407D 67408D 67441B 67812 67836 67841B 67857B 67858B 67868B 67871 67871A 67872 68103 68104 68630 68630 68630A 9017906070 9017908053 9017908091 9017908091 9017908091 9161140814 9165640616 9354054010
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-32200

SV2#..HT

 1
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-32200

SV2#..HT

 1
67113 - PANEL, REAR DOOR, OUTER RH
67113-32060

SV2#..HT

 1
67114 - PANEL, REAR DOOR, OUTER LH
67114-32060

SV2#..HT

 1
67405B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH
67405-32010

SV2#..HT

 1
67406B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH
67406-32010

SV2#..HT

 1
67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH
67407-32040

SV2#..HT

 1
67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH
67408-32040

SV2#..HT

 1
67441B - PLATE, REAR DOOR FRONT GUIDE, UPPER
67441-32020

SV2#..HT

 2
67812 - PAD, REAR DOOR SILENCER
67812-12010

CV20,SV2#,VZV20

 2
67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836-32010

SV2#..HT

 2
67841B - COVER, REAR DOOR SERVICE HOLE
67841-32060

SV2#..HT

 2
67868B - CLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)
67869-30020

SV2#..HT

 4
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-32060

SV2#..HT

 1
67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP)
67868-20010

SV2#..HT

LH

 16
67867-20010

SV2#..HT

RH

 16
67868-20010

SV2#..HT

左側

 16
67867-20010

SV2#..HT

右側

 16
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-32060

SV2#..HT

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68113-32070

SV2#..HT

*TT,厚さ=5.0,*TT,T=5.0

 1
68113-32080

SV2#..HT..(GT,VE,VR,VX)

*TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ,BRONZE,*TT,T=5.0

 1
68113-32070

SV2#..HT

*TT,厚さ=5.0

 1
68113-32080

SV20,21..HT;SV25..HT..VR

*TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68114-32070

SV2#..HT

*TT,厚さ=5.0

 1
68114-32080

SV2#..HT..(GT,VE,VR,VX)

*TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ,BRONZE,*TT,T=5.0

 1
68114-32080

SV20,21..HT;SV25..HT..VR

*TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ

 1
68114-32070

SV2#..HT

*TT,厚さ=5.0,*TT,T=5.0

 1
68630 - CHECK ASSY, REAR DOOR
68630-32020

CV20,SV2#,VZV20

 2
68630-32031

CV20,SV2#,VZV20

 2
68630-32030

CV20,SV2#,VZV20

 2
68630 - CHECK ASSY, REAR DOOR
68630-32020

CV20,SV2#,VZV20

 2
68630-32031

CV20,SV2#,VZV20

 2
68630-32030

CV20,SV2#,VZV20

 2
68630A - PIN(FOR REAR DOOR CHECK)
68617-32010

CV20,SV2#,VZV20

 2
Common parts
90179-06070
90179-08053
90179-08091
91611-40814
91656-40616
93540-54010

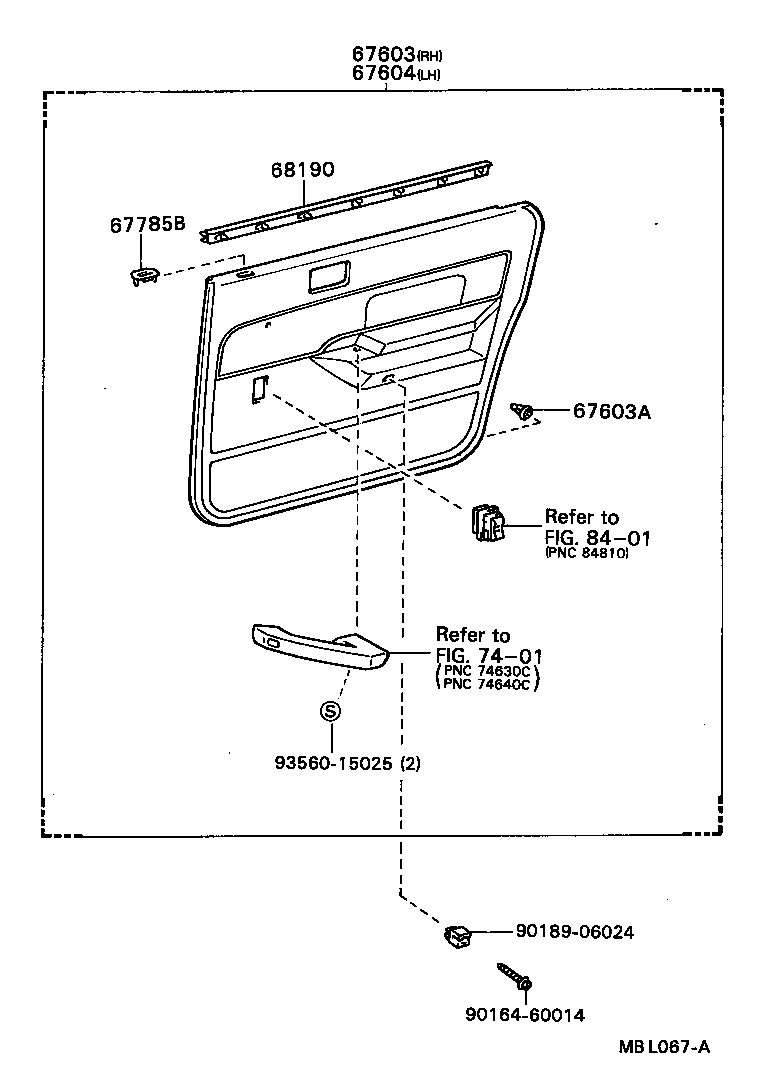

ILLUST NO. 1 OF 2(8608- )

Click highlighted areas on diagram

diagram 67603 67603A 67604 67785B 68190 7401 8401 9016460014 9018906024 9356015025
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-3248004

SV2#..HT..VE

BLUE,DARK BLUE,TRIM8#

 1
67630-3248002

SV2#..HT..VE

MAROON,MAROON,TRIM3#

 1
67630-3248005

SV2#..HT..VE

BEIGE,DARK BEIGE,TRIM4#

 1
67630-3248005

SV20,21..HT..VE

DARK BEIGE,TRIM4#

 1
67630-3248004

SV20,21..HT..VE

DARK BLUE,TRIM8#

 1
67630-3248002

SV20,21..HT..VE

MAROON,TRIM3#

 1
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-14040

CV20,SV2#,VZV20

 16
67771-14040

CV20,SV2#,VZV20

 8
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-3248005

SV2#..HT..VE

BEIGE,DARK BEIGE,TRIM4#

 1
67640-3248002

SV2#..HT..VE

MAROON,MAROON,TRIM3#

 1
67640-3248004

SV2#..HT..VE

BLUE,DARK BLUE,TRIM8#

 1
67640-3248005

SV20,21..HT..VE

DARK BEIGE,TRIM4#

 1
67640-3248004

SV20,21..HT..VE

DARK BLUE,TRIM8#

 1
67640-3248002

SV20,21..HT..VE

MAROON,TRIM3#

 1
68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68240-32020

SV2#..HT

左側

 1
68240-32020

SV2#..HT

LH

 1
68190-32040

SV2#..HT

RH

 1
68190-32040

SV2#..HT

右側

 1
Common parts
90164-60014
90189-06024
93560-15025
Linked diagrams
7401
8401
