SV20-UTPML (1986)
Toyota Camry/Vista

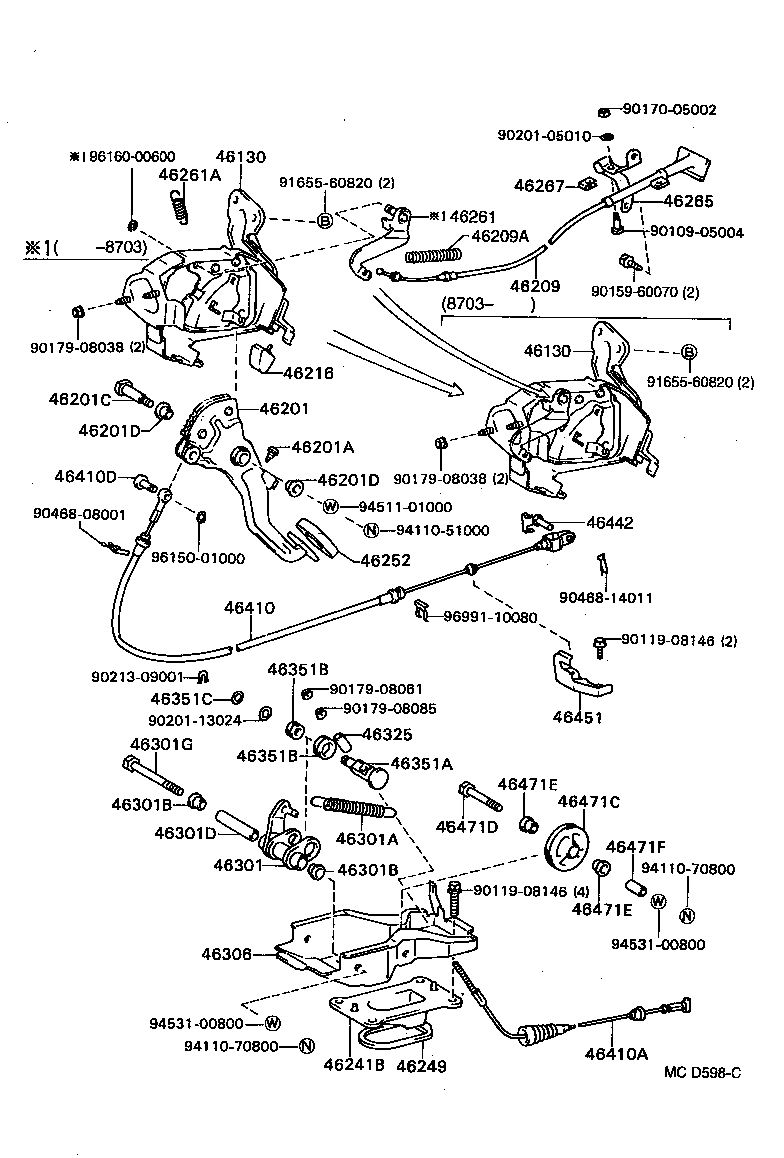

ILLUST NO. 1 OF 3(8608- )4FC..PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46130 - BRACKET ASSY, PARKING BRAKE PEDAL | ||||
| 46130-32020 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46130-32020 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46130 - BRACKET ASSY, PARKING BRAKE PEDAL | ||||
| 46130-32020 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46130-32020 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46201 - PEDAL SUB-ASSY, PARKING BRAKE | ||||
| 46201-32070 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46201-32070 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46201A - CUSHION(FOR PARKING BRAKE PEDAL) | ||||
| 90541-01001 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 90541-01001 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46201C - SHAFT, PEDAL | ||||
| 90109-10033 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 90109-10033 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-16022 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
2 | ||
| 90386-16022 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
2 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-16022 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
2 | ||
| 90386-16022 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
2 | ||
| 46209 - CABLE SUB-ASSY, PARKING BRAKE RELEASE | ||||
| 46209-32020 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46209-32020 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46209A - SPRING, COMPRESSION(FOR PARKING BRAKE RELEASE CABLE) | ||||
| 90501-08030 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 90501-08030 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46216 - CUSHION, PARKING PEDAL | ||||
| 90541-07008 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 90541-07008 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46241B - BOOT, INTERMEDIATE LEVER | ||||
| 46241-32020 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46241-32020 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46249 - SHIELD, PARKING BRAKE HOLE | ||||
| 46249-32010 |
CV20,SV2#,VZV20 |
1 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-20010 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46252-20010 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46261 - LEVER, PARKING BRAKE RELEASE INTERMEDIATE | ||||
| 46261-32011 |
CV20,SV2#..4FC..(VE,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46261A - SPRING(FOR PARKING BRAKE RELEASE INTERMEDIATE LEVER) | ||||
| 90506-07007 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 90506-07007 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46265 - GUIDE, PARKING BRAKE RELEASE ROD | ||||
| 46265-32020 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46265-32020 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46267 - CUSHION, RELEASE ROD GUIDE INTERMEDIATE | ||||
| 46266-30010 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46266-30010 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-32020 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46301-32020 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46301A - SPRING, TENSION(FOR INTERMEDIATE LEVER) | ||||
| 90507-12019 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 90507-12019 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46301B - BUSH(FOR INTERMEDIATE LEVER) | ||||
| 90386-13011 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
2 | ||
| 90386-13011 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
2 | ||
| 46301B - BUSH(FOR INTERMEDIATE LEVER) | ||||
| 90386-13011 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
2 | ||
| 90386-13011 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
2 | ||
| 46301D - COLLAR(FOR INTERMEDIATE LEVER) | ||||
| 90387-08044 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 90387-08044 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46301G - BOLT(FOR INTERMEDIATE LEVER) | ||||
| 90101-08111 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 90101-08111 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46306 - BRACKET SUB-ASSY, INTERMEDIATE LEVER(FOR PARKING BRAKE) | ||||
| 46306-32020 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46306-32020 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46325 - SLEEVE, PARKING BRAKE CABLE | ||||
| 46325-32010 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46325-32010 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46351A - SHAFT, INTERMEDIATE LEVER | ||||
| 46351-32010 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46351-32010 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46351B - BUSH(FOR INTERMEDIATE LEVER SHAFT) | ||||
| 90386-13013 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) 内径=13,ID=13 |
1 | ||
| 90386-20003 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) 内径=20,ID=20 |
1 | ||
| 90386-13013 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) 内径=13,ID=13 |
1 | ||
| 90386-20003 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) 内径=20,ID=20 |
1 | ||
| 46351B - BUSH(FOR INTERMEDIATE LEVER SHAFT) | ||||
| 90386-13013 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) 内径=13,ID=13 |
1 | ||
| 90386-20003 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) 内径=20,ID=20 |
1 | ||
| 90386-13013 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) 内径=13,ID=13 |
1 | ||
| 90386-20003 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) 内径=20,ID=20 |
1 | ||
| 46351C - SHIM(FOR INTERMEDIATE LEVER SHAFT) | ||||
| 90564-13007 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) 厚さ=1.5,T=1.5 |
1 | ||
| 90564-13003 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) 厚さ=0.6,T=0.6 |
1 | ||
| 90564-13002 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) 厚さ=0.3,T=0.3 |
1 | ||
| 90564-13005 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) 厚さ=0.9,T=0.9 |
1 | ||
| 90564-13002 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) 厚さ=0.3,T=0.3 |
1 | ||
| 90564-13006 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) 厚さ=1.2,T=1.2 |
1 | ||
| 90564-13003 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) 厚さ=0.6,T=0.6 |
1 | ||
| 90564-13006 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) 厚さ=1.2,T=1.2 |
1 | ||
| 90564-13008 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) 厚さ=1.8,T=1.8 |
1 | ||
| 90564-13007 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) 厚さ=1.5,T=1.5 |
1 | ||
| 90564-13005 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) 厚さ=0.9,T=0.9 |
1 | ||
| 90564-13008 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) 厚さ=1.8,T=1.8 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-32080 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46410-32080 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46410A - CABLE ASSY, PARKING BRAKE, NO.5 | ||||
| 46440-32010 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46440-32010 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46410D - PIN(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90249-10012 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) PEDAL SIDE |
1 | ||
| 90249-10012 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46442 - PIN, WIRE PIVOT | ||||
| 46442-32010 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46442-32010 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-32020 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46451-32020 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46471C - PULLEY, INTERMEDIATE LEVER | ||||
| 46471-32010 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46471-32010 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46471D - BOLT(FOR INTERMEDIATE LEVER PULLEY) | ||||
| 90101-08112 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 90101-08112 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 46471E - BUSH(FOR INTERMEDIATE LEVER PULLEY) | ||||
| 90386-13011 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
2 | ||
| 90386-13011 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
2 | ||
| 46471E - BUSH(FOR INTERMEDIATE LEVER PULLEY) | ||||
| 90386-13011 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
2 | ||
| 90386-13011 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
2 | ||
| 46471F - COLLAR(FOR INTERMEDIATE LEVER PULLEY) | ||||
| 90387-08045 |
CV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 90387-08045 |
CV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| Common parts | ||||
| 90109-05004 | ||||
| 90119-08146 | ||||
| 90159-60070 | ||||
| 90170-05002 | ||||
| 90179-08038 | ||||
| 90179-08061 | ||||
| 90179-08085 | ||||
| 90201-05010 | ||||
| 90201-13024 | ||||
| 90213-09001 | ||||
| 90468-08001 | ||||
| 90468-14011 | ||||
| 91655-60820 | ||||
| 94110-51000 | ||||
| 94110-70800 | ||||
| 94511-01000 | ||||
| 94531-00800 | ||||
| 96150-01000 | ||||
| 96160-00600 | ||||
| 96991-10080 | ||||
ILLUST NO. 2 OF 3(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-32010 |
CV20,SV2#,VZV20 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-39045 |
CV20,SV20,21..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 46420-39045 |
CV20,SV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01331 |
CV20,SV2#,VZV20 |
2 | ||
| 90949-01331 |
CV20,SV20,21,VZV20 |
2 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01332 |
CV20,SV20,21,VZV20 |
1 | ||
| 90949-01332 |
CV20,SV2#,VZV20 |
1 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 90949-01330 |
CV20,SV20,21,VZV20 |
2 | ||
| 90949-01330 |
CV20,SV2#,VZV20 |
2 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 90949-01330 |
CV20,SV20,21,VZV20 |
2 | ||
| 90949-01330 |
CV20,SV2#,VZV20 |
2 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-39045 |
CV20,SV20,21..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 46430-39045 |
CV20,SV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-20020 |
CV20,SV2#,VZV20 |
2 | ||
| 46464 - PLATE, CABLE CLAMP SUPPORT | ||||
| 46464-32010 |
CV20,SV20,21,VZV20 |
1 | ||
| 46464-32010 |
CV20,SV2#,VZV20 |
1 | ||
| Common parts | ||||
| 90119-06197 | ||||
| 90119-06198 | ||||
| 90119-06315 | ||||
| 91611-60612 | ||||
| 91656-40816 | ||||
| 94180-40600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
