SV20-UTMML (1986)
Toyota Camry/Vista

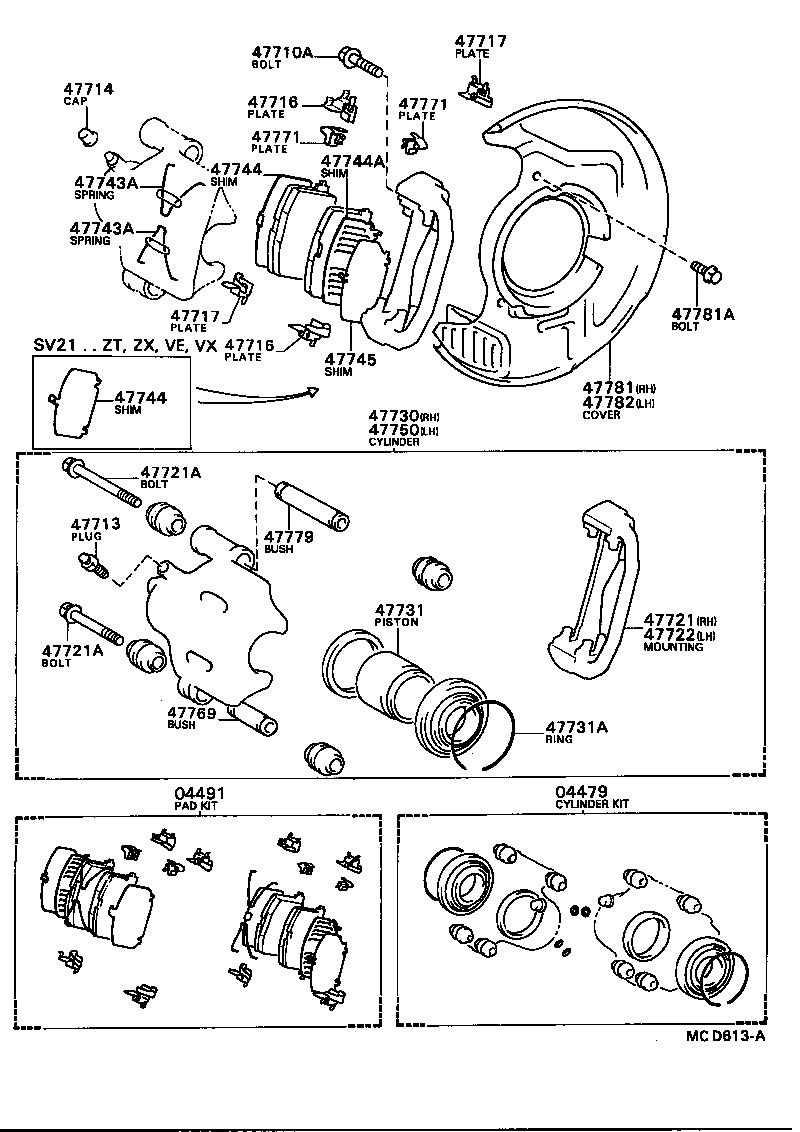

ILLUST NO. 1 OF 2(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-32021 |
CV20,SV20 |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-32120 |
CV20,SV20 |
1 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90105-12131 |
CV20,SV2#,VZV20 *12−1.25PX25.5−23 |
4 | ||
| 47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20010 |
CV20,SV2#,VZV20 |
2 | ||
| 47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
CV20,SV2#,VZV20 |
2 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-32030 |
CV20,SV20 |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-32030 |
CV20,SV20 |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-32030 |
CV20,SV20 |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-32030 |
CV20,SV20 |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-32050 |
CV20,SV20 |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-09003 |
CV20,SV20 *9−1.25PX71−25 |
2 | ||
| 90119-09004 |
CV20,SV20 *9−1.25PX91−25 |
2 | ||
| 90119-09003 |
CV20,SV20 *9−1.25PX71−25,*9-1.25PX73-25 |
2 | ||
| 90119-09004 |
CV20,SV20 *9−1.25PX91−25,*9-1.25PX93-25 |
2 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-09003 |
CV20,SV20 *9−1.25PX71−25 |
2 | ||
| 90119-09004 |
CV20,SV20 *9−1.25PX91−25 |
2 | ||
| 90119-09003 |
CV20,SV20 *9−1.25PX71−25,*9-1.25PX73-25 |
2 | ||
| 90119-09004 |
CV20,SV20 *9−1.25PX91−25,*9-1.25PX93-25 |
2 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47721-32050 |
CV20,SV20 |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-32060 |
CV20,SV20 |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-32020 |
CV20,SV20 |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-64003 |
CV20,SV20 |
2 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-16011 |
CV20,SV20 |
2 | ||
| 47744-16010 |
CV20,SV20 |
2 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-16011 |
CV20,SV20 |
2 | ||
| 47744-16010 |
CV20,SV20 |
2 | ||
| 47744A - SHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE) | ||||
| 47742-17010 |
CV20,SV20 |
2 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47745-17020 |
CV20,SV20 |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-32060 |
CV20,SV20 |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-32010 |
CV20,SV20 |
2 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-32010 |
CV20,SV2#,VZV20 |
4 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-32010 |
CV20,SV2#,VZV20 |
4 | ||
| 47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47779-32010 |
CV20,SV20 |
2 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-32020 |
CV20,SV20 |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90119-06227 |
CV20,SV2#,VZV20 |
6 | ||
| 90119-06227 |
CV20,SV2# |
6 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-32020 |
CV20,SV20 |
1 | ||
ILLUST NO. 2 OF 2(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-20030 |
CV20,SV20 |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-32110 |
CV20,SV20 |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-32010 |
CV20,SV20 |
1 | ||
