SV20-UTMML (1986)

Toyota Camry/Vista

Production Aug 1986 - Aug 1988
Engine 1SI
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )1SI

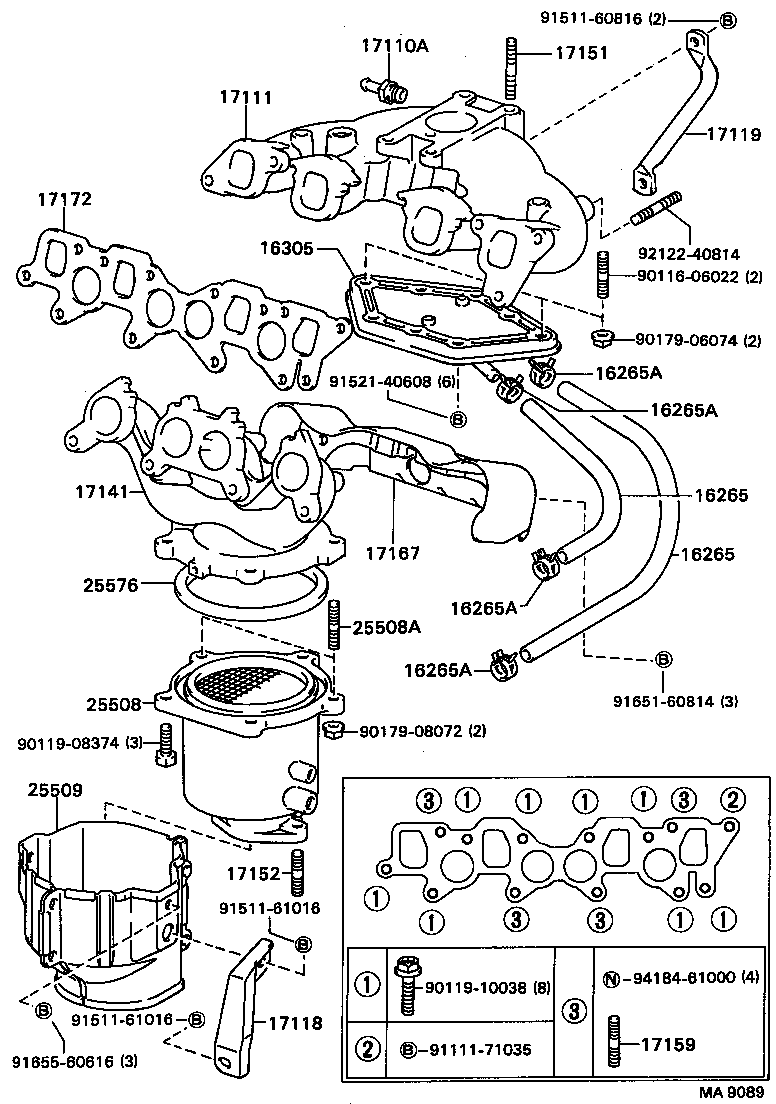

Click highlighted areas on diagram

diagram 16265 16265 16265A 16265A 16265A 16265A 16305 17110A 17111 17118 17119 17141 17151 17152 17159 17167 17172 25508 25508A 25509 25576 9011606022 9011908374 9011910038 9017906074 9017908072 9111171035 9151160816 9151161016 9151161016 9152140608 9165160814 9165560616 9212240814 9418461000
Part # Description Qty Price
16265 - HOSE, INTAKE MANIFOLD WATER
90445-16020

1SI..SV20

 2
90445-16020

1SI..SV20

L=365

 2
16265 - HOSE, INTAKE MANIFOLD WATER
90445-16020

1SI..SV20

 2
90445-16020

1SI..SV20

L=365

 2
16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
90467-15004

1SI..SV20

 4
16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
90467-15004

1SI..SV20

 4
16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
90467-15004

1SI..SV20

 4
16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
90467-15004

1SI..SV20

 4
16305 - OUTLET SUB-ASSY, WATER BY-PASS
16305-63011

1SI..SV20

 1
17110A - UNION, VACUUM HOSE
90404-53055

1SI..SV20

 1
17111 - MANIFOLD, INTAKE
17111-63900

1SI..SV20

 1
17118 - STAY, MANIFOLD
17118-63010

1SI..SV20

 1
17119 - STAY, MANIFOLD, NO.2
17118-63020

1SI..SV20

 1
17141 - MANIFOLD, EXHAUST
17141-63061

1SI..SV20

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
92122-40820

1SI..SV20

L=32,S=12& 12

 2
92122-40820

1SI..SV20

L=32,S=12&12

 2
92122-40832

1SI..SV20

L=44,S=12&12

 2
92122-40832

1SI..SV20

L=44,S=12& 12

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

1SI..SV20

 2
90116-10058

1SI,3S#..SV2#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10123

1SI..SV20

 4
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-63011

1SI..SV20

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-63030

1SI..SV20

 1
25508 - CONVERTER SUB-ASSY, MANIFOLD
25508-63020

1SI..SV20

 1
25508A - BOLT, STUD(FOR MANIFOLD CONVERTER)
90116-08171

1SI,3SFE..SV2#

 2
25509 - INSULATOR SUB-ASSY, MANIFOLD CONVERTOR
25509-63011

1SI..SV20

 1
25576 - GASKET, MANIFOLD CONVERTER
25576-15010

1SI..SV20

 1
Common parts
90116-06022
90119-08374
90119-10038
90179-06074
90179-08072
91111-71035
91511-60816
91511-61016
91521-40608
91651-60814
91655-60616
92122-40814
94184-61000
