SV20-UTMEL (1986)

Toyota Camry/Vista

Production Aug 1986 - Aug 1988
Engine 1SI
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )CV20,SV20,21..5F

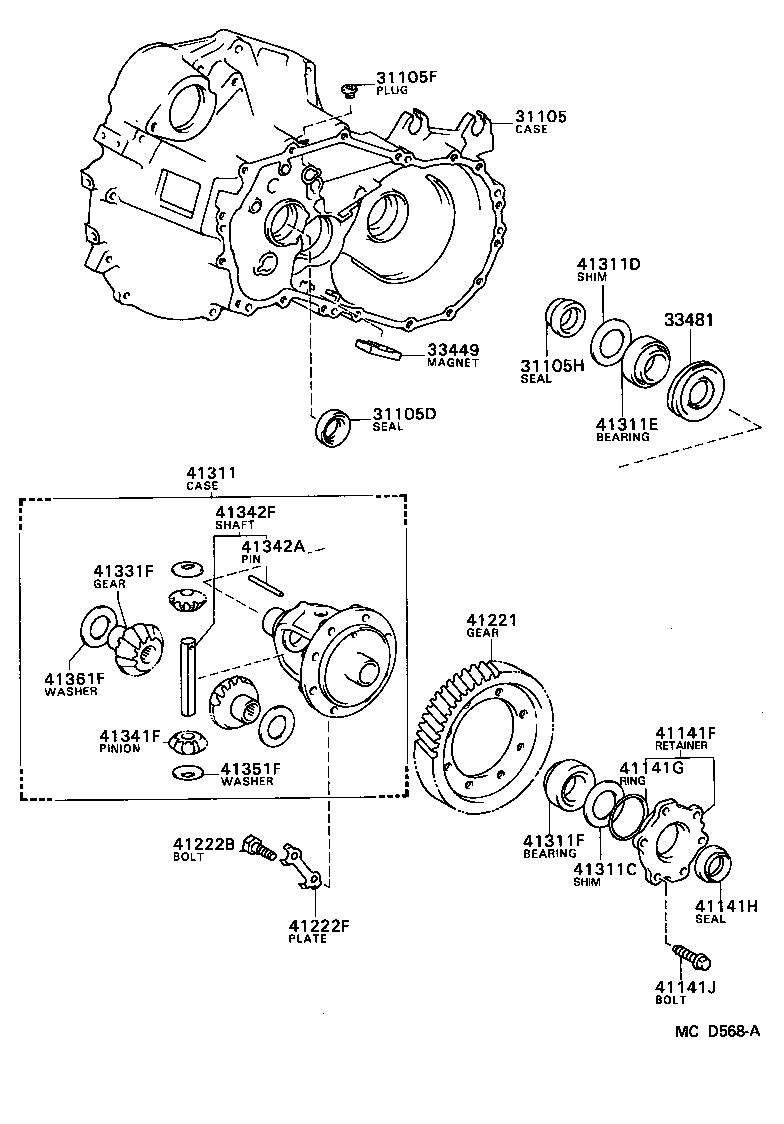

Click highlighted areas on diagram

diagram 31105 31105D 31105F 31105H 33449 33481 41141F 41141G 41141H 41141J 41221 41222B 41222F 41311 41311C 41311D 41311E 41311F 41331F 41341F 41342A 41342F 41351F 41361F
Part # Description Qty Price
31105 - CASE SUB-ASSY, TRANSAXLE(MTM)
31105-32014

CV20,SV20,25..5F

 1
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-30002

CV20,SV2#..5F

 1
90311-30002

CV20,SV20,21..5F

 1
31105F - PLUG(FOR TRANSAXLE CASE)
90341-10065

CV20,SV20,21..5F

 1
90341-10065

CV20,SV2#..5F

 1
31105H - SEAL, OIL, NO.2(FOR TRANSAXLE CASE)
90311-35014

CV20,SV20,21..5F

 1
90311-35014

CV20,SV2#..5F

 1
33449 - MAGNET, TRANSMISSION
33449-32010

CV20,SV2#..5F

 1
33449-32010

CV20,SV20,21..5F

 1
33481 - GEAR, SPEEDOMETER DRIVE (MTM)
33481-32010

CV20,SV20..5F

歯数=25,ﾏｰｸ無し

 1
41141F - RETAINER, FRONT DIFFERENTIAL SIDE BEARING
41101-32010

CV20,SV20,21..5F

 1
41101-32010

CV20,SV2#..5F

 1
41141G - RING, O(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
90301-63004

CV20,SV2#..5F

 1
90301-63004

CV20,SV20,21..5F

 1
41141H - SEAL, OIL(FOR DIFFERENTIAL SIDE BEARING RETAINER)
90311-35014

CV20,SV2#..5F

 1
90311-35014

CV20,SV20,21..5F

 1
41141J - BOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
90105-08061

CV20,SV20,21..5F

*8−1.25PX26.5−23.5

 6
90105-08061

CV20,SV2#..5F

*8−1.25PX26.5−23.5

 6
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-32030

CV20,SV2#..5F..(LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX)

 1
41221-32030

CV20,SV20..5F;SV21..VE,VX,ZT,ZX

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90101-11003

CV20,SV2#

 8
90101-11003

VZV20..4FC;CV20,SV20,21

 8
41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41222-32010

CV20,SV2#

 4
41222-32010

CV20,SV20,21

 4
41311 - CASE, FRONT DIFFERENTIAL
41301-32010

CV20,SV2#..5F

 1
41301-32010

CV20,SV20,21..5F

 1
41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR)
90564-45006

CV20,SV2#..5F

厚さ=2.15,ﾏｰｸ 06,T=2.15,MARK 06

 1
90564-45004

CV20,SV2#..5F

厚さ=2.05,ﾏｰｸ 04,T=2.05,MARK 04

 1
90564-45003

CV20,SV2#..5F

厚さ=2.00,ﾏｰｸ 03,T=2.00,MARK 03

 1
90564-45005

CV20,SV2#..5F

厚さ=2.10,ﾏｰｸ 05,T=2.10,MARK 05

 1
90564-45009

CV20,SV2#..5F

厚さ=2.30,ﾏｰｸ 09,T=2.30,MARK 09

 1
90564-45001

CV20,SV2#..5F

厚さ=1.90,ﾏｰｸ 01,T=1.90,MARK 01

 1
90564-45002

CV20,SV2#..5F

厚さ=1.95,ﾏｰｸ 02,T=1.95,MARK 02

 1
90564-45012

CV20,SV2#..5F

厚さ=2.45,ﾏｰｸ 12,T=2.45,MARK 12

 1
90564-45008

CV20,SV2#..5F

厚さ=2.25,ﾏｰｸ 08,T=2.25,MARK 08

 1
90564-45015

CV20,SV2#..5F

厚さ=2.60,ﾏｰｸ 15,T=2.60,MARK 15

 1
90564-45007

CV20,SV2#..5F

厚さ=2.20,ﾏｰｸ 07,T=2.20,MARK 07

 1
90564-45019

CV20,SV2#..5F

厚さ=2.80,ﾏｰｸ 19,T=2.80,MARK 19

 1
90564-45016

CV20,SV2#..5F

厚さ=2.65,ﾏｰｸ 16,T=2.65,MARK 16

 1
90564-45014

CV20,SV2#..5F

厚さ=2.55,ﾏｰｸ 14,T=2.55,MARK 14

 1
90564-45018

CV20,SV2#..5F

厚さ=2.75,ﾏｰｸ 18,T=2.75,MARK 18

 1
90564-45010

CV20,SV2#..5F

厚さ=2.35,ﾏｰｸ 10,T=2.35,MARK 10

 1
90564-45017

CV20,SV2#..5F

厚さ=2.70,ﾏｰｸ 17,T=2.70,MARK 17

 1
90564-45013

CV20,SV2#..5F

厚さ=2.50,ﾏｰｸ 13,T=2.50,MARK 13

 1
90564-45002

CV20,SV20,21..5F

厚さ=1.95,ﾏｰｸ 02

 1
90564-45005

CV20,SV20,21..5F

厚さ=2.10,ﾏｰｸ 05

 1
90564-45001

CV20,SV20,21..5F

厚さ=1.90,ﾏｰｸ 01

 1
90564-45009

CV20,SV20,21..5F

厚さ=2.30,ﾏｰｸ 09

 1
90564-45007

CV20,SV20,21..5F

厚さ=2.20,ﾏｰｸ 07

 1
90564-45004

CV20,SV20,21..5F

厚さ=2.05,ﾏｰｸ 04

 1
90564-45010

CV20,SV20,21..5F

厚さ=2.35,ﾏｰｸ 10

 1
90564-45012

CV20,SV20,21..5F

厚さ=2.45,ﾏｰｸ 12

 1
90564-45011

VZV20..4FC;CV20,SV20,21

厚さ=2.40,ﾏｰｸ 11

 1
90564-45003

CV20,SV20,21..5F

厚さ=2.00,ﾏｰｸ 03

 1
90564-45006

CV20,SV20,21..5F

厚さ=2.15,ﾏｰｸ 06

 1
90564-45017

CV20,SV20,21..5F

厚さ=2.70,ﾏｰｸ 17

 1
90564-45013

CV20,SV20,21..5F

厚さ=2.50,ﾏｰｸ 13

 1
90564-45018

CV20,SV20,21..5F

厚さ=2.75,ﾏｰｸ 18

 1
90564-45008

CV20,SV20,21..5F

厚さ=2.25,ﾏｰｸ 08

 1
90564-45015

CV20,SV20,21..5F

厚さ=2.60,ﾏｰｸ 15

 1
90564-45019

CV20,SV20,21..5F

厚さ=2.80,ﾏｰｸ 19

 1
90564-45016

CV20,SV20,21..5F

厚さ=2.65,ﾏｰｸ 16

 1
90564-45014

CV20,SV20,21..5F

厚さ=2.55,ﾏｰｸ 14

 1
41311D - SHIM (FOR FRONT DIFFERENTIAL CASE FRONT)
90564-45011

CV20,SV2#..5F

厚さ=2.40,ﾏｰｸ 11,T=2.40,MARK 11

 1
90564-45011

CV20,SV20,21..5F

厚さ=2.40,ﾏｰｸ 11

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-40016

VZV20..4FC;CV20,SV20,21

 1
90366-40016

CV20,SV2#

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-44001

CV20,SV2#

 1
90366-40023

CV20,SV2#

 1
90366-40023

CV20,SV20,21..5F

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-32010

CV20,SV2#

 2
41331-32010

VZV20..4FC;CV20,SV20,21

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-30011

CV20,SV2#

 2
41341-30011

VZV20..4FC;CV20,SV20,21

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

CV20,SV2#

 1
90250-06058

VZV20..4FC;CV20,SV20,21

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-39025

VZV20..4FC;CV20,SV20,21

 1
41342-39025

CV20,SV2#

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010

CV20,SV2#

 2
41351-32010

VZV20..4FC;CV20,SV20,21

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22040

CV20,SV2#

厚さ=1.20,ﾏｰｸ 04,T=1.20

 2
41361-22020

CV20,SV2#

厚さ=1.00,ﾏｰｸ 02,T=1.00

 2
41361-22150

CV20,SV2#

厚さ=1.05,ﾏｰｸ 15,T=1.05

 2
41361-22140

CV20,SV2#

厚さ=0.95,ﾏｰｸ 14,T=0.95

 2
41361-22160

CV20,SV2#

厚さ=1.15,ﾏｰｸ 16,T=1.15

 2
41361-22030

CV20,SV2#

厚さ=1.10,ﾏｰｸ 03,T=1.10

 2
41361-22030

VZV20..4FC;CV20,SV20,21

厚さ=1.10,ﾏｰｸ 03

 2
41361-22020

VZV20..4FC;CV20,SV20,21

厚さ=1.00,ﾏｰｸ 02

 2
41361-22040

VZV20..4FC;CV20,SV20,21

厚さ=1.20,ﾏｰｸ 04

 2
41361-22150

VZV20..4FC;CV20,SV20,21

厚さ=1.05,ﾏｰｸ 15

 2
41361-22140

VZV20..4FC;CV20,SV20,21

厚さ=0.95,ﾏｰｸ 14

 2
41361-22160

VZV20..4FC;CV20,SV20,21

厚さ=1.15,ﾏｰｸ 16

 2
