SV20-UEPNL (1986)

Toyota Camry/Vista

Production Aug 1986 - Aug 1988
Engine 1SI
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )1SI

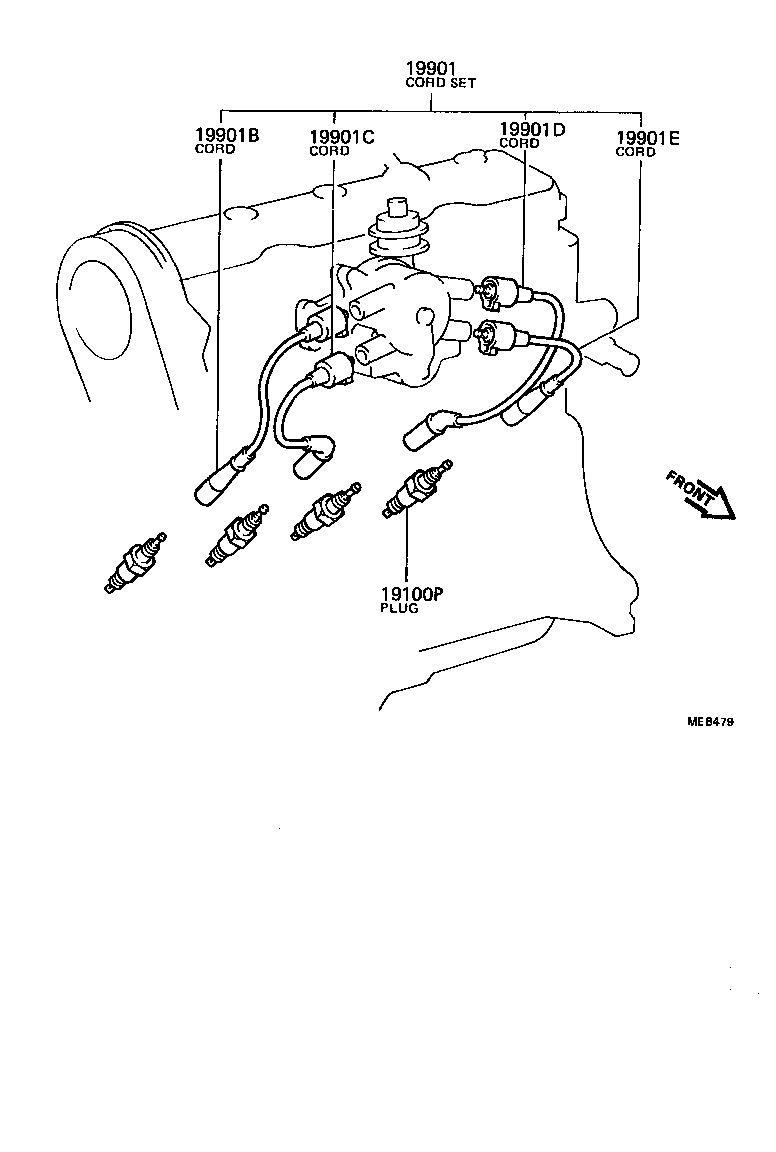

Click highlighted areas on diagram

diagram 19100P 19901 19901B 19901C 19901D 19901E
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01114

1SI..SV20

BRE527Y−11,BRE527Y-11(NGK)

 4
90919-01113

1SI..SV20

J16AR−U11

 4
90919-01113

1SI..SV20

J16AR−U11,J16AR-U11(DENSO)

 4
90919-01114

1SI..SV20

BRE527Y−11

 4
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-22113

1SI..SV20

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12394

1SI..SV20

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12392

1SI..SV20

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12392

1SI..SV20

 1
90919-12392

1SI..SV20

 2
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12394

1SI..SV20

 1
90919-12394

1SI..SV20

 2
