SV20-UEPNL (1986)
Toyota Camry/Vista
Production
Aug 1986
-
Aug 1988
Engine
1SI
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8608- )1SI

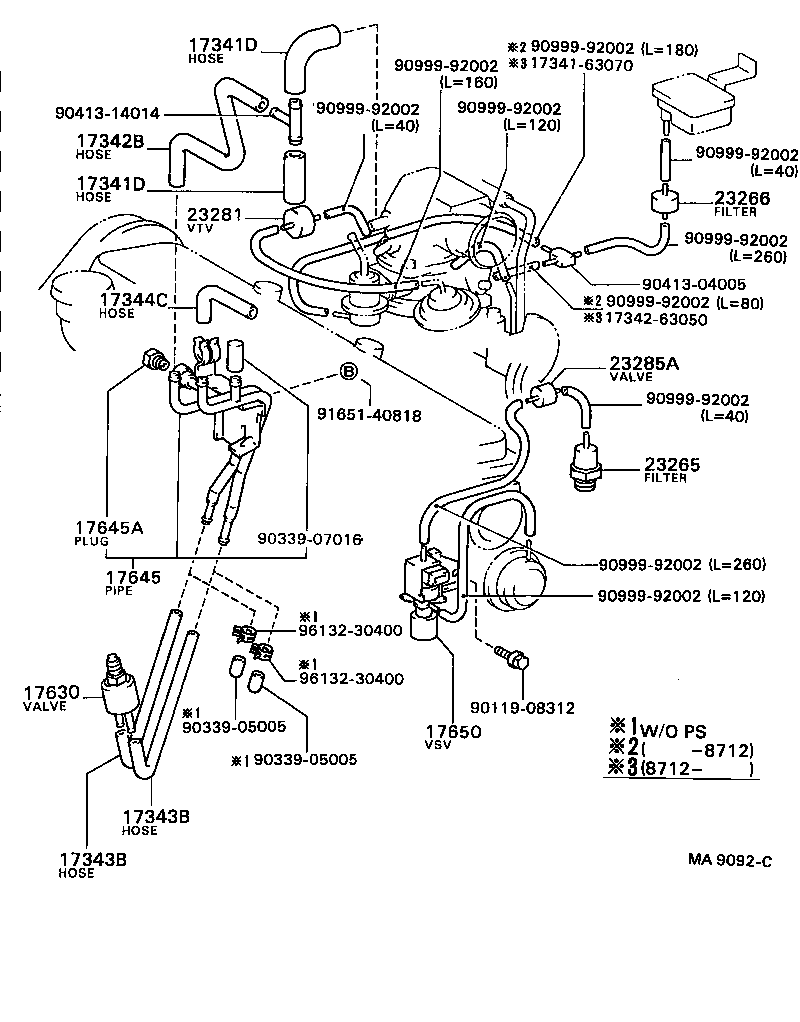

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-63030 |
1SI..SV20 CONNECTOR TO 3WAY |
1 | ||
| 90445-19002 |
1SI..SV20 3WAY TO AIR VALVE |
1 | ||
| 90445-19002 |
1SI..SV20 3WAY TO AIR VALVE |
1 | ||
| 17341-63030 |
1SI..SV20 CONNECTOR TO 3WAY |
1 | ||
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-63030 |
1SI..SV20 CONNECTOR TO 3WAY |
1 | ||
| 90445-19002 |
1SI..SV20 3WAY TO AIR VALVE |
1 | ||
| 90445-19002 |
1SI..SV20 3WAY TO AIR VALVE |
1 | ||
| 17341-63030 |
1SI..SV20 CONNECTOR TO 3WAY |
1 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 90445-13006 |
1SI..SV20 |
1 | ||
| 17343B - HOSE, NO.3(FOR IDLE-UP) | ||||
| 17343-74010 |
1SI..SV20..VE,VL,VR,XT,ZE,ZT |
2 | ||
| 17343-74011 |
1SI..SV20..VE,VL,VR,XT,ZE,ZT |
2 | ||
| 17343B - HOSE, NO.3(FOR IDLE-UP) | ||||
| 17343-74010 |
1SI..SV20..VE,VL,VR,XT,ZE,ZT |
2 | ||
| 17343-74011 |
1SI..SV20..VE,VL,VR,XT,ZE,ZT |
2 | ||
| 17344C - HOSE, NO.4(FOR IDLE-UP) | ||||
| 17345-63010 |
1SI..SV20 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-63020 |
1SI..SV20..VE,VL,VR,XT,ZE,ZT |
1 | ||
| 17630-63020 |
1SI..SV20 W/POWER STEERING |
1 | ||
| 17645 - PIPE, IDLE UP | ||||
| 17645-63021 |
1SI..SV20 |
1 | ||
| 17645-63020 |
1SI..SV20 |
1 | ||
| 17645A - PLUG(FOR IDLE UP PIPE) | ||||
| 90345-51006 |
1SI..SV20 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12011 |
1SI..SV20 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11022 |
1SI..SV20 |
1 | ||
| 23266 - FILTER, GAS, NO.2 | ||||
| 90917-11021 |
1SI..SV20 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01041 |
1SI..SV20 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
1SI..SV20 |
1 | ||
| Common parts | ||||
| 17341-63070 | ||||
| 17342-63050 | ||||
| 90119-08312 | ||||
| 90339-05005 | ||||
| 90339-07016 | ||||
| 90413-04005 | ||||
| 90413-14014 | ||||
| 90999-92002 | ||||
| 91651-40818 | ||||
| 96132-30400 | ||||
(8608- )1SI,3S#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||
