SV20-UEPML (1986)
Toyota Camry/Vista

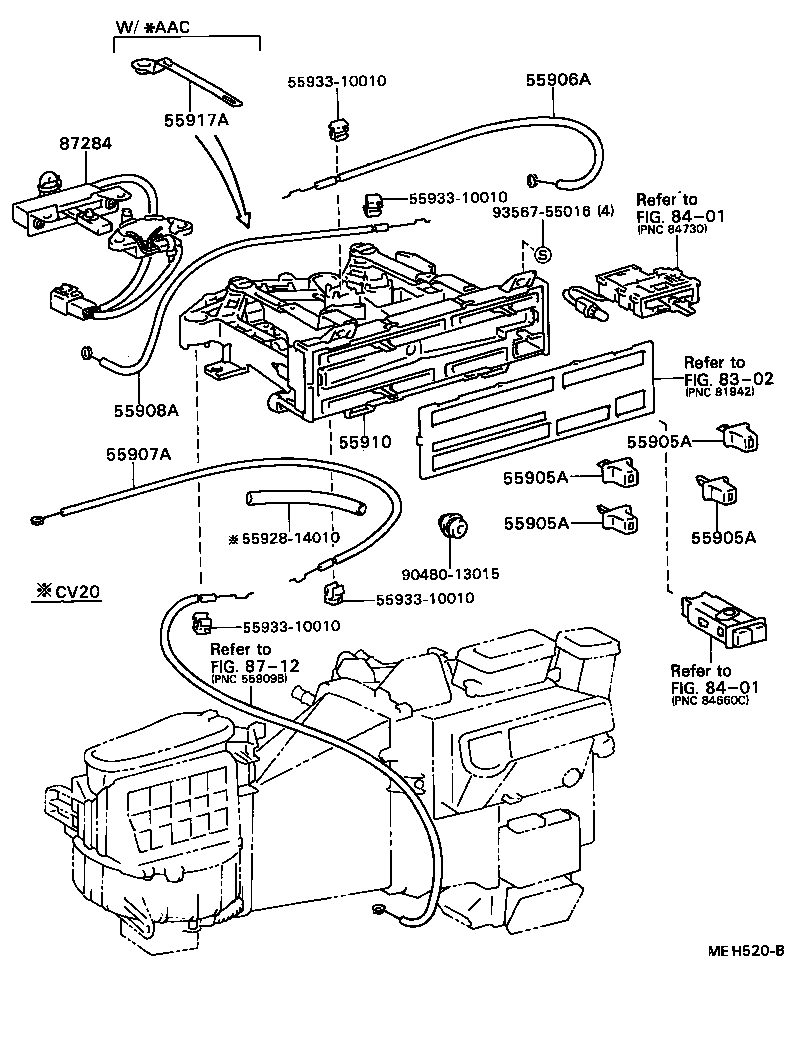

ILLUST NO. 1 OF 3(8608- )LT,VC,VE,VL,XT,ZT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32190 |
CV20,SV2#..LT,VC,VE,VL,XT,ZT |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32190 |
CV20,SV2#..LT,VC,VE,VL,XT,ZT |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32190 |
CV20,SV2#..LT,VC,VE,VL,XT,ZT |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32190 |
CV20,SV2#..LT,VC,VE,VL,XT,ZT |
4 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-32050 |
CV20,SV2#..LT,VC,VE,VL,XT,ZT |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-32030 |
CV20,SV2#..LT,VC,VE,VL,XT,ZT |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-32050 |
CV20,SV2#..LT,VC,VE,VL,XT,ZT |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-32060 |
CV20,SV2#..LT,VC,VE,VL,XT,ZT |
1 | ||
| 55917A - LEVER, TEMPERATURE DAMPER CONTROL | ||||
| 55917-32030 |
CV20,SV2#..VE,VL,XT,ZT |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-32060 |
CV20,SV2#..VE,VL,XT,ZT |
1 | ||
| 88032-32060 |
SV20..VE,ZT;SV20..HT..VL;SV21,25..VE,VL,XT,ZT |
1 | ||
| Common parts | ||||
| 55928-14010 | ||||
| 55933-10010 | ||||
| 90480-13015 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||
| 8712 | ||||

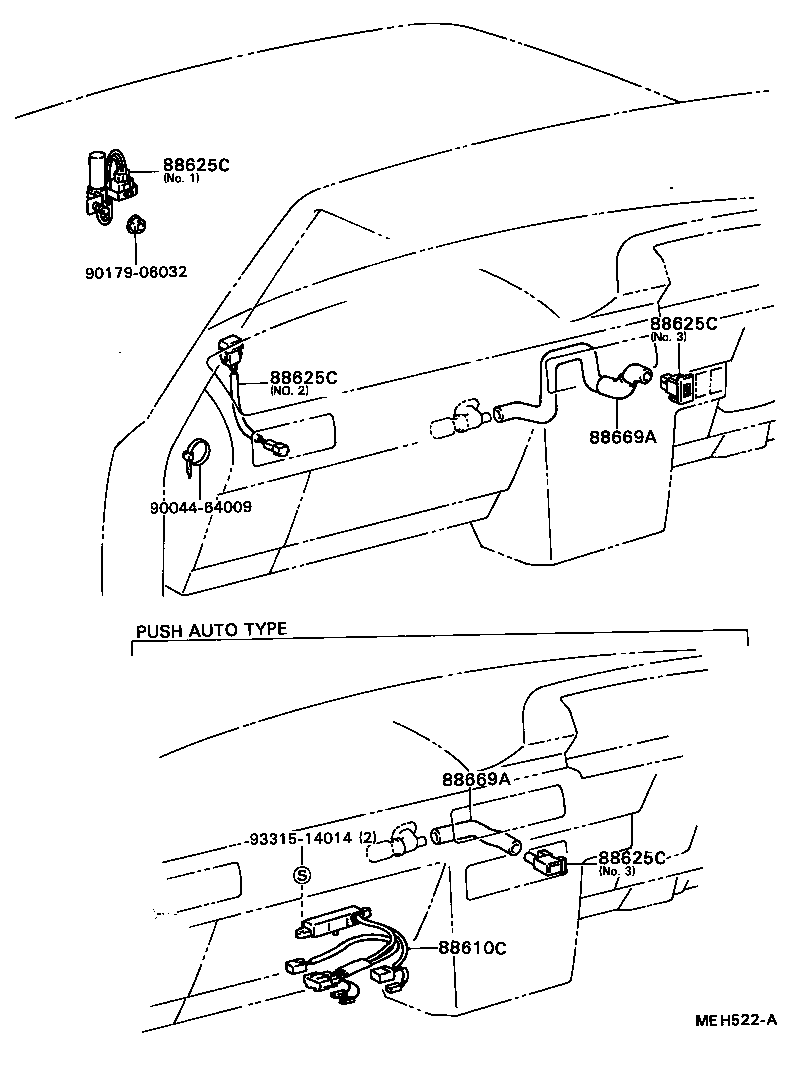

ILLUST NO. 3 OF 3(8608- )GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX
AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625C - THERMISTOR, COOLER | ||||
| 88625-20140 |
SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT NO.2 |
1 | ||
| 88625-32060 |
SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT NO.1 |
1 | ||
| 88625-20140 |
CV20,SV2#..GT,VE,VL,VR,VX,XT,ZE,ZT,ZX NO.2 |
1 | ||
| 88625-32060 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX NO.1 |
1 | ||
| 88625-32050 |
CV20,SV2#..VE,VL,XT,ZT NO.3 |
1 | ||
| 88625-32050 |
SV20..VE,ZT;SV20..HT..VL;SV21,25..VE,VL,XT,ZT NO.3 |
1 | ||
| 88625-32060 |
SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX NO.1 |
1 | ||
| 88625-20140 |
SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX NO.2 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-20140 |
SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT NO.2 |
1 | ||
| 88625-32060 |
SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT NO.1 |
1 | ||
| 88625-20140 |
CV20,SV2#..GT,VE,VL,VR,VX,XT,ZE,ZT,ZX NO.2 |
1 | ||
| 88625-32060 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX NO.1 |
1 | ||
| 88625-32050 |
CV20,SV2#..VE,VL,XT,ZT NO.3 |
1 | ||
| 88625-32050 |
SV20..VE,ZT;SV20..HT..VL;SV21,25..VE,VL,XT,ZT NO.3 |
1 | ||
| 88625-32060 |
SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX NO.1 |
1 | ||
| 88625-20140 |
SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX NO.2 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-20140 |
SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT NO.2 |
1 | ||
| 88625-32060 |
SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT NO.1 |
1 | ||
| 88625-20140 |
CV20,SV2#..GT,VE,VL,VR,VX,XT,ZE,ZT,ZX NO.2 |
1 | ||
| 88625-32060 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX NO.1 |
1 | ||
| 88625-32050 |
CV20,SV2#..VE,VL,XT,ZT NO.3 |
1 | ||
| 88625-32050 |
SV20..VE,ZT;SV20..HT..VL;SV21,25..VE,VL,XT,ZT NO.3 |
1 | ||
| 88625-32060 |
SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX NO.1 |
1 | ||
| 88625-20140 |
SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX NO.2 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-20140 |
SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT NO.2 |
1 | ||
| 88625-32060 |
SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT NO.1 |
1 | ||
| 88625-20140 |
CV20,SV2#..GT,VE,VL,VR,VX,XT,ZE,ZT,ZX NO.2 |
1 | ||
| 88625-32060 |
CV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX NO.1 |
1 | ||
| 88625-32050 |
CV20,SV2#..VE,VL,XT,ZT NO.3 |
1 | ||
| 88625-32050 |
SV20..VE,ZT;SV20..HT..VL;SV21,25..VE,VL,XT,ZT NO.3 |
1 | ||
| 88625-32060 |
SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX NO.1 |
1 | ||
| 88625-20140 |
SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX NO.2 |
1 | ||
| 88669A - HOSE (FOR COOLER THERMISTOR) | ||||
| 88669-32030 |
CV20,SV2#..VE,VL,XT,ZT |
1 | ||
| 88669-32030 |
SV20..VE,ZT;SV20..HT..VL;SV21,25..VE,VL,XT,ZT |
1 | ||
| 88669A - HOSE (FOR COOLER THERMISTOR) | ||||
| 88669-32030 |
CV20,SV2#..VE,VL,XT,ZT |
1 | ||
| 88669-32030 |
SV20..VE,ZT;SV20..HT..VL;SV21,25..VE,VL,XT,ZT |
1 | ||
| Common parts | ||||
| 90044-64009 | ||||
| 90179-06032 | ||||
| 93315-14014 | ||||

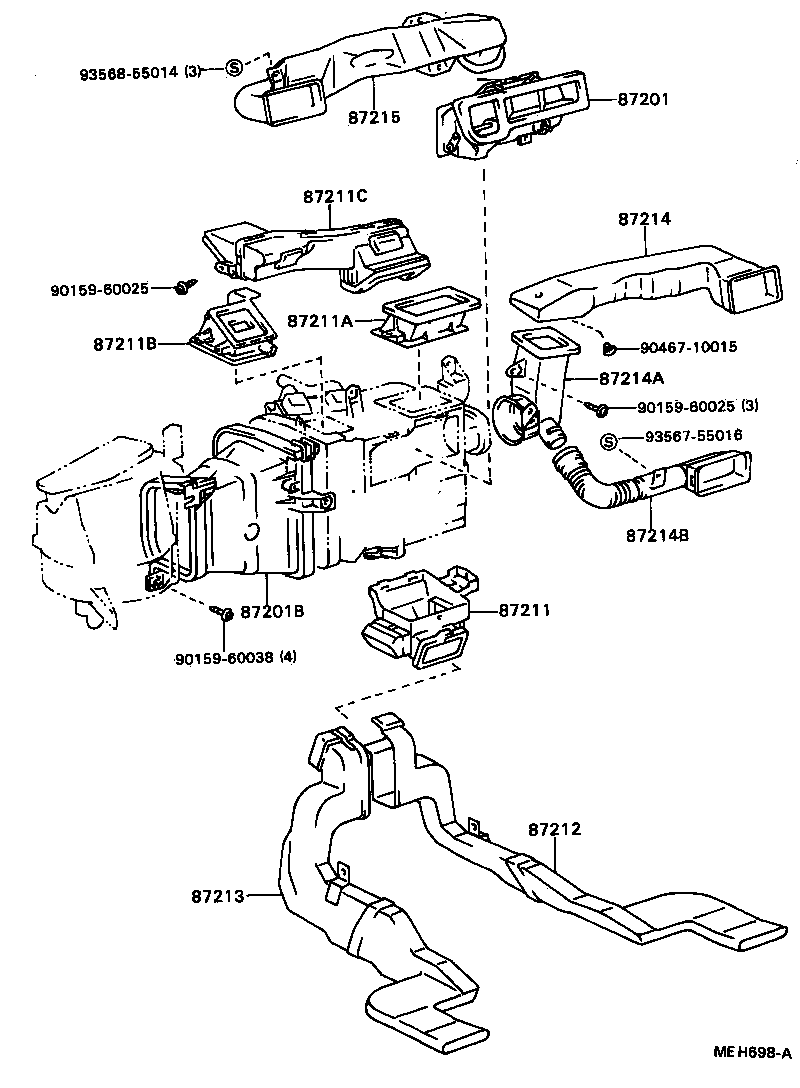

ILLUST NO. 2 OF 3(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-32130 |
CV20,SV2#,VZV20 |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87220-32010 |
CV20,SV2# |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87201-32160 |
CV20,SV2#,VZV20 |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-32030 |
CV20,SV2#,VZV20 |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 87201-32180 |
CV20,SV2#,VZV20 |
1 | ||
| 87211C - DUCT, AIR, NO.4 | ||||
| 87201-32200 |
CV20,SV2#,VZV20 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-32010 |
CV20,SV20,21,VZV20 |
1 | ||
| 87212-32010 |
CV20,SV2#,VZV20 |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-32010 |
CV20,SV2#,VZV20 |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 55084-32040 |
CV20,SV2#,VZV20 |
1 | ||
| 87214A - DUCT, AIR, SIDE NO.2 RH | ||||
| 55085-32070 |
CV20,SV2# |
1 | ||
| 55085-32091 |
CV20,SV2#,VZV20 W/*AIC |
1 | ||
| 55085-32090 |
CV20,SV2# W/*AIC |
1 | ||
| 55085-32091 |
CV20,SV2# ｱﾘ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 87214B - DUCT, AIR, SIDE NO.3 RH | ||||
| 55088-32040 |
CV20,SV2# |
1 | ||
| 55088-32041 |
SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT |
1 | ||
| 55088-32041 |
CV20,SV2#,VZV20 |
1 | ||
| 55088-32041 |
SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 55086-32030 |
CV20,SV2#,VZV20 |
1 | ||
| 55086-32031 |
CV20,SV2#,VZV20 |
1 | ||
| Common parts | ||||
| 90159-60025 | ||||
| 90159-60038 | ||||
| 90467-10015 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||
