SV20-UEPML (1986)

Toyota Camry/Vista

Production Aug 1986 - Aug 1988
Engine 1SI
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )SED

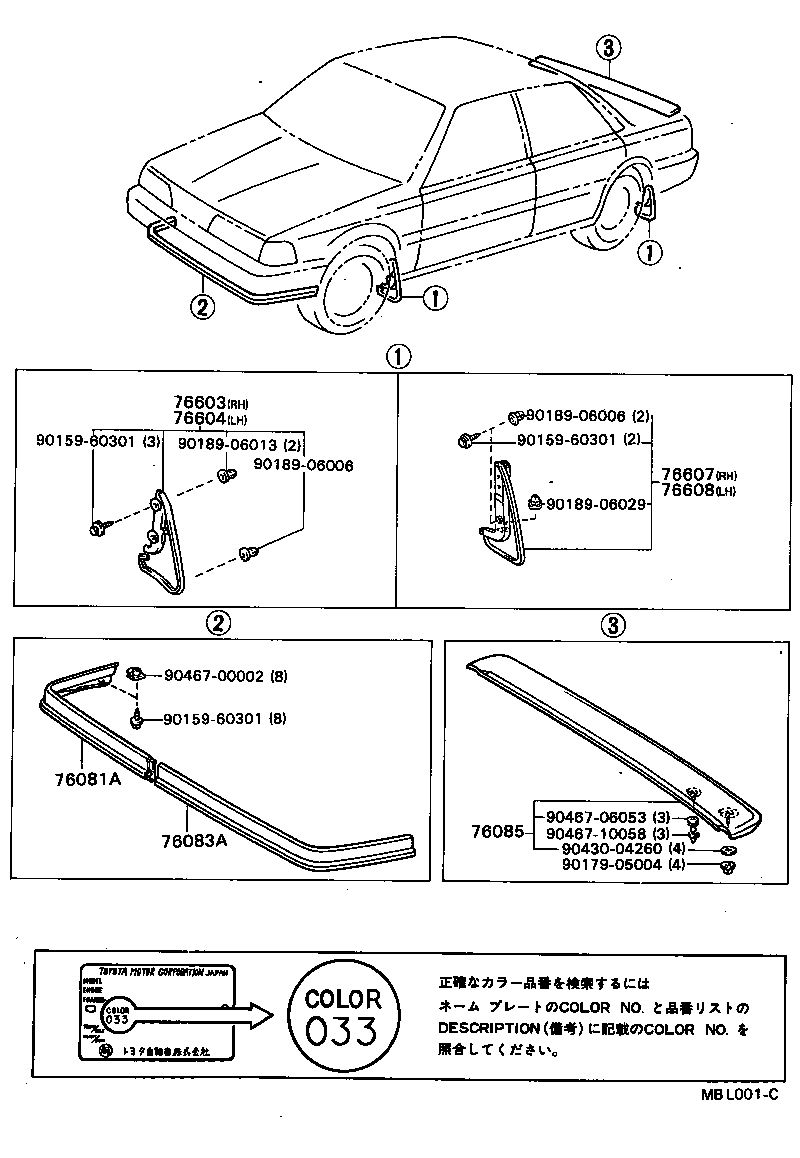

Click highlighted areas on diagram

diagram 76081A 76083A 76085 76603 76604 76607 76608 9015960301 9015960301 9015960301 9017905004 9018906006 9018906006 9018906013 9018906029 9043004260 9046700002 9046706053 9046710058
Part # Description Qty Price
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-39095

CV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-39095

CV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-39125

CV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-39115

CV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX

 1
Common parts
90159-60301
90179-05004
90189-06006
90189-06013
90189-06029
90430-04260
90467-00002
90467-06053
90467-10058
