SV20-UEPML (1986)

Toyota Camry/Vista

Production Aug 1986 - Aug 1988
Engine 1SI
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )

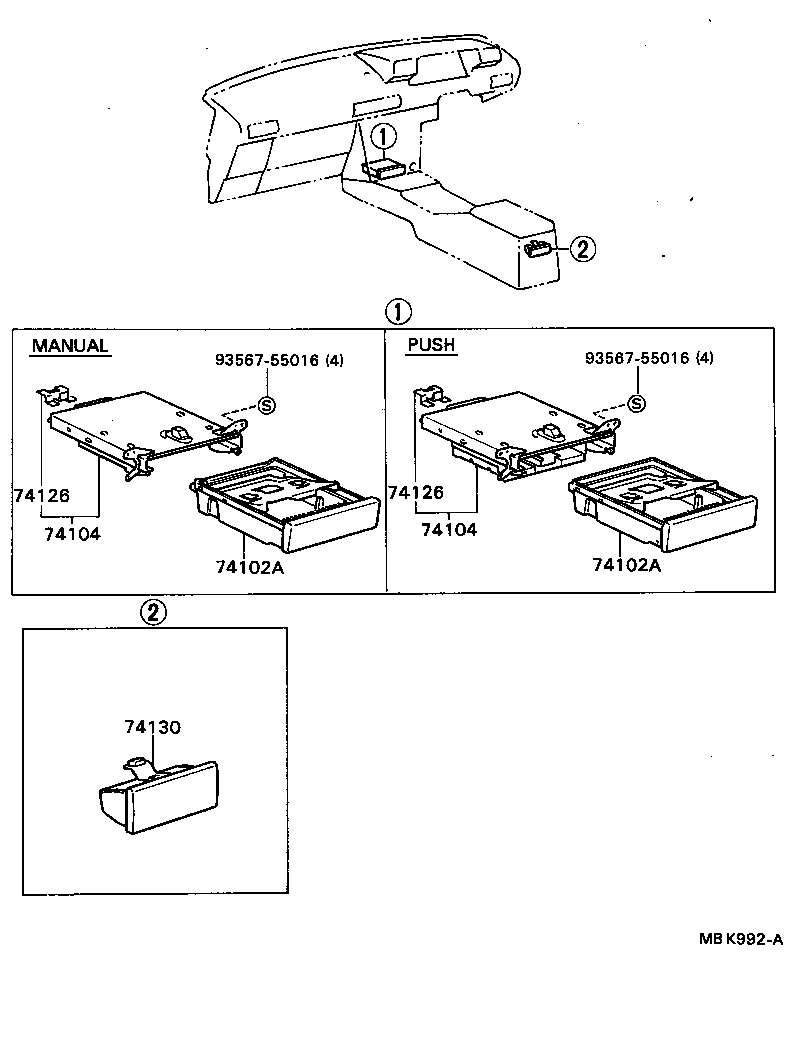

Click highlighted areas on diagram

diagram 74102A 74102A 74104 74104 74126 74126 74130 9356755016 9356755016
Part # Description Qty Price
74102A - RECEPTACLE ASSY, FRONT ASH
74102-32040

CV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX

 1
74102-32040

CV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX

 1
74102A - RECEPTACLE ASSY, FRONT ASH
74102-32040

CV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX

 1
74102-32040

CV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX

 1
74104 - RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
74104-32040

CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX

 1
74104-32040

CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX

 1
74104 - RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
74104-32040

CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX

 1
74104-32040

CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX

 1
74126 - SUPPORT, FRONT ASH RECEPTACLE RET, NO.3
74126-32010

CV20,SV2#

 1
74126 - SUPPORT, FRONT ASH RECEPTACLE RET, NO.3
74126-32010

CV20,SV2#

 1
74130 - RECEPTACLE ASSY, REAR ASH
74109-3201004

CV20,SV2#,VZV20

BLUE,DARK BLUE,TRIM8#

 1
74109-3201004

CV20,SV2#,VZV20

DARK BLUE,TRIM8#

 1
74109-3201005

CV20,SV2#

BEIGE,DARK BEIGE,TRIM4#

 1
74109-3201002

CV20,SV2#,VZV20

MAROON,TRIM3#

 1
74109-3201005

CV20,SV2#

DARK BEIGE,TRIM4#

 1
74109-3201002

CV20,SV2#,VZV20

MAROON,MAROON,TRIM3#

 1
Common parts
93567-55016
