SV20-UEPML (1986)

Toyota Camry/Vista

Production Aug 1986 - Aug 1988
Engine 1SI
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )

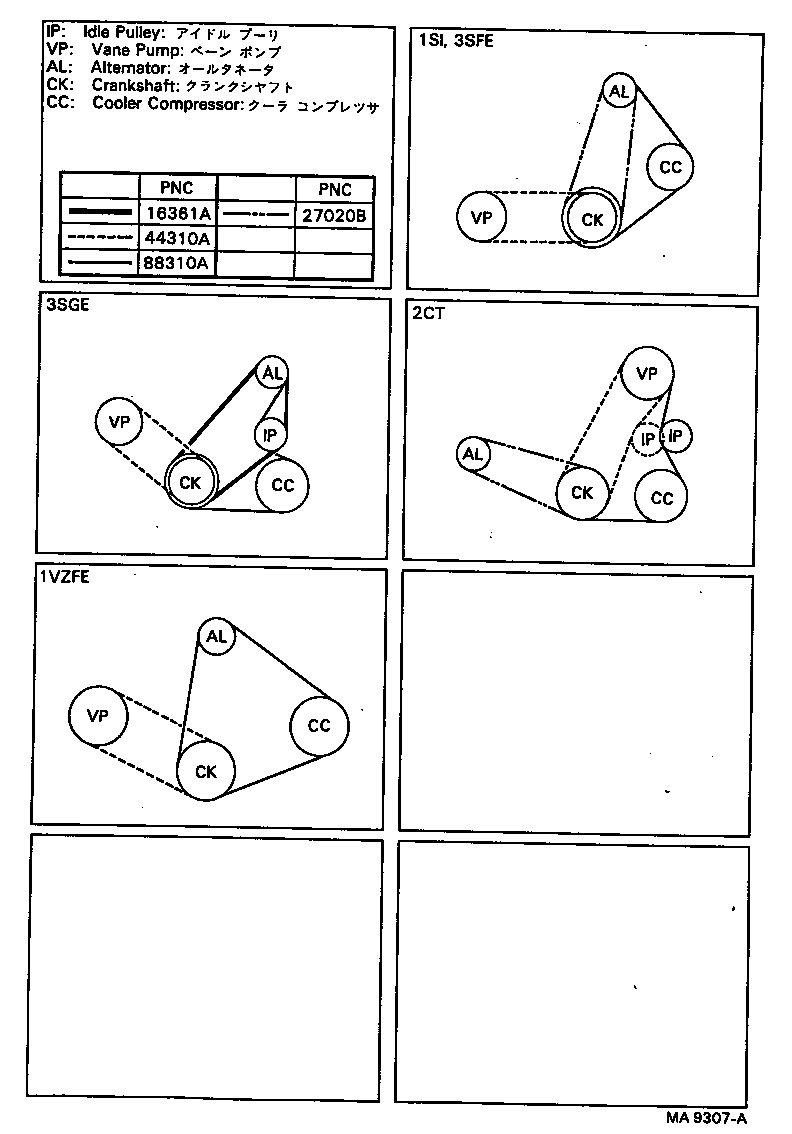

Click highlighted areas on diagram

diagram 16361A 27020B 44310A 88310A
Part # Description Qty Price
27020B - BELT, V(FOR ALTERNATOR)
99365-01000

1SI,3SFE..SV2#

 1
90916-02216

1SI,3SFE..SV20,21..4FC

 1
90916-02219

1SI,3SFE..SV2#

 1
44310A - BELT, V(FOR VANE PUMP)
99363-50760

SV2#..GT,VE,VL,VR,VX,XT,ZE,ZT,ZX

 1
99363-50760

SV2#..VE,VL,VR,VX,XT,ZE,ZT,ZX

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99365-51110

SV20..HT..VL;SV20..VE,VR,ZE,ZT;SV21,25..VE,VL,VR,VX,XT,ZE,ZT,ZX

ｱﾘ(ﾏﾆﾕｱﾙ ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ)

 1
99365-51110

SV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX

 1
99365-51110

SV20..HT..VL;SV20..VE,VR,ZE;SV21,25..VE,VL,VR,VX,XT,ZE,ZX

 1
