SV20-UEMNL (1986)

Toyota Camry/Vista

Production Aug 1986 - Aug 1988
Engine 1SI
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

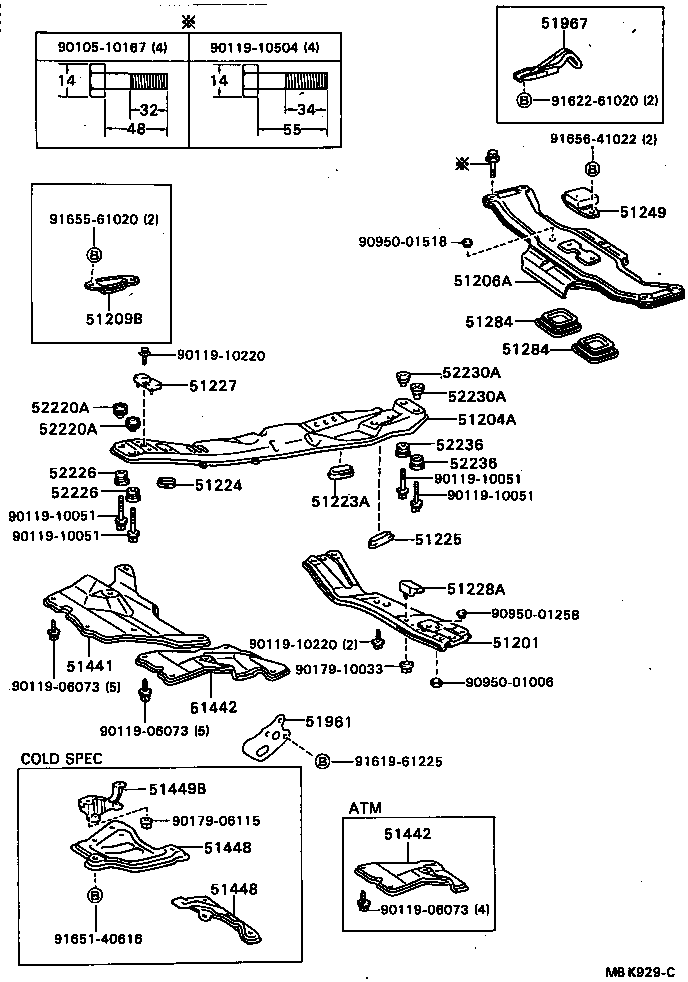

ILLUST NO. 1 OF 2(8608- )

Click highlighted areas on diagram

diagram 51201 51204A 51206A 51209B 51223A 51224 51225 51227 51228A 51249 51284 51284 51441 51442 51442 51448 51448 51449B 51961 51967 52220A 52220A 52226 52226 52230A 52230A 52236 52236 9010510167 9011906073 9011906073 9011906073 9011910051 9011910051 9011910051 9011910051 9011910220 9011910220 9011910504 9017906115 9017910033 9095001006 9095001258 9095001518 9161961225 9162261020 9165140616 9165561020 9165641022
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-32010

CV20,SV2#,VZV20

 1
51201-32010

CV20,SV20,21,VZV20

 1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-32020

CV20,SV2#,VZV20

 1
51204-32020

CV20,SV20,21,VZV20

 1
51204-32021

CV20,SV20,21,VZV20

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-32010

CV20,SV20,21,VZV20

 1
51206-32010

CV20,SV2#,VZV20

 1
51223A - COVER, ENGINE MOUNTING HOLE
51223-32020

CV20,SV2#,VZV20

 1
51224 - COVER, ENGINE MOUNTING HOLE, NO.2
51224-32010

CV20,SV2#,VZV20

 1
51224-32010

CV20,SV20,21,VZV20

 1
51225 - COVER, ENGINE MOUNTING HOLE, NO.3
51225-32010

CV20,SV2#,VZV20

 1
51225-32010

CV20,SV20,21,VZV20

 1
51227 - WEIGHT, FRONT SUSPENSION MEMBER DAMPER
51227-32010

CV20,SV20,21,VZV20

 1
51227-32010

CV20,SV2#,VZV20

 1
51228A - WEIGHT, FRONT SUSPENSION MEMBER DAMPER, LH
51228-32010

CV20,SV2#,VZV20

 1
51228-32010

CV20,SV20,21,VZV20

 1
51249 - DAMPER, REAR SUSPENSION MEMBER
51249-32010

CV20,SV2#,VZV20

 1
51249-32010

CV20,SV20,21,VZV20

 1
51284 - COVER, REAR SUSPENSION MEMBER HOLE
51284-32010

CV20,SV2#,VZV20

 2
51284-32010

CV20,SV20,21,VZV20

 2
51284 - COVER, REAR SUSPENSION MEMBER HOLE
51284-32010

CV20,SV2#,VZV20

 2
51284-32010

CV20,SV20,21,VZV20

 2
51441 - COVER, ENGINE UNDER, NO.1
51441-32030

CV20,SV2#,VZV20

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-32030

CV20,SV2#,VZV20..5F

 1
51442-32030

CV20,SV2#,VZV20..5F

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-32030

CV20,SV2#,VZV20..5F

 1
51442-32030

CV20,SV2#,VZV20..5F

 1
51448 - PROTECTOR, OIL PAN
51447-32020

CV20,SV2#,VZV20

右側

 1
51447-32020

CV20,SV2#,VZV20

RH

 1
51448-32020

CV20,SV2#,VZV20

LH

 1
51448-32020

CV20,SV2#,VZV20

左側

 1
51448 - PROTECTOR, OIL PAN
51447-32020

CV20,SV2#,VZV20

右側

 1
51447-32020

CV20,SV2#,VZV20

RH

 1
51448-32020

CV20,SV2#,VZV20

LH

 1
51448-32020

CV20,SV2#,VZV20

左側

 1
51449B - BRACKET, OIL PAN PROTECTOR
51449-32020

CV20,SV2#,VZV20

 1
51961 - HOOK, NO.1
51963-32020

CV20,SV2#,VZV20

 2
51967 - HOOK, TRANSPORT, REAR
51095-32020

SV20..SED..(LT,VC,VL,XT)

右側

 1
51095-32020

SV20..SED..(LT,VC,VL,XT)

RH

 1
51096-32010

SV20..SED..(LT,VC,VL,XT)

左側

 1
51096-32010

SV20..SED..(LT,VC,VL,XT)

LH

 1
52220A - CUSHION ASSY, CENTER MEMBER MOUNTING, FRONT UPPER
52220-32040

CV20,SV2#,VZV20

 2
52220-32040

CV20,SV2#,VZV20

 1
52220A - CUSHION ASSY, CENTER MEMBER MOUNTING, FRONT UPPER
52220-32040

CV20,SV2#,VZV20

 2
52220-32040

CV20,SV2#,VZV20

 1
52226 - CUSHION, CENTER MEMBER MOUNTING, FRONT LOWER
52226-32010

CV20,SV2#,VZV20

 2
52226 - CUSHION, CENTER MEMBER MOUNTING, FRONT LOWER
52226-32010

CV20,SV2#,VZV20

 2
52230A - CUSHION ASSY, CENTER MEMBER MOUNTING, REAR UPPER
52230-32030

CV20,SV2#,VZV20

 1
52230-32030

CV20,SV2#,VZV20

 2
52230A - CUSHION ASSY, CENTER MEMBER MOUNTING, REAR UPPER
52230-32030

CV20,SV2#,VZV20

 1
52230-32030

CV20,SV2#,VZV20

 2
52236 - CUSHION, CENTER MEMBER MOUNTING, REAR LOWER
52236-32020

CV20,SV2#,VZV20

 2
52236 - CUSHION, CENTER MEMBER MOUNTING, REAR LOWER
52236-32020

CV20,SV2#,VZV20

 2
Common parts
90105-10167
90119-06073
90119-10051
90119-10220
90119-10504
90179-06115
90179-10033
90950-01006
90950-01258
90950-01518
91619-61225
91622-61020
91651-40616
91655-61020
91656-41022
