SV20-UEMML (1986)

Toyota Camry/Vista

Production Aug 1986 - Aug 1988
Engine 1SI
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )

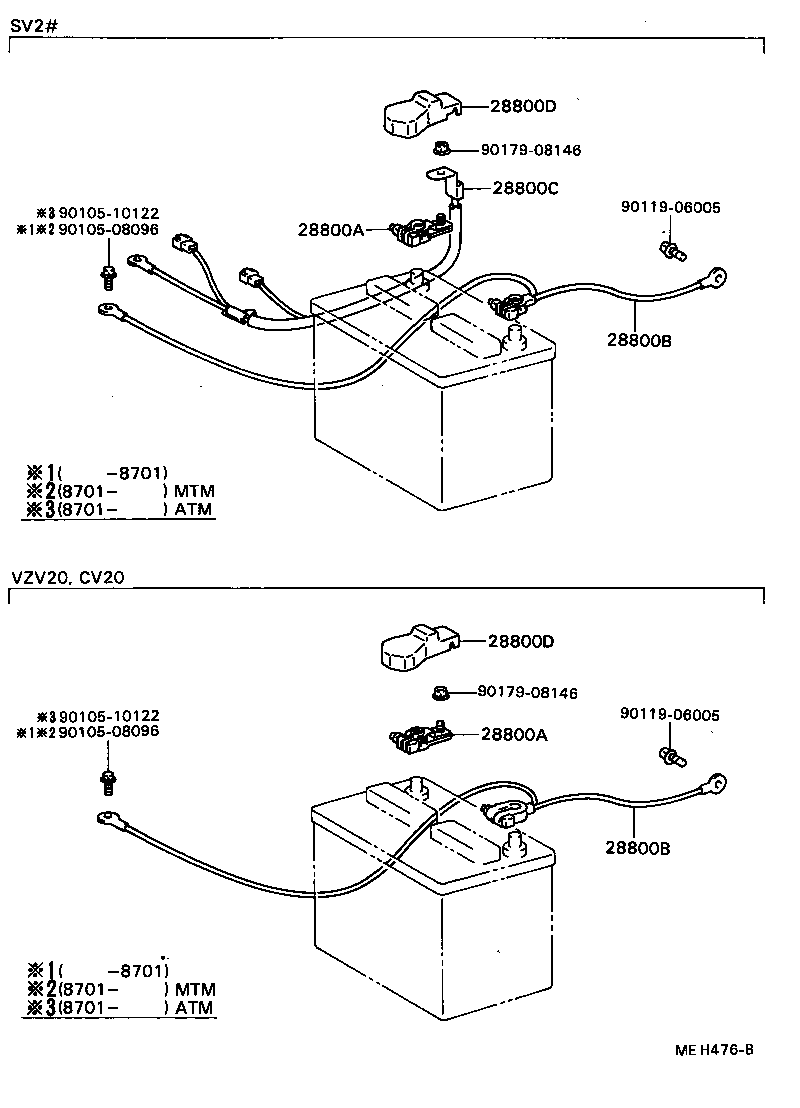

Click highlighted areas on diagram

diagram 28800A 28800A 28800B 28800B 28800C 28800D 28800D 9010508096 9010508096 9010510122 9010510122 9011906005 9011906005 9017908146 9017908146
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05027

1SI,3SFE..SV2#

 1
90982-05028

1SI,3SFE..SV2#;3SGE..SV21..SED;1VZFE..VZV20..5F;3SGE..SV21..HT..5F

 1
90982-05028

1SI,3SFE..SV2#;3SGE..SV21..SED;1VZFE..VZV20..5F;3SGE..SV21..HT..5F

 1
90982-05034

1SI,3SFE..SV2#;1VZFE..VZV20..5F

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05027

1SI,3SFE..SV2#

 1
90982-05028

1SI,3SFE..SV2#;3SGE..SV21..SED;1VZFE..VZV20..5F;3SGE..SV21..HT..5F

 1
90982-05028

1SI,3SFE..SV2#;3SGE..SV21..SED;1VZFE..VZV20..5F;3SGE..SV21..HT..5F

 1
90982-05034

1SI,3SFE..SV2#;1VZFE..VZV20..5F

 1
28800B - CABLE, BATTERY TO GROUND
82123-32040

1SI,3SFE..SV2#

 1
82123-32041

1SI,3SFE..SV2#;3SGE..SV21..SED;3SGE..SV21..HT..5F

 1
82123-32041

1SI,3SFE..SV2#;3SGE..SV21..SED;3SGE..SV21..HT..5F

 1
28800B - CABLE, BATTERY TO GROUND
82123-32040

1SI,3SFE..SV2#

 1
82123-32041

1SI,3SFE..SV2#;3SGE..SV21..SED;3SGE..SV21..HT..5F

 1
82123-32041

1SI,3SFE..SV2#;3SGE..SV21..SED;3SGE..SV21..HT..5F

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-32030

2CT,1SI,1VZFE..CV20,SV20,VZV20

 1
82821-32030

2CT,1SI,3SFE,1VZFE..CV20,SV2#,VZV20

 1
82821-32030

2CT,1SI,3SFE,1VZFE..CV20,SV2#,VZV20

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-32030

2CT,1SI,1VZFE..CV20,SV20,VZV20

 1
82821-32030

2CT,1SI,3SFE,1VZFE..CV20,SV2#,VZV20

 1
82821-32030

2CT,1SI,3SFE,1VZFE..CV20,SV2#,VZV20

 1
Common parts
90105-08096
90105-10122
90119-06005
90179-08146
