SV20-UEMML (1986)
Toyota Camry/Vista

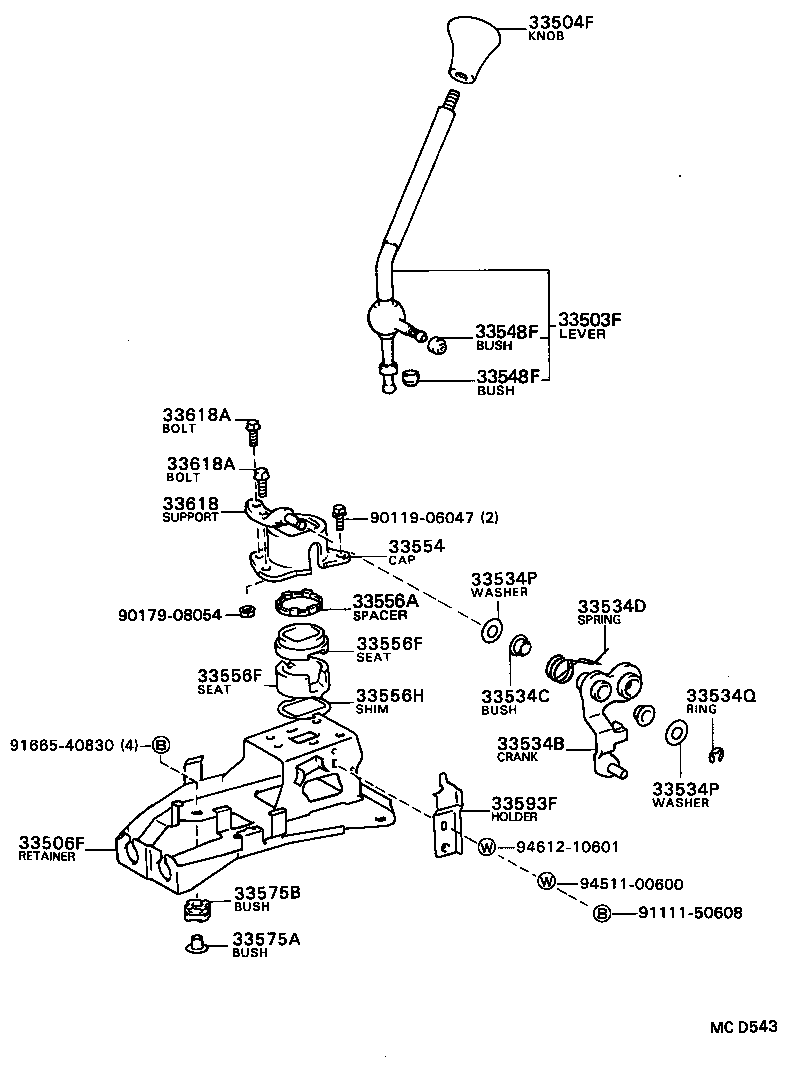

ILLUST NO. 1 OF 2(8608-8804)5F ; (8804- )SV20,21..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-12231 |
CV20,SV20,21..5F |
1 | ||
| 33503-12231 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33503-12231 |
CV20,SV20,21,VZV20..5F |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-2401054 |
SV2#..5F..(VE,VR,VX,ZE,ZT,ZX) BLUE,DARK BLUE,TRIM8# |
1 | ||
| 33504-2401055 |
SV2#..5F..(VE,VR,VX,ZE,ZT,ZX) BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 33504-2401052 |
SV2#..5F..(VE,VR,VX,ZE,ZT,ZX) MAROON,MAROON,TRIM3# |
1 | ||
| 33504-2401054 |
SV20..HT..5F;SV20..SED..5F..(VE,VR,ZE,ZT);CV20,SV21,25..5F..(VE,VL,VR,VX,XT,ZE,ZT,ZX) DARK BLUE,TRIM8# |
1 | ||
| 33504-2401052 |
SV20..HT..5F;SV20..SED..5F..(VE,VR,ZE,ZT);CV20,SV21,25..5F..(VE,VL,VR,VX,XT,ZE,ZT,ZX) MAROON,TRIM3# |
1 | ||
| 33504-24010D0 |
SV20..HT..5F;SV20..SED..5F..(VE,VR,ZE,ZT);CV20,SV21,25..5F..(VE,VL,VR,VX,XT,ZE,ZT,ZX) MAROON,TRIM3# |
1 | ||
| 33504-2401055 |
SV20..HT..5F;SV20..SED..5F..(VE,VR,ZE,ZT);CV20,SV21,25..5F..(VE,VL,VR,VX,XT,ZE,ZT,ZX) DARK BEIGE,TRIM4# |
1 | ||
| 33504-24010J0 |
SV20..HT..5F;SV20..SED..5F..(VE,VR,ZE,ZT);CV20,SV21,25..5F..(VE,VL,VR,VX,XT,ZE,ZT,ZX) DARK BLUE,TRIM8# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-32050 |
CV20,SV20,21..5F |
1 | ||
| 33506-32050 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33506-32050 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33534B - CRANK, SELECTING BELL, NO.1 | ||||
| 33509-12050 |
CV20,SV20,21..5F |
1 | ||
| 33509-12050 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33509-12050 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-12013 |
CV20,SV2#,VZV20..5F |
2 | ||
| 90386-12013 |
CV20,SV20,21..5F |
2 | ||
| 90386-12013 |
CV20,SV2#,VZV20..5F |
2 | ||
| 33534D - SPRING, TORSION (FOR SELECTING BELLCRANK NO.1) | ||||
| 90508-20062 |
CV20,SV2#,VZV20..5F |
1 | ||
| 90508-20062 |
CV20,SV2#,VZV20..5F |
1 | ||
| 90508-20062 |
CV20,SV20,21..5F |
1 | ||
| 33534P - WASHER, PLATE (FOR SELECTING BELLCRANK NO.1) | ||||
| 90201-12029 |
CV20,SV20,21..5F |
2 | ||
| 90201-12029 |
CV20,SV2#,VZV20..5F |
2 | ||
| 90201-12029 |
CV20,SV2#,VZV20..5F |
2 | ||
| 33534P - WASHER, PLATE (FOR SELECTING BELLCRANK NO.1) | ||||
| 90201-12029 |
CV20,SV20,21..5F |
2 | ||
| 90201-12029 |
CV20,SV2#,VZV20..5F |
2 | ||
| 90201-12029 |
CV20,SV2#,VZV20..5F |
2 | ||
| 33534Q - RING, E (FOR SELECTING BELLCRANK NO.1) | ||||
| 96160-00900 |
CV20,SV2#,VZV20..5F |
1 | ||
| 96160-00900 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12021 |
CV20,SV2#,VZV20..5F |
2 | ||
| 33548-12021 |
CV20,SV2#,VZV20..5F |
2 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12021 |
CV20,SV2#,VZV20..5F |
2 | ||
| 33548-12021 |
CV20,SV2#,VZV20..5F |
2 | ||
| 33554 - CAP, SHIFT LEVER | ||||
| 33554-12040 |
CV20,SV20,21..5F |
1 | ||
| 33554-12040 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33554-12040 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33556A - SPACER (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 90561-35001 |
CV20,SV2#,VZV20..5F |
1 | ||
| 90561-35001 |
CV20,SV20,21..5F |
1 | ||
| 90561-35001 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-12020 |
CV20,SV2#,VZV20..5F LWR |
1 | ||
| 33556-12030 |
CV20,SV2#,VZV20..5F UPR |
1 | ||
| 33556-12020 |
CV20,SV2#,VZV20..5F 下側 |
1 | ||
| 33556-12030 |
CV20,SV20,21..5F 上側 |
1 | ||
| 33556-12030 |
CV20,SV2#,VZV20..5F 上側 |
1 | ||
| 33556-12020 |
CV20,SV20,21..5F 下側 |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-12020 |
CV20,SV2#,VZV20..5F LWR |
1 | ||
| 33556-12030 |
CV20,SV2#,VZV20..5F UPR |
1 | ||
| 33556-12020 |
CV20,SV2#,VZV20..5F 下側 |
1 | ||
| 33556-12030 |
CV20,SV20,21..5F 上側 |
1 | ||
| 33556-12030 |
CV20,SV2#,VZV20..5F 上側 |
1 | ||
| 33556-12020 |
CV20,SV20,21..5F 下側 |
1 | ||
| 33556H - SHIM (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 90564-30003 |
CV20,SV2#,VZV20..5F 厚さ=0.5,ﾏｰｸ C 0R 5,T=0.5,MARK C OR 5 |
1 | ||
| 90564-30005 |
CV20,SV2#,VZV20..5F 厚さ=0.7,ﾏｰｸ E 0R 7,T=0.7,MARK E OR 7 |
1 | ||
| 90564-30008 |
CV20,SV2#,VZV20..5F 厚さ=1.0,ﾏｰｸ H 0R 10,T=1.0,MARK H OR 10 |
1 | ||
| 90564-30004 |
CV20,SV2#,VZV20..5F 厚さ=0.6,ﾏｰｸ D 0R 6,T=0.6,MARK D OR 6 |
1 | ||
| 90564-30007 |
CV20,SV2#,VZV20..5F 厚さ=0.9,ﾏｰｸ G 0R 9,T=0.9,MARK G OR 9 |
1 | ||
| 90564-30011 |
CV20,SV2#,VZV20..5F 厚さ=0.3,ﾏｰｸ A 0R 3,T=0.3,MARK A OR 3 |
1 | ||
| 90564-30005 |
CV20,SV2#,VZV20..5F 厚さ=0.7,ﾏｰｸ E 0R 7 |
1 | ||
| 90564-30010 |
CV20,SV2#,VZV20..5F 厚さ=1.2,ﾏｰｸ L 0R 12,T=1.2,MARK L OR 12 |
1 | ||
| 90564-30006 |
CV20,SV2#,VZV20..5F 厚さ=0.8,ﾏｰｸ F 0R 8 |
1 | ||
| 90564-30009 |
CV20,SV2#,VZV20..5F 厚さ=1.1,ﾏｰｸ K 0R 11 |
1 | ||
| 90564-30004 |
CV20,SV2#,VZV20..5F 厚さ=0.6,ﾏｰｸ D 0R 6 |
1 | ||
| 90564-30009 |
CV20,SV2#,VZV20..5F 厚さ=1.1,ﾏｰｸ K 0R 11,T=1.1,MARK K OR 11 |
1 | ||
| 90564-30008 |
CV20,SV20,21..5F 厚さ=1.0,ﾏｰｸ H 0R 10 |
1 | ||
| 90564-30011 |
CV20,SV2#,VZV20..5F 厚さ=0.3,ﾏｰｸ A 0R 3 |
1 | ||
| 90564-30012 |
CV20,SV2#,VZV20..5F 厚さ=0.4,ﾏｰｸ B 0R 4,T=0.4,MARK B OR 4 |
1 | ||
| 90564-30010 |
CV20,SV2#,VZV20..5F 厚さ=1.2,ﾏｰｸ L 0R 12 |
1 | ||
| 90564-30006 |
CV20,SV2#,VZV20..5F 厚さ=0.8,ﾏｰｸ F 0R 8,T=0.8,MARK F OR 8 |
1 | ||
| 90564-30003 |
CV20,SV20,21..5F 厚さ=0.5,ﾏｰｸ C 0R 5 |
1 | ||
| 90564-30005 |
CV20,SV20,21..5F 厚さ=0.7,ﾏｰｸ E 0R 7 |
1 | ||
| 90564-30007 |
CV20,SV20,21..5F 厚さ=0.9,ﾏｰｸ G 0R 9 |
1 | ||
| 90564-30012 |
CV20,SV2#,VZV20..5F 厚さ=0.4,ﾏｰｸ B 0R 4 |
1 | ||
| 90564-30008 |
CV20,SV2#,VZV20..5F 厚さ=1.0,ﾏｰｸ H 0R 10 |
1 | ||
| 90564-30009 |
CV20,SV20,21..5F 厚さ=1.1,ﾏｰｸ K 0R 11 |
1 | ||
| 90564-30003 |
CV20,SV2#,VZV20..5F 厚さ=0.5,ﾏｰｸ C 0R 5 |
1 | ||
| 90564-30010 |
CV20,SV20,21..5F 厚さ=1.2,ﾏｰｸ L 0R 12 |
1 | ||
| 90564-30011 |
CV20,SV20,21..5F 厚さ=0.3,ﾏｰｸ A 0R 3 |
1 | ||
| 90564-30012 |
CV20,SV20,21..5F 厚さ=0.4,ﾏｰｸ B 0R 4 |
1 | ||
| 90564-30004 |
CV20,SV20,21..5F 厚さ=0.6,ﾏｰｸ D 0R 6 |
1 | ||
| 90564-30006 |
CV20,SV20,21..5F 厚さ=0.8,ﾏｰｸ F 0R 8 |
1 | ||
| 90564-30007 |
CV20,SV2#,VZV20..5F 厚さ=0.9,ﾏｰｸ G 0R 9 |
1 | ||
| 33575A - BUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90389-08031 |
CV20,SV2#,VZV20..5F |
4 | ||
| 90389-08031 |
CV20,SV2#,VZV20..5F |
4 | ||
| 33575B - BUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90389-10018 |
CV20,SV2#,VZV20..5F |
4 | ||
| 90389-10018 |
CV20,SV20,21..5F |
4 | ||
| 90389-10018 |
CV20,SV2#,VZV20..5F |
4 | ||
| 33593F - HOLDER, SPRING (FOR FLOOR SHIFT) | ||||
| 33593-12020 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33593-12020 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33593-12020 |
CV20,SV20,21..5F |
1 | ||
| 33618 - SUPPORT, SELECTING BELLCRANK, NO.1 | ||||
| 33618-12021 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33618-12021 |
CV20,SV20,21..5F |
1 | ||
| 33618-12021 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33618A - BOLT (FOR SELECTING BELLCRANK SUPPORT) | ||||
| 90105-08078 |
CV20,SV2#,VZV20..5F *8−1.25PX28−13,*8-1.25PX28-13 |
1 | ||
| 90105-08078 |
CV20,SV2#,VZV20..5F *8−1.25PX28−13 |
1 | ||
| 90119-06268 |
CV20,SV2#,VZV20..5F *6−1.00PX24−20,*6-1.00PX24-10 |
1 | ||
| 90105-08078 |
CV20,SV20,21..5F *8−1.25PX28−13 |
1 | ||
| 90119-06268 |
CV20,SV20,21..5F *6−1.00PX24−20 |
1 | ||
| 90119-06268 |
CV20,SV2#,VZV20..5F *6−1.00PX24−20 |
1 | ||
| 33618A - BOLT (FOR SELECTING BELLCRANK SUPPORT) | ||||
| 90105-08078 |
CV20,SV2#,VZV20..5F *8−1.25PX28−13,*8-1.25PX28-13 |
1 | ||
| 90105-08078 |
CV20,SV2#,VZV20..5F *8−1.25PX28−13 |
1 | ||
| 90119-06268 |
CV20,SV2#,VZV20..5F *6−1.00PX24−20,*6-1.00PX24-10 |
1 | ||
| 90105-08078 |
CV20,SV20,21..5F *8−1.25PX28−13 |
1 | ||
| 90119-06268 |
CV20,SV20,21..5F *6−1.00PX24−20 |
1 | ||
| 90119-06268 |
CV20,SV2#,VZV20..5F *6−1.00PX24−20 |
1 | ||
| Common parts | ||||
| 90119-06047 | ||||
| 90179-08054 | ||||
| 91111-50608 | ||||
| 91665-40830 | ||||
| 94511-00600 | ||||
| 94612-10601 | ||||

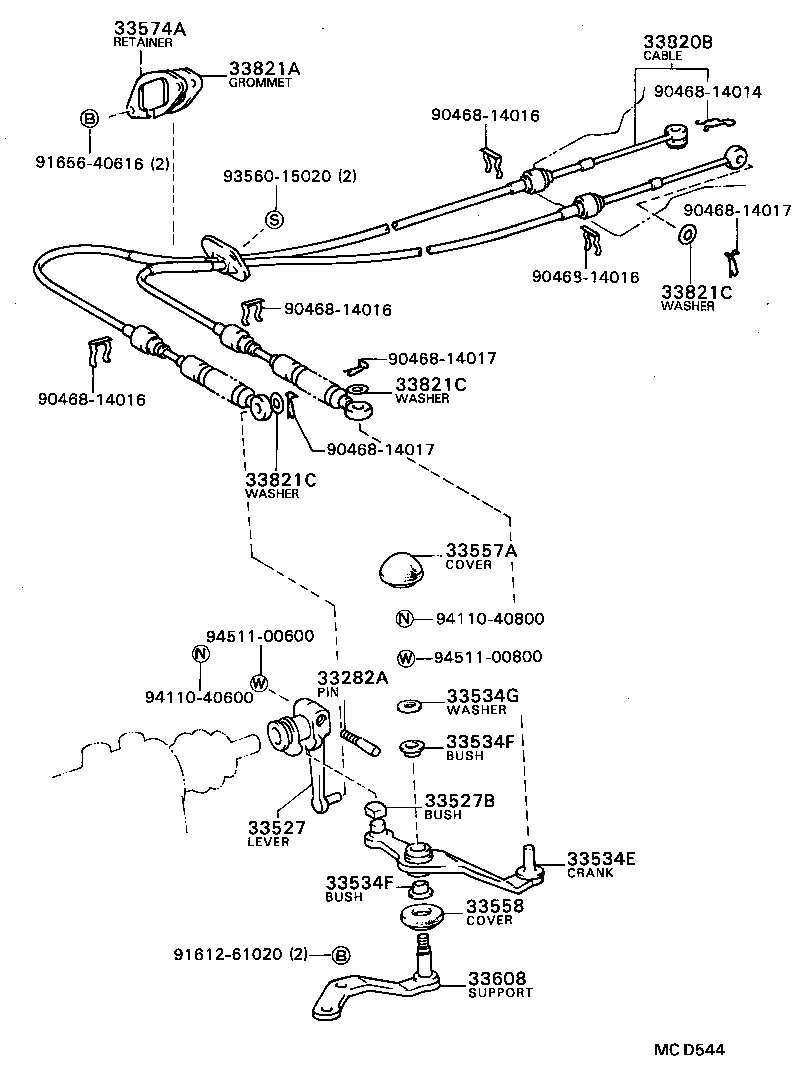

ILLUST NO. 2 OF 2(8608- )CV20,SV20,21..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33282A - PIN, LEVER LOCK (FOR CONTROL SHIFT LEVER) | ||||
| 33282-35010 |
CV20,SV2#..5F |
1 | ||
| 33282-35010 |
CV20,SV20,21..5F |
1 | ||
| 33527 - LEVER, CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33527-32010 |
CV20,SV20,21..5F |
1 | ||
| 33527-32010 |
CV20,SV2#..5F |
1 | ||
| 33527B - BUSH (FOR CONTROL SHIFT LEVER) | ||||
| 90389-10009 |
CV20,SV2#..5F |
1 | ||
| 90389-10009 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33534E - CRANK, SELECTING BELL, NO.2 | ||||
| 33534-32030 |
CV20,SV2#..5F |
1 | ||
| 33534-32030 |
CV20,SV20,21..5F |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
CV20,SV2#,VZV20..5F |
2 | ||
| 90386-12022 |
CV20,SV2#,VZV20..5F |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
CV20,SV2#,VZV20..5F |
2 | ||
| 90386-12022 |
CV20,SV2#,VZV20..5F |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
CV20,SV2#,VZV20..5F |
1 | ||
| 90201-08028 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-32010 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33557-32010 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-32010 |
CV20,SV2#..5F |
1 | ||
| 33558-32010 |
CV20,SV20,21..5F |
1 | ||
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-32110 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33574-32110 |
CV20,SV2#,VZV20..5F |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-32020 |
CV20,SV2#..5F |
1 | ||
| 33608-32020 |
CV20,SV20,21..5F |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-32140 |
CV20,SV2#..5F |
1 | ||
| 33820-32140 |
CV20,SV20,21..5F |
1 | ||
| 33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01366 |
CV20,SV2#,VZV20..5F..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 90480-01366 |
CV20,SV2#,VZV20..5F..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX) |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
CV20,SV2#,VZV20..5F SHIFT LEVER SIDE |
1 | ||
| 90201-08267 |
CV20,SV2#,VZV20..5F 外径=28,TRANSAXLE SIDE |
2 | ||
| 90201-10042 |
CV20,SV20,21,VZV20..5F SHIFT LEVER SIDE |
1 | ||
| 90201-08267 |
CV20,SV20,21,VZV20..5F 外径=28,TRANSAXLE SIDE |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
CV20,SV2#,VZV20..5F SHIFT LEVER SIDE |
1 | ||
| 90201-08267 |
CV20,SV2#,VZV20..5F 外径=28,TRANSAXLE SIDE |
2 | ||
| 90201-10042 |
CV20,SV20,21,VZV20..5F SHIFT LEVER SIDE |
1 | ||
| 90201-08267 |
CV20,SV20,21,VZV20..5F 外径=28,TRANSAXLE SIDE |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
CV20,SV2#,VZV20..5F SHIFT LEVER SIDE |
1 | ||
| 90201-08267 |
CV20,SV2#,VZV20..5F 外径=28,TRANSAXLE SIDE |
2 | ||
| 90201-10042 |
CV20,SV20,21,VZV20..5F SHIFT LEVER SIDE |
1 | ||
| 90201-08267 |
CV20,SV20,21,VZV20..5F 外径=28,TRANSAXLE SIDE |
2 | ||
| Common parts | ||||
| 90468-14014 | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 91612-61020 | ||||
| 91656-40616 | ||||
| 93560-15020 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
