SV20-UEMML (1986)

Toyota Camry/Vista

Production Aug 1986 - Aug 1988
Engine 1SI
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )1SI..5F

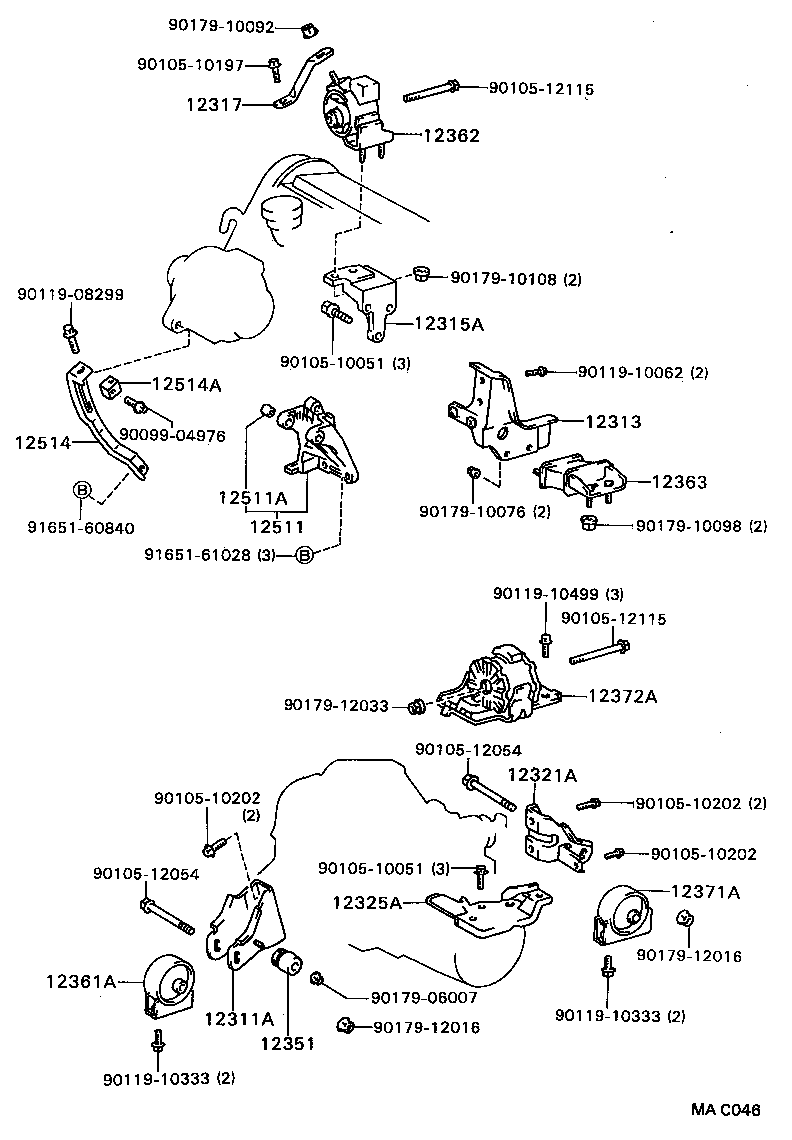

Click highlighted areas on diagram

diagram 12311A 12313 12315A 12317 12321A 12325A 12351 12361A 12362 12363 12371A 12372A 12511 12511A 12514 12514A 9009904976 9010510051 9010510051 9010510197 9010510202 9010510202 9010510202 9010512054 9010512054 9010512115 9010512115 9011908299 9011910062 9011910333 9011910333 9011910499 9017906007 9017910076 9017910092 9017910098 9017910108 9017912016 9017912016 9017912033 9165160840 9165161028
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-74030

1SI,3S#..SV20,21

 1
12311-74030

1SI,3S#..SV2#

 1
12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12313-74020

1SI,3S#..SV2#

 1
12313-74020

1SI,3S#..SV20,21

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-74030

1SI,3S#..SV2#

 1
12317 - STAY, ENGINE MOUNTING, RH
12317-63020

1SI..SV20

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-64110

1SI,3S#..SV2#..5F

 1
12321-64110

1SI,3S#..SV20,21..5F

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-74030

1SI,3S#..SV2#..5F

 1
12325-74030

1SI,3S#..SV20,21..5F

 1
12325-74031

1SI,3S#..SV20,21..5F

 1
12351 - DAMPER, ENGINE MOUNTING
12351-64020

1SI,3S#..SV2#

 2
12351-64020

1SI,3S#..SV20,21..5F

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-74020

1SI,3S#..SV2#..5F

 1
12361-74020

1SI,3S#..SV20,21..5F

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-74030

1SI,3S#..SV20,21

 1
12362-74030

1SI,3S#..SV2#

 1
12363 - INSULATOR, ENGINE MOUNTING, CENTER
12363-74030

1SI,3S#..SV2#

 1
12363-74010

1SI,3SFE..SV20,21

東海ｺﾞﾑ

 1
12363-74030

1SI,3SFE..SV20,21

東洋ｺﾞﾑ

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-74030

1SI,3S#..SV2#..5F

 1
12371-74030

1SI,3S#..SV20,21..5F

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-74040

1SI,3S#..SV2#..5F

 1
12372-74040

1SI,3S#..SV20,21..5F

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-63031

1SI..SV20

 1
12511A - BUSH, ALTERNATOR BRACKET
90387-10013

1SI..SV20

 1
12514 - BAR, ALTERNATOR BELT ADJUSTING
12514-63020

1SI..SV20

 1
12514A - SLIDER, FAN BELT ADJUSTING
16385-64011

1SI,3SFE..SV2#

 1
Common parts
90099-04976
90105-10051
90105-10197
90105-10202
90105-12054
90105-12115
90119-08299
90119-10062
90119-10333
90119-10499
90179-06007
90179-10076
90179-10092
90179-10098
90179-10108
90179-12016
90179-12033
91651-60840
91651-61028
