SV20-JEPML (1986)
Toyota Camry/Vista
(8608- )CV20,SV20,21,VZV20..SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58387 - PLATE, REAR FLOOR FINISH | ||||
| 58387-3202003 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX) GRAY,LIGHT GRAY |
1 | ||
| 58387-3202003 |
CV20,SV21,25,VZV20..SED;SV20..SED..(VE,VR,ZE,ZT) LIGHT GRAY,TRIM3#,4#,8# |
1 | ||
| 58387A - PLUG, HOLE(FOR REAR FLOOR FINISH PLATE) | ||||
| 90950-0150305 |
CV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT) DARK BEIGE,TRIM4# |
4 | ||
| 90950-0150314 |
CV20,SV21,25,VZV20..SED;SV20..SED..(VE,VR,ZE,ZT) DARK BLUE,TRIM8# |
4 | ||
| 90950-0150312 |
CV20,SV21,25,VZV20..SED;SV20..SED..(VE,VR,ZE,ZT) MAROON,TRIM3# |
4 | ||
| 90950-0150323 |
CV20,SV21,25,VZV20..SED;SV20..SED..(VE,VR,ZE,ZT) LIGHT GRAY,TRIM3#,4#,8# |
4 | ||
| 90950-0150323 |
CV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX) GRAY,LIGHT GRAY |
4 | ||
| 58703A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH | ||||
| 58703-32010 |
CV20,SV2#,VZV20 |
1 | ||
| 58703-32010 |
CV20,SV20,21,VZV20 |
1 | ||
| 58704A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH | ||||
| 58704-32010 |
CV20,SV2#..SED |
1 | ||
| 58704-32030 |
CV20,SV2#..SED..(LT,VC,VE,VL,XT,ZT) |
1 | ||
| 58704-32030 |
CV20,SV20,21..SED..(LT,VC,VE,VL,XT,ZT) |
1 | ||
| 64033B - GRILLE SUB-ASSY, REAR SPEAKER, RH | ||||
| 64033-2204005 |
CV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64033-2204002 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX MAROON,MEDIUM GRAY,TRIM3# |
1 | ||
| 64033-2204004 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64033-2204004 |
SV25..VL,XT;SV25..HT..VR;CV20,SV20,21..VE,ZT DARK BLUE,TRIM8# |
1 | ||
| 64033-2204002 |
SV25..VL,XT;SV25..HT..VR;CV20,SV20,21..VE,ZT MAROON,TRIM3# |
1 | ||
| 64033-2204005 |
SV25..VL,XT;SV25..HT..VR;CV20,SV20,21..VE,ZT DARK BEIGE,TRIM4# |
1 | ||
| 64033B - GRILLE SUB-ASSY, REAR SPEAKER, RH | ||||
| 64033-2204005 |
CV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64033-2204002 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX MAROON,MEDIUM GRAY,TRIM3# |
1 | ||
| 64033-2204004 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64033-2204004 |
SV25..VL,XT;SV25..HT..VR;CV20,SV20,21..VE,ZT DARK BLUE,TRIM8# |
1 | ||
| 64033-2204002 |
SV25..VL,XT;SV25..HT..VR;CV20,SV20,21..VE,ZT MAROON,TRIM3# |
1 | ||
| 64033-2204005 |
SV25..VL,XT;SV25..HT..VR;CV20,SV20,21..VE,ZT DARK BEIGE,TRIM4# |
1 | ||
| 64034B - GRILLE SUB-ASSY, REAR SPEAKER, LH | ||||
| 64033-2204005 |
CV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64033-2204004 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64033-2204002 |
SV25..VL,XT;SV25..HT..VR;CV20,SV20,21..VE,ZT MAROON,TRIM3# |
1 | ||
| 64033-2204005 |
SV25..VL,XT;SV25..HT..VR;CV20,SV20,21..VE,ZT DARK BEIGE,TRIM4# |
1 | ||
| 64033-2204002 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX MAROON,MEDIUM GRAY,TRIM3# |
1 | ||
| 64033-2204004 |
SV25..VL,XT;SV25..HT..VR;CV20,SV20,21..VE,ZT DARK BLUE,TRIM8# |
1 | ||
| 64034B - GRILLE SUB-ASSY, REAR SPEAKER, LH | ||||
| 64033-2204005 |
CV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64033-2204004 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64033-2204002 |
SV25..VL,XT;SV25..HT..VR;CV20,SV20,21..VE,ZT MAROON,TRIM3# |
1 | ||
| 64033-2204005 |
SV25..VL,XT;SV25..HT..VR;CV20,SV20,21..VE,ZT DARK BEIGE,TRIM4# |
1 | ||
| 64033-2204002 |
CV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX MAROON,MEDIUM GRAY,TRIM3# |
1 | ||
| 64033-2204004 |
SV25..VL,XT;SV25..HT..VR;CV20,SV20,21..VE,ZT DARK BLUE,TRIM8# |
1 | ||
| 64271 - BOARD, ROOM PARTITION, NO.1 | ||||
| 64271-32030 |
CV20,SV2#..SED..(LT,VC,VE,VL,XT,ZT) |
1 | ||
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-3216004 |
CV20,SV2#..SED..(VE,ZT) W/O SPEAKER,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64330-3216002 |
CV20,SV2#..SED..(VE,ZT) W/O SPEAKER,MAROON,MAROON,TRIM3# |
1 | ||
| 64330-3221004 |
CV20,SV2#..SED..(GT,VE,VR,ZE,ZT) W/SPEAKER,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64330-3221002 |
CV20,SV2#..SED..(GT,VE,VR,ZE,ZT) W/SPEAKER,MAROON,MAROON,TRIM3# |
1 | ||
| 64330-3216102 |
CV20,SV2#..SED..(VE,ZT) W/O SPEAKER,MAROON,MAROON,TRIM3# |
1 | ||
| 64330-3221005 |
CV20,SV2#..SED..(GT,VE,VR,ZE,ZT) W/SPEAKER,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64330-3216105 |
CV20,SV2#..SED..(VE,ZT) W/O SPEAKER,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64330-3216005 |
CV20,SV2#..SED..(VE,ZT) W/O SPEAKER,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64330-3216104 |
CV20,SV2#..SED..(VE,ZT) W/O SPEAKER,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64330-3221105 |
CV20,SV2#..SED..(GT,VE,VR,ZE,ZT) W/SPEAKER,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64330-3221102 |
CV20,SV2#..SED..(GT,VE,VR,ZE,ZT) W/SPEAKER,MAROON,MAROON,TRIM3# |
1 | ||
| 64330-3216104 |
SV20..SED..(VE,ZT);CV20,SV21,25..SED..(VE,VL,XT,ZT) DARK BLUE,TRIM8# |
1 | ||
| 64330-3221104 |
CV20,SV2#..SED..(GT,VE,VR,ZE,ZT) W/SPEAKER,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 64330-3216102 |
SV20..SED..(VE,ZT);CV20,SV21,25..SED..(VE,VL,XT,ZT) MAROON,TRIM3# |
1 | ||
| 64330-3216105 |
SV20..SED..(VE,ZT);CV20,SV21,25..SED..(VE,VL,XT,ZT) DARK BEIGE,TRIM4# |
1 | ||
| 64330-3221105 |
SV25..SED..(VL,XT);CV20,SV20,21..SED..(VE,ZT) ｱﾘ(ｽﾋﾟ-ｶ),DARK BEIGE,TRIM4# |
1 | ||
| 64330-3221102 |
SV25..SED..(VL,XT);CV20,SV20,21..SED..(VE,ZT) ｱﾘ(ｽﾋﾟ-ｶ),MAROON,TRIM3# |
1 | ||
| 64330-3221104 |
SV25..SED..(VL,XT);CV20,SV20,21..SED..(VE,ZT) ｱﾘ(ｽﾋﾟ-ｶ),DARK BLUE,TRIM8# |
1 | ||
| 64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL) | ||||
| 90467-0804612 |
CV20,SV2#,VZV20 MAROON,MAROON,TRIM3# |
4 | ||
| 90467-0804605 |
CV20,SV2# BEIGE,DARK BEIGE,TRIM4# |
4 | ||
| 90467-0804612 |
SV25..SED..VR;SV25..VL,XT,ZE;CV20,SV20,21,VZV20 MAROON,TRIM3# |
4 | ||
| 90467-0804624 |
CV20,SV2#,VZV20 BLUE,DARK BLUE,TRIM8# |
4 | ||
| 90467-0804624 |
SV25..SED..VR;SV25..VL,XT,ZE;CV20,SV20,21,VZV20 DARK BLUE,TRIM8# |
4 | ||
| 90467-0804605 |
CV20,SV20,21;SV25..SED..VR;SV25..VL,XT,ZE DARK BEIGE,TRIM4# |
4 | ||
| 64347B - BRACKET, PACKAGE TRAY REINFORCEMENT, RH | ||||
| 64347-32020 |
CV20,SV2#,VZV20..SED |
1 | ||
| 64348B - BRACKET, PACKAGE TRAY REINFORCEMENT, LH | ||||
| 64348-32010 |
CV20,SV2#,VZV20..SED |
1 | ||
| 64701 - MAT SUB-ASSY, LUGGAGE COMPARTMENT | ||||
| 64711-3203003 |
CV20,SV20,21..SED..(LT,VC,VE,VL,XT,ZT) LIGHT GRAY,TRIM3#,4#,8# |
1 | ||
| 64711-3203003 |
CV20,SV2#..SED..(LT,VC,VE,VL,XT,ZT) GRAY,LIGHT GRAY |
1 | ||
| 64714 - COVER, LUGGAGE COMPARTMENT, RH | ||||
| 64714-3203003 |
CV20,SV2#..SED..(LT,VC,VE,VL,XT,ZT) GRAY,LIGHT GRAY |
1 | ||
| 64714-3203003 |
CV20,SV20,21..SED..(LT,VC,VE,VL,XT,ZT) LIGHT GRAY,TRIM3#,4#,8# |
1 | ||
| 64716 - COVER, LUGGAGE COMPARTMENT, REAR CENTER | ||||
| 64716-3204003 |
CV20,SV2#..SED..(VE,ZT) GRAY,LIGHT GRAY |
1 | ||
| 64716-3204003 |
SV20..SED..(VE,ZT);CV20,SV21..SED..(VE,VL,XT,ZT) LIGHT GRAY,TRIM3#,4#,8# |
1 | ||
| 64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) | ||||
| 90467-0500433 |
CV20,SV2#..SED..(VE,ZT) GRAY,GRAY |
12 | ||
| 90467-0500433 |
CV20,SV21,25,VZV20..SED;SV20..SED..(VE,VR,ZE,ZT) GRAY,TRIM3#,4#,8# |
12 | ||
| 64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT | ||||
| 64717-3203003 |
SV20..HT..VL;CV20,SV20,21..SED..(LT,VC,VE,VL,XT,ZT) LIGHT GRAY,TRIM3#,4#,8# |
1 | ||
| 64717-3203003 |
CV20,SV2#..SED..(LT,VC,VE,VL,XT,ZT) GRAY,LIGHT GRAY |
1 | ||
| 64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH | ||||
| 64721-3203003 |
CV20,SV2#..SED..(LT,VC,VE,VL,XT,ZT) GRAY,LIGHT GRAY |
1 | ||
| 64721-3203003 |
CV20,SV20,21..SED..(LT,VC,VE,VL,XT,ZT) LIGHT GRAY,TRIM3#,4#,8# |
1 | ||
| 64721B - COVER, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 90467-0704203 |
CV20,SV2#,VZV20..SED GRAY,GRAY |
6 | ||
| 90467-0704203 |
CV20,SV2#..SED..(LT,VC,VE,VL,XT,ZT) GRAY,TRIM3#,4#,8# |
4 | ||
| 64721B - COVER, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 90467-0704203 |
CV20,SV2#,VZV20..SED GRAY,GRAY |
6 | ||
| 90467-0704203 |
CV20,SV2#..SED..(LT,VC,VE,VL,XT,ZT) GRAY,TRIM3#,4#,8# |
4 | ||
| 64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH | ||||
| 64722-3203003 |
CV20,SV2#..SED..(LT,VC,VE,VL,XT,ZT) GRAY,LIGHT GRAY |
1 | ||
| 64722-3203003 |
CV20,SV20,21..SED..(LT,VC,VE,VL,XT,ZT) LIGHT GRAY,TRIM3#,4#,8# |
1 | ||
| 64770 - COVER ASSY, SPARE WHEEL | ||||
| 64771-32040 |
CV20,SV20,21,VZV20 |
1 | ||
| 64771-32040 |
CV20,SV2#,VZV20 |
1 | ||
| 64777 - CLAMP, SPARE WHEEL COVER | ||||
| 64777-32020 |
CV20,SV2# |
1 | ||
| 64777-32030 |
CV20,SV2#,VZV20 |
1 | ||
| 64778B - PROTECTOR, SPARE WHEEL | ||||
| 64778-14020 |
CV20,SV2#,VZV20 |
3 | ||
| 64791 - COVER, BACK DOOR TRIM | ||||
| 64791-3202003 |
CV20,SV2#,VZV20..SED GRAY,TRIM3#,4#,8# |
1 | ||
| 64791-3202003 |
CV20,SV2#,VZV20..SED GRAY,GRAY |
1 | ||
| 64791A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-0805623 |
CV20,SV2#,VZV20..SED GRAY,GRAY |
13 | ||
| 90467-0805623 |
CV20,SV2#,VZV20..SED GRAY,TRIM3#,4#,8# |
13 | ||
| Common parts | ||||
| 90159-60057 | ||||
| 90183-04046 | ||||
| 90467-09066 | ||||
| 90468-05017 | ||||
| 90541-09010 | ||||
| 93540-14016 | ||||

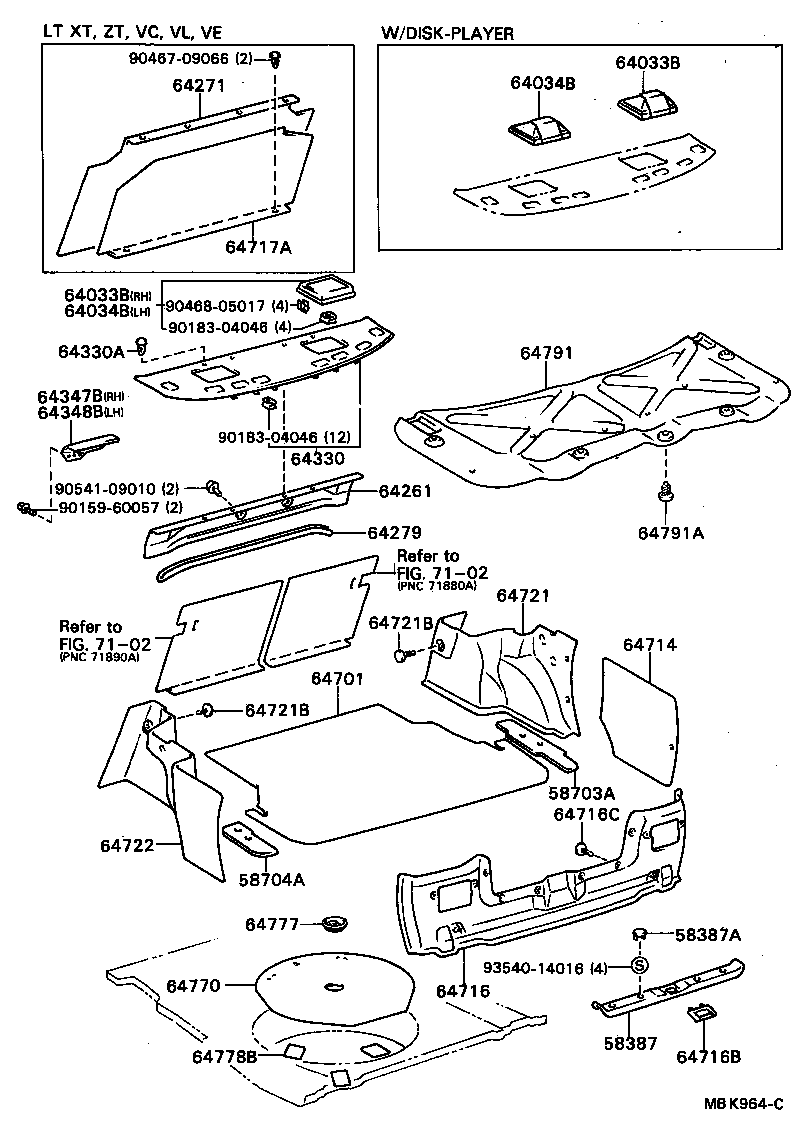

| Linked diagrams | ||||
| 7102 | ||||
