SV20-JEPML (1986)
Toyota Camry/Vista
(8608- )4FC

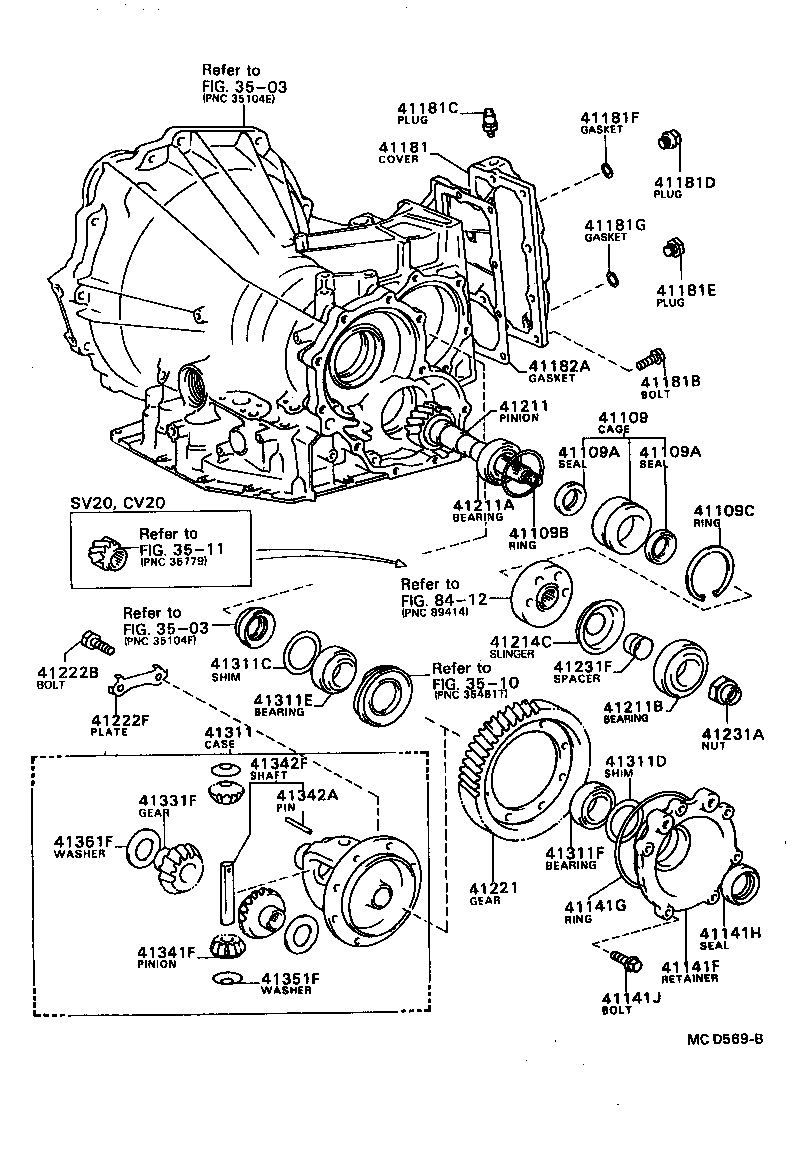

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41109 - CAGE SUB-ASSY, DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41109-20010 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 41109-20010 |
CV20,SV20,21,VZV20..4FC |
1 | ||
| 41109A - SEAL, OIL (FOR DIFFERENTIAL DRIVE PINION BEARING CAGE) | ||||
| 90310-34005 |
CV20,SV20,21,VZV20..4FC |
2 | ||
| 90310-34005 |
CV20,SV2#,VZV20..4FC |
2 | ||
| 41109A - SEAL, OIL (FOR DIFFERENTIAL DRIVE PINION BEARING CAGE) | ||||
| 90310-34005 |
CV20,SV20,21,VZV20..4FC |
2 | ||
| 90310-34005 |
CV20,SV2#,VZV20..4FC |
2 | ||
| 41109B - RING, O (FOR DIFFERENTIAL DRIVE PINION BEARING CAGE) | ||||
| 90301-65003 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 90301-65003 |
CV20,SV20,21,VZV20..4FC |
1 | ||
| 41109C - RING, HOLE SNAP (FOR DIFF. DRIVE PINION BEARING CAGE) | ||||
| 90521-76002 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 90521-76002 |
CV20,SV20,21,VZV20..4FC |
1 | ||
| 41141F - RETAINER, FRONT DIFFERENTIAL SIDE BEARING | ||||
| 41141-32020 |
CV20,SV2#..4FC |
1 | ||
| 41141-32041 |
CV20,SV20,21,VZV20..4FC |
1 | ||
| 41141-32041 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 41141-32040 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 41141G - RING, O(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER) | ||||
| 90301-99018 |
CV20,SV20,21,VZV20..4FC |
1 | ||
| 90301-99018 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 41141H - SEAL, OIL(FOR DIFFERENTIAL SIDE BEARING RETAINER) | ||||
| 90311-35019 |
CV20,SV20,21,VZV20..4FC |
1 | ||
| 90311-35019 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 90311-35010 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 41141J - BOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER) | ||||
| 91611-60825 |
CV20,SV2#,VZV20..4FC *8−1.25PX25−25 |
6 | ||
| 91611-60825 |
CV20,SV20,21,VZV20..4FC *8−1.25PX25−25 |
6 | ||
| 41181 - COVER, FRONT DIFFERENTIAL CARRIER | ||||
| 41181-32011 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 41181-32011 |
CV20,SV20,21,VZV20..4FC |
1 | ||
| 41181B - BOLT (FOR FRONT DIFFERENTIAL CARRIER COVER SETTING) | ||||
| 90105-08062 |
CV20,SV20,21,VZV20..4FC *8−1.25PX29−24 |
11 | ||
| 90105-08062 |
CV20,SV2#,VZV20..4FC *8−1.25PX29−24 |
11 | ||
| 41181C - PLUG, BREATHER (FOR FRONT DIFFERENTIAL CARRIER COVER) | ||||
| 90930-03031 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 90930-03031 |
CV20,SV20,21,VZV20..4FC |
1 | ||
| 41181D - PLUG (FOR FRONT DIFFERENTIAL FILLER) | ||||
| 90341-18002 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 90341-18002 |
CV20,SV20,21,VZV20..4FC |
1 | ||
| 41181E - PLUG (FOR FRONT DIFFERENTIAL DRAIN) | ||||
| 90341-18021 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 90341-18021 |
CV20,SV20,21,VZV20..4FC |
1 | ||
| 41181F - GASKET (FOR FRONT DIFFERENTIAL FILLER PLUG) | ||||
| 90430-18008 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 90430-18008 |
CV20,SV20,21,VZV20..4FC |
1 | ||
| 41181G - GASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG) | ||||
| 90430-18008 |
CV20,SV20,21,VZV20..4FC |
1 | ||
| 90430-18008 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 41182A - GASKET, DIFFERENTIAL CARRIER COVER | ||||
| 41182-32010 |
CV20,SV20,21,VZV20..4FC |
1 | ||
| 41182-32010 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 41211 - PINION, DIFFERENTIAL DRIVE | ||||
| 41211-32040 |
CV20,SV20..4FC |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90366-35050 |
CV20,SV20,21,VZV20..4FC |
1 | ||
| 90366-35050 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90366-40010 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 90366-40010 |
CV20,SV20,21,VZV20..4FC |
1 | ||
| 41214C - SLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-32010 |
CV20,SV20,21,VZV20..4FC |
1 | ||
| 41214-32010 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-32040 |
CV20,SV20..4FC |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11003 |
CV20,SV2# |
8 | ||
| 90101-11003 |
VZV20..4FC;CV20,SV20,21 |
8 | ||
| 41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-32010 |
CV20,SV2# |
4 | ||
| 41222-32010 |
CV20,SV20,21 |
4 | ||
| 41231A - NUT, DRIVE PINION LOCK | ||||
| 90179-20004 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 90179-20004 |
CV20,SV20,21,VZV20..4FC |
1 | ||
| 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-32010 |
CV20,SV20,21,VZV20..4FC |
1 | ||
| 41231-32010 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41301-32021 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 41301-32020 |
CV20,SV2#,VZV20..4FC |
1 | ||
| 41301-32021 |
CV20,SV20,21,VZV20..4FC |
1 | ||
| 41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-45011 |
CV20,SV2#,VZV20..4FC 厚さ=2.40,ﾏｰｸ 11,T=2.40,MARK 11 |
1 | ||
| 90564-45011 |
VZV20..4FC;CV20,SV20,21 厚さ=2.40,ﾏｰｸ 11 |
1 | ||
| 41311D - SHIM (FOR FRONT DIFFERENTIAL CASE FRONT) | ||||
| 90564-45003 |
CV20,SV2#,VZV20..4FC 厚さ=2.00,ﾏｰｸ 03,T=2.00,MARK 03 |
1 | ||
| 90564-45006 |
CV20,SV2#,VZV20..4FC 厚さ=2.15,ﾏｰｸ 06,T=2.15,MARK 06 |
1 | ||
| 90564-45001 |
CV20,SV2#,VZV20..4FC 厚さ=1.90,ﾏｰｸ 01,T=1.90,MARK 01 |
1 | ||
| 90564-45004 |
CV20,SV2#,VZV20..4FC 厚さ=2.05,ﾏｰｸ 04,T=2.05,MARK 04 |
1 | ||
| 90564-45012 |
CV20,SV2#,VZV20..4FC 厚さ=2.45,ﾏｰｸ 12,T=2.45,MARK 12 |
1 | ||
| 90564-45019 |
CV20,SV2#,VZV20..4FC 厚さ=2.80,ﾏｰｸ 19,T=2.80,MARK 19 |
1 | ||
| 90564-45005 |
CV20,SV2#,VZV20..4FC 厚さ=2.10,ﾏｰｸ 05,T=2.10,MARK 05 |
1 | ||
| 90564-45002 |
CV20,SV2#,VZV20..4FC 厚さ=1.95,ﾏｰｸ 02,T=1.95,MARK 02 |
1 | ||
| 90564-45018 |
CV20,SV2#,VZV20..4FC 厚さ=2.75,ﾏｰｸ 18,T=2.75,MARK 18 |
1 | ||
| 90564-45011 |
CV20,SV2#,VZV20..4FC 厚さ=2.40,ﾏｰｸ 11,T=2.40,MARK 11 |
1 | ||
| 90564-49002 |
CV20,SV2#,VZV20..4FC 厚さ=1.95,ﾏｰｸ 02,T=1.95,MARK 02 |
1 | ||
| 90564-45016 |
CV20,SV2#,VZV20..4FC 厚さ=2.65,ﾏｰｸ 16,T=2.65,MARK 16 |
1 | ||
| 90564-45013 |
CV20,SV2#,VZV20..4FC 厚さ=2.50,ﾏｰｸ 13,T=2.50,MARK 13 |
1 | ||
| 90564-45008 |
CV20,SV2#,VZV20..4FC 厚さ=2.25,ﾏｰｸ 08,T=2.25,MARK 08 |
1 | ||
| 90564-45014 |
CV20,SV2#,VZV20..4FC 厚さ=2.55,ﾏｰｸ 14,T=2.55,MARK 14 |
1 | ||
| 90564-45017 |
CV20,SV2#,VZV20..4FC 厚さ=2.70,ﾏｰｸ 17,T=2.70,MARK 17 |
1 | ||
| 90564-45010 |
CV20,SV2#,VZV20..4FC 厚さ=2.35,ﾏｰｸ 10,T=2.35,MARK 10 |
1 | ||
| 90564-45009 |
CV20,SV2#,VZV20..4FC 厚さ=2.30,ﾏｰｸ 09,T=2.30,MARK 09 |
1 | ||
| 90564-45015 |
CV20,SV2#,VZV20..4FC 厚さ=2.60,ﾏｰｸ 15,T=2.60,MARK 15 |
1 | ||
| 90564-49006 |
CV20,SV2#,VZV20..4FC 厚さ=2.15,ﾏｰｸ 06,T=2.15,MARK 06 |
1 | ||
| 90564-45007 |
CV20,SV2#,VZV20..4FC 厚さ=2.20,ﾏｰｸ 07,T=2.20,MARK 07 |
1 | ||
| 90564-49005 |
CV20,SV2#,VZV20..4FC 厚さ=2.10,ﾏｰｸ 05,T=2.10,MARK 05 |
1 | ||
| 90564-49001 |
CV20,SV2#,VZV20..4FC 厚さ=1.90,ﾏｰｸ 01,T=1.90,MARK 01 |
1 | ||
| 90564-49003 |
CV20,SV2#,VZV20..4FC 厚さ=2.00,ﾏｰｸ 03,T=2.00,MARK 03 |
1 | ||
| 90564-49008 |
CV20,SV2#,VZV20..4FC 厚さ=2.25,ﾏｰｸ 08,T=2.25,MARK 08 |
1 | ||
| 90564-49013 |
CV20,SV2#,VZV20..4FC 厚さ=2.50,ﾏｰｸ 13,T=2.50,MARK 13 |
1 | ||
| 90564-49014 |
CV20,SV2#,VZV20..4FC 厚さ=2.55,ﾏｰｸ 14,T=2.55,MARK 14 |
1 | ||
| 90564-49009 |
CV20,SV2#,VZV20..4FC 厚さ=2.30,ﾏｰｸ 09,T=2.30,MARK 09 |
1 | ||
| 90564-49011 |
CV20,SV2#,VZV20..4FC 厚さ=2.40,ﾏｰｸ 11,T=2.40,MARK 11 |
1 | ||
| 90564-49017 |
CV20,SV2#,VZV20..4FC 厚さ=2.70,ﾏｰｸ 17,T=2.70,MARK 17 |
1 | ||
| 90564-49015 |
CV20,SV2#,VZV20..4FC 厚さ=2.60,ﾏｰｸ 15,T=2.60,MARK 15 |
1 | ||
| 90564-49018 |
CV20,SV2#,VZV20..4FC 厚さ=2.75,ﾏｰｸ 18,T=2.75,MARK 18 |
1 | ||
| 90564-49012 |
CV20,SV2#,VZV20..4FC 厚さ=2.45,ﾏｰｸ 12,T=2.45,MARK 12 |
1 | ||
| 90564-49001 |
CV20,SV20,21,VZV20..4FC 厚さ=1.90,ﾏｰｸ 01 |
1 | ||
| 90564-49007 |
CV20,SV2#,VZV20..4FC 厚さ=2.20,ﾏｰｸ 07,T=2.20,MARK 07 |
1 | ||
| 90564-49002 |
CV20,SV20,21,VZV20..4FC 厚さ=1.95,ﾏｰｸ 02 |
1 | ||
| 90564-49019 |
CV20,SV2#,VZV20..4FC 厚さ=2.80,ﾏｰｸ 19,T=2.80,MARK 19 |
1 | ||
| 90564-49004 |
CV20,SV2#,VZV20..4FC 厚さ=2.05,ﾏｰｸ 04,T=2.05,MARK 04 |
1 | ||
| 90564-49010 |
CV20,SV2#,VZV20..4FC 厚さ=2.35,ﾏｰｸ 10,T=2.35,MARK 10 |
1 | ||
| 90564-49004 |
CV20,SV20,21,VZV20..4FC 厚さ=2.05,ﾏｰｸ 04 |
1 | ||
| 90564-49005 |
CV20,SV20,21,VZV20..4FC 厚さ=2.10,ﾏｰｸ 05 |
1 | ||
| 90564-49003 |
CV20,SV20,21,VZV20..4FC 厚さ=2.00,ﾏｰｸ 03 |
1 | ||
| 90564-49016 |
CV20,SV2#,VZV20..4FC 厚さ=2.65,ﾏｰｸ 16,T=2.65,MARK 16 |
1 | ||
| 90564-49011 |
CV20,SV20,21,VZV20..4FC 厚さ=2.40,ﾏｰｸ 11 |
1 | ||
| 90564-49007 |
CV20,SV20,21,VZV20..4FC 厚さ=2.20,ﾏｰｸ 07 |
1 | ||
| 90564-49010 |
CV20,SV20,21,VZV20..4FC 厚さ=2.35,ﾏｰｸ 10 |
1 | ||
| 90564-49006 |
CV20,SV20,21,VZV20..4FC 厚さ=2.15,ﾏｰｸ 06 |
1 | ||
| 90564-49012 |
CV20,SV20,21,VZV20..4FC 厚さ=2.45,ﾏｰｸ 12 |
1 | ||
| 90564-49013 |
CV20,SV20,21,VZV20..4FC 厚さ=2.50,ﾏｰｸ 13 |
1 | ||
| 90564-49017 |
CV20,SV20,21,VZV20..4FC 厚さ=2.70,ﾏｰｸ 17 |
1 | ||
| 90564-49014 |
CV20,SV20,21,VZV20..4FC 厚さ=2.55,ﾏｰｸ 14 |
1 | ||
| 90564-49009 |
CV20,SV20,21,VZV20..4FC 厚さ=2.30,ﾏｰｸ 09 |
1 | ||
| 90564-49016 |
CV20,SV20,21,VZV20..4FC 厚さ=2.65,ﾏｰｸ 16 |
1 | ||
| 90564-49018 |
CV20,SV20,21,VZV20..4FC 厚さ=2.75,ﾏｰｸ 18 |
1 | ||
| 90564-49008 |
CV20,SV20,21,VZV20..4FC 厚さ=2.25,ﾏｰｸ 08 |
1 | ||
| 90564-49015 |
CV20,SV20,21,VZV20..4FC 厚さ=2.60,ﾏｰｸ 15 |
1 | ||
| 90564-49019 |
CV20,SV20,21,VZV20..4FC 厚さ=2.80,ﾏｰｸ 19 |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-40016 |
VZV20..4FC;CV20,SV20,21 |
1 | ||
| 90366-40016 |
CV20,SV2# |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-44001 |
CV20,SV20,21,VZV20..4FC |
1 | ||
| 90366-44001 |
CV20,SV2# |
1 | ||
| 90366-40023 |
CV20,SV2# |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-32010 |
CV20,SV2# |
2 | ||
| 41331-32010 |
VZV20..4FC;CV20,SV20,21 |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-30011 |
CV20,SV2# |
2 | ||
| 41341-30011 |
VZV20..4FC;CV20,SV20,21 |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
CV20,SV2# |
1 | ||
| 90250-06058 |
VZV20..4FC;CV20,SV20,21 |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-39025 |
VZV20..4FC;CV20,SV20,21 |
1 | ||
| 41342-39025 |
CV20,SV2# |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-32010 |
CV20,SV2# |
2 | ||
| 41351-32010 |
VZV20..4FC;CV20,SV20,21 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22040 |
CV20,SV2# 厚さ=1.20,ﾏｰｸ 04,T=1.20 |
2 | ||
| 41361-22020 |
CV20,SV2# 厚さ=1.00,ﾏｰｸ 02,T=1.00 |
2 | ||
| 41361-22150 |
CV20,SV2# 厚さ=1.05,ﾏｰｸ 15,T=1.05 |
2 | ||
| 41361-22140 |
CV20,SV2# 厚さ=0.95,ﾏｰｸ 14,T=0.95 |
2 | ||
| 41361-22160 |
CV20,SV2# 厚さ=1.15,ﾏｰｸ 16,T=1.15 |
2 | ||
| 41361-22030 |
CV20,SV2# 厚さ=1.10,ﾏｰｸ 03,T=1.10 |
2 | ||
| 41361-22030 |
VZV20..4FC;CV20,SV20,21 厚さ=1.10,ﾏｰｸ 03 |
2 | ||
| 41361-22020 |
VZV20..4FC;CV20,SV20,21 厚さ=1.00,ﾏｰｸ 02 |
2 | ||
| 41361-22040 |
VZV20..4FC;CV20,SV20,21 厚さ=1.20,ﾏｰｸ 04 |
2 | ||
| 41361-22150 |
VZV20..4FC;CV20,SV20,21 厚さ=1.05,ﾏｰｸ 15 |
2 | ||
| 41361-22140 |
VZV20..4FC;CV20,SV20,21 厚さ=0.95,ﾏｰｸ 14 |
2 | ||
| 41361-22160 |
VZV20..4FC;CV20,SV20,21 厚さ=1.15,ﾏｰｸ 16 |
2 | ||
| Linked diagrams | ||||
| 3503 | ||||
| 3510 | ||||
| 3511 | ||||
| 8412 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
