SV20-JEMEL (1986)

Toyota Camry/Vista

Production Aug 1986 - Aug 1988
Engine 1SI
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )1SI

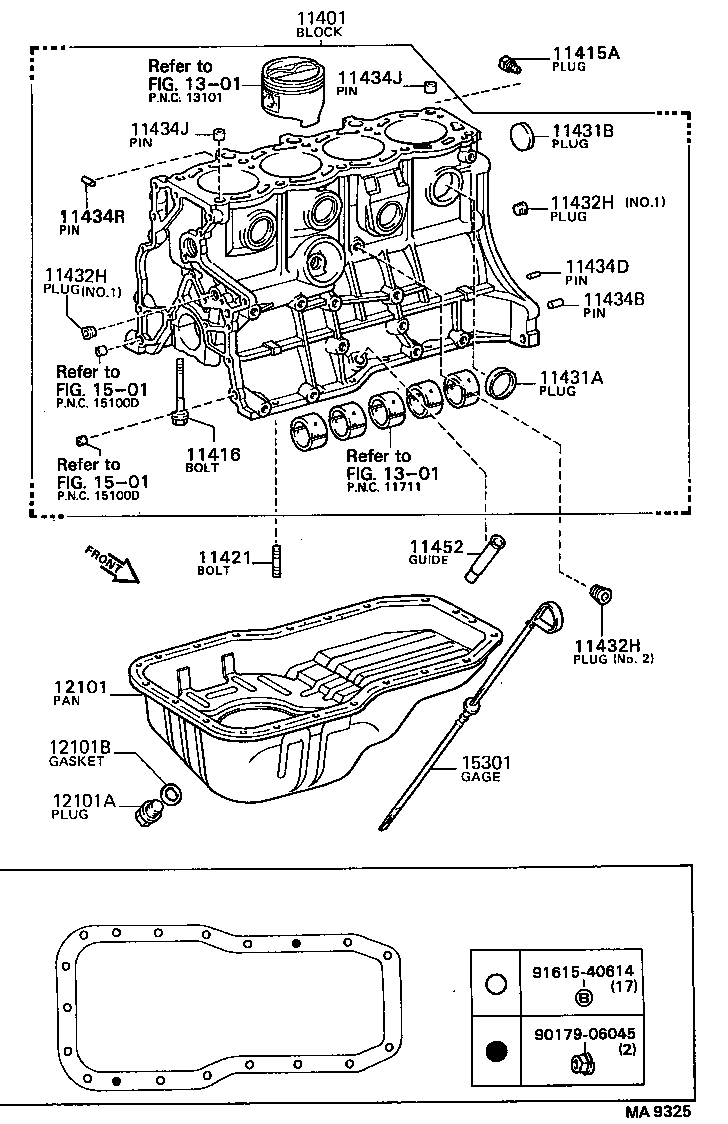

Click highlighted areas on diagram

diagram 11401 11415A 11416 11421 11431A 11431B 11432H 11432H 11432H 11434B 11434D 11434J 11434J 11434R 11452 12101 12101A 12101B 1301 1301 1501 1501 15301 9017906045 9161540614
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-69087

1SI..SV20

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90109-14003

1SI,3SFE..SV2#

 1
90345-52001

1SI,3SGE..SV20,21

*53

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90105-10028

1SI,3S#..SV2#

*10-1.25PX67-18

 10
90105-10028

1SI,3S#..SV2#

 10
11421 - BOLT, STUD(FOR OIL PAN)
90116-06022

1SI,3SFE..SV2#

 2
90116-06022

1SI,3S#..SV2#

*53

 2
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

1SI,3S#..SV2#

OD=35

 8
96411-43500

1SI,3S#..SV2#

 8
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-44000

1SI,3S#..SV2#

OD=40

 1
96411-44000

1SI,3S#..SV2#

 1
11432H - PLUG, W/HEAD TAPER SCREW, NO.5
90344-53008

1SI..SV20

NO.1

 2
90344-52003

1SI..SV20

NO.2

 1
90344-52003

1SI..SV20

NO.2

 1
90344-53008

1SI..SV20

NO.1

 2
11432H - PLUG, W/HEAD TAPER SCREW, NO.5
90344-53008

1SI..SV20

NO.1

 2
90344-52003

1SI..SV20

NO.2

 1
90344-52003

1SI..SV20

NO.2

 1
90344-53008

1SI..SV20

NO.1

 2
11432H - PLUG, W/HEAD TAPER SCREW, NO.5
90344-53008

1SI..SV20

NO.1

 2
90344-52003

1SI..SV20

NO.2

 1
90344-52003

1SI..SV20

NO.2

 1
90344-53008

1SI..SV20

NO.1

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

1SI,3S#..SV2#

長さ=22,外径=10

 2
90250-10113

1SI,3S#..SV2#

長さ=22,外径=10

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06003

1SI,3SFE..SV20,25

長さ=14,外径=6

 2
90250-06003

1SI,3S#..SV2#

長さ=14,外径=6

 4
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017

1SI,3S#..SV2#

OD=13

 2
90253-13017

1SI,3S#..SV2#

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017

1SI,3S#..SV2#

OD=13

 2
90253-13017

1SI,3S#..SV2#

 2
11434R - PIN, STRAIGHT(FOR DRIVE SHAFT BEARING BRACKET)
90250-06003

1SI..SV20

 2
90250-06003

1SI..SV20

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-63020

1SI..SV20

 1
12101 - PAN SUB-ASSY, OIL
12101-63021

1SI..SV20

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

1SI..SV20

 1
90341-18089

1SI,3S#..SV2#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

1SI..SV20

 1
90430-18244

1SI,3S#..SV2#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-63020

1SI..SV20

 1
Common parts
90179-06045
91615-40614
Linked diagrams
1301
1501
