SV20-JEMDL (1986)

Toyota Camry/Vista

Production Aug 1986 - Aug 1988
Engine 1SI
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )

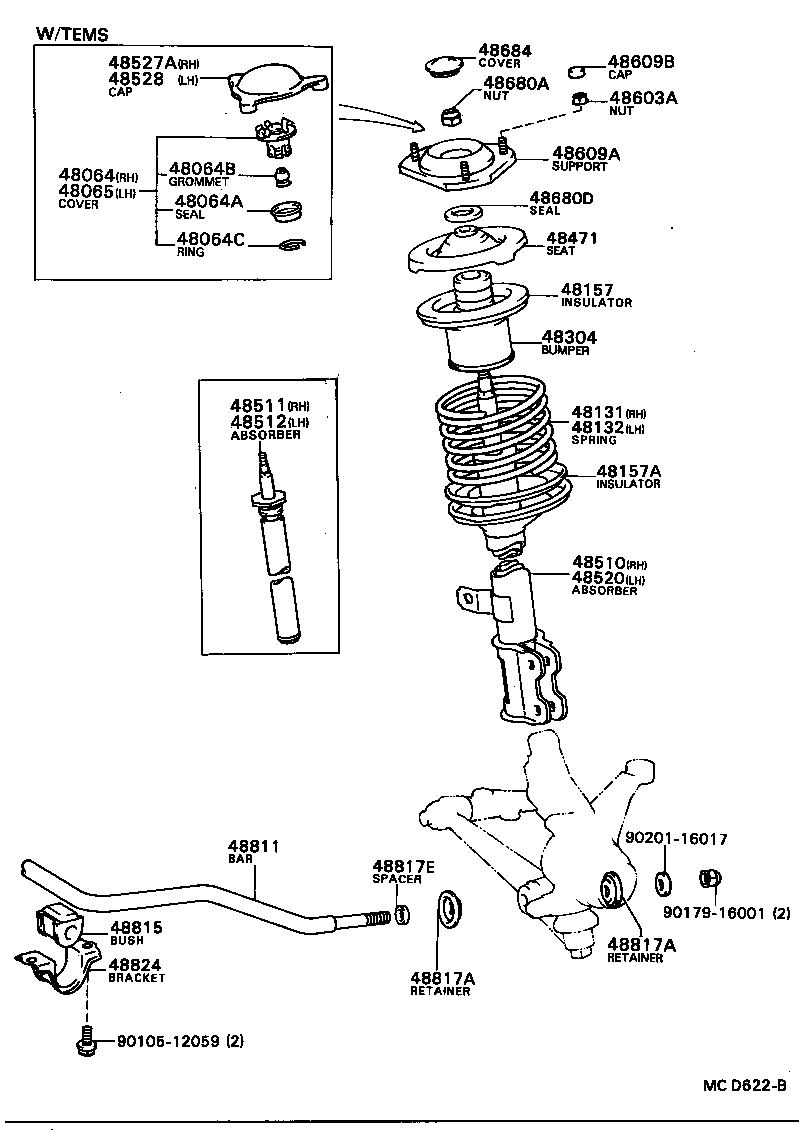

Click highlighted areas on diagram

diagram 48064 48064A 48064B 48064C 48065 48131 48132 48157 48157A 48304 48471 48510 48511 48512 48520 48527A 48528 48603A 48609A 48609B 48680A 48680D 48684 48811 48815 48817A 48817A 48817E 48824 9010512059 9017916001 9020116017
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-32590

SV20..LT,VC

 1
48132 - SPRING, FRONT COIL, LH
48131-32590

SV20..LT,VC

 1
48157 - INSULATOR, FRONT COIL SPRING, UPPER
48157-32020

CV20,SV2#,VZV20

 2
48157A - INSULATOR, FRONT COIL SPRING, LOWER
48158-32020

CV20,SV2#,VZV20

 2
48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1
48304-32030

CV20,SV2#,VZV20

 2
48471 - SEAT, FRONT SPRING, UPPER
48044-32020

CV20,SV2#,VZV20

 2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-32080

CV20,SV2#,VZV20..LT,PRO,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX

 1
48510-32081

CV20,SV20,21..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX

 1
48510-32080

CV20,SV20,21..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX

 1
48511 - ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)
48511-32030

CV20,SV20

W/O TEMS

 1
48512 - ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)
48511-32030

CV20,SV20

W/O TEMS

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-32080

CV20,SV2#,VZV20..LT,PRO,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX

 1
48520-32080

CV20,SV20,21..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX

 1
48520-32081

CV20,SV20,21..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX

 1
48603A - NUT(FOR FRONT SUSPENSION SUPPORT)
90179-10095

CV20,SV2#,VZV20

 6
48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION
48609-32030

CV20,SV2#,VZV20..LT,PRO,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX

 2
48609-32030

CV20,SV2#,VZV20..LT,PRO,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX

 2
48609B - CAP(FOR FRONT SUSPENSION SUPPORT)
90339-15002

SV20

 4
90339-15002

CV20,SV2#,VZV20..LT,PRO,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX

 4
48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
94182-11400

CV20,SV2#,VZV20

 2
48680D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
90303-22049

CV20,SV2#,VZV20

 2
48684 - COVER, BEARING DUST
48684-32010

CV20,SV2#,VZV20

 2
48811 - BAR, STABILIZER, FRONT
48811-32080

CV20,SV20

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-32060

CV20,SV2#

 2
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02117

CV20,SV20

 4
90948-02102

CV20,SV20

 4
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02117

CV20,SV20

 4
90948-02102

CV20,SV20

 4
48817E - SPACER(FOR STABILIZER BAR)
90560-16005

CV20,SV2#,VZV20

 2
48824 - BRACKET, STABILIZER, FRONT
48824-32030

CV20,SV2#,VZV20

 2
Common parts
90105-12059
90179-16001
90201-16017
