SV12-UEPEF (1984)

Toyota Camry/Vista

Production Jun 1984 - Jul 1986
Engine 3SGELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8406- )SV1#

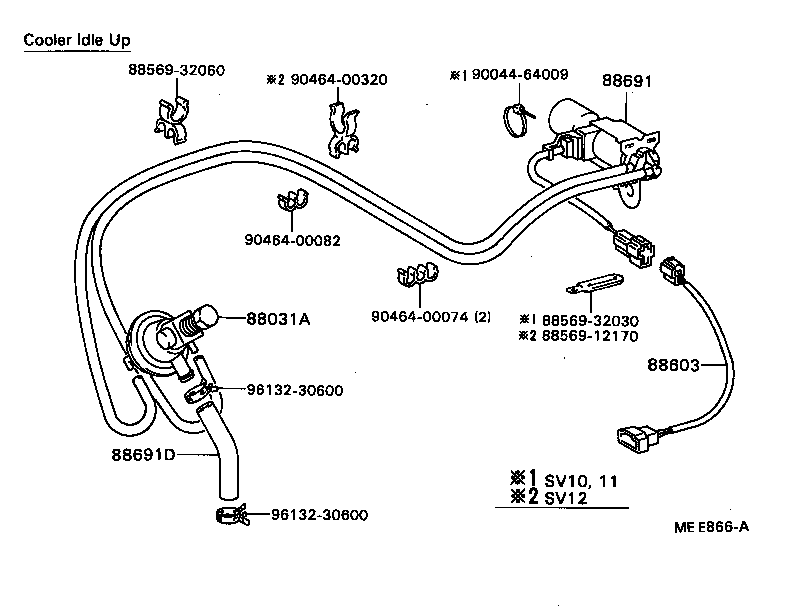

Click highlighted areas on diagram

diagram 88031A 8856912170 8856932030 8856932060 88603 88691 88691D 9004464009 9046400074 9046400082 9046400320 9613230600 9613230600
Part # Description Qty Price
88031A - DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR
88606-14020

SV1#

 1
88603 - WIRE, IDLE UP DEVICE
88605-32270

CV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX

W/*AAC

 1
88605-32260

CV1#,SV1#

 1
88605-32020

CV10,SV1#

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-32190

SV12

 1
88690-32200

SV12

W/*AAC

 1
Common parts
88569-12170
88569-32030
88569-32060
90044-64009
90464-00074
90464-00082
90464-00320
96132-30600
