SV12-UEMZF (1984)

Toyota Camry/Vista

Production Jun 1984 - Jul 1986
Engine 3SGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8406- )3SGELU

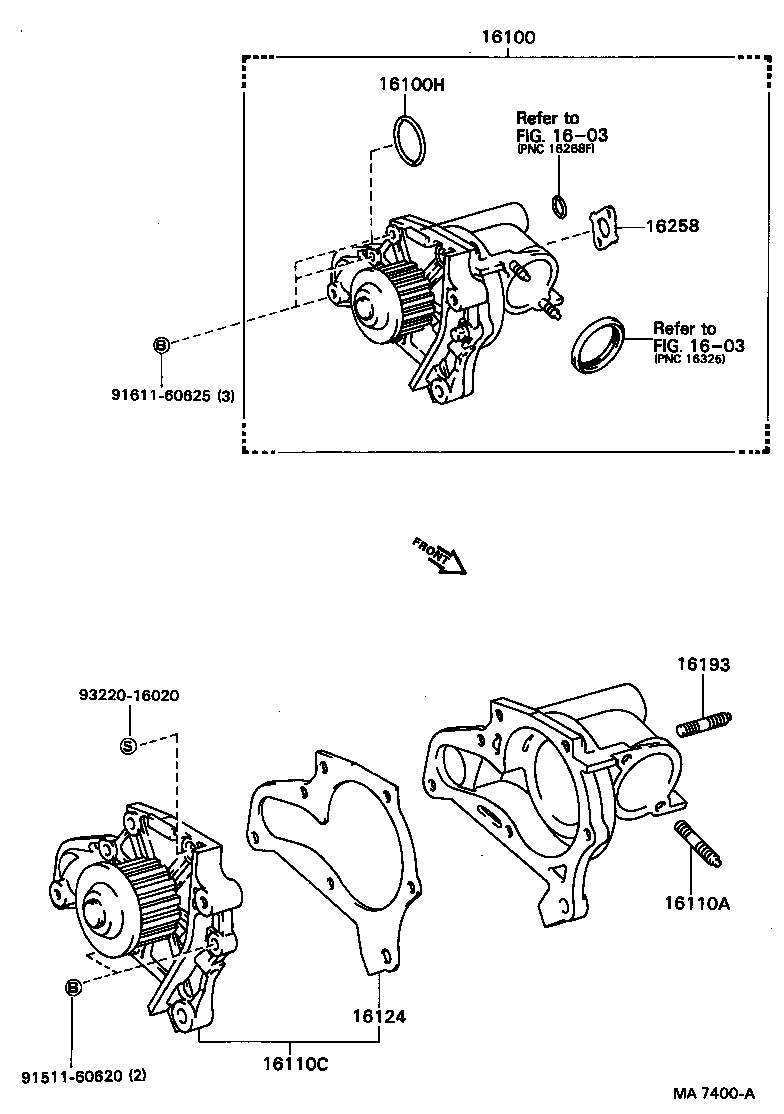

Click highlighted areas on diagram

diagram 1603 1603 16100 16100H 16110A 16110C 16124 16193 16258 9151160620 9161160625 9322016020
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-79045

3SGELU..SV12

 1
16100H - RING, O(FOR WATER PUMP)
90301-37005

3SGELU..SV12

 1
96711-24037

1S#,2SELU,3SGELU..SV1#

 1
16110A - BOLT, STUD(FOR WATER OUTLET SETTING)
16193-63010

1S#,2SELU,3SGELU..SV1#

 2
16110C - PUMP ASSY, WATER, W/O COVER
16110-79015

3SGELU..SV12

 1
16124 - GASKET, WATER PUMP COVER
16124-88360

3SGELU..SV12

 1
16193 - BOLT, STUD(FOR WATER PUMP COVER)
90029-01500

1SILU,2SELU,3SGELU..SV1#

 2
16258 - GASKET(FOR HEATER RETURN)
16258-15011

1S#,2SELU,3SGELU..SV1#

 1
Common parts
91511-60620
91611-60625
93220-16020
Linked diagrams
1603
