SV12-UEMZF (1984)

Toyota Camry/Vista

Production Jun 1984 - Jul 1986
Engine 3SGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8406- )3SGELU

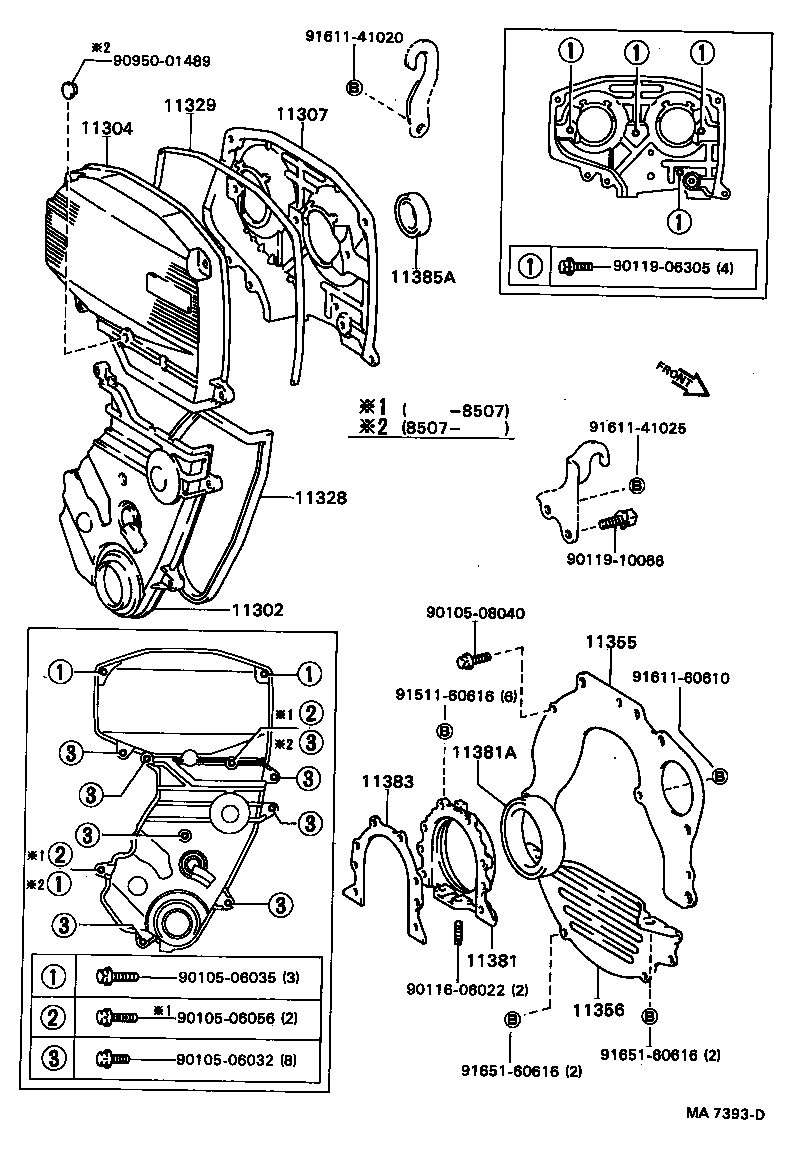

Click highlighted areas on diagram

diagram 11302 11304 11307 11328 11329 11355 11356 11381 11381A 11383 11385A 9010506032 9010506035 9010506056 9010508040 9011606022 9011906305 9011910066 9095001489 9151160616 9161141020 9161141025 9161160610 9165160616 9165160616
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-88360

3SGELU..SV12

 1
11304 - COVER, TIMING CHAIN OR BELT, NO.2
11322-88360

3SGELU..SV12

 1
11322-88361

3SGELU..SV12

 1
11307 - COVER, SUB-ASSY, TIMING BELT, NO.3
11323-88360

3SGELU..SV12

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-88360

3SGELU..SV12

 1
11328-88361

3SGELU..SV12

 1
11329 - GASKET, TIMING GEAR REAR COVER
11329-88360

3SGELU..SV12

 1
11355 - PLATE, REAR END
11355-63020

1S#,2SELU,3SGELU..SV1#

 1
11355-63021

1SILU,2SELU,3SGELU..SV1#

 1
11356 - PLATE, REAR END, NO.2
11356-63020

1S#,2SELU,3SGELU..SV1#

 1
11356-63030

1SILU,2SELU,3SGELU..SV1#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-63011

1SILU,2SELU,3SGELU..SV1#

 1
11381-63010

1S#,2SELU,3SGELU..SV1#

 1
11381A - SEAL, ENGINE REAR OIL
90311-85003

1S#,2SELU,3SGELU..SV1#

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-63010

1S#,2SELU,3SGELU..SV1#

 1
11385A - SEAL, OIL(FOR CAMSHAFT)
90311-35008

3SGELU..SV12

 2
Common parts
90105-06032
90105-06035
90105-06056
90105-08040
90116-06022
90119-06305
90119-10066
90950-01489
91511-60616
91611-41020
91611-41025
91611-60610
91651-60616
