SV12-UEMEF (1984)
Toyota Camry/Vista
(8406- )VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-32010 |
CV10,SV1# |
1 | ||
| 52021-32030 |
CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX W/*UB |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-32010 |
CV1#,SV1# |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52115-32010 |
CV1#,SV1# |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-3211002 |
CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX *UB,RED,RED,3D7 |
1 | ||
| 52119-3211001 |
SV12..VS,XS *UB,BLACK,BLACK,6A5 |
1 | ||
| 52119-3211005 |
CV10,SV1#..VF,VL,VR,VS,VX,XE,XT,ZE,ZX *UB,BEIGE-M,LIGHT BEIGE,4D2 ,2T0 |
1 | ||
| 52119-3211013 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX *UB,GRAY-M,MEDIUM GRAY METALLIC,157 |
1 | ||
| 52119-3211008 |
CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX *UB,WHITE,WHITE,041 |
1 | ||
| 52119-3211003 |
CV10,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX *UB,SILVER-M,SILVER METALLIC,148 |
1 | ||
| 52119-3211025 |
CV11,SV1#..VF,VL,VR,VS,VX,XE,XT,ZE,ZX *UB,BEIGE-M,BEIGE METALLIC,4E6 |
1 | ||
| 52422A - PAD, FRONT BUMPER, RH | ||||
| 52422-32010 |
CV1#,SV1# |
1 | ||
| 52423A - PAD, FRONT BUMPER, LH | ||||
| 52423-32010 |
CV1#,SV1# |
1 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52521-32040 |
CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX W/*UB |
1 | ||
| 52521-32010 |
CV10,SV1# |
1 | ||
| 52526A - RETAINER, FRONT BUMPER, LOWER NO.1 | ||||
| 52526-32030 |
CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX W/*UB |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-32010 |
SV1# |
1 | ||
| 52535-32020 |
CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX W/*UB |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52535-32010 |
SV1# |
1 | ||
| 52535-32020 |
CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX W/*UB |
1 | ||
| 52537 - RETAINER, FRONT BUMPER END, RH | ||||
| 52537-32020 |
CV10,SV1#..VIS |
1 | ||
| 52537-32030 |
CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX W/*UB |
1 | ||
| 52538 - RETAINER, FRONT BUMPER END, LH | ||||
| 52538-32020 |
CV10,SV1#..VIS |
1 | ||
| 52538-32030 |
CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX W/*UB |
1 | ||
| 52539 - RETAINER, FRONT BUMPER SIDE, NO.3 RH | ||||
| 52539-32010 |
CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX W/*UB |
1 | ||
| 52549 - RETAINER, FRONT BUMPER SIDE, NO.3 LH | ||||
| 52549-32010 |
CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX W/*UB |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-32020 |
CV10,SV1#..VIS |
1 | ||
| 52611-32050 |
CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX W/*UB |
1 | ||
| 52702 - MOULDING SUB-ASSY, FRONT BUMPER SIDE, RH | ||||
| 52702-32010 |
CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX W/*UB |
1 | ||
| 52703 - MOULDING SUB-ASSY, FRONT BUMPER SIDE, LH | ||||
| 52703-32010 |
CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX W/*UB |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-32010 |
CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX W/*UB |
1 | ||
| Common parts | ||||
| 90109-06061 | ||||
| 90119-06022 | ||||
| 90119-06099 | ||||
| 90119-06106 | ||||
| 90119-10085 | ||||
| 90159-60165 | ||||
| 90179-05012 | ||||
| 90179-05147 | ||||
| 90179-06068 | ||||
| 90189-06006 | ||||
| 90467-09030 | ||||
| 90468-04030 | ||||

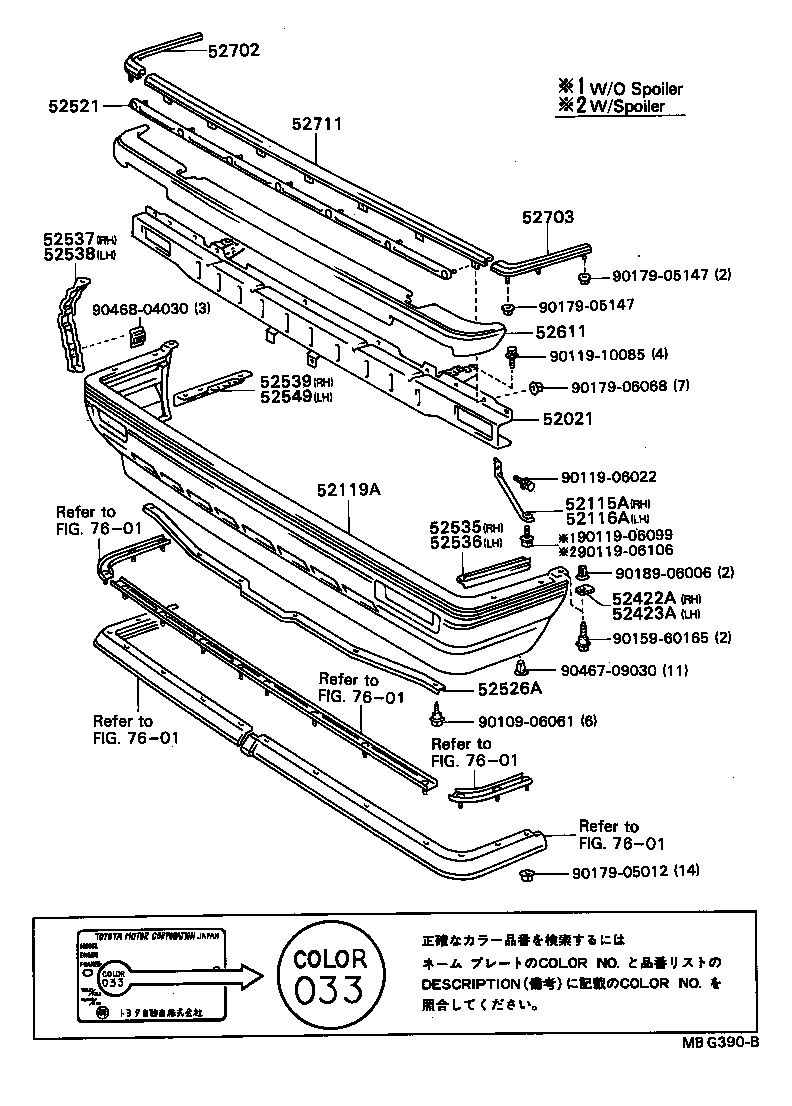

| Linked diagrams | ||||
| 7601 | ||||
