SV12-JEMZF (1984)
Toyota Camry/Vista
(8406- )

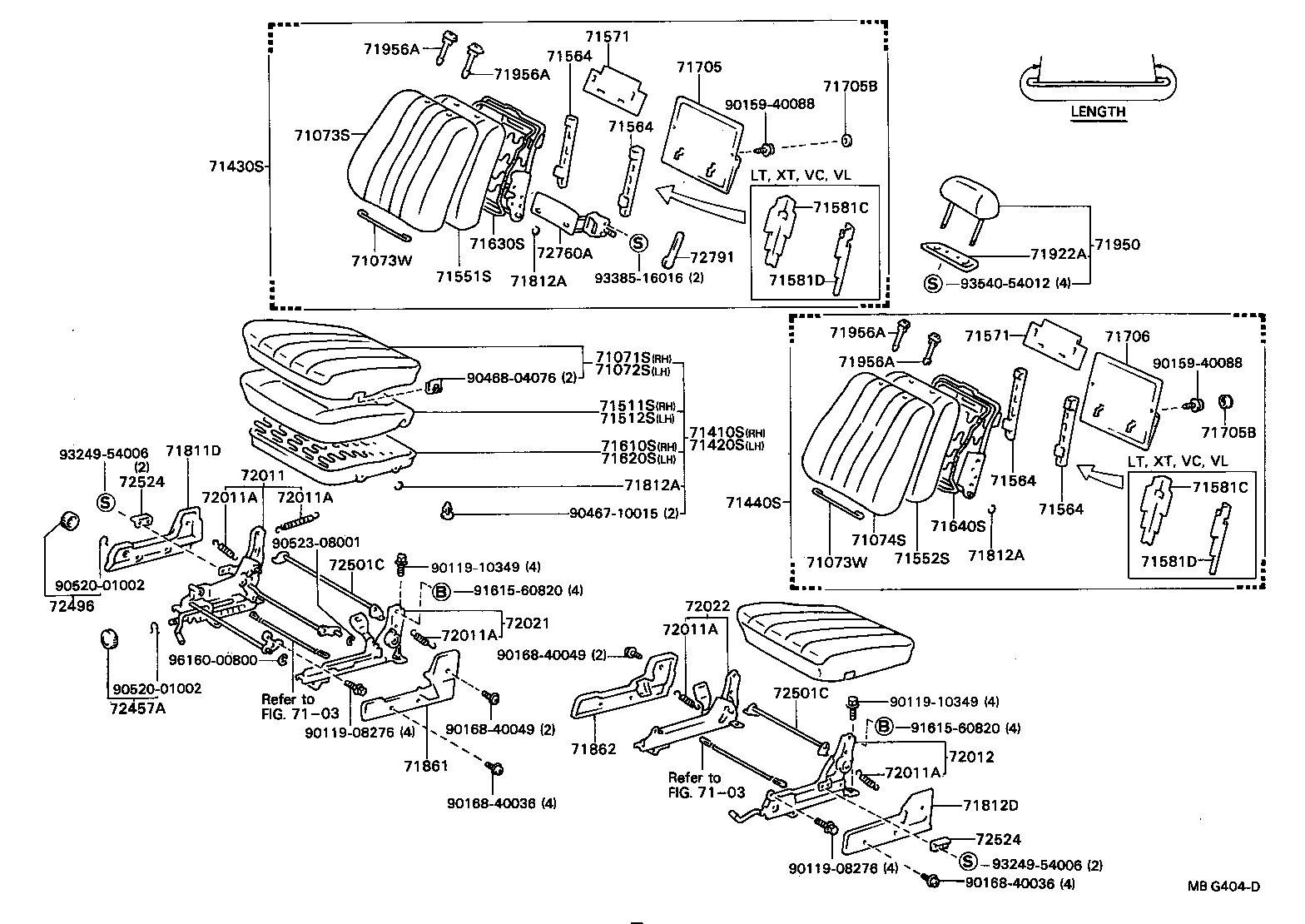

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-3204003 |
SV1#..ZX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-3204005 |
SV1#..ZX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-3204004 |
SV1#..ZX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-3218004 |
SV11,12..VX,ZX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-3218003 |
SV11,12..VX,ZX FB,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71071-3228005 |
SV12..ZX LIMITED,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-3218005 |
SV11,12..VX,ZX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-3201003 |
SV1#..ZX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71072-3201005 |
SV1#..ZX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71072-3201004 |
SV1#..ZX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-3217004 |
SV11,12..VX,ZX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-3217003 |
SV11,12..VX,ZX FB,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71072-3224005 |
SV12..ZX LIMITED,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71072-3217005 |
SV11,12..VX,ZX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-3204003 |
SV1#..ZX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-3204005 |
SV1#..ZX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-3204004 |
SV1#..ZX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-3218003 |
SV11,12..VX,ZX FB,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71073-3218004 |
SV11,12..VX,ZX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-3218005 |
SV11,12..VX,ZX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-3227005 |
SV12..ZX LIMITED,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20127 |
CV1#,SV1# WD=2.0,L=460 |
4 | ||
| 90580-20019 |
SV1#..VX,ZX WD=2.0,L=290 |
2 | ||
| 90580-20127 |
SV1#..VX,ZX WD=2.0,L=460 |
3 | ||
| 90580-29011 |
CV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX WD=2.9,L=330 |
2 | ||
| 71073W - WIRE, FRONT SEAT BACK COVER | ||||
| 90580-20127 |
CV1#,SV1# WD=2.0,L=460 |
4 | ||
| 90580-20019 |
SV1#..VX,ZX WD=2.0,L=290 |
2 | ||
| 90580-20127 |
SV1#..VX,ZX WD=2.0,L=460 |
3 | ||
| 90580-29011 |
CV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX WD=2.9,L=330 |
2 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-3201005 |
SV1#..ZX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71074-3201004 |
SV1#..ZX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-3201003 |
SV1#..ZX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-3218003 |
SV11,12..VX,ZX FB,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71073-3218004 |
SV11,12..VX,ZX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-3218005 |
SV11,12..VX,ZX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-3227005 |
SV12..ZX LIMITED,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-3204005 |
SV1#..ZX FB,BEIGE,BEIGE,TRIM1# |
1 | ||
| 71410-3204004 |
SV1#..ZX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-3204003 |
SV1#..ZX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-3221003 |
SV11,12..VX,ZX FB,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-3221004 |
SV11,12..VX,ZX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-3221005 |
SV11,12..VX,ZX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-3203005 |
SV1#..ZX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71420-3203003 |
SV1#..ZX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71420-3217003 |
SV11,12..VX,ZX FB,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-3203004 |
SV1#..ZX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-3217004 |
SV11,12..VX,ZX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-3217005 |
SV11,12..VX,ZX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-3204004 |
SV1#..ZX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-3204005 |
SV1#..ZX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430-3204003 |
SV1#..ZX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-3220004 |
SV11,12..VX,ZX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-3220003 |
SV11,12..VX,ZX FB,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-3220005 |
SV11,12..VX,ZX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-3202003 |
SV1#..ZX FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-3202005 |
SV1#..ZX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71440-3202004 |
SV1#..ZX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-3212003 |
SV11,12..VX,ZX FB,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-3212004 |
SV11,12..VX,ZX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-3212005 |
SV11,12..VX,ZX FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-32050 |
CV1#,SV1# |
1 | ||
| 71511-32020 |
SV1#..SE,VE,VF,VX,XE,ZX |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-32020 |
SV1#..SE,VE,VF,VX,XE,ZX |
1 | ||
| 71511-32060 |
CV1#,SV1# |
1 | ||
| 71511-32070 |
CV10,SV1# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-32030 |
SV1#..VX,ZX |
1 | ||
| 71551-32070 |
CV1#,SV1# |
1 | ||
| 71551-32060 |
CV10,SV1# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-32020 |
SV1#..SE,VE,VF,VX,XE,ZX |
1 | ||
| 71551-32060 |
CV10,SV1# |
1 | ||
| 71551-32070 |
CV1#,SV1# |
1 | ||
| 71564 - PAD, FRONT SEAT BACK, SIDE | ||||
| 71563-32020 |
CV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX RH |
2 | ||
| 71564-32020 |
CV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX LH |
2 | ||
| 71564 - PAD, FRONT SEAT BACK, SIDE | ||||
| 71563-32020 |
CV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX RH |
2 | ||
| 71564-32020 |
CV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX LH |
2 | ||
| 71564 - PAD, FRONT SEAT BACK, SIDE | ||||
| 71563-32020 |
CV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX RH |
2 | ||
| 71564-32020 |
CV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX LH |
2 | ||
| 71564 - PAD, FRONT SEAT BACK, SIDE | ||||
| 71563-32020 |
CV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX RH |
2 | ||
| 71564-32020 |
CV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX LH |
2 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-24010 |
CV1#,SV1# |
2 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-24010 |
CV1#,SV1# |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-32020 |
CV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX |
1 | ||
| 71610-32020 |
CV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-32010 |
CV1#,SV1# |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-32050 |
SV1#..VR,VX,ZE,ZX |
1 | ||
| 71630-32030 |
SV1#..VX,ZX |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-32060 |
CV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX |
1 | ||
| 71630-32010 |
CV10,SV1# |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-3207003 |
SV11,12..VX,ZX SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71705-3207004 |
SV11,12..VX,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 71705-3210005 |
SV12..ZX LIMITED,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71705-3207005 |
SV11,12..VX,ZX BEIGE,BEIGE,TRIM4# |
1 | ||
| 71705B - CAP(FOR FRONT SEAT BACK BOARD) | ||||
| 90339-1000135 |
CV1#,SV1#..VF,VR,VX,XE,ZE,ZX BEIGE,BEIGE,TRIM4# |
4 | ||
| 90339-1000104 |
CV1#,SV1#..VF,VR,VX,XE,ZE,ZX BLUE,BLUE,TRIM8# |
4 | ||
| 90339-1000103 |
CV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX GRAY,GRAY,TRIM1# |
4 | ||
| 71705B - CAP(FOR FRONT SEAT BACK BOARD) | ||||
| 90339-1000135 |
CV1#,SV1#..VF,VR,VX,XE,ZE,ZX BEIGE,BEIGE,TRIM4# |
4 | ||
| 90339-1000104 |
CV1#,SV1#..VF,VR,VX,XE,ZE,ZX BLUE,BLUE,TRIM8# |
4 | ||
| 90339-1000103 |
CV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX GRAY,GRAY,TRIM1# |
4 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-3210005 |
SV12..ZX LIMITED,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71705-3207004 |
SV11,12..VX,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 71705-3207003 |
SV11,12..VX,ZX SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71705-3207005 |
SV11,12..VX,ZX BEIGE,BEIGE,TRIM4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-3202006 |
CV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX BROWN,BROWN,TRIM4# |
1 | ||
| 71811-3202004 |
CV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 71811-3202003 |
CV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX GRAY,GRAY,TRIM1# |
1 | ||
| 71811-3202005 |
CV1#,SV1#..VF,VR,VX,XE,ZE,ZX BEIGE,BEIGE,TRIM4# |
1 | ||
| 71811-3202013 |
CV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71811-3202004 |
CV1#,SV1#..VF,VR,VX,XE,ZE,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
CV1#,SV1# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
CV1#,SV1# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
CV1#,SV1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-3201004 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 71812-3201003 |
CV10,SV1# GRAY,GRAY,TRIM1# |
1 | ||
| 71812-3201006 |
CV10,SV1# BROWN,BROWN,TRIM4# |
1 | ||
| 71812-3201004 |
CV10,SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 71812-3201013 |
CV1#,SV1# SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71812-3201005 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX BEIGE,BEIGE,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-3202003 |
SV1#..VX,ZX GRAY,GRAY,TRIM1# |
1 | ||
| 71861-3201004 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 71861-3201005 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX BEIGE,BEIGE,TRIM4# |
1 | ||
| 71861-3201013 |
CV1#,SV1# SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71861-3202006 |
SV1#..VX,ZX BROWN,BROWN,TRIM4# |
1 | ||
| 71861-3202004 |
SV1#..VX,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-3201006 |
CV10,SV1# BROWN,BROWN,TRIM4# |
1 | ||
| 71862-3201004 |
CV10,SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 71862-3201013 |
CV1#,SV1# SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 71862-3201003 |
CV10,SV1# GRAY,GRAY,TRIM1# |
1 | ||
| 71862-3201004 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 71862-3201005 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX BEIGE,BEIGE,TRIM4# |
1 | ||
| 71922A - COVER, FRONT SEAT HEADREST UNDER | ||||
| 71922-3201004 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX BLUE,BLUE,TRIM8# |
2 | ||
| 71922-3201013 |
SV1#..VR,VX,ZE,ZX GRAY,GRAY,TRIM1# |
2 | ||
| 71922-3201006 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX BROWN,BROWN,TRIM4# |
2 | ||
| 71922-3201003 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX GRAY,GRAY,TRIM1# |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3203004 |
SV1#..ZX RH,BLUE,BLUE,TRIM8# |
1 | ||
| 71910-3203005 |
SV1#..ZX RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71920-3201003 |
SV1#..ZX LH,GRAY,GRAY,TRIM1# |
1 | ||
| 71910-3203003 |
SV1#..ZX RH,GRAY,GRAY,TRIM1# |
1 | ||
| 71920-3201004 |
SV1#..ZX LH,BLUE,BLUE,TRIM8# |
1 | ||
| 71920-3201005 |
SV1#..ZX LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71910-3216003 |
SV11,12..VX,ZX SHADOW GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 71910-3219005 |
SV12..ZX LIMITED,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71910-3216004 |
SV11,12..VX,ZX BLUE,BLUE,TRIM8# |
2 | ||
| 71910-3216005 |
SV11,12..VX,ZX BEIGE,BEIGE,TRIM4# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001004 |
CV10,SV1# ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001025 |
CV10,SV1# ﾛｯｸ無,W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006004 |
CV10,SV1# ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001013 |
CV1#,SV1# ﾛｯｸ無,W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71931-1001004 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006013 |
CV1#,SV1# ﾛｯｸ付,W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1006016 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX ﾛｯｸ付,W/LOCK,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71930-1006025 |
CV10,SV1# ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001016 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX ﾛｯｸ無,W/O LOCK,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71930-1006004 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001004 |
CV10,SV1# ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001025 |
CV10,SV1# ﾛｯｸ無,W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006004 |
CV10,SV1# ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001013 |
CV1#,SV1# ﾛｯｸ無,W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71931-1001004 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006013 |
CV1#,SV1# ﾛｯｸ付,W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1006016 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX ﾛｯｸ付,W/LOCK,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71930-1006025 |
CV10,SV1# ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001016 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX ﾛｯｸ無,W/O LOCK,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71930-1006004 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001004 |
CV10,SV1# ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001025 |
CV10,SV1# ﾛｯｸ無,W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006004 |
CV10,SV1# ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001013 |
CV1#,SV1# ﾛｯｸ無,W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71931-1001004 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006013 |
CV1#,SV1# ﾛｯｸ付,W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1006016 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX ﾛｯｸ付,W/LOCK,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71930-1006025 |
CV10,SV1# ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001016 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX ﾛｯｸ無,W/O LOCK,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71930-1006004 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-1001004 |
CV10,SV1# ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001025 |
CV10,SV1# ﾛｯｸ無,W/O LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006004 |
CV10,SV1# ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001013 |
CV1#,SV1# ﾛｯｸ無,W/O LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71931-1001004 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006013 |
CV1#,SV1# ﾛｯｸ付,W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71930-1006016 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX ﾛｯｸ付,W/LOCK,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71930-1006025 |
CV10,SV1# ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001016 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX ﾛｯｸ無,W/O LOCK,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71930-1006004 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-32020 |
CV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX |
1 | ||
| 72011-32040 |
CV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-35001 |
CV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX WD=3.5 |
1 | ||
| 90506-35001 |
CV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX WD=3.5 |
1 | ||
| 90506-14039 |
CV1#,SV1# WD=1.4 |
4 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-35001 |
CV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX WD=3.5 |
1 | ||
| 90506-35001 |
CV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX WD=3.5 |
1 | ||
| 90506-14039 |
CV1#,SV1# WD=1.4 |
4 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-35001 |
CV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX WD=3.5 |
1 | ||
| 90506-35001 |
CV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX WD=3.5 |
1 | ||
| 90506-14039 |
CV1#,SV1# WD=1.4 |
4 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-35001 |
CV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX WD=3.5 |
1 | ||
| 90506-35001 |
CV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX WD=3.5 |
1 | ||
| 90506-14039 |
CV1#,SV1# WD=1.4 |
4 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-35001 |
CV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX WD=3.5 |
1 | ||
| 90506-35001 |
CV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX WD=3.5 |
1 | ||
| 90506-14039 |
CV1#,SV1# WD=1.4 |
4 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-32040 |
CV1#,SV1# |
1 | ||
| 72012-32010 |
CV10,SV1# |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-32050 |
CV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX |
1 | ||
| 72021-32020 |
CV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-32010 |
CV10,SV1# |
1 | ||
| 72022-32040 |
CV1#,SV1# |
1 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72496-3201003 |
CV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX GRAY,GRAY,TRIM1# |
1 | ||
| 72496-3201005 |
CV1#,SV1#..VF,VR,VX,XE,ZE,ZX BEIGE,BEIGE,TRIM4# |
1 | ||
| 72496-3201004 |
CV1#,SV1#..VF,VR,VX,XE,ZE,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 72496-3201006 |
CV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX BROWN,BROWN,TRIM4# |
1 | ||
| 72496-3201023 |
CV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 72496-3201004 |
CV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 72496 - KNOB, VERTICAL SEAT ADJUSTER, NO.2 | ||||
| 72457-1403003 |
CV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX GRAY,GRAY,TRIM1# |
1 | ||
| 72457-1403004 |
CV1#,SV1#..VF,VR,VX,XE,ZE,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 72457-1403016 |
CV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX BROWN,BROWN,TRIM4# |
1 | ||
| 72457-1403035 |
CV1#,SV1#..VF,VR,VX,XE,ZE,ZX BEIGE,BEIGE,TRIM4# |
1 | ||
| 72457-1403023 |
CV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 72457-1403004 |
CV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-32010 |
CV1#,SV1# |
2 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-32010 |
CV1#,SV1# |
2 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-2005053 |
CV1#,SV1# RH,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 72526-2004026 |
CV10,SV1# LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72526-2004024 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-2005026 |
CV10,SV1# RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72525-2005024 |
CV10,SV1# RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-2004013 |
CV10,SV1# LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-2005013 |
CV10,SV1# RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-2004053 |
CV1#,SV1# LH,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 72526-2004024 |
CV10,SV1# LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-2005055 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72526-2004055 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72525-2005024 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-2005053 |
CV1#,SV1# RH,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 72526-2004026 |
CV10,SV1# LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72526-2004024 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-2005026 |
CV10,SV1# RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72525-2005024 |
CV10,SV1# RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-2004013 |
CV10,SV1# LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72525-2005013 |
CV10,SV1# RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-2004053 |
CV1#,SV1# LH,SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 72526-2004024 |
CV10,SV1# LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-2005055 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72526-2004055 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 72525-2005024 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72760A - ADJUSTER ASSY, LUMBAR SUPPORT | ||||
| 72750-32010 |
SV10..SE,VE,VR,VX,ZE,ZX;CV10,SV11,12..VF,VX,XE,ZX |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-2202016 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX BROWN,BROWN,TRIM4# |
1 | ||
| 72791-2202025 |
SV1#..VR,VX,ZE,ZX BEIGE,BEIGE,TRIM4# |
1 | ||
| 72791-2202004 |
SV10..SE,VE,VR,VX,ZE,ZX;CV10,SV11,12..VF,VX,XE,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 72791-2202003 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX GRAY,GRAY,TRIM1# |
1 | ||
| 72791-2202023 |
SV1#..VR,VX,ZE,ZX SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08276 | ||||
| 90119-10349 | ||||
| 90159-40088 | ||||
| 90168-40036 | ||||
| 90168-40049 | ||||
| 90467-10015 | ||||
| 90468-04076 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 91615-60820 | ||||
| 93249-54006 | ||||
| 93385-16016 | ||||
| 93540-54012 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 7103 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
