SV12-JEMEF (1984)

Toyota Camry/Vista

Production Jun 1984 - Jul 1986
Engine 3SGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8406- )VS,XS ; (8406- )5F..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX

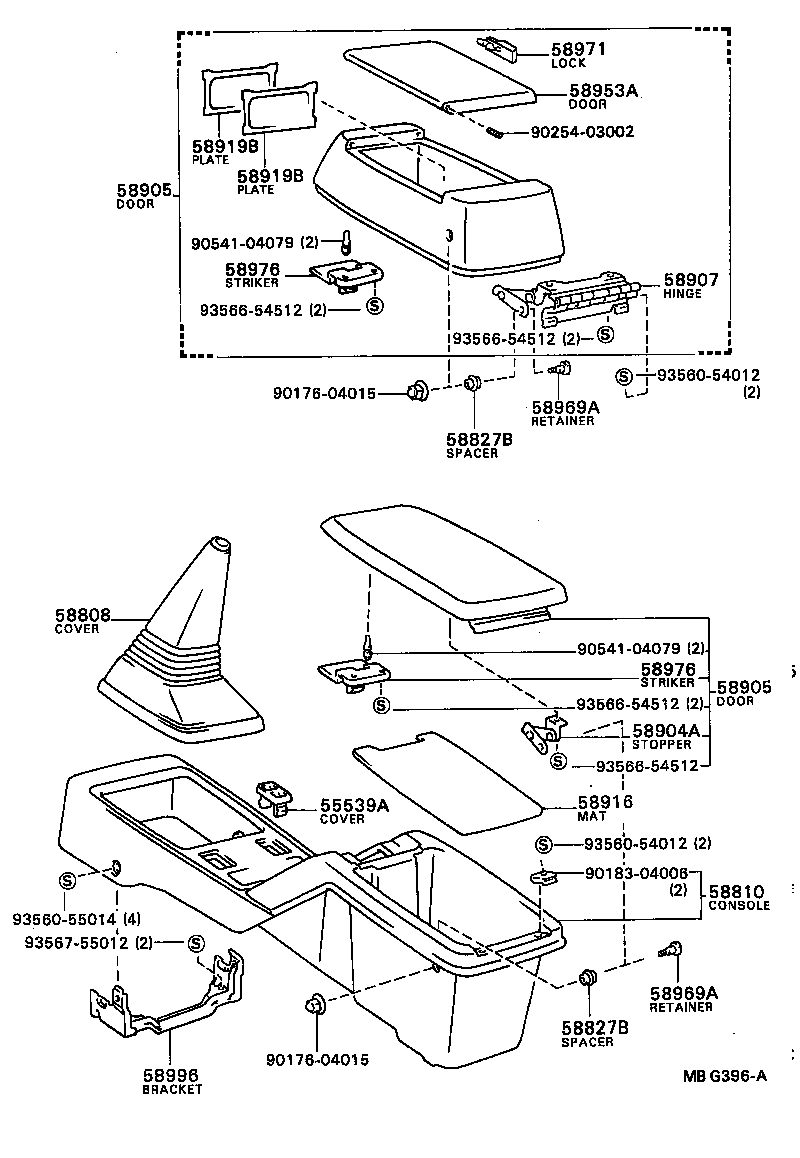

Click highlighted areas on diagram

diagram 55539A 58808 58810 58827B 58827B 58904A 58905 58905 58907 58916 58919B 58919B 58953A 58969A 58969A 58971 58976 58976 58996 9017604015 9017604015 9018304006 9025403002 9054104079 9054104079 9356054012 9356054012 9356055014 9356654512 9356654512 9356654512 9356654512 9356755012
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-3201001

SV1#

BLACK,BLACK,TRIM1#,8#

 2
55539-1403113

CV1#,SV1#

SHADOW GRAY,GRAY,TRIM1#

 2
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-3201006

SV1#..5F

DEEP BROWN,BROWN,TRIM4#

 1
58808-3201001

SV1#..5F

BLACK,BLACK,TRIM1#,8#

 1
58808-3201013

CV1#,SV1#..5F

GRAY,SHADOW GRAY,TRIM1#

 1
58810 - CONSOLE ASSY
58801-3201004

SV1#

BLUE,BLUE,TRIM8#

 1
58801-3201003

SV1#

GRAY,GRAY,TRIM1#

 1
58801-3201006

SV1#

BROWN,BROWN,TRIM4#

 1
58801-3201023

CV1#,SV1#..5F

SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
58827B - SPACER, CONSOLE COMPARTMENT DOOR STOPPER
58827-20021

CV1#,SV1#

 2
58827B - SPACER, CONSOLE COMPARTMENT DOOR STOPPER
58827-20021

CV1#,SV1#

 2
58904A - STOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR
58909-32010

CV1#,SV1#..5F..(LT,VC,VF,VL,VS,XE,XS,XT)

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-3201013

CV1#,SV1#..5F..(LT,VC,VF,VL,VS,XE,XS,XT)

SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-3201013

CV1#,SV1#..5F..(LT,VC,VF,VL,VS,XE,XS,XT)

SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
58969A - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER
58969-20010

CV1#,SV1#

 2
58969A - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER
58969-20010

CV1#,SV1#

 2
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-20010

CV1#,SV1#

 1
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-20010

CV1#,SV1#

 1
58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-32010

CV1#,SV1#..5F

 1
Common parts
90176-04015
90183-04006
90254-03002
90541-04079
93560-54012
93560-55014
93566-54512
93567-55012
