SV12-JEMEF (1984)

Toyota Camry/Vista

Production Jun 1984 - Jul 1986
Engine 3SGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8406- )SV12..5F

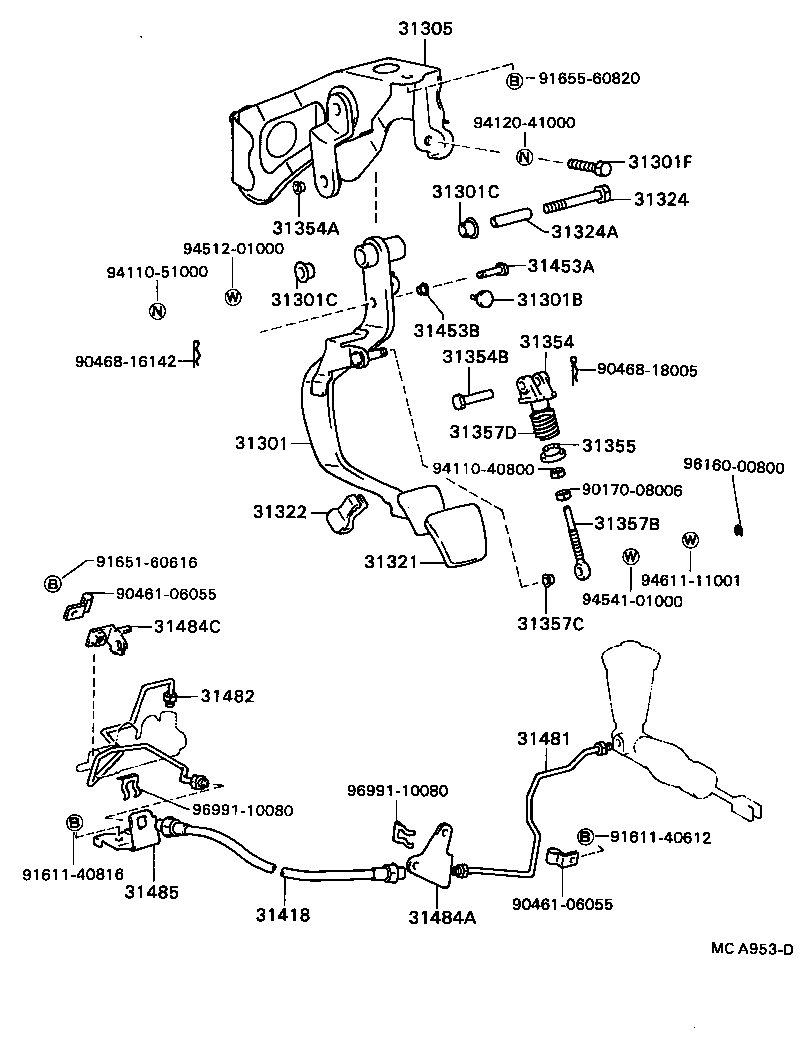

Click highlighted areas on diagram

diagram 31301 31301B 31301C 31301C 31301F 31305 31321 31322 31324 31324A 31354 31354A 31354B 31355 31357B 31357C 31357D 31418 31453A 31453B 31481 31482 31484A 31484C 31485 9017008006 9046106055 9046106055 9046816142 9046818005 9161140612 9161140816 9165160616 9165560820 9411040800 9411051000 9412041000 9451201000 9454101000 9461111001 9616000800 9699110080 9699110080
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-32030

SV12..5F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-07020

SV12..5F

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

CV1#,SV1#..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

CV1#,SV1#..5F

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

CV1#,SV1#..5F

 1
31305 - BRACKET SUB-ASSY, CLUTCH PEDAL
55107-32030

SV12..5F

 1
31321 - PAD, CLUTCH PEDAL
31321-14010

SV1#..5F

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10273

SV12..5F

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

CV1#,SV1#..5F

 1
31354 - SEAT, CLUTCH PEDAL SPRING, UPPER
31354-32010

SV12..5F

 1
31354A - BUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)
90386-10019

SV12..5F

 1
31354B - PIN, W/HOLE(FOR CLUTCH PEDAL SPRING SEAT UPPER)
90240-10026

SV12..5F

 1
31355 - SEAT, CLUTCH PEDAL SPRING, LOWER
31355-32010

SV12..5F

 1
31357B - ROD, OVER CENTER ADJUSTING
31357-32010

SV12..5F

 1
31357C - BUSH(FOR OVER CENTER ADJUSTING ROD)
90386-10019

SV12..5F

 1
31357D - SPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD)
90501-50008

SV12..5F

 1
31418 - HOSE, CLUTCH
31418-32010

SV1#..5F

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08018

CV10,SV1#..5F

長さ=29.5

 1
90249-08143

CV1#,SV1#..5F

長さ=30

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

CV1#,SV1#..5F

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-32010

CV10,SV1#..5F

 1
31481-32030

CV1#,SV1#..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-32020

CV11,SV1#..5F

 1
31482-32010

CV10,SV1#..5F

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-32010

CV1#,SV1#..5F

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-32050

CV11,SV1#..5F

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-32020

CV1#,SV1#..5F

 1
Common parts
90170-08006
90461-06055
90468-16142
90468-18005
91611-40612
91611-40816
91651-60616
91655-60820
94110-40800
94110-51000
94120-41000
94512-01000
94541-01000
94611-11001
96160-00800
96991-10080
