SV11-UHPNE (1982)

Toyota Camry/Vista

Production Aug 1982 - Jun 1984
Engine 2SELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )5D

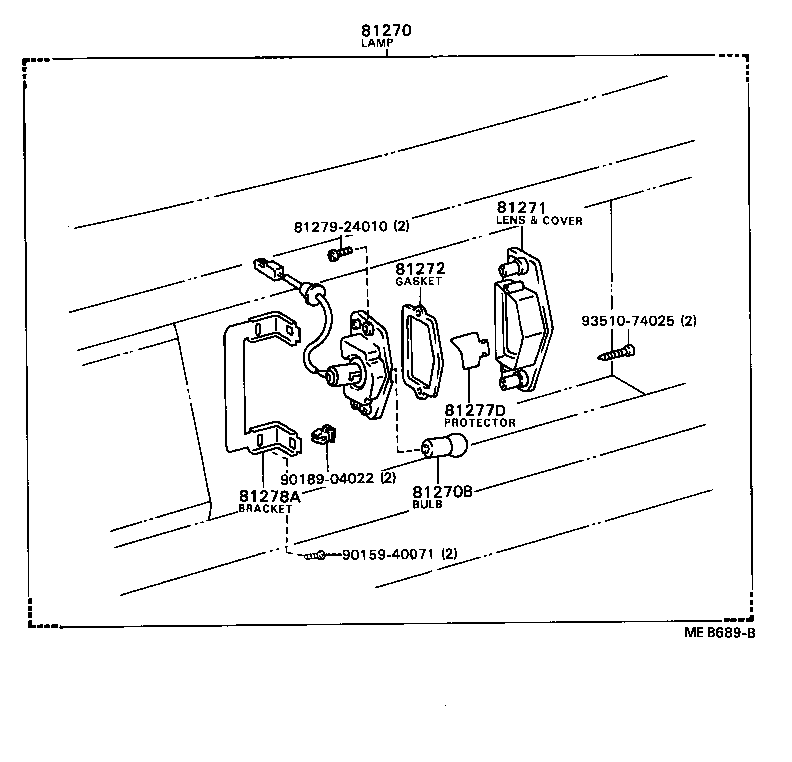

Click highlighted areas on diagram

diagram 81270 81270B 81271 81272 81277D 81278A 8127924010 9015940071 9018904022 9351074025
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-39355

CV10,SV1#..SE,XE,ZX

RH

 1
81690-39055

CV10,SV1#..SE,XE,ZX

LH

 1
81270-39335

CV10,SV1#..5D

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
90981-12013

CV10,SV1#

12V 10W,12V 10W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-32030

CV10,SV1#..5D

 2
81271-32050

CV10,SV1#..SE,XE,ZX

RH

 1
81271-16151

CV10,SV1#..5D

 2
81691-32050

CV10,SV1#..SE,XE,ZX

LH

 1
Common parts
81279-24010
90159-40071
90189-04022
93510-74025
