SV11-UHPNE (1982)

Toyota Camry/Vista

Production Aug 1982 - Jun 1984
Engine 2SELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )5D

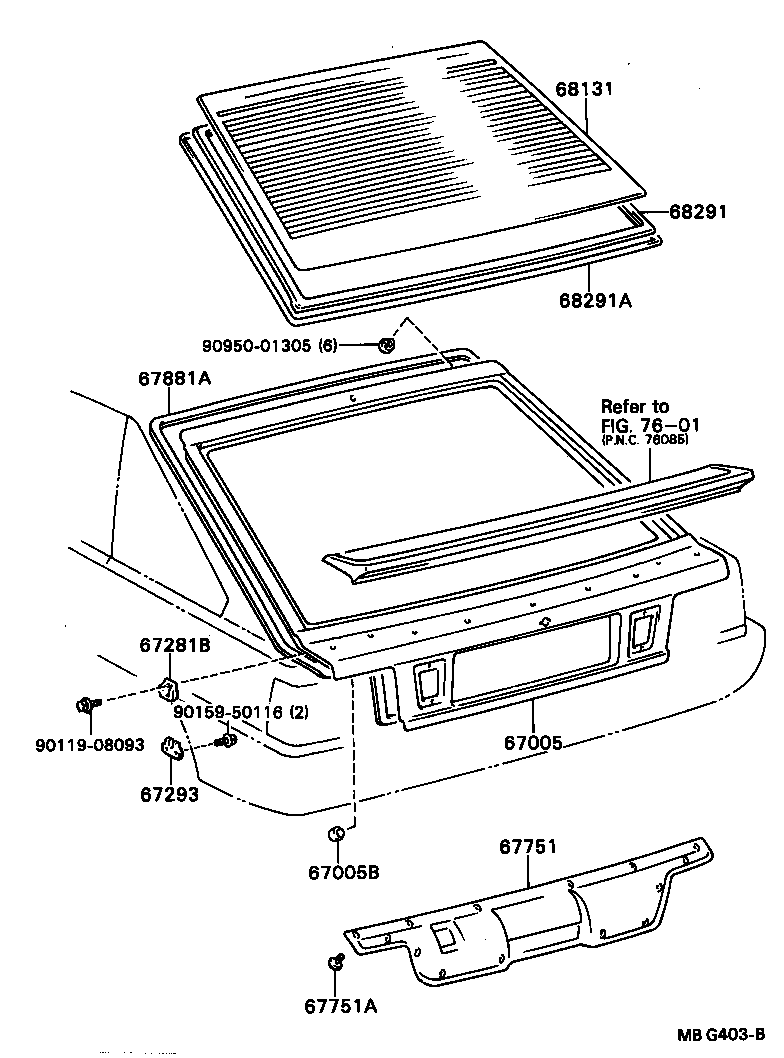

Click highlighted areas on diagram

diagram 67005 67005B 67281B 67293 67751 67751A 67881A 68131 68291 68291A 7601 9011908093 9015950116 9095001305
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67005-32020

CV10,SV11..5D

 1
67751 - BOARD, BACK DOOR TRIM
64781-3201006

CV10,SV1#..5D

BROWN,BROWN,TRIM4#

 1
64781-3201004

CV10,SV1#..5D

BLUE,BLUE,TRIM8#

 1
64781-3201003

CV10,SV1#..5D

GRAY,GRAY,TRIM1#

 1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-0601723

CV10,SV1#..5D

GRAY,GRAY,TRIM1#

 14
90467-0601714

CV10,SV1#..5D

BLUE,BLUE,TRIM8#

 14
90467-0601726

CV10,SV1#..5D

BROWN,BROWN,TRIM4#

 14
Common parts
90119-08093
90159-50116
90950-01305
Linked diagrams
7601
