SV11-UHPNE (1982)
Toyota Camry/Vista

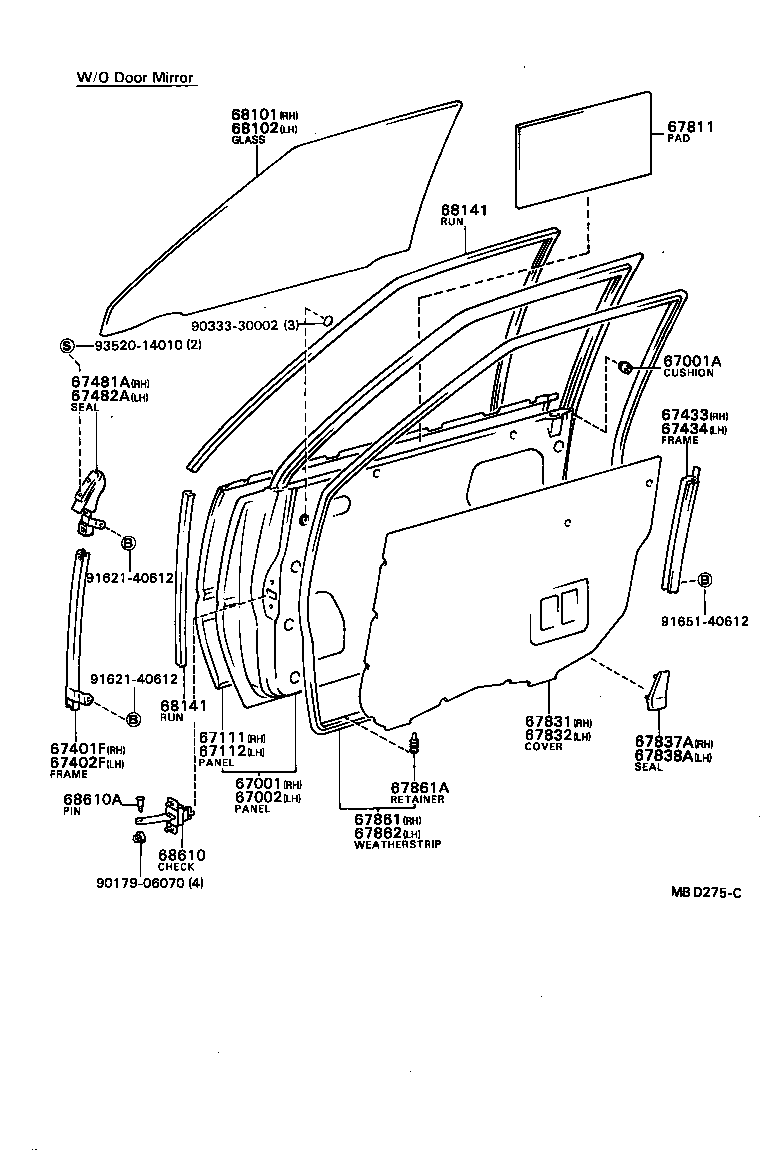

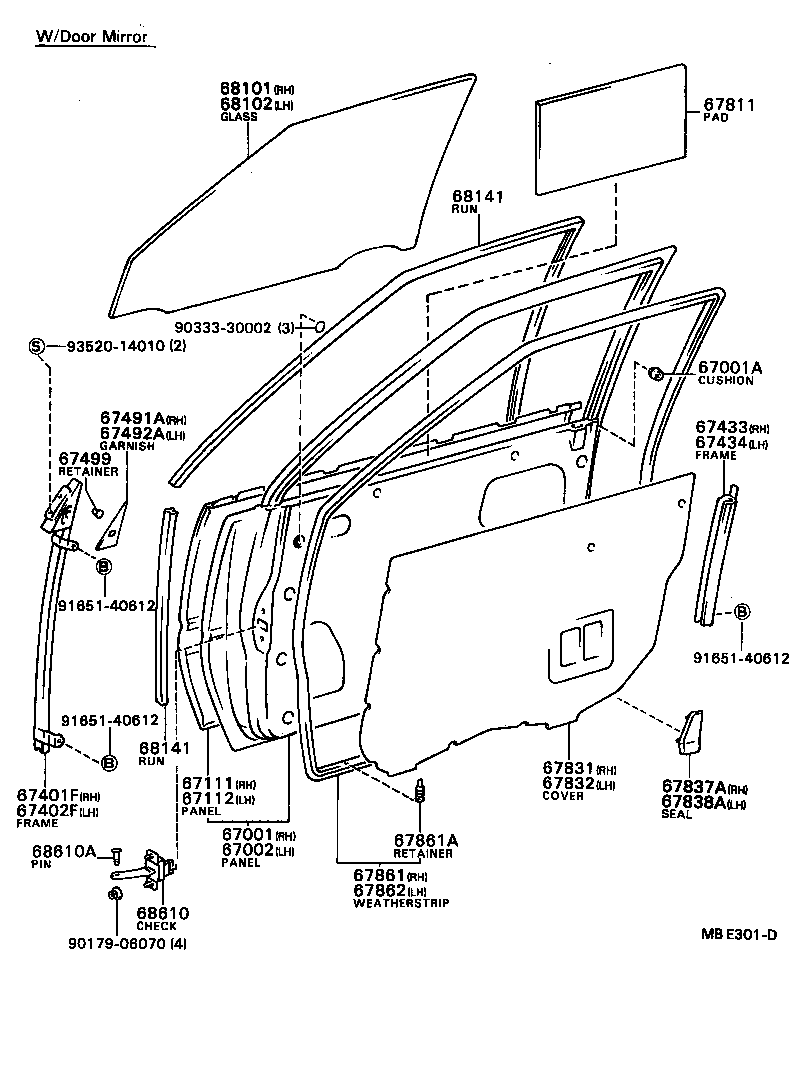

ILLUST NO. 1 OF 2(8203-8406)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09006 |
CV1#,SV1# |
4 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-32010 |
CV1#,SV1# |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-32010 |
CV1#,SV1# |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-32010 |
CV10,SV1# W/O DOOR MIRROR |
1 | ||
| 67401-32051 |
CV10,SV1#..5D W/DOOR MIRROR |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-32010 |
CV10,SV1# W/O DOOR MIRROR |
1 | ||
| 67402-32051 |
CV10,SV1#..5D W/DOOR MIRROR |
1 | ||
| 67433 - FRAME, FRONT DOOR WINDOW, REAR LOWER RH | ||||
| 67433-32010 |
CV1#,SV1# |
1 | ||
| 67434 - FRAME, FRONT DOOR WINDOW, REAR LOWER LH | ||||
| 67434-32010 |
CV1#,SV1# |
1 | ||
| 67481A - SEAL, FRONT DOOR FRONT LOWER FRAME, RH | ||||
| 67481-32020 |
CV10,SV1#..5D W/O DOOR MIRROR |
1 | ||
| 67482A - SEAL, FRONT DOOR FRONT LOWER FRAME, LH | ||||
| 67482-32020 |
CV10,SV1#..5D W/O DOOR MIRROR |
1 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67811-32010 |
CV1#,SV1# |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-32010 |
SV1# |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-32010 |
SV1# |
1 | ||
| 67832-32030 |
CV10,SV1# COLD SPEC |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-32030 |
CV10,SV1#..5D |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67868-30040 |
CV1#,SV1# |
40 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-32030 |
CV10,SV1#..5D |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-32050 |
CV10,SV1#..5D W/O *DM,*TT,T=4.0 |
1 | ||
| 68111-32070 |
CV10,SV1#..5D W/*DM,*TT,T=4.0 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-32050 |
CV10,SV1#..5D W/O *DM,*TT,T=4.0 |
1 | ||
| 68112-32070 |
CV10,SV1#..5D W/*DM,*TT,T=4.0 |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68143-20050 |
CV10,SV1# W/O DOOR MIRROR,SHORT |
2 | ||
| 68143-14020 |
CV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX W/DOOR MIRROR,SHORT |
2 | ||
| 68143-32020 |
CV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX W/DOOR MIRROR,SHORT |
2 | ||
| 68141-32040 |
CV10,SV1#..5D W/DOOR MIRROR,LONG |
2 | ||
| 68141-32030 |
CV10,SV1#..5D W/O DOOR MIRROR,LONG |
2 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68143-20050 |
CV10,SV1# W/O DOOR MIRROR,SHORT |
2 | ||
| 68143-14020 |
CV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX W/DOOR MIRROR,SHORT |
2 | ||
| 68143-32020 |
CV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX W/DOOR MIRROR,SHORT |
2 | ||
| 68141-32040 |
CV10,SV1#..5D W/DOOR MIRROR,LONG |
2 | ||
| 68141-32030 |
CV10,SV1#..5D W/O DOOR MIRROR,LONG |
2 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-32010 |
CV10,SV1# |
2 | ||
| 68610A - PIN(FOR FRONT DOOR CHECK) | ||||
| 68617-22010 |
CV10,SV1# |
2 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90333-30002 | ||||
| 91621-40612 | ||||
| 91651-40612 | ||||
| 93520-14010 | ||||

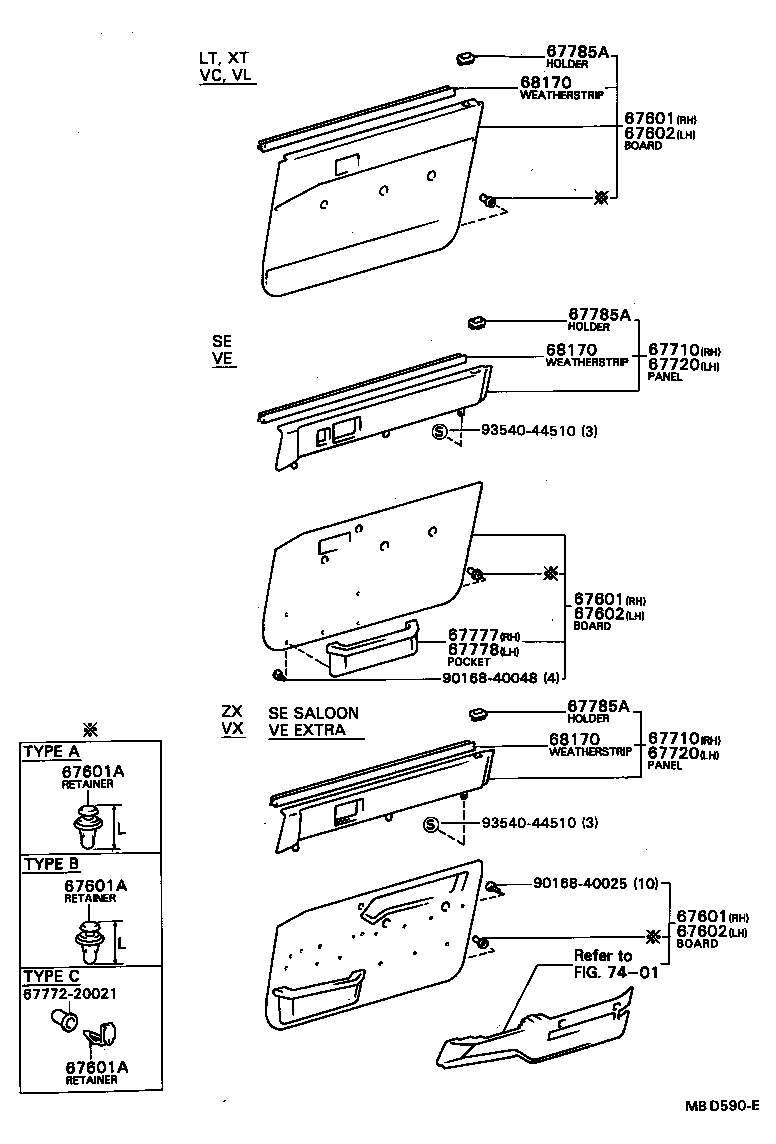

ILLUST NO. 2 OF 2(8203-8406)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-3203005 |
SV1#..SE,VE,VF,XE W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3290004 |
SV1#..SE,VE,VF,XE W/POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3203004 |
SV1#..SE,VE,VF,XE W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3290003 |
SV1#..SE,VE,VF,XE W/POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3216004 |
CV10,SV1#..SE,XE SALOON,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3203003 |
SV1#..SE,VE,VF,XE W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3218006 |
CV10,SV1#..SE,VE,VF,XE W/POWER WINDOW,BROWN,BROWN,TRIM4# |
1 | ||
| 67610-3202103 |
SV1#..VL,XT W/O DOOR MIRROR,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3290005 |
SV1#..SE,VE,VF,XE W/POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3216003 |
CV10,SV1#..SE,XE SALOON,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3218003 |
CV10,SV1#..SE,VE,VF,XE W/POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3218004 |
CV10,SV1#..SE,VE,VF,XE W/POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3220006 |
SV1#..VL,XT W/DOOR MIRROR,BROWN,BROWN,TRIM4# |
1 | ||
| 67610-3202104 |
SV1#..VL,XT W/O DOOR MIRROR,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3214003 |
SV1#..VL W/O DOOR MIRROR,EXTRA,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3217004 |
CV10,SV1#..SE,VE,VF,XE W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3202106 |
SV1#..VL,XT W/O DOOR MIRROR,BROWN,BROWN,TRIM4# |
1 | ||
| 67610-3217003 |
CV10,SV1#..SE,VE,VF,XE W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3217006 |
CV10,SV1#..SE,VE,VF,XE W/O POWER WINDOW,BROWN,BROWN,TRIM4# |
1 | ||
| 67610-3222003 |
SV1#..VL W/DOOR MIRROR,EXTRA,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3220004 |
SV1#..VL,XT W/DOOR MIRROR,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3220003 |
SV1#..VL,XT W/DOOR MIRROR,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3222004 |
SV1#..VL W/DOOR MIRROR,EXTRA,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3290306 |
CV10,SV1#..SE,VE,VF,XE W/POWER WINDOW,BROWN,BROWN,TRIM4# |
1 | ||
| 67610-3214004 |
SV1#..VL W/O DOOR MIRROR,EXTRA,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3290403 |
CV10,SV1#..SE,XE SALOON,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3290404 |
CV10,SV1#..SE,XE SALOON,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3290304 |
CV10,SV1#..SE,VE,VF,XE W/POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3290303 |
CV10,SV1#..SE,VE,VF,XE W/POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-3203005 |
SV1#..SE,VE,VF,XE W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3290004 |
SV1#..SE,VE,VF,XE W/POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3203004 |
SV1#..SE,VE,VF,XE W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3290003 |
SV1#..SE,VE,VF,XE W/POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3216004 |
CV10,SV1#..SE,XE SALOON,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3203003 |
SV1#..SE,VE,VF,XE W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3218006 |
CV10,SV1#..SE,VE,VF,XE W/POWER WINDOW,BROWN,BROWN,TRIM4# |
1 | ||
| 67610-3202103 |
SV1#..VL,XT W/O DOOR MIRROR,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3290005 |
SV1#..SE,VE,VF,XE W/POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3216003 |
CV10,SV1#..SE,XE SALOON,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3218003 |
CV10,SV1#..SE,VE,VF,XE W/POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3218004 |
CV10,SV1#..SE,VE,VF,XE W/POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3220006 |
SV1#..VL,XT W/DOOR MIRROR,BROWN,BROWN,TRIM4# |
1 | ||
| 67610-3202104 |
SV1#..VL,XT W/O DOOR MIRROR,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3214003 |
SV1#..VL W/O DOOR MIRROR,EXTRA,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3217004 |
CV10,SV1#..SE,VE,VF,XE W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3202106 |
SV1#..VL,XT W/O DOOR MIRROR,BROWN,BROWN,TRIM4# |
1 | ||
| 67610-3217003 |
CV10,SV1#..SE,VE,VF,XE W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3217006 |
CV10,SV1#..SE,VE,VF,XE W/O POWER WINDOW,BROWN,BROWN,TRIM4# |
1 | ||
| 67610-3222003 |
SV1#..VL W/DOOR MIRROR,EXTRA,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3220004 |
SV1#..VL,XT W/DOOR MIRROR,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3220003 |
SV1#..VL,XT W/DOOR MIRROR,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3222004 |
SV1#..VL W/DOOR MIRROR,EXTRA,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3290306 |
CV10,SV1#..SE,VE,VF,XE W/POWER WINDOW,BROWN,BROWN,TRIM4# |
1 | ||
| 67610-3214004 |
SV1#..VL W/O DOOR MIRROR,EXTRA,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3290403 |
CV10,SV1#..SE,XE SALOON,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3290404 |
CV10,SV1#..SE,XE SALOON,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3290304 |
CV10,SV1#..SE,VE,VF,XE W/POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3290303 |
CV10,SV1#..SE,VE,VF,XE W/POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-3203005 |
SV1#..SE,VE,VF,XE W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3290004 |
SV1#..SE,VE,VF,XE W/POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3203004 |
SV1#..SE,VE,VF,XE W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3290003 |
SV1#..SE,VE,VF,XE W/POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3216004 |
CV10,SV1#..SE,XE SALOON,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3203003 |
SV1#..SE,VE,VF,XE W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3218006 |
CV10,SV1#..SE,VE,VF,XE W/POWER WINDOW,BROWN,BROWN,TRIM4# |
1 | ||
| 67610-3202103 |
SV1#..VL,XT W/O DOOR MIRROR,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3290005 |
SV1#..SE,VE,VF,XE W/POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67610-3216003 |
CV10,SV1#..SE,XE SALOON,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3218003 |
CV10,SV1#..SE,VE,VF,XE W/POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3218004 |
CV10,SV1#..SE,VE,VF,XE W/POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3220006 |
SV1#..VL,XT W/DOOR MIRROR,BROWN,BROWN,TRIM4# |
1 | ||
| 67610-3202104 |
SV1#..VL,XT W/O DOOR MIRROR,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3214003 |
SV1#..VL W/O DOOR MIRROR,EXTRA,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3217004 |
CV10,SV1#..SE,VE,VF,XE W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3202106 |
SV1#..VL,XT W/O DOOR MIRROR,BROWN,BROWN,TRIM4# |
1 | ||
| 67610-3217003 |
CV10,SV1#..SE,VE,VF,XE W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3217006 |
CV10,SV1#..SE,VE,VF,XE W/O POWER WINDOW,BROWN,BROWN,TRIM4# |
1 | ||
| 67610-3222003 |
SV1#..VL W/DOOR MIRROR,EXTRA,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3220004 |
SV1#..VL,XT W/DOOR MIRROR,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3220003 |
SV1#..VL,XT W/DOOR MIRROR,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3222004 |
SV1#..VL W/DOOR MIRROR,EXTRA,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3290306 |
CV10,SV1#..SE,VE,VF,XE W/POWER WINDOW,BROWN,BROWN,TRIM4# |
1 | ||
| 67610-3214004 |
SV1#..VL W/O DOOR MIRROR,EXTRA,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3290403 |
CV10,SV1#..SE,XE SALOON,GRAY,GRAY,TRIM1# |
1 | ||
| 67610-3290404 |
CV10,SV1#..SE,XE SALOON,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3290304 |
CV10,SV1#..SE,VE,VF,XE W/POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-3290303 |
CV10,SV1#..SE,VE,VF,XE W/POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-14010 |
CV10,SV1# TYPE C |
2 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-14010 |
CV10,SV1# TYPE C |
2 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-14010 |
CV10,SV1# TYPE C |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-3203003 |
SV1#..SE,VE,VF,XE W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3290003 |
SV1#..SE,VE,VF,XE W/POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3203005 |
SV1#..SE,VE,VF,XE W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3290004 |
SV1#..SE,VE,VF,XE W/POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3216006 |
CV10,SV1#..SE,VE,VF,XE W/POWER WINDOW,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-3214004 |
CV10,SV1#..SE,XE SALOON,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3203004 |
SV1#..SE,VE,VF,XE W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3214003 |
CV10,SV1#..SE,XE SALOON,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3216004 |
CV10,SV1#..SE,VE,VF,XE W/POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3290005 |
SV1#..SE,VE,VF,XE W/POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3202106 |
CV10,SV1#..VL,XT W/O DOOR MIRROR,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-3215004 |
CV10,SV1#..SE,VE,VF,XE W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3213003 |
SV1#..VL W/O DOOR MIRROR,EXTRA,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3202104 |
CV10,SV1#..VL,XT W/O DOOR MIRROR,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3202103 |
CV10,SV1#..VL,XT W/O DOOR MIRROR,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3213004 |
CV10,SV1#..VL W/O DOOR MIRROR,EXTRA,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3215006 |
CV10,SV1#..SE,VE,VF,XE W/O POWER WINDOW,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-3218003 |
CV10,SV1#..VL,XT W/DOOR MIRROR,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3216003 |
CV10,SV1#..SE,VE,VF,XE W/POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3215003 |
CV10,SV1#..SE,VE,VF,XE W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3218004 |
CV10,SV1#..VL,XT W/DOOR MIRROR,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3218006 |
CV10,SV1#..VL,XT W/DOOR MIRROR,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-3219003 |
SV1#..VL W/DOOR MIRROR,EXTRA,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3290304 |
CV10,SV1#..SE,VE,VF,XE W/POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3219004 |
CV10,SV1#..VL W/DOOR MIRROR,EXTRA,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3290303 |
CV10,SV1#..SE,VE,VF,XE W/POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3290404 |
CV10,SV1#..SE,XE SALOON,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3290306 |
CV10,SV1#..SE,VE,VF,XE W/POWER WINDOW,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-3290403 |
CV10,SV1#..SE,XE SALOON,GRAY,GRAY,TRIM1# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-3203003 |
SV1#..SE,VE,VF,XE W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3290003 |
SV1#..SE,VE,VF,XE W/POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3203005 |
SV1#..SE,VE,VF,XE W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3290004 |
SV1#..SE,VE,VF,XE W/POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3216006 |
CV10,SV1#..SE,VE,VF,XE W/POWER WINDOW,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-3214004 |
CV10,SV1#..SE,XE SALOON,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3203004 |
SV1#..SE,VE,VF,XE W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3214003 |
CV10,SV1#..SE,XE SALOON,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3216004 |
CV10,SV1#..SE,VE,VF,XE W/POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3290005 |
SV1#..SE,VE,VF,XE W/POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3202106 |
CV10,SV1#..VL,XT W/O DOOR MIRROR,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-3215004 |
CV10,SV1#..SE,VE,VF,XE W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3213003 |
SV1#..VL W/O DOOR MIRROR,EXTRA,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3202104 |
CV10,SV1#..VL,XT W/O DOOR MIRROR,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3202103 |
CV10,SV1#..VL,XT W/O DOOR MIRROR,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3213004 |
CV10,SV1#..VL W/O DOOR MIRROR,EXTRA,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3215006 |
CV10,SV1#..SE,VE,VF,XE W/O POWER WINDOW,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-3218003 |
CV10,SV1#..VL,XT W/DOOR MIRROR,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3216003 |
CV10,SV1#..SE,VE,VF,XE W/POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3215003 |
CV10,SV1#..SE,VE,VF,XE W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3218004 |
CV10,SV1#..VL,XT W/DOOR MIRROR,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3218006 |
CV10,SV1#..VL,XT W/DOOR MIRROR,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-3219003 |
SV1#..VL W/DOOR MIRROR,EXTRA,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3290304 |
CV10,SV1#..SE,VE,VF,XE W/POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3219004 |
CV10,SV1#..VL W/DOOR MIRROR,EXTRA,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3290303 |
CV10,SV1#..SE,VE,VF,XE W/POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3290404 |
CV10,SV1#..SE,XE SALOON,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3290306 |
CV10,SV1#..SE,VE,VF,XE W/POWER WINDOW,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-3290403 |
CV10,SV1#..SE,XE SALOON,GRAY,GRAY,TRIM1# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-3203003 |
SV1#..SE,VE,VF,XE W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3290003 |
SV1#..SE,VE,VF,XE W/POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3203005 |
SV1#..SE,VE,VF,XE W/O POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3290004 |
SV1#..SE,VE,VF,XE W/POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3216006 |
CV10,SV1#..SE,VE,VF,XE W/POWER WINDOW,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-3214004 |
CV10,SV1#..SE,XE SALOON,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3203004 |
SV1#..SE,VE,VF,XE W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3214003 |
CV10,SV1#..SE,XE SALOON,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3216004 |
CV10,SV1#..SE,VE,VF,XE W/POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3290005 |
SV1#..SE,VE,VF,XE W/POWER WINDOW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-3202106 |
CV10,SV1#..VL,XT W/O DOOR MIRROR,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-3215004 |
CV10,SV1#..SE,VE,VF,XE W/O POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3213003 |
SV1#..VL W/O DOOR MIRROR,EXTRA,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3202104 |
CV10,SV1#..VL,XT W/O DOOR MIRROR,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3202103 |
CV10,SV1#..VL,XT W/O DOOR MIRROR,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3213004 |
CV10,SV1#..VL W/O DOOR MIRROR,EXTRA,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3215006 |
CV10,SV1#..SE,VE,VF,XE W/O POWER WINDOW,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-3218003 |
CV10,SV1#..VL,XT W/DOOR MIRROR,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3216003 |
CV10,SV1#..SE,VE,VF,XE W/POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3215003 |
CV10,SV1#..SE,VE,VF,XE W/O POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3218004 |
CV10,SV1#..VL,XT W/DOOR MIRROR,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3218006 |
CV10,SV1#..VL,XT W/DOOR MIRROR,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-3219003 |
SV1#..VL W/DOOR MIRROR,EXTRA,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3290304 |
CV10,SV1#..SE,VE,VF,XE W/POWER WINDOW,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3219004 |
CV10,SV1#..VL W/DOOR MIRROR,EXTRA,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3290303 |
CV10,SV1#..SE,VE,VF,XE W/POWER WINDOW,GRAY,GRAY,TRIM1# |
1 | ||
| 67620-3290404 |
CV10,SV1#..SE,XE SALOON,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-3290306 |
CV10,SV1#..SE,VE,VF,XE W/POWER WINDOW,BROWN,BROWN,TRIM4# |
1 | ||
| 67620-3290403 |
CV10,SV1#..SE,XE SALOON,GRAY,GRAY,TRIM1# |
1 | ||
| 67710 - PANEL ASSY, FRONT DOOR TRIM, UPPER RH | ||||
| 67710-3207004 |
SV1#..SE,VE,VF,XE W/DOOR MIRROR,*EL,BLUE,BLUE,TRIM8# |
1 | ||
| 67710-3207016 |
SV1#..SE,VE,VF,XE W/DOOR MIRROR,*EL,BROWN,BROWN,TRIM4# |
1 | ||
| 67710-3201004 |
SV1#..SE,VE,VF,XE W/O DOOR MIRROR,*EL,BLUE,BLUE,TRIM8# |
1 | ||
| 67710-3207003 |
SV1#..SE,VE,VF,XE W/DOOR MIRROR,*EL,GRAY,GRAY,TRIM1# |
1 | ||
| 67710-3290003 |
SV1#..SE,VE,VF,XE W/O DOOR MIRROR,W/*EL,GRAY,GRAY,TRIM1# |
1 | ||
| 67710-3201003 |
SV1#..SE,VE,VF,XE W/O DOOR MIRROR,*EL,GRAY,GRAY,TRIM1# |
1 | ||
| 67710-3201016 |
SV1#..SE,VE,VF,XE W/O DOOR MIRROR,*EL,BROWN,BROWN,TRIM4# |
1 | ||
| 67710-3290004 |
SV1#..SE,VE,VF,XE W/O DOOR MIRROR,W/*EL,BLUE,BLUE,TRIM8# |
1 | ||
| 67710-3290016 |
SV1#..SE,VE,VF,XE W/O DOOR MIRROR,W/*EL,BROWN,BROWN,TRIM4# |
1 | ||
| 67710-3206004 |
SV1#..SE,VE,VF,XE W/DOOR MIRROR,W/O *EL,BLUE,BLUE,TRIM8# |
1 | ||
| 67710-3206003 |
SV1#..SE,VE,VF,XE W/DOOR MIRROR,W/O *EL,GRAY,GRAY,TRIM1# |
1 | ||
| 67710-3290103 |
SV1#..SE,VE,VF,XE W/DOOR MIRROR,*EL,GRAY,GRAY,TRIM1# |
1 | ||
| 67710-3290116 |
SV1#..SE,VE,VF,XE W/DOOR MIRROR,*EL,BROWN,BROWN,TRIM4# |
1 | ||
| 67710-3206016 |
SV1#..SE,VE,VF,XE W/DOOR MIRROR,W/O *EL,BROWN,BROWN,TRIM4# |
1 | ||
| 67710-3290104 |
SV1#..SE,VE,VF,XE W/DOOR MIRROR,*EL,BLUE,BLUE,TRIM8# |
1 | ||
| 67710 - PANEL ASSY, FRONT DOOR TRIM, UPPER RH | ||||
| 67710-3207004 |
SV1#..SE,VE,VF,XE W/DOOR MIRROR,*EL,BLUE,BLUE,TRIM8# |
1 | ||
| 67710-3207016 |
SV1#..SE,VE,VF,XE W/DOOR MIRROR,*EL,BROWN,BROWN,TRIM4# |
1 | ||
| 67710-3201004 |
SV1#..SE,VE,VF,XE W/O DOOR MIRROR,*EL,BLUE,BLUE,TRIM8# |
1 | ||
| 67710-3207003 |
SV1#..SE,VE,VF,XE W/DOOR MIRROR,*EL,GRAY,GRAY,TRIM1# |
1 | ||
| 67710-3290003 |
SV1#..SE,VE,VF,XE W/O DOOR MIRROR,W/*EL,GRAY,GRAY,TRIM1# |
1 | ||
| 67710-3201003 |
SV1#..SE,VE,VF,XE W/O DOOR MIRROR,*EL,GRAY,GRAY,TRIM1# |
1 | ||
| 67710-3201016 |
SV1#..SE,VE,VF,XE W/O DOOR MIRROR,*EL,BROWN,BROWN,TRIM4# |
1 | ||
| 67710-3290004 |
SV1#..SE,VE,VF,XE W/O DOOR MIRROR,W/*EL,BLUE,BLUE,TRIM8# |
1 | ||
| 67710-3290016 |
SV1#..SE,VE,VF,XE W/O DOOR MIRROR,W/*EL,BROWN,BROWN,TRIM4# |
1 | ||
| 67710-3206004 |
SV1#..SE,VE,VF,XE W/DOOR MIRROR,W/O *EL,BLUE,BLUE,TRIM8# |
1 | ||
| 67710-3206003 |
SV1#..SE,VE,VF,XE W/DOOR MIRROR,W/O *EL,GRAY,GRAY,TRIM1# |
1 | ||
| 67710-3290103 |
SV1#..SE,VE,VF,XE W/DOOR MIRROR,*EL,GRAY,GRAY,TRIM1# |
1 | ||
| 67710-3290116 |
SV1#..SE,VE,VF,XE W/DOOR MIRROR,*EL,BROWN,BROWN,TRIM4# |
1 | ||
| 67710-3206016 |
SV1#..SE,VE,VF,XE W/DOOR MIRROR,W/O *EL,BROWN,BROWN,TRIM4# |
1 | ||
| 67710-3290104 |
SV1#..SE,VE,VF,XE W/DOOR MIRROR,*EL,BLUE,BLUE,TRIM8# |
1 | ||
| 67720 - PANEL ASSY, FRONT DOOR TRIM, UPPER LH | ||||
| 67720-3201004 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX W/O DOOR MIRROR,BLUE,BLUE,TRIM8# |
1 | ||
| 67720-3201016 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX W/O DOOR MIRROR,BROWN,BROWN,TRIM4# |
1 | ||
| 67720-3201003 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX W/O DOOR MIRROR,GRAY,GRAY,TRIM1# |
1 | ||
| 67720-3203004 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX W/DOOR MIRROR,BLUE,BLUE,TRIM8# |
1 | ||
| 67720-3203003 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX W/DOOR MIRROR,GRAY,GRAY,TRIM1# |
1 | ||
| 67720-3203016 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX W/DOOR MIRROR,BROWN,BROWN,TRIM4# |
1 | ||
| 67720 - PANEL ASSY, FRONT DOOR TRIM, UPPER LH | ||||
| 67720-3201004 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX W/O DOOR MIRROR,BLUE,BLUE,TRIM8# |
1 | ||
| 67720-3201016 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX W/O DOOR MIRROR,BROWN,BROWN,TRIM4# |
1 | ||
| 67720-3201003 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX W/O DOOR MIRROR,GRAY,GRAY,TRIM1# |
1 | ||
| 67720-3203004 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX W/DOOR MIRROR,BLUE,BLUE,TRIM8# |
1 | ||
| 67720-3203003 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX W/DOOR MIRROR,GRAY,GRAY,TRIM1# |
1 | ||
| 67720-3203016 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX W/DOOR MIRROR,BROWN,BROWN,TRIM4# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67770-1401014 |
CV10,SV1#..SE,VE,VF,XE BLUE,BLUE,TRIM8# |
1 | ||
| 67770-1401006 |
CV10,SV1#..SE,VE,VF,XE BROWN,BROWN,TRIM4# |
1 | ||
| 67770-1401013 |
CV10,SV1#..SE,VE,VF,XE GRAY,GRAY,TRIM1# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67770-1401006 |
CV10,SV1#..SE,VE,VF,XE BROWN,BROWN,TRIM4# |
1 | ||
| 67770-1401014 |
CV10,SV1#..SE,VE,VF,XE BLUE,BLUE,TRIM8# |
1 | ||
| 67770-1401013 |
CV10,SV1#..SE,VE,VF,XE GRAY,GRAY,TRIM1# |
1 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 69751-20040 |
CV10,SV1# |
2 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 69751-20040 |
CV10,SV1# |
2 | ||
| 67785A - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 69751-20040 |
CV10,SV1# |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68220-32030 |
CV10,SV1# W/O DOOR MIRROR,LH |
1 | ||
| 68170-32010 |
CV10,SV1# W/O DOOR MIRROR,RH |
1 | ||
| 68170-32010 |
SV1# |
2 | ||
| 68220-32020 |
CV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX W/DOOR MIRROR,LH |
1 | ||
| 68170-32020 |
CV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX W/DOOR MIRROR,RH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68220-32030 |
CV10,SV1# W/O DOOR MIRROR,LH |
1 | ||
| 68170-32010 |
CV10,SV1# W/O DOOR MIRROR,RH |
1 | ||
| 68170-32010 |
SV1# |
2 | ||
| 68220-32020 |
CV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX W/DOOR MIRROR,LH |
1 | ||
| 68170-32020 |
CV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX W/DOOR MIRROR,RH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68220-32030 |
CV10,SV1# W/O DOOR MIRROR,LH |
1 | ||
| 68170-32010 |
CV10,SV1# W/O DOOR MIRROR,RH |
1 | ||
| 68170-32010 |
SV1# |
2 | ||
| 68220-32020 |
CV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX W/DOOR MIRROR,LH |
1 | ||
| 68170-32020 |
CV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX W/DOOR MIRROR,RH |
1 | ||
| Common parts | ||||
| 67772-20021 | ||||
| 90168-40025 | ||||
| 90168-40048 | ||||
| 93540-44510 | ||||
| Linked diagrams | ||||
| 7401 | ||||
ILLUST NO. 1 OF 2(8305-8406)SE,VE,VL,VX,XE,XT,ZX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09006 |
CV1#,SV1# |
4 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-32010 |
CV1#,SV1# |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-32010 |
CV1#,SV1# |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-32010 |
CV10,SV1# W/O DOOR MIRROR |
1 | ||
| 67401-32051 |
CV10,SV1#..5D W/DOOR MIRROR |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-32010 |
CV10,SV1# W/O DOOR MIRROR |
1 | ||
| 67402-32051 |
CV10,SV1#..5D W/DOOR MIRROR |
1 | ||
| 67433 - FRAME, FRONT DOOR WINDOW, REAR LOWER RH | ||||
| 67433-32010 |
CV1#,SV1# |
1 | ||
| 67434 - FRAME, FRONT DOOR WINDOW, REAR LOWER LH | ||||
| 67434-32010 |
CV1#,SV1# |
1 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67811-32010 |
CV1#,SV1# |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-32010 |
SV1# |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-32010 |
SV1# |
1 | ||
| 67832-32030 |
CV10,SV1# COLD SPEC |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-32030 |
CV10,SV1#..5D |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67868-30040 |
CV1#,SV1# |
40 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-32030 |
CV10,SV1#..5D |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-32050 |
CV10,SV1#..5D W/O *DM,*TT,T=4.0 |
1 | ||
| 68111-32070 |
CV10,SV1#..5D W/*DM,*TT,T=4.0 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-32050 |
CV10,SV1#..5D W/O *DM,*TT,T=4.0 |
1 | ||
| 68112-32070 |
CV10,SV1#..5D W/*DM,*TT,T=4.0 |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68143-20050 |
CV10,SV1# W/O DOOR MIRROR,SHORT |
2 | ||
| 68143-14020 |
CV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX W/DOOR MIRROR,SHORT |
2 | ||
| 68143-32020 |
CV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX W/DOOR MIRROR,SHORT |
2 | ||
| 68141-32040 |
CV10,SV1#..5D W/DOOR MIRROR,LONG |
2 | ||
| 68141-32030 |
CV10,SV1#..5D W/O DOOR MIRROR,LONG |
2 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68143-20050 |
CV10,SV1# W/O DOOR MIRROR,SHORT |
2 | ||
| 68143-14020 |
CV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX W/DOOR MIRROR,SHORT |
2 | ||
| 68143-32020 |
CV10,SV1#..SE,VE,VF,VL,VX,XE,XT,ZX W/DOOR MIRROR,SHORT |
2 | ||
| 68141-32040 |
CV10,SV1#..5D W/DOOR MIRROR,LONG |
2 | ||
| 68141-32030 |
CV10,SV1#..5D W/O DOOR MIRROR,LONG |
2 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-32010 |
CV10,SV1# |
2 | ||
| 68610A - PIN(FOR FRONT DOOR CHECK) | ||||
| 68617-22010 |
CV10,SV1# |
2 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90333-30002 | ||||
| 91651-40612 | ||||
| 93520-14010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
