SV11-UHMNE (1982)

Toyota Camry/Vista

Production Aug 1982 - Jun 1984
Engine 2SELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8203-8406) ; (8406- )LT,VC

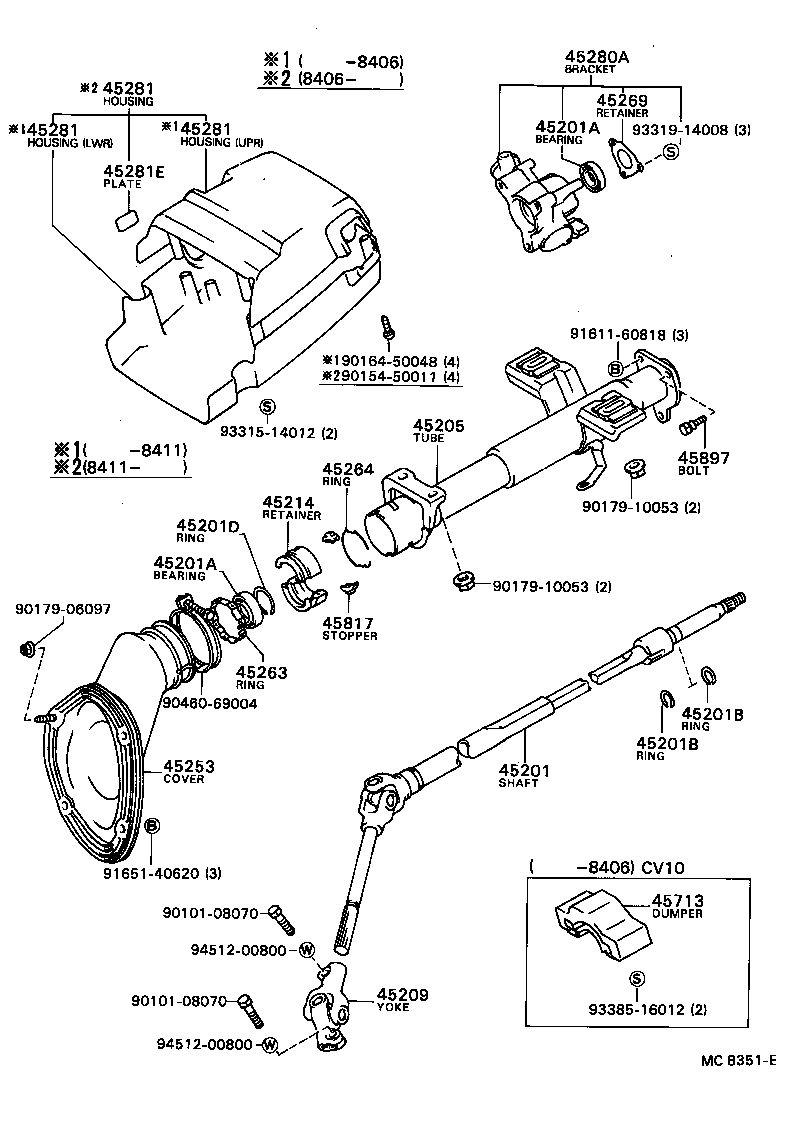

Click highlighted areas on diagram

diagram 45201 45201A 45201A 45201B 45201B 45201D 45205 45209 45214 45253 45263 45264 45269 45280A 45281 45281 45281 45281E 45713 45817 45897 9010108070 9010108070 9015450011 9016450048 9017906097 9017910053 9017910053 9046069004 9161160818 9165140620 9331514012 9331914008 9338516012 9451200800 9451200800
Part # Description Qty Price
45201 - SHAFT SUB-ASSY, STEERING MAIN
45210-32030

CV10,SV11

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-30007

CV1#,SV1#

LWR

 1
90363-18038

CV1#,SV1#

UPR

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-30007

CV1#,SV1#

LWR

 1
90363-18038

CV1#,SV1#

UPR

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

CV1#,SV1#

厚さ=1.20,T=1.2

 2
90520-17196

CV1#,SV1#

厚さ=1.35−1.45,T=1.4

 2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

CV1#,SV1#

厚さ=1.20,T=1.2

 2
90520-17196

CV1#,SV1#

厚さ=1.35−1.45,T=1.4

 2
45201D - RING(FOR STEERING MAIN SHAFT)
96152-00300

CV1#,SV1#

 1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45870-32010

SV1#

 1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-32020

CV1#,SV1#..SE,VE,VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX

 1
45214 - RETAINER, MAIN SHAFT SPRING
45214-32010

CV1#,SV1#

 2
45253 - COVER, STEERING COLUMN HOLE
45025-32010

CV10,SV1#

 1
45263 - RING, STEERING COLUMN, NO.1
45263-32010

CV1#,SV1#

 1
45264 - RING, STEERING COLUMN, NO.2
45264-32010

CV1#,SV1#

 1
45269 - RETAINER, MAIN SHAFT BEARING
45269-35010

CV1#,SV1#

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-32011

CV10,SV1#

 1
45281 - HOUSING, STEERING COLUMN
45024-3201016

CV10,SV1#

LWR,DARK BROWN,BROWN,TRIM4#

 1
45286-3201014

CV10,SV1#

UPR,BLUE,BLUE,TRIM8#

 1
45286-3201001

SV1#

UPR,BLACK,BLACK,TRIM1#,8#

 1
45286-3201006

SV1#

UPR,DEEP BROWN,BROWN,TRIM4#

 1
45286-3201023

CV10,SV1#

UPR,DARK GRAY,GRAY,TRIM1#

 1
45286-3201016

CV10,SV1#

UPR,DARK BROWN,BROWN,TRIM4#

 1
45024-3201001

SV1#

LWR,BLACK,BLACK,TRIM1#,8#

 1
45024-3201006

SV1#

LWR,DEEP BROWN,BROWN,TRIM4#

 1
45024-3201023

CV10,SV1#

LWR,DARK GRAY,GRAY,TRIM1#

 1
45024-3201014

CV10,SV1#

LWR,BLUE,BLUE,TRIM8#

 1
45281 - HOUSING, STEERING COLUMN
45024-3201016

CV10,SV1#

LWR,DARK BROWN,BROWN,TRIM4#

 1
45286-3201014

CV10,SV1#

UPR,BLUE,BLUE,TRIM8#

 1
45286-3201001

SV1#

UPR,BLACK,BLACK,TRIM1#,8#

 1
45286-3201006

SV1#

UPR,DEEP BROWN,BROWN,TRIM4#

 1
45286-3201023

CV10,SV1#

UPR,DARK GRAY,GRAY,TRIM1#

 1
45286-3201016

CV10,SV1#

UPR,DARK BROWN,BROWN,TRIM4#

 1
45024-3201001

SV1#

LWR,BLACK,BLACK,TRIM1#,8#

 1
45024-3201006

SV1#

LWR,DEEP BROWN,BROWN,TRIM4#

 1
45024-3201023

CV10,SV1#

LWR,DARK GRAY,GRAY,TRIM1#

 1
45024-3201014

CV10,SV1#

LWR,BLUE,BLUE,TRIM8#

 1
45281 - HOUSING, STEERING COLUMN
45024-3201016

CV10,SV1#

LWR,DARK BROWN,BROWN,TRIM4#

 1
45286-3201014

CV10,SV1#

UPR,BLUE,BLUE,TRIM8#

 1
45286-3201001

SV1#

UPR,BLACK,BLACK,TRIM1#,8#

 1
45286-3201006

SV1#

UPR,DEEP BROWN,BROWN,TRIM4#

 1
45286-3201023

CV10,SV1#

UPR,DARK GRAY,GRAY,TRIM1#

 1
45286-3201016

CV10,SV1#

UPR,DARK BROWN,BROWN,TRIM4#

 1
45024-3201001

SV1#

LWR,BLACK,BLACK,TRIM1#,8#

 1
45024-3201006

SV1#

LWR,DEEP BROWN,BROWN,TRIM4#

 1
45024-3201023

CV10,SV1#

LWR,DARK GRAY,GRAY,TRIM1#

 1
45024-3201014

CV10,SV1#

LWR,BLUE,BLUE,TRIM8#

 1
45281E - PLATE, SAFETY CAUTION
45283-12010

CV1#,SV1#

 1
45817 - STOPPER, STEERING SHAFT THRUST
45817-32010

CV1#,SV1#

 2
Common parts
90101-08070
90154-50011
90164-50048
90179-06097
90179-10053
90460-69004
91611-60818
91651-40620
93315-14012
93319-14008
93385-16012
94512-00800
