SV11-UHMNE (1982)

Toyota Camry/Vista

Production Aug 1982 - Jun 1984
Engine 2SELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )2SELU

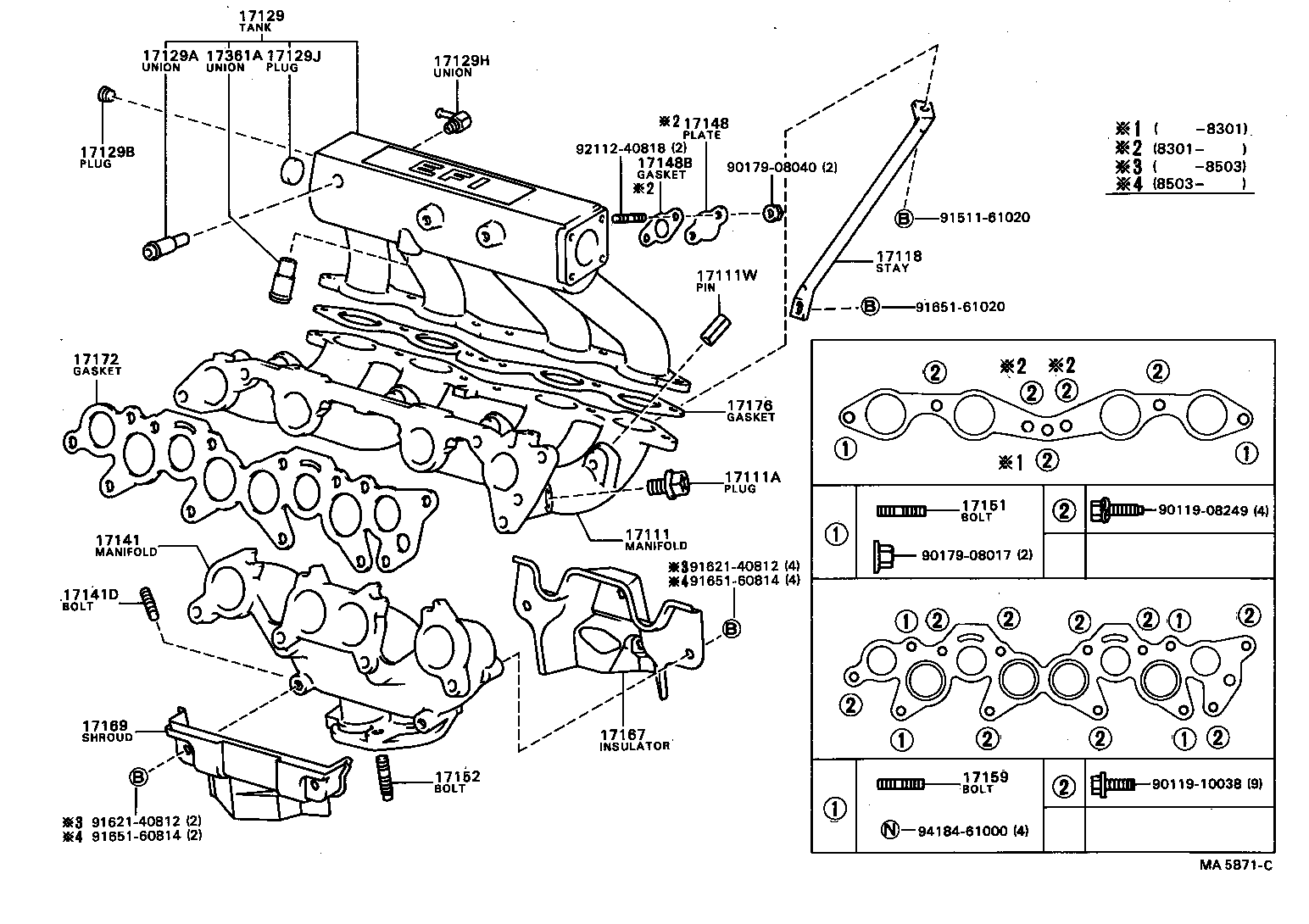

Click highlighted areas on diagram

diagram 17111 17111A 17111W 17118 17129 17129A 17129B 17129H 17129J 17141 17141D 17148 17148B 17151 17152 17159 17167 17169 17172 17176 17361A 9011908249 9011910038 9017908017 9017908040 9151161020 9162140812 9162140812 9165160814 9165160814 9165161020 9211240818 9418461000
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-74010

2SELU..SV11

 1
17129 - TANK, INTAKE AIR SURGE
17109-74020

2SELU..SV11

 1
17109-74011

2SELU..SV11

 1
17129B - PLUG
90344-51002

2SELU..SV11

 1
90345-51025

2SELU..SV11

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08045

1SLU,2SELU..SV1#

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

1S#,2SELU,3SGELU..SV1#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-61025

1SLU,2SELU..SV1#

 4
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-63010

1SLU,2SELU..SV10,11

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-74010

2SELU..SV11

 1
Common parts
90119-08249
90119-10038
90179-08017
90179-08040
91511-61020
91621-40812
91651-60814
91651-61020
92112-40818
94184-61000
