SV11-UHMEE (1982)

Toyota Camry/Vista

Production Aug 1982 - Jul 1986
Engine 2SELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )5D

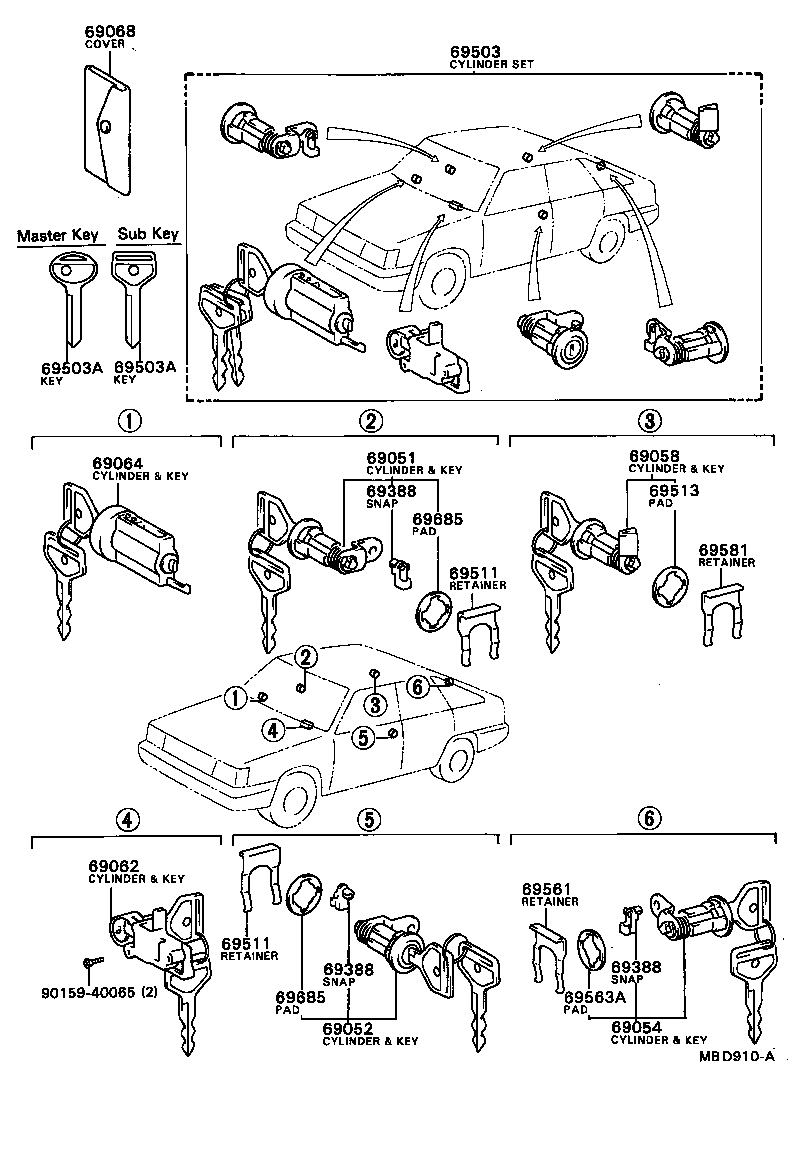

Click highlighted areas on diagram

diagram 69051 69052 69054 69058 69062 69064 69068 69388 69388 69388 69503 69503A 69503A 69511 69511 69513 69561 69563A 69581 69685 69685 9015940065
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-32010

CV1#,SV1#

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-32010

CV1#,SV1#

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69055-32030

CV1#,SV1#..5D

 1
69058 - CYLINDER & KEY SET, FUEL FILLER LID
69058-32010

CV10,SV1#

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-3201003

CV10,SV1#

GRAY,GRAY,TRIM1#

 1
69056-3201004

CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX

BLUE,BLUE,TRIM8#

 1
69056-3201006

CV10,SV1#

BROWN,BROWN,TRIM4#

 1
69056-3201013

CV1#,SV1#

SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
69056-3201004

CV10,SV1#

BLUE,BLUE,TRIM8#

 1
69056-3201005

CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX

BEIGE,BEIGE,TRIM4#

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-32010

CV1#,SV1#

 1
69068 - COVER SUB-ASSY, KEY
69555-20010

CV1#,SV1#

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-24080

CV1#,SV1#

LH,W/FR DOOR

 1
69759-24080

CV1#,SV1#..5D

W/BACK DOOR

 1
69759-24090

CV1#,SV1#

RH,W/FR DOOR

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-24080

CV1#,SV1#

LH,W/FR DOOR

 1
69759-24080

CV1#,SV1#..5D

W/BACK DOOR

 1
69759-24090

CV1#,SV1#

RH,W/FR DOOR

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-24080

CV1#,SV1#

LH,W/FR DOOR

 1
69759-24080

CV1#,SV1#..5D

W/BACK DOOR

 1
69759-24090

CV1#,SV1#

RH,W/FR DOOR

 1
69503 - CYLINDER SET, LOCK
69005-3203003

CV10,SV1#..5D

GRAY,GRAY,TRIM1#

 1
69005-3203004

CV10,SV1#..5D

BLUE,BLUE,TRIM8#

 1
69005-3203006

CV10,SV1#..5D

BROWN,BROWN,TRIM4#

 1
69005-3213004

CV1#,SV1#..5D..(VF,VL,VR,VX)

BLUE,BLUE,TRIM8#

 1
69005-3213005

CV1#,SV1#..5D..(VF,VL,VR,VX)

BEIGE,BEIGE,TRIM4#

 1
69005-3213003

CV1#,SV1#..5D

SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
69503A - KEY, BLANK
90999-00069

CV1#,SV1#

ﾏｽﾀｰｷｰ,MASTER KEY

 1
90999-00070

CV1#,SV1#

SUB KEY

 1
69503A - KEY, BLANK
90999-00069

CV1#,SV1#

ﾏｽﾀｰｷｰ,MASTER KEY

 1
90999-00070

CV1#,SV1#

SUB KEY

 1
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-32010

CV1#,SV1#

 2
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-32010

CV1#,SV1#

 2
69513 - PAD, FUEL FILLER LID LOCK CYLINDER
69513-32010

CV10,SV1#

 1
69561 - RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDE
69511-32010

CV1#,SV1#..5D

 1
69563A - PAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER
69563-32010

CV1#,SV1#

 1
69581 - RETAINER, FUEL FILLER LID CYLINDER
69511-32010

CV10,SV1#

 1
69685 - PAD, LOCK CYLINDER
69513-32010

CV1#,SV1#

 2
69685 - PAD, LOCK CYLINDER
69513-32010

CV1#,SV1#

 2
Common parts
90159-40065
