SV11-UHMEE (1982)

Toyota Camry/Vista

Production Aug 1982 - Jul 1986
Engine 2SELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8203-8406)

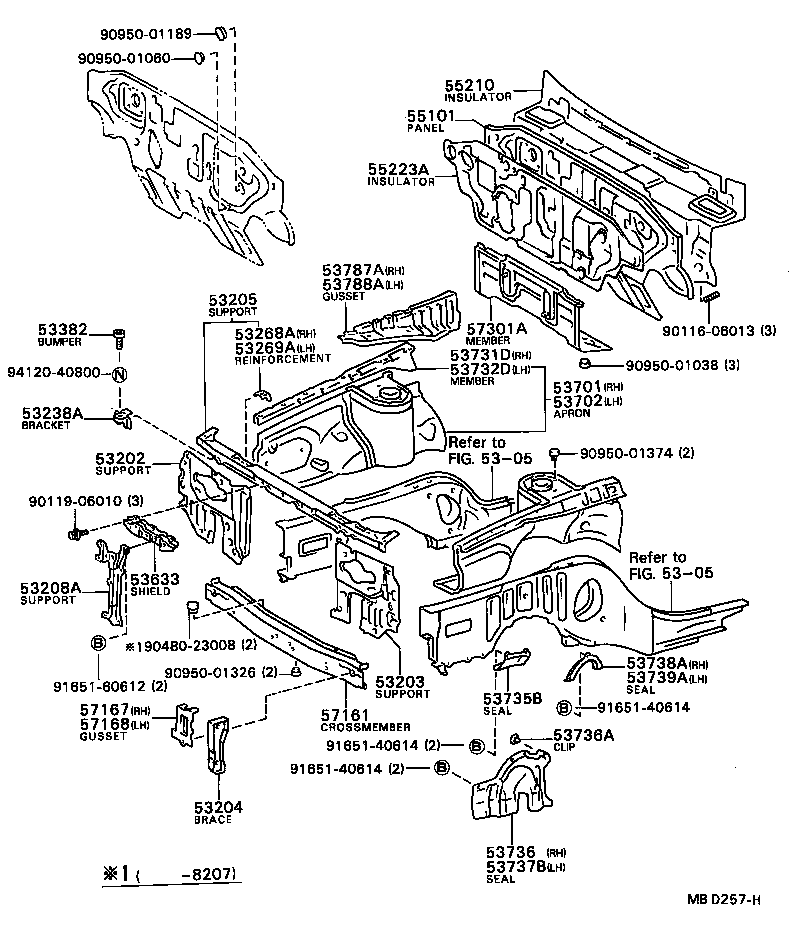

Click highlighted areas on diagram

diagram 5305 5305 53202 53203 53204 53205 53208A 53238A 53268A 53269A 53382 53633 53701 53702 53731D 53732D 53735B 53736 53736A 53737B 53738A 53739A 53787A 53788A 55101 55210 55223A 57161 57167 57168 57301A 9011606013 9011906010 9048023008 9095001038 9095001060 9095001189 9095001326 9095001374 9165140614 9165140614 9165140614 9165160612 9412040800
Part # Description Qty Price
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53211-32011

CV1#,SV1#

 1
53211-32010

CV10,SV1#

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53212-32021

SV11

 1
53212-32020

SV11

 1
53204 - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER
53218-32010

CV1#,SV1#

LH

 1
53217-32010

CV1#,SV1#

RH

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53216-32010

CV10,SV1#

 1
53216-32020

CV1#,SV1#

 1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53208-32011

CV1#,SV1#

 1
53208-32010

CV10,SV1#..VIS

 1
53238A - BRACKET, HOOD BUMPER MOUNTING
53238-32010

CV1#,SV1#

 2
53268A - REINFORCEMENT, RADIATOR MOUNTING, RH
53268-32010

CV10,SV1#

 1
53268-32011

CV1#,SV1#

 1
53269A - REINFORCEMENT, RADIATOR MOUNTING, LH
53268-32010

CV10,SV1#

 1
53269-32010

CV1#,SV1#

 1
53382 - BUMPER, HOOD, FRONT
53382-20011

CV1#,SV1#

 2
53633 - SHIELD, HOOD LOCK CONTROL CABLE
53633-32010

CV1#,SV1#

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-32903

CV11,SV1#

 1
53701-32900

CV10,SV1#

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-32900

CV10,SV1#

 1
53702-32903

SV1#

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-32010

CV1#,SV1#

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-32010

CV1#,SV1#

 1
53736 - SEAL, FRONT FENDER APRON, RH
53736-32010

CV1#,SV1#

 1
53736A - CLIP(FOR FRONT FENDER APRON SEAL)
90467-09030

CV1#,SV1#

 4
53737B - SEAL, FRONT FENDER APRON, LH
53737-32010

CV1#,SV1#

 1
53738A - SEAL, FRONT FENDER APRON, REAR RH
53738-32010

SV1#

 1
53739A - SEAL, FRONT FENDER APRON, REAR LH
53739-32010

CV1#,SV1#

 1
53787A - GUSSET, FRONT FENDER APRON, LOWER RH
53787-32010

CV1#,SV1#

 1
53788A - GUSSET, FRONT FENDER APRON, LOWER LH
53788-32010

CV1#,SV1#

 1
55101 - PANEL SUB-ASSY, DASH
55101-32900

SV1#..5F

 1
55101-32900

SV10,11..LT,VC,VF,VL,XE,XT

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-32011

CV1#,SV1#

 1
55210-32010

CV10,SV1#

 1
57161 - CROSSMEMBER, FRONT
57104-32011

CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX

W/*UB

 1
57104-32010

CV10,SV1#

 1
57104-32030

CV10,SV11

 1
57167 - GUSSET, FRONT CROSSMEMBER, UPPER RH
57167-32010

CV1#,SV1#

 1
57168 - GUSSET, FRONT CROSSMEMBER, UPPER LH
57168-32010

CV1#,SV1#

 1
57301A - MEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT
57301-32010

CV1#,SV1#

 1
Common parts
90116-06013
90119-06010
90480-23008
90950-01038
90950-01060
90950-01189
90950-01326
90950-01374
91651-40614
91651-60612
94120-40800
Linked diagrams
5305

(8406- )

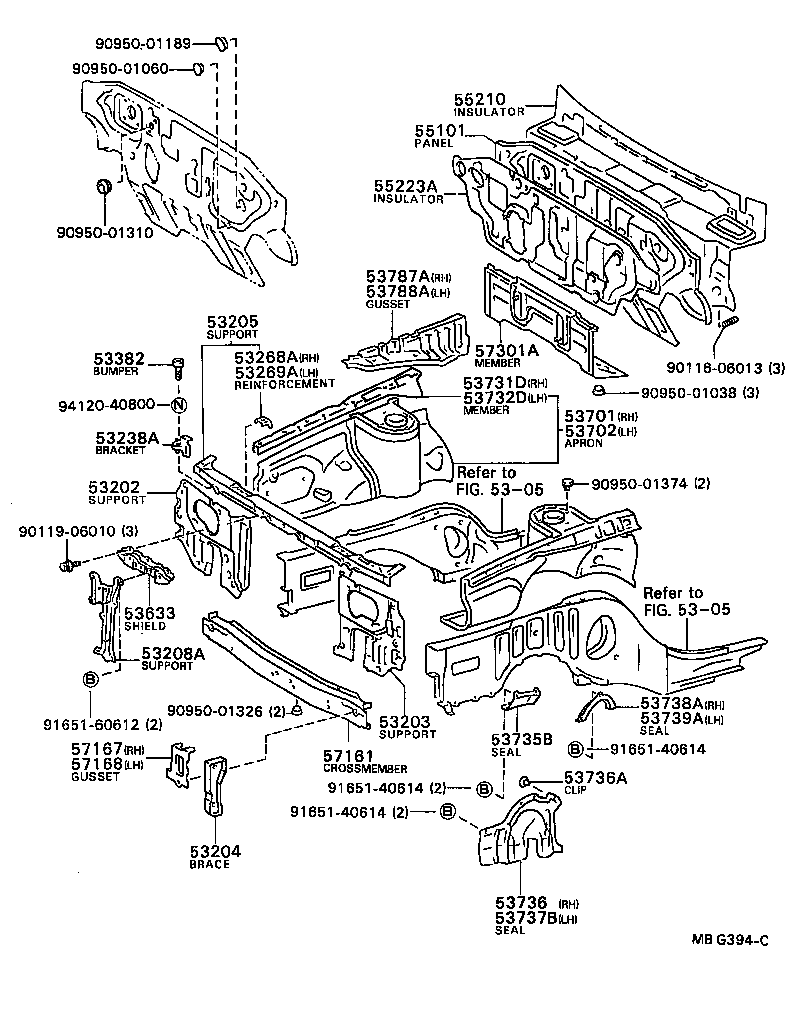

Click highlighted areas on diagram

diagram 5305 5305 53202 53203 53204 53205 53208A 53238A 53268A 53269A 53382 53633 53701 53702 53731D 53732D 53735B 53736 53736A 53737B 53738A 53739A 53787A 53788A 55101 55210 55223A 57161 57167 57168 57301A 9011606013 9011906010 9095001038 9095001060 9095001189 9095001310 9095001326 9095001374 9165140614 9165140614 9165140614 9165160612 9412040800
Part # Description Qty Price
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53211-32011

CV1#,SV1#

 1
53211-32010

CV10,SV1#

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53212-32021

SV11

 1
53212-32020

SV11

 1
53204 - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER
53218-32010

CV1#,SV1#

LH

 1
53217-32010

CV1#,SV1#

RH

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53216-32010

CV10,SV1#

 1
53216-32020

CV1#,SV1#

 1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53208-32011

CV1#,SV1#

 1
53208-32010

CV10,SV1#..VIS

 1
53238A - BRACKET, HOOD BUMPER MOUNTING
53238-32010

CV1#,SV1#

 2
53268A - REINFORCEMENT, RADIATOR MOUNTING, RH
53268-32010

CV10,SV1#

 1
53268-32011

CV1#,SV1#

 1
53269A - REINFORCEMENT, RADIATOR MOUNTING, LH
53268-32010

CV10,SV1#

 1
53269-32010

CV1#,SV1#

 1
53382 - BUMPER, HOOD, FRONT
53382-20011

CV1#,SV1#

 2
53633 - SHIELD, HOOD LOCK CONTROL CABLE
53633-32010

CV1#,SV1#

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-32903

CV11,SV1#

 1
53701-32900

CV10,SV1#

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-32900

CV10,SV1#

 1
53702-32903

SV1#

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-32010

CV1#,SV1#

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-32010

CV1#,SV1#

 1
53736 - SEAL, FRONT FENDER APRON, RH
53736-32010

CV1#,SV1#

 1
53736A - CLIP(FOR FRONT FENDER APRON SEAL)
90467-09030

CV1#,SV1#

 4
53737B - SEAL, FRONT FENDER APRON, LH
53737-32010

CV1#,SV1#

 1
53738A - SEAL, FRONT FENDER APRON, REAR RH
53738-32010

SV1#

 1
53739A - SEAL, FRONT FENDER APRON, REAR LH
53739-32010

CV1#,SV1#

 1
53787A - GUSSET, FRONT FENDER APRON, LOWER RH
53787-32010

CV1#,SV1#

 1
53788A - GUSSET, FRONT FENDER APRON, LOWER LH
53788-32010

CV1#,SV1#

 1
55101 - PANEL SUB-ASSY, DASH
55101-32900

SV1#..5F

 1
55101-32900

SV10,11..LT,VC,VF,VL,XE,XT

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-32011

CV1#,SV1#

 1
55210-32010

CV10,SV1#

 1
57161 - CROSSMEMBER, FRONT
57104-32011

CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX

W/*UB

 1
57104-32010

CV10,SV1#

 1
57104-32030

CV10,SV11

 1
57167 - GUSSET, FRONT CROSSMEMBER, UPPER RH
57167-32010

CV1#,SV1#

 1
57168 - GUSSET, FRONT CROSSMEMBER, UPPER LH
57168-32010

CV1#,SV1#

 1
57301A - MEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT
57301-32010

CV1#,SV1#

 1
Common parts
90116-06013
90119-06010
90950-01038
90950-01060
90950-01189
90950-01310
90950-01326
90950-01374
91651-40614
91651-60612
94120-40800
Linked diagrams
5305
