SV11-UEPEE (1982)
Toyota Camry/Vista
(8203-8406)

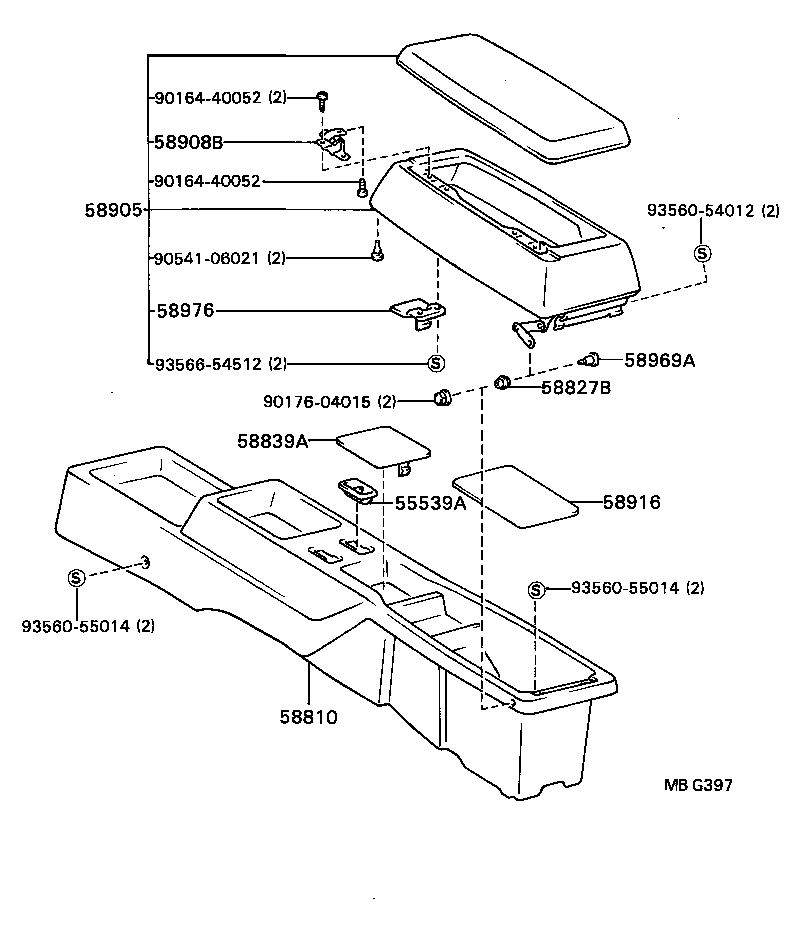

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-1403115 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX BEIGE,BEIGE,TRIM4# |
2 | ||
| 55539-3201023 |
CV10,SV1# DARK GRAY,GRAY,TRIM1# |
2 | ||
| 55539-3201004 |
CV10,SV1# BLUE,BLUE,TRIM8# |
2 | ||
| 55539-1403104 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX BLUE,BLUE,TRIM8# |
2 | ||
| 55539-3201001 |
SV1# BLACK,BLACK,TRIM1#,8# |
2 | ||
| 55539-1403113 |
CV1#,SV1# SHADOW GRAY,GRAY,TRIM1# |
2 | ||
| 55539-3201026 |
CV10,SV1# DARK BROWN,BROWN,TRIM4# |
2 | ||
| 58810 - CONSOLE ASSY | ||||
| 58801-3201004 |
SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 58801-3201016 |
CV10,SV1# BROWN,BROWN,TRIM4# |
1 | ||
| 58801-3201014 |
CV10,SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 58801-3201003 |
SV1# GRAY,GRAY,TRIM1# |
1 | ||
| 58801-3203003 |
CV1#,SV1#..4FC..(VF,VL,VR,VX,XE,XT,ZE,ZX) SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 58801-3203004 |
CV1#,SV1#..4FC..(VF,VL,VR,VX,XE,XT,ZE,ZX) BLUE,BLUE,TRIM8# |
1 | ||
| 58801-3203005 |
CV1#,SV1#..4FC..(VF,VL,VR,VX,XE,XT,ZE,ZX) BEIGE,BEIGE,TRIM4# |
1 | ||
| 58801-3201006 |
SV1# BROWN,BROWN,TRIM4# |
1 | ||
| 58801-3201013 |
CV10,SV1# GRAY,GRAY,TRIM1# |
1 | ||
| 58827B - SPACER, CONSOLE COMPARTMENT DOOR STOPPER | ||||
| 58827-20021 |
CV1#,SV1# |
2 | ||
| 58827B - SPACER, CONSOLE COMPARTMENT DOOR STOPPER | ||||
| 58827-20021 |
CV1#,SV1# |
2 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-3202003 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX GRAY,GRAY,TRIM1# |
1 | ||
| 58905-3204003 |
CV1#,SV1#..4FC..(VF,VL,VR,VX,XE,XT,ZE,ZX) SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 58905-3202006 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX BROWN,BROWN,TRIM4# |
1 | ||
| 58905-3204005 |
CV1#,SV1#..4FC..(VF,VL,VR,VX,XE,XT,ZE,ZX) BEIGE,BEIGE,TRIM4# |
1 | ||
| 58905-3202004 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 58905-3204004 |
CV1#,SV1#..4FC..(VF,VL,VR,VX,XE,XT,ZE,ZX) BLUE,BLUE,TRIM8# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-3202003 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX GRAY,GRAY,TRIM1# |
1 | ||
| 58905-3204003 |
CV1#,SV1#..4FC..(VF,VL,VR,VX,XE,XT,ZE,ZX) SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 58905-3202006 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX BROWN,BROWN,TRIM4# |
1 | ||
| 58905-3204005 |
CV1#,SV1#..4FC..(VF,VL,VR,VX,XE,XT,ZE,ZX) BEIGE,BEIGE,TRIM4# |
1 | ||
| 58905-3202004 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 58905-3204004 |
CV1#,SV1#..4FC..(VF,VL,VR,VX,XE,XT,ZE,ZX) BLUE,BLUE,TRIM8# |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-32010 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-22010 |
CV10,SV1# |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-22010 |
CV10,SV1# |
1 | ||
| 58916 - MAT, BOX BOTTOM | ||||
| 58916-32010 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX |
1 | ||
| 58916-32030 |
CV1#,SV1#..4FC..(VF,VL,VR,VX,XE,XT,ZE,ZX) |
1 | ||
| 58919B - PLATE, CONSOLE BOX | ||||
| 58919-32010 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX |
2 | ||
| 58919B - PLATE, CONSOLE BOX | ||||
| 58919-32010 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX |
2 | ||
| 58953A - DOOR, CONSOLE COMPARTMENT, UPPER | ||||
| 58953-3201003 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX GRAY,GRAY,TRIM1# |
1 | ||
| 58953-3201006 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX BROWN,BROWN,TRIM4# |
1 | ||
| 58969A - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER | ||||
| 58969-20010 |
CV1#,SV1# |
2 | ||
| 58969A - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER | ||||
| 58969-20010 |
CV1#,SV1# |
2 | ||
| 58971 - LOCK, CONSOLE COMPARTMENT DOOR | ||||
| 58971-3201004 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 58971-3201006 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX BROWN,BROWN,TRIM4# |
1 | ||
| 58971-3201003 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX GRAY,GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90176-04015 | ||||
| 90183-04006 | ||||
| 90254-03002 | ||||
| 90541-04079 | ||||
| 93560-54012 | ||||
| 93560-55014 | ||||
| 93566-54512 | ||||
| 93567-55012 | ||||
(8406- )4FC..VF,VL,VR,VX,XE,XT,ZE,ZX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-1403115 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX BEIGE,BEIGE,TRIM4# |
2 | ||
| 55539-3201023 |
CV10,SV1# DARK GRAY,GRAY,TRIM1# |
2 | ||
| 55539-3201004 |
CV10,SV1# BLUE,BLUE,TRIM8# |
2 | ||
| 55539-1403104 |
CV1#,SV1#..LT,VC,VF,VL,VR,VX,XE,XT,ZE,ZX BLUE,BLUE,TRIM8# |
2 | ||
| 55539-3201001 |
SV1# BLACK,BLACK,TRIM1#,8# |
2 | ||
| 55539-1403113 |
CV1#,SV1# SHADOW GRAY,GRAY,TRIM1# |
2 | ||
| 55539-3201026 |
CV10,SV1# DARK BROWN,BROWN,TRIM4# |
2 | ||
| 58810 - CONSOLE ASSY | ||||
| 58801-3201004 |
SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 58801-3201016 |
CV10,SV1# BROWN,BROWN,TRIM4# |
1 | ||
| 58801-3201014 |
CV10,SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 58801-3201003 |
SV1# GRAY,GRAY,TRIM1# |
1 | ||
| 58801-3203003 |
CV1#,SV1#..4FC..(VF,VL,VR,VX,XE,XT,ZE,ZX) SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 58801-3203004 |
CV1#,SV1#..4FC..(VF,VL,VR,VX,XE,XT,ZE,ZX) BLUE,BLUE,TRIM8# |
1 | ||
| 58801-3203005 |
CV1#,SV1#..4FC..(VF,VL,VR,VX,XE,XT,ZE,ZX) BEIGE,BEIGE,TRIM4# |
1 | ||
| 58801-3201006 |
SV1# BROWN,BROWN,TRIM4# |
1 | ||
| 58801-3201013 |
CV10,SV1# GRAY,GRAY,TRIM1# |
1 | ||
| 58827B - SPACER, CONSOLE COMPARTMENT DOOR STOPPER | ||||
| 58827-20021 |
CV1#,SV1# |
2 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-3201004 |
CV1#,SV1#..4FC..(VF,VL,VR,VX,XE,XT,ZE,ZX) BLUE,BLUE,TRIM8# |
1 | ||
| 58839-3201005 |
CV1#,SV1#..4FC..(VF,VL,VR,VX,XE,XT,ZE,ZX) BEIGE,BEIGE,TRIM4# |
1 | ||
| 58839-3201003 |
CV1#,SV1#..4FC..(VF,VL,VR,VX,XE,XT,ZE,ZX) SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-3202003 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX GRAY,GRAY,TRIM1# |
1 | ||
| 58905-3204003 |
CV1#,SV1#..4FC..(VF,VL,VR,VX,XE,XT,ZE,ZX) SHADOW GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 58905-3202006 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX BROWN,BROWN,TRIM4# |
1 | ||
| 58905-3204005 |
CV1#,SV1#..4FC..(VF,VL,VR,VX,XE,XT,ZE,ZX) BEIGE,BEIGE,TRIM4# |
1 | ||
| 58905-3202004 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 58905-3204004 |
CV1#,SV1#..4FC..(VF,VL,VR,VX,XE,XT,ZE,ZX) BLUE,BLUE,TRIM8# |
1 | ||
| 58908B - HINGE SUB-ASSY, REAR CONSOLE ARMREST | ||||
| 58908-32010 |
CV1#,SV1#..4FC..(VF,VL,VR,VX,XE,XT,ZE,ZX) |
1 | ||
| 58916 - MAT, BOX BOTTOM | ||||
| 58916-32010 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX |
1 | ||
| 58916-32030 |
CV1#,SV1#..4FC..(VF,VL,VR,VX,XE,XT,ZE,ZX) |
1 | ||
| 58969A - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER | ||||
| 58969-20010 |
CV1#,SV1# |
2 | ||
| 58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK | ||||
| 58976-20010 |
CV1#,SV1# |
1 | ||
| Common parts | ||||
| 90164-40052 | ||||
| 90176-04015 | ||||
| 90541-06021 | ||||
| 93560-54012 | ||||
| 93560-55014 | ||||
| 93566-54512 | ||||
