SV11-UEMNE (1982)
Toyota Camry/Vista
(8203-8406)LT,VC,VL,XT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

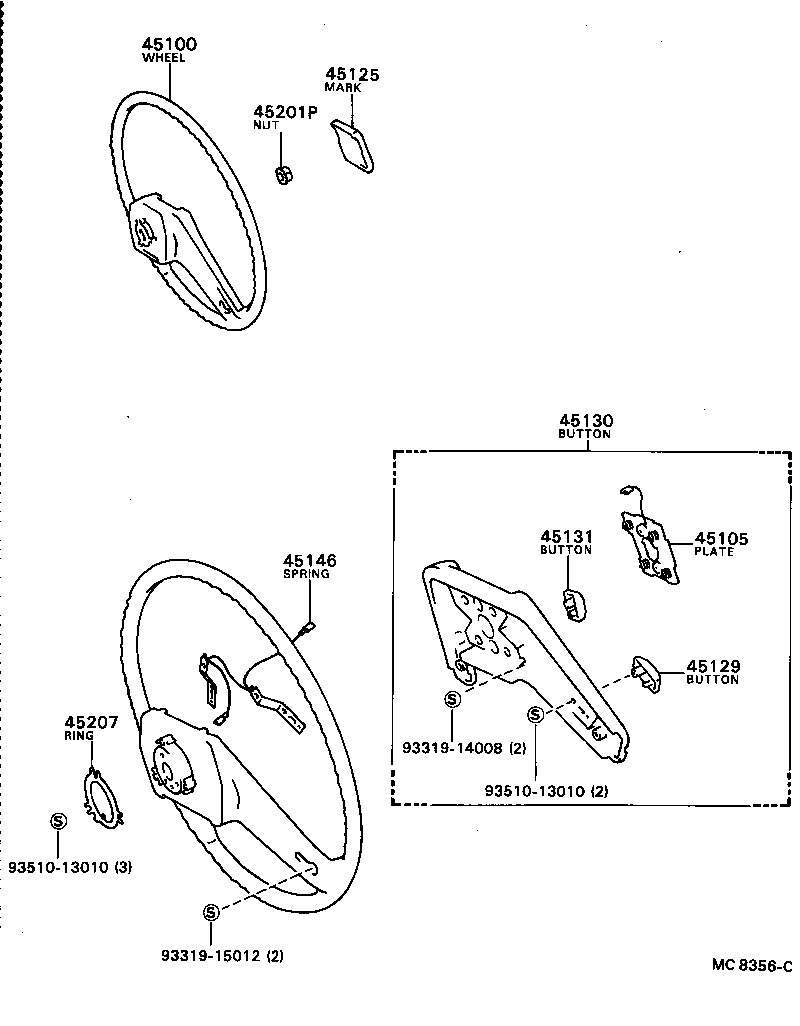

| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-3202001 |
SV1#..4D..VL BLACK,EXTRA,BLACK,TRIM1#,8# |
1 | ||
| 45100-3201001 |
SV1#..LT,VC,VL,XT BLACK,BLACK,TRIM1#,8# |
1 | ||
| 45100-3201006 |
SV1#..LT,VC,VL,XT DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 45100-3202001 |
SV1#..VL BLACK,EXTRA,BLACK,TRIM1#,8# |
1 | ||
| 45100-3202001 |
SV1#..SE,VE,VF,VX,XE,ZX BLACK,BLACK,TRIM1#,8# |
1 | ||
| 45100-3201004 |
CV10,SV1#..LT,VC,VL,XT BLUE,BLUE,TRIM8# |
1 | ||
| 45100-3201016 |
CV10,SV1#..LT,VC,VL,XT DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45100-3202016 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45100-3202006 |
SV1#..SE,VE,VF,VX,XE,ZX DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 45100-3202013 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX DARK GRAY,GRAY,TRIM1# |
1 | ||
| 45100-3202014 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 45100-3201003 |
CV10,SV1#..LT,VC,VL,XT DARK GRAY,GRAY,TRIM1# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-32020 |
CV10,SV1#..SE,VE,VF,XE,ZX |
1 | ||
| 45105-32010 |
CV10,SV1#..LT,VC,VL,XT |
1 | ||
| 45105-32020 |
SV1#..4D..VL EXTRA |
1 | ||
| 45105-32020 |
SV1#..VL EXTRA |
1 | ||
| 45125 - MARK, STEERING WHEEL PAD | ||||
| 45125-3202001 |
SV1#..VIS BLACK,BLACK,TRIM1#,8# |
1 | ||
| 45125-3202006 |
SV1#..VIS DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 45125-3202003 |
CV10,SV1#..VIS DARK GRAY,GRAY,TRIM1# |
1 | ||
| 45125-3202016 |
CV10,SV1#..VIS DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45125-3202004 |
CV10,SV1#..VIS BLUE,BLUE,TRIM8# |
1 | ||
| 45129 - BUTTON, HORN, NO.2 | ||||
| 45129-3201014 |
CV10,SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 45129-3201016 |
CV10,SV1# DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45129-3201023 |
CV10,SV1# DARK GRAY,GRAY,TRIM1# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-3201006 |
SV1#..LT,VC,VL,XT DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 45130-3201016 |
CV10,SV1#..LT,VC,VL,XT DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45130-3201023 |
CV10,SV1#..LT,VC,VL,XT DARK GRAY,GRAY,TRIM1# |
1 | ||
| 45130-3201014 |
CV10,SV1#..LT,VC,VL,XT BLUE,BLUE,TRIM8# |
1 | ||
| 45130-3201001 |
SV1#..LT,VC,VL,XT BLACK,BLACK |
1 | ||
| 45131 - BUTTON, HORN, NO.1 | ||||
| 45131-3201016 |
CV10,SV1# DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45131-3201014 |
CV10,SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 45131-3201001 |
SV1# BLACK,BLACK,TRIM1#,8# |
1 | ||
| 45131-3201006 |
SV1# DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 45131-3201023 |
CV10,SV1# DARK GRAY,GRAY,TRIM1# |
1 | ||
| 45146 - SPRING, HORN BUTTON CONTACT | ||||
| 45146-32020 |
SV1#..VL EXTRA |
1 | ||
| 45146-32020 |
SV1#..4D..VL EXTRA |
1 | ||
| 45146-32010 |
CV10,SV1#..LT,VC,VL,XT |
1 | ||
| 45146-32020 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
CV1#,SV1# |
1 | ||
| 45207 - RING, HORN CONTACT | ||||
| 45176-32010 |
SV1#..4D..VL EXTRA |
1 | ||
| 45176-32010 |
SV1#..VL EXTRA |
1 | ||
| Common parts | ||||
| 93319-14008 | ||||
| 93319-15012 | ||||
| 93510-13010 | ||||
(8203-8406)SE,VE,VX,XE,ZX ; (8210-8212)4D..VL ;(8308-8406)CV10..VL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-3202001 |
SV1#..4D..VL BLACK,EXTRA,BLACK,TRIM1#,8# |
1 | ||
| 45100-3201001 |
SV1#..LT,VC,VL,XT BLACK,BLACK,TRIM1#,8# |
1 | ||
| 45100-3201006 |
SV1#..LT,VC,VL,XT DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 45100-3202001 |
SV1#..VL BLACK,EXTRA,BLACK,TRIM1#,8# |
1 | ||
| 45100-3202001 |
SV1#..SE,VE,VF,VX,XE,ZX BLACK,BLACK,TRIM1#,8# |
1 | ||
| 45100-3201004 |
CV10,SV1#..LT,VC,VL,XT BLUE,BLUE,TRIM8# |
1 | ||
| 45100-3201016 |
CV10,SV1#..LT,VC,VL,XT DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45100-3202016 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45100-3202006 |
SV1#..SE,VE,VF,VX,XE,ZX DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 45100-3202013 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX DARK GRAY,GRAY,TRIM1# |
1 | ||
| 45100-3202014 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 45100-3201003 |
CV10,SV1#..LT,VC,VL,XT DARK GRAY,GRAY,TRIM1# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-32020 |
CV10,SV1#..SE,VE,VF,XE,ZX |
1 | ||
| 45105-32010 |
CV10,SV1#..LT,VC,VL,XT |
1 | ||
| 45105-32020 |
SV1#..4D..VL EXTRA |
1 | ||
| 45105-32020 |
SV1#..VL EXTRA |
1 | ||
| 45125 - MARK, STEERING WHEEL PAD | ||||
| 45125-3202001 |
SV1#..VIS BLACK,BLACK,TRIM1#,8# |
1 | ||
| 45125-3202006 |
SV1#..VIS DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 45125-3202003 |
CV10,SV1#..VIS DARK GRAY,GRAY,TRIM1# |
1 | ||
| 45125-3202016 |
CV10,SV1#..VIS DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45125-3202004 |
CV10,SV1#..VIS BLUE,BLUE,TRIM8# |
1 | ||
| 45129 - BUTTON, HORN, NO.2 | ||||
| 45129-3201014 |
CV10,SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 45129-3201016 |
CV10,SV1# DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45129-3201023 |
CV10,SV1# DARK GRAY,GRAY,TRIM1# |
1 | ||
| 45131 - BUTTON, HORN, NO.1 | ||||
| 45131-3201016 |
CV10,SV1# DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45131-3201014 |
CV10,SV1# BLUE,BLUE,TRIM8# |
1 | ||
| 45131-3201001 |
SV1# BLACK,BLACK,TRIM1#,8# |
1 | ||
| 45131-3201006 |
SV1# DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 45131-3201023 |
CV10,SV1# DARK GRAY,GRAY,TRIM1# |
1 | ||
| 45146 - SPRING, HORN BUTTON CONTACT | ||||
| 45146-32020 |
SV1#..VL EXTRA |
1 | ||
| 45146-32020 |
SV1#..4D..VL EXTRA |
1 | ||
| 45146-32010 |
CV10,SV1#..LT,VC,VL,XT |
1 | ||
| 45146-32020 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX |
1 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-3201001 |
SV1#..VL BLACK,EXTRA,BLACK,TRIM1#,8# |
1 | ||
| 45180-3201016 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45180-3201023 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX DARK GRAY,GRAY,TRIM1# |
1 | ||
| 45180-3201006 |
SV1#..SE,VE,VF,VX,XE,ZX DEEP BROWN,BROWN,TRIM4# |
1 | ||
| 45180-3201001 |
SV1#..SE,VE,VF,VX,XE,ZX BLACK,BLACK,TRIM1#,8# |
1 | ||
| 45180-3201014 |
CV10,SV1#..SE,VE,VF,VX,XE,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 45180-3201001 |
SV1#..4D..VL BLACK,EXTRA,BLACK,TRIM1#,8# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12086 |
CV1#,SV1# |
1 | ||
| 45207 - RING, HORN CONTACT | ||||
| 45176-32010 |
SV1#..4D..VL EXTRA |
1 | ||
| 45176-32010 |
SV1#..VL EXTRA |
1 | ||
| Common parts | ||||
| 93316-14020 | ||||
| 93510-13010 | ||||
| 93540-44016 | ||||
