SV11-JEMNE (1982)

Toyota Camry/Vista

Production Aug 1982 - Jun 1984
Engine 2SELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )SV11

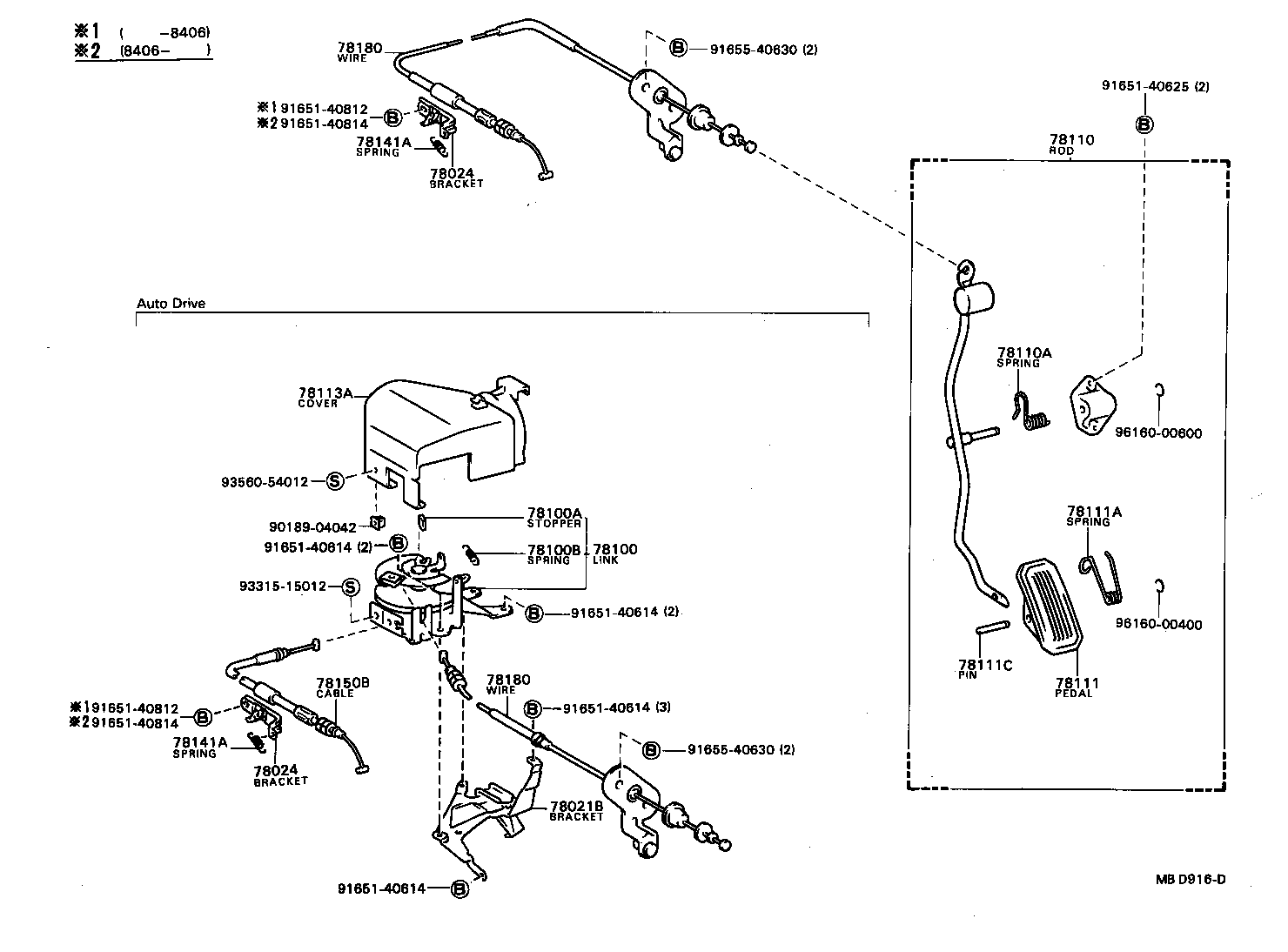

Click highlighted areas on diagram

diagram 78021B 78024 78024 78100 78100A 78100B 78110 78110A 78111 78111A 78111C 78113A 78141A 78141A 78150B 78180 78180 9018904042 9165140614 9165140614 9165140614 9165140614 9165140625 9165140812 9165140812 9165140814 9165140814 9165540630 9165540630 9331515012 9356054012 9616000400 9616000600
Part # Description Qty Price
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-32040

CV10;SV11..5F

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-23069

CV10;SV11..5F

 1
78111 - PEDAL, ACCELERATOR
78111-32010

CV10,SV1#

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-23003

CV1#,SV1#

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

CV1#,SV1#

 1
78141A - SPRING, TENSION(FOR ACCELERATOR WIRE RETURN SPRING)
90506-12041

SV11..5F

 1
78141A - SPRING, TENSION(FOR ACCELERATOR WIRE RETURN SPRING)
90506-12041

SV11..5F

 1
Common parts
90189-04042
91651-40614
91651-40625
91651-40812
91651-40814
91655-40630
93315-15012
93560-54012
96160-00400
96160-00600
